91814-3132 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 91814-3132

91814-3132: Description2.54mm (.100") Pitch C-Grid III Dual Row Right Angle Shrouded Header, 32 Circuits, Tin (Sn) over Nickel (Ni); CategoryThe connector The connector; File Size122KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

91814-3132 Overview

2.54mm (.100") Pitch C-Grid III Dual Row Right Angle Shrouded Header, 32 Circuits, Tin (Sn) over Nickel (Ni)

91814-3132 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	compli
body width	0.383 inch
subject depth	0.519 inch
body length	1.692 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	700VAC V
Durability	30 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
Manufacturer's serial number	91814
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	118u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.082 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32

Preview

Download Datasheet

View All

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0918143132

Active

cgrid_iii

2.54mm (.100") Pitch C-Grid III™ Dual Row Right Angle Shrouded Header, 32 Circuits,

Tin (Sn) over Nickel (Ni)

Documents:

3D Model

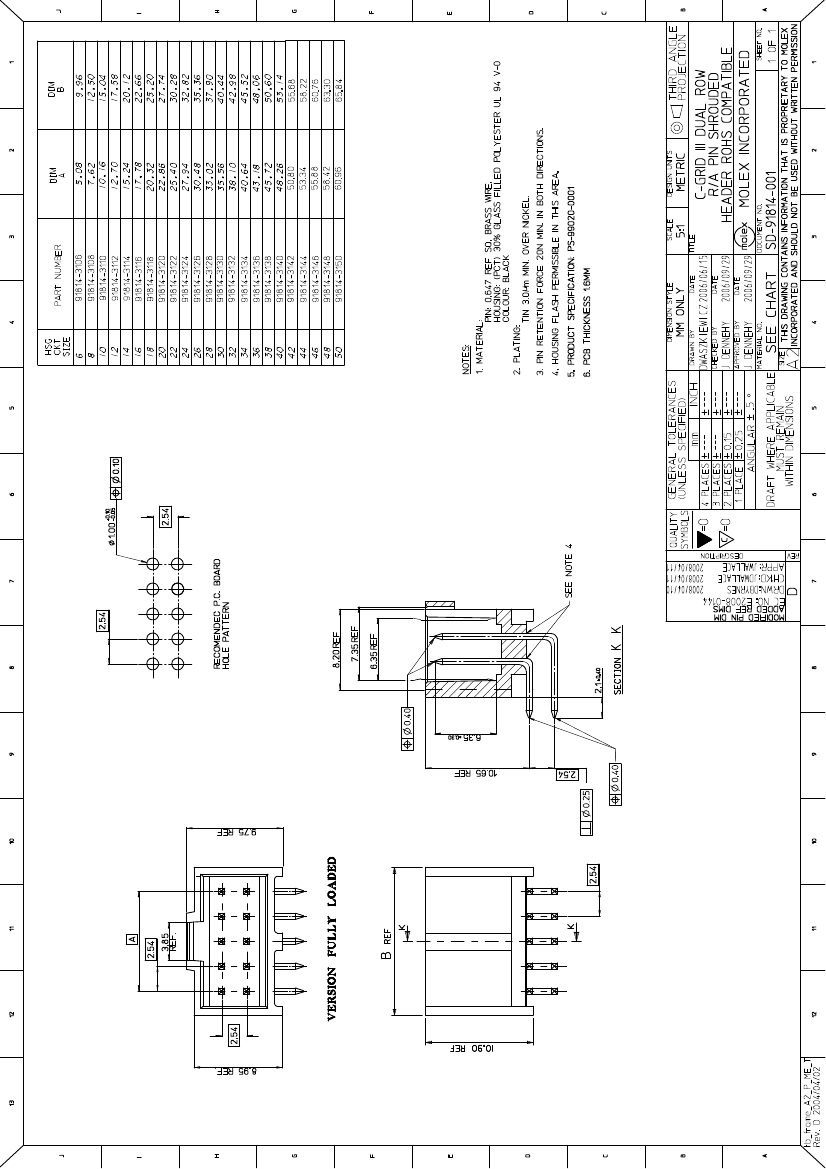

Drawing (PDF)

Product Specification PS-99020-0001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

91814

Wire-to-Board

cgrid_iii

C-Grid III™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Black

None

Brass

Tin

High Temperature Thermoplastic

Right Angle

0.083 In

2.10 mm

None

0.063 In

1.60 mm

Tray

0.100 In

2.54 mm

0.100 In

2.54 mm

120

Yes

Closed Ends

Yes

-55°C to +125°C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

91814S

Mates

90142

Grid III
