KPJA-2107CGCK: DescriptionSingle Color LED, Green, Water Clear, 0.8mm, 2.10 X 0.70 MM, 1.30 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size73KB，4 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

KPJA-2107CGCK Overview

Single Color LED, Green, Water Clear, 0.8mm, 2.10 X 0.70 MM, 1.30 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN

KPJA-2107CGCK Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	2.10 X 0.70 MM, 1.30 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compli
ECCN code	EAR99
color	GREEN
color@wavelength	Green-Yellow
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.5 V
Lens type	WATER CLEAR
minimum luminous intensity	120 cd
Nominal luminous intensity	60.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.8 mm
method of packing	TAPE AND REEL
peak wavelength	574 nm
Maximum reverse voltage	5 V
shape	RECTANGULAR
size	0.8 mm
surface mount	YES
Terminal pitch	2.6 mm
perspective	120 deg
Base Number Matches	1

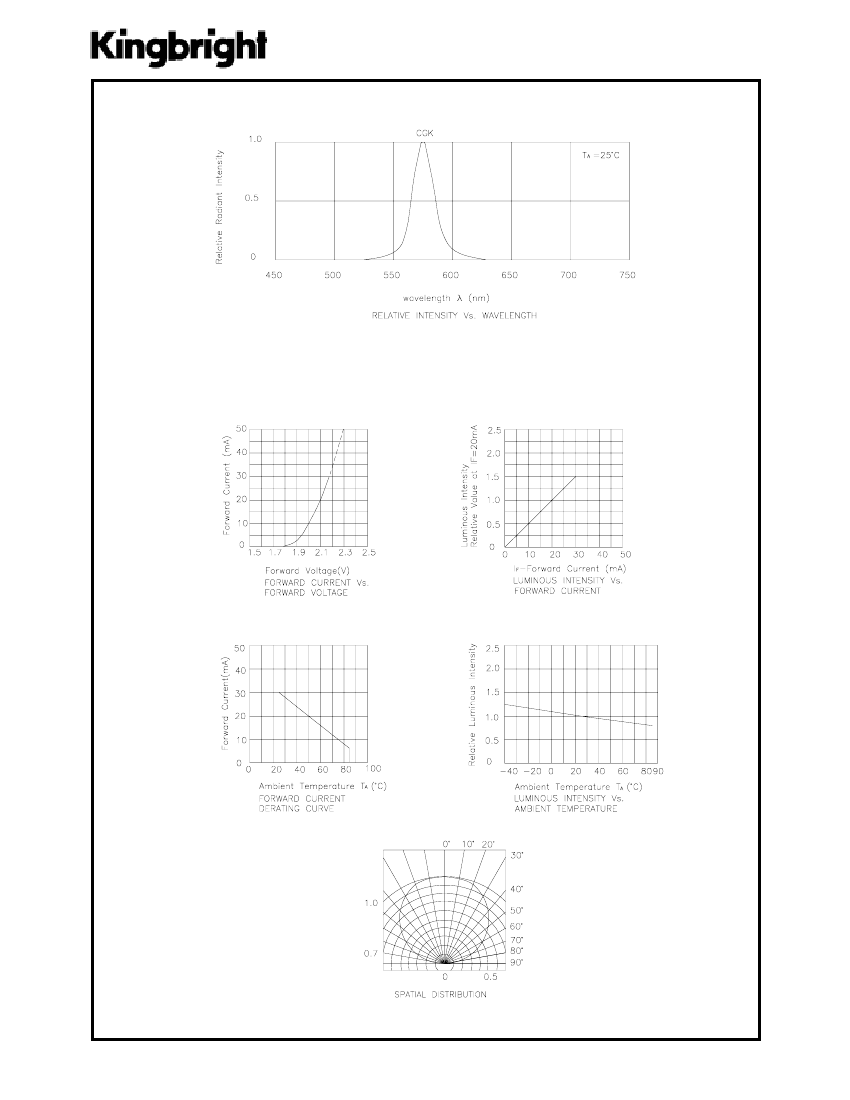

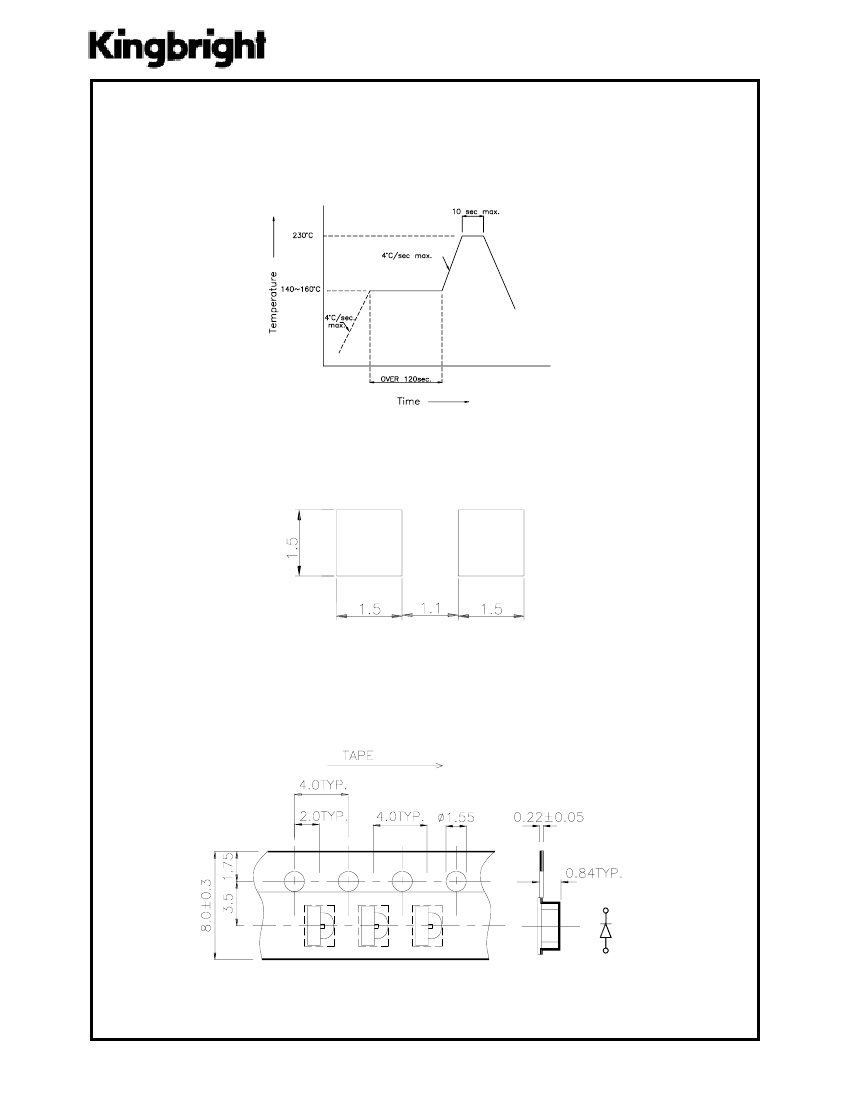

Preview

Download Datasheet

View All

2.1x0.7 mm SMD CHIP LED LAMP

KPJA-2107CGCK

GREEN

Features

2.1mmx0.7mm SMT LED, 1.3mm THICKNESS.

LOW

Description

The Green source color devices are made with

InGaAlP on GaAs substrate Light Emitting Diode.

POWER CONSUMPTION.

VIEWING ANGLE.

FOR BACKLIGHT AND INDICATOR.

COLORS AND LENS TYPES AVAILABLE.

: 2000PCS / REEL.

WIDE

IDEAL

VARIOUS

PACKAGE

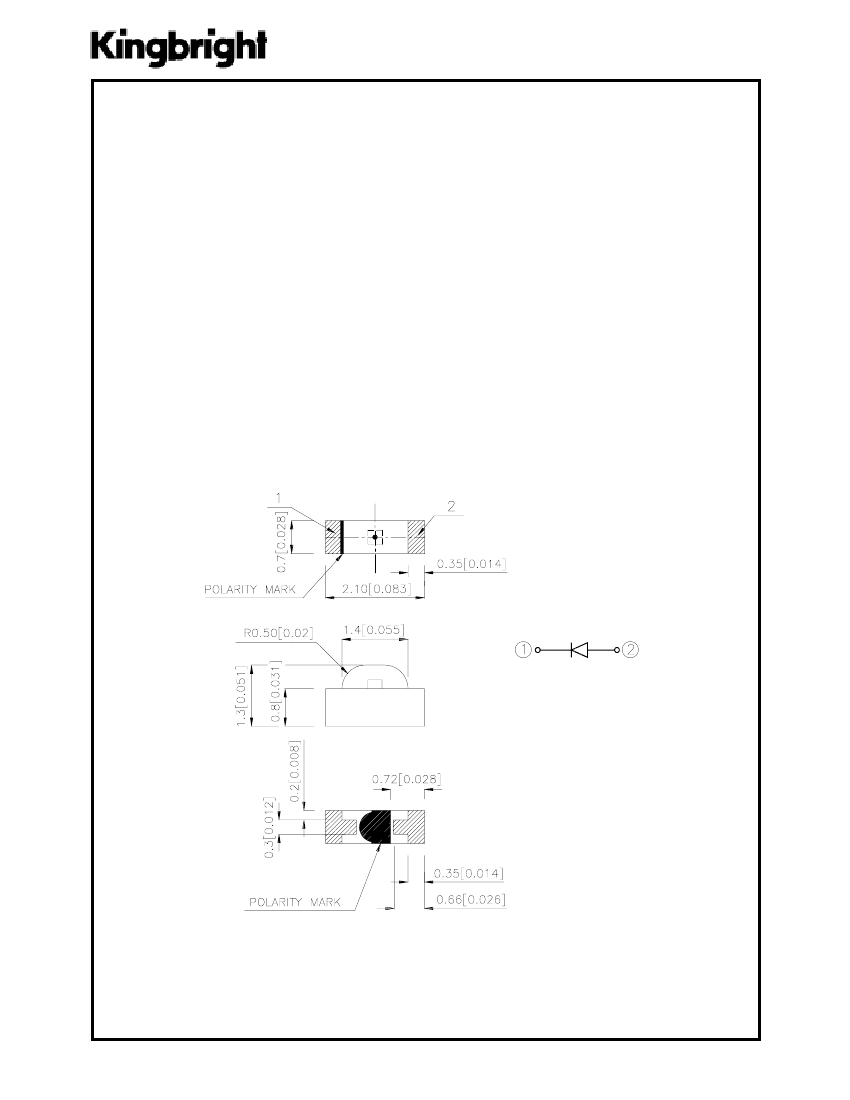

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.15(0.006")

unless otherwise noted.

3. Specifications are subject to change without notice.

SPEC NO: DSAB6378

APPROVED : J. Lu

REV NO: V.2

CHECKED : Allen Liu

DATE:NOV/29/2002

DRAWN:Y.H.LI

PAGE: 1 OF 4
