ATT-583F-39-HNO-02 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ATT-583F-39-HNO-02

ATT-583F-39-HNO-02: DescriptionFixed Attenuator, 0MHz Min, 2000MHz Max, STAINLESS STEEL; CategoryWireless rf/communication Radio frequency and microwave; File Size62KB，1 Pages; ManufacturerMidwest Microwave

Download Datasheet Parametric View All

ATT-583F-39-HNO-02 Overview

Fixed Attenuator, 0MHz Min, 2000MHz Max, STAINLESS STEEL

ATT-583F-39-HNO-02 Parametric

Parameter Name	Attribute value
Maker	Midwest Microwave
Reach Compliance Code	unknow
Other features	HN-F, I/P POWER-MAX(PEAK)=200W
Nominal attenuation	39 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	2000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.25

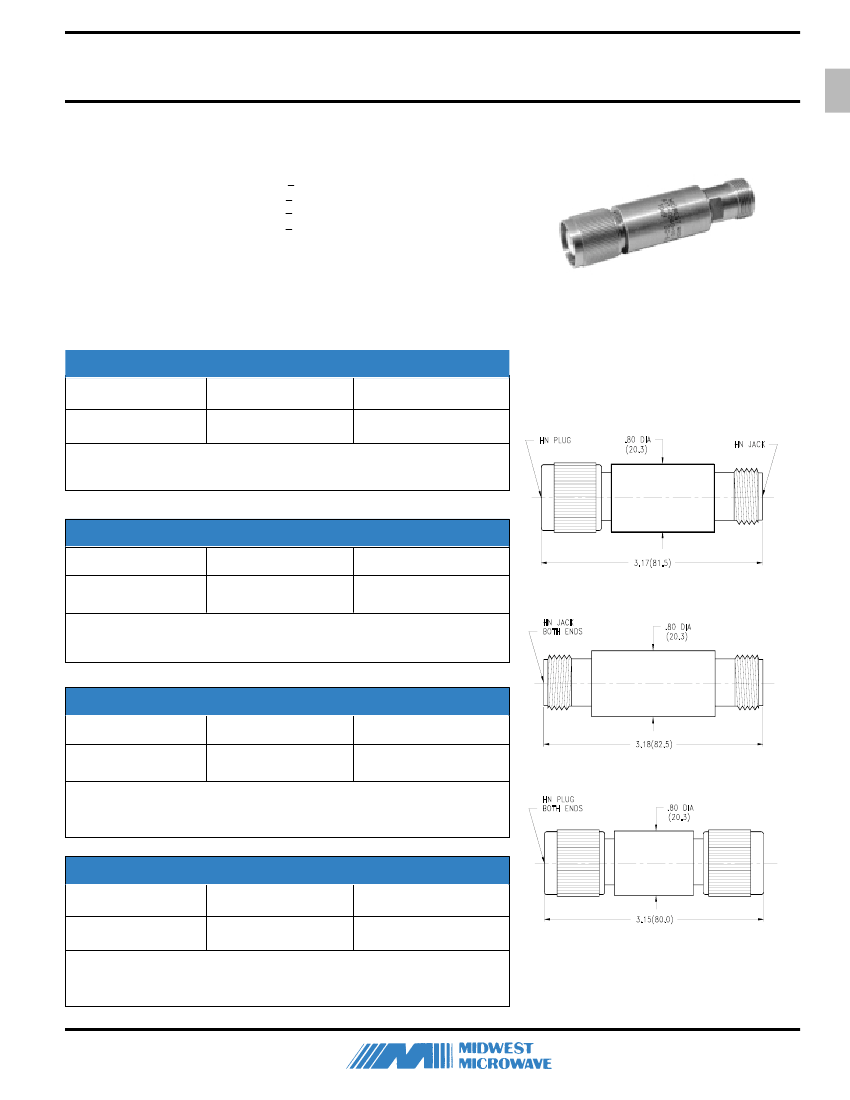

Preview

Download Datasheet

View All

Attenuators

DC - 8 GHz Performance

Frequency:

DC - 8.0 GHz and DC - 2.0 units available

Attenuation Values:

1 - 60 dB in 1 dB increments

Attenuation Accuracy:

1 - 6 dB + 0. 3 dB

7 - 20 dB

21 - 40 dB

41 - 60 dB

+ 0. 5 dB

+ 0.75 dB

+ 1.0 dB

HN Type

Impedance:

50 Ohms

VSWR:

1.25 max

Power:

2Watts average @ 25 C derated linearly to 0.5 Watts @ 125 C

10 Watts average @ 40C derated linearly to 0.5 watts @ 125 C

Peak Power:

0.2 Kilowatts

Operating Temperature Range:

-54C to +125C

Finish:

Stainless Steel

DC - 8.0 GHz

Male / Female

584 Series

Female / Female

Model Number

Male / Male

ATT-584M-XX-HNO-02

ATT-0584-XX-HNO-02 ATT-584F-XX-HNO-02

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

DC - 2.0 GHz

Male/Female

583Series

Female/Female

Model Number

Male/Male

ATT-583M-XX-HNO-02

ATT-0583-XX-HNO-02 ATT-583F-XX-HNO-02

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

DC - 8.0 GHz

Male/Female

586 Series

Female/Female

Model Number

Male/Male

ATT-586M-XX-HNO-07

ATT-0586-XX-HNO-07 ATT-586F-XX-HNO-07

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

10 Watts

DC - 2.0 GHz

Male/Female

585 Series

Female/Female

Model Number

Male/Male

ATT-585M-XX-HNO-07

ATT-0585-XX-HNO-07 ATT-585F-XX-HNO-07

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

10 Watts - 5 Kilowatts Peak
