MEMS BIOMEDICAL M
X
N BLOCKING SWITCH
DiCon’s MEMS Biomedical MxN Blocking Optical Switch allows
one of M input
fi
bers to connect to one of N output
fi
bers, and
blocks all other inputs. This allows one source from many to be
selected and to connect to one desired output
fi
ber. Based on Di-
Con’s industry proven MEMS technology, DiCon uses proprietary
techniques to optimize the performance of traditional telecommu-
nications
fi
ber optic switches for biomedical use.
FEATURES
Proven MEMS Technology
Lifetime > 1 Billion Switch Cycles
Optimized for Biomedical Usage
APPLICATIONS
Biomedical Research or OEM Usage
Diffuse Optical Tomography
Oximetry
Source or Target Selection
Specifications subject to change. Copyright © 2012 DiCon Fiberoptics, Inc. All rights reserved.
OPTICAL SPECIFICATIONS
1,2
PARAMETER
Insertion
Loss
3
4
ORDERING INFORMATION
MS2
Product Code
MS2
MEMS Switch
2x8, 4x8
5x8, 7x8
Crosstalk
Back Reflection
Switching Time
TDL
Repeatability
5
Durability
Optical Power
Operating Temp
Storage Temp
Fiber Type
RATING
3.0 dB max.
3.5 dB max.
-25 dB max.
-20 dB max.
40 ms max.
0.4 dB max.
0.04 dB max.
10
9
cycles min.
500 mW max.
-5 to 70
o
C
-40 to 85
o
C
Multi-mode, Bare Fiber
/BK
Switch Configuration
MxN
MxN
Specify 2≤M≤7, 2≤N≤8
Control Interface
I2C
RS2
TTL
I
2
C
RS232
TTL
Wavelength Range
7
680 - 850 nm
Other wavelengths available upon special request
1. Specifications are without connectors.
2. Aligned for broadband use. With parking state for Biomedical usage.
3. IL is measured at 850 nm, 23
o
C.
4. Power off isolation is same as crosstalk.
5. Repeatability is defined after 100 cycles.
Fiber and Jacket Type
50/LT
62/LT
Connector
FC/SPC
FC/UPC
N
50um core, loose tube
62.5um core, loose tube
Type
FC/SPC
FC/UPC
NONE

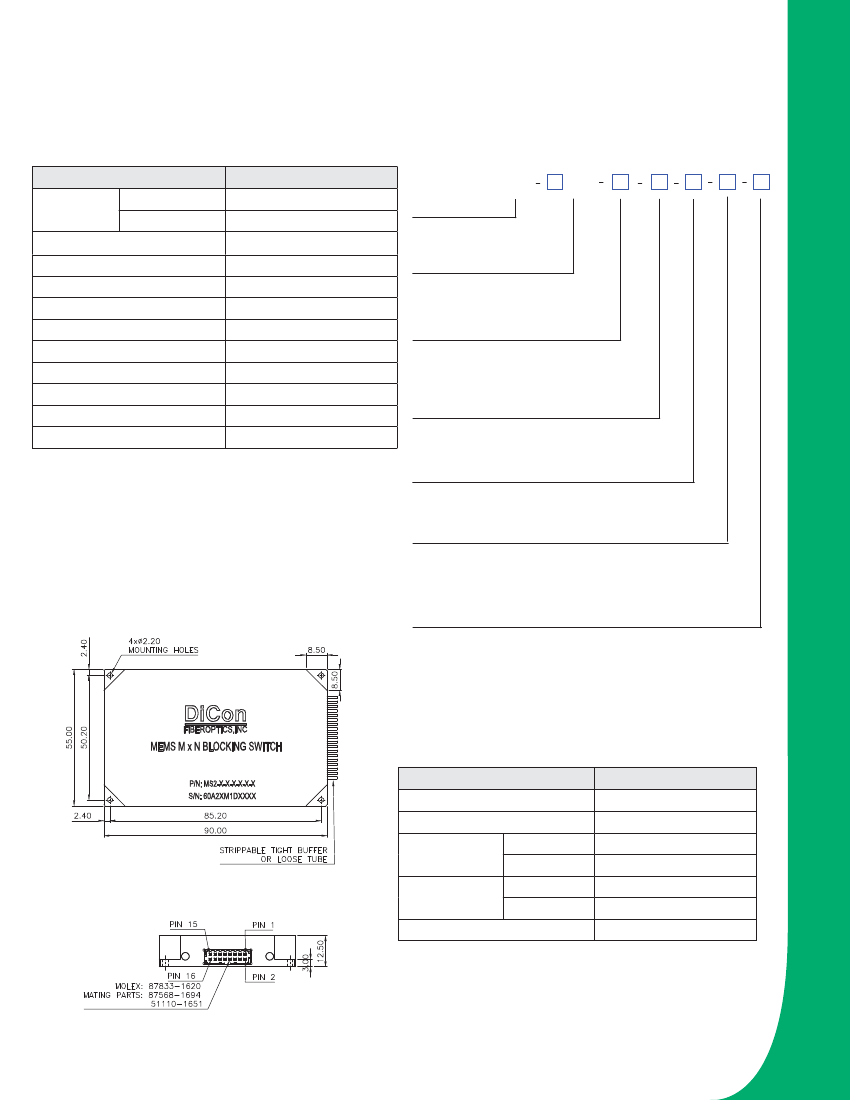

MECHANICAL DIMENSIONS
(Units: mm)
Also Available: SC, SC/UPC, ST, ST/UPC, LC
Top View
Pigtail Length
1
X
1 Meter
Specify X Meters
Tolerance is +/- 0.05 m
ELECTRICAL SPECIFICATIONS
PARAMETER
Latching Type
Control Type
Vcc
I
2
C, RS232
Voltage
TTL
Power
I
2
C, RS232
Consumption TTL
Connector Type
RATING
non-latching
I
2
C, RS232 or TTL
12 VDC
5 VDC
700 mW max.
1.5 W max.
Molex 87833-1620
Left Side View
DiCon Fiberoptics, Inc. 1689 Regatta Blvd. Richmond, CA 94804 Tel. (510) 620-5000 Fax. (510) 620-4100 www.diconfiberoptics.com
0225A
MEMS BIOMEDICAL MXN BLOCKING OPTICAL SWITCH
