503369-2000

Description
2.50mm (.098") Pitch Floating Wire-to-Board Plug housing, Dual Row, 20 Circuits
CategoryThe connector    The connector
File Size133KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

503369-2000 Overview

2.50mm (.098") Pitch Floating Wire-to-Board Plug housing, Dual Row, 20 Circuits

503369-2000 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact materialNOT SPECIFIED
Base Number Matches1
This document was generated on 05/18/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Description:
Documents:
3D Model
Drawing (PDF)
5033692000
Active
2.50mm (.098") Pitch Floating Wire-to-Board Plug housing, Dual Row, 20 Circuits
Product Specification PS-503367-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Comments
Product Name
Crimp Housings
503369
Panel mount with plug adaptor
N/A
Physical
Circuits (maximum)
Color - Resin
Gender
Glow-Wire Compliant
Keying to Mating Part
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Temperature Range - Operating
20
Black
Plug
No
Yes
2
Bag
Yes
0.098 In
2.50 mm
Yes
-25°C to +85°C
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Electrical
Current - Maximum per Contact
3A
Search
503369
Material Info
Reference - Drawing Numbers
Application Specification
Product Specification
Sales Drawing
AS-503367-001
PS-503367-001
SD-503369-001
Mates
503367
Use W
503371
Adapto
This document was generated on 05/18/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

503369-2000 Related Products

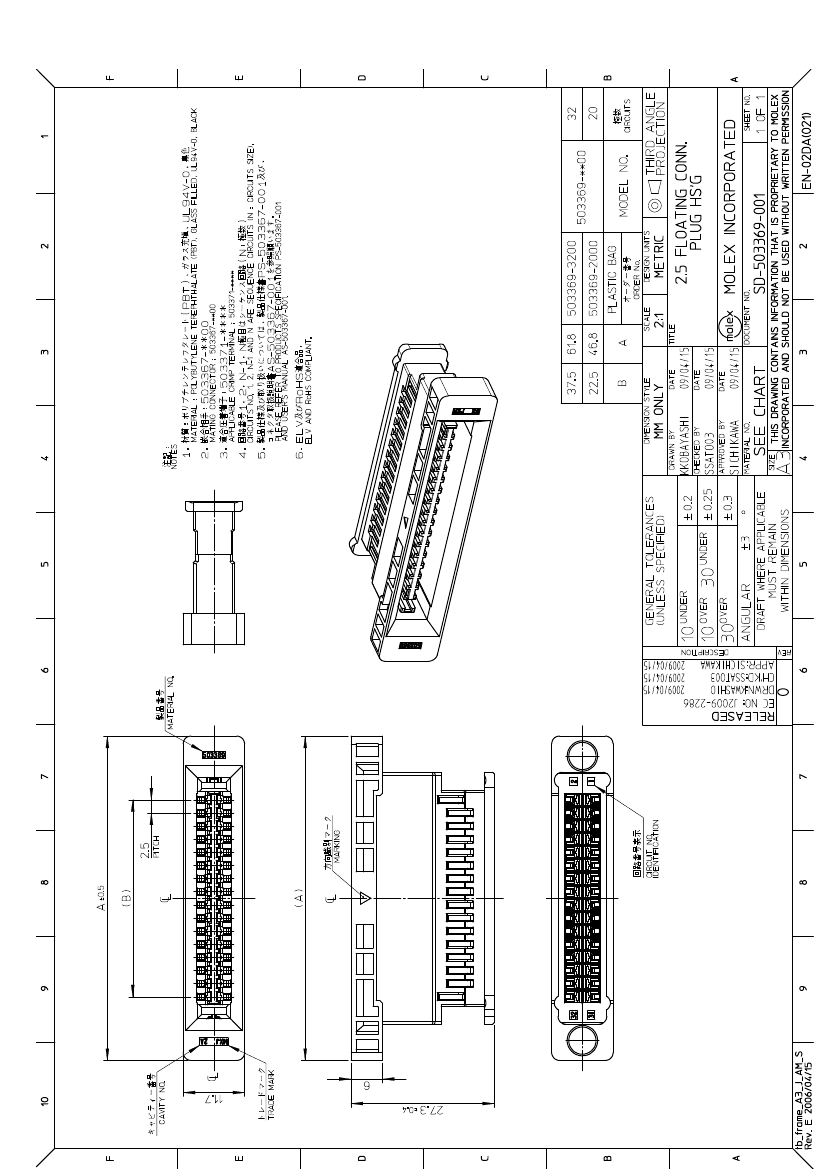

503369-2000 SD-503369-001
