N1200CH42 datasheet, PDF - EEWORLD Datasheet

N1200CH42: DescriptionSilicon Controlled Rectifier, 5590A I(T)RMS, 4850000mA I(T), 4200V V(DRM), 4200V V(RRM), 1 Element; CategoryAnalog mixed-signal IC Trigger device; File Size237KB，3 Pages; ManufacturerIXYS

Download Datasheet Parametric View All

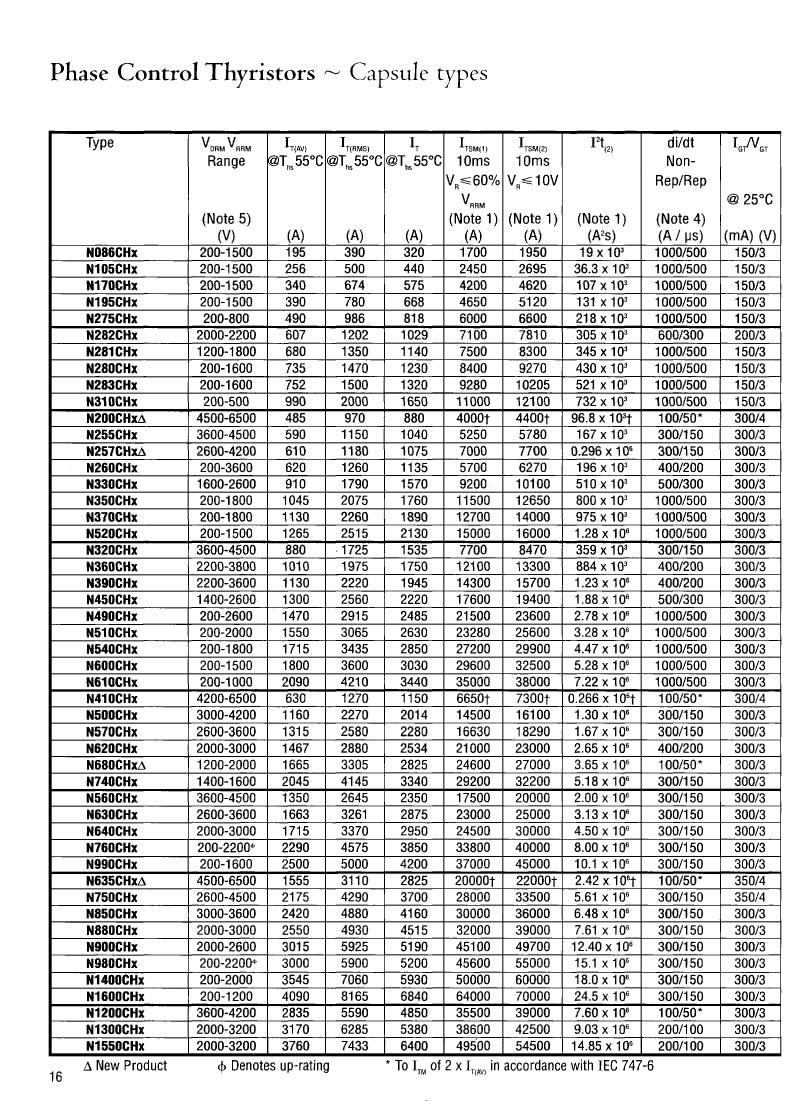

N1200CH42 Overview

Silicon Controlled Rectifier, 5590A I(T)RMS, 4850000mA I(T), 4200V V(DRM), 4200V V(RRM), 1 Element

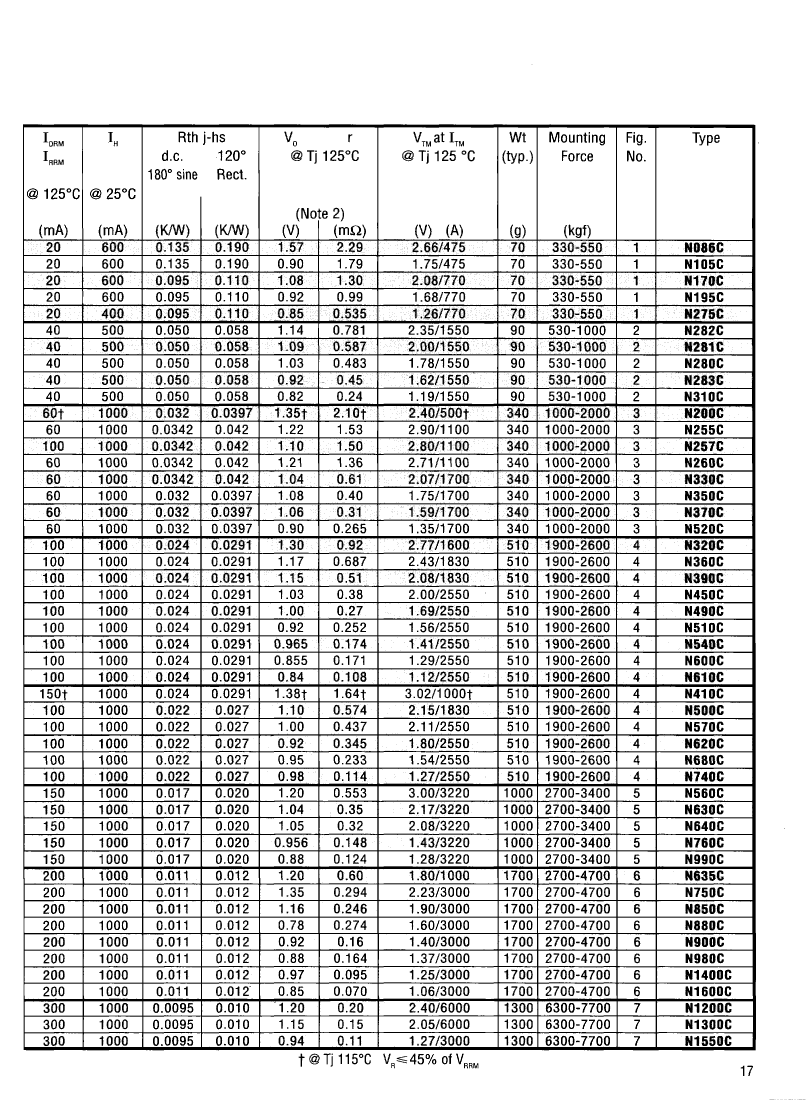

Parameter Name	Attribute value
Maker	IXYS
package instruction	DISK BUTTON, O-MEDB-N2
Reach Compliance Code	unknown
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	300 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	1000 mA
JESD-30 code	O-MEDB-N2
On-state non-repetitive peak current	35500 A
Number of components	1
Number of terminals	2
Maximum on-state current	4850000 A

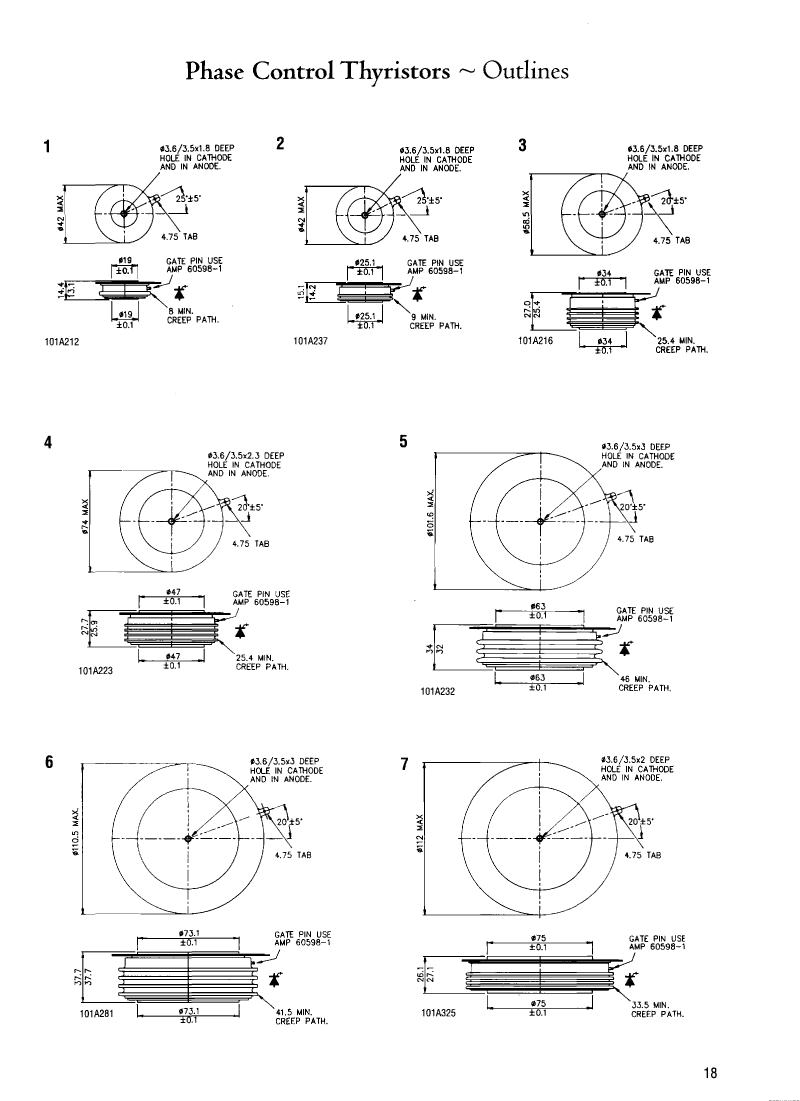

Package body material	METAL
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum rms on-state current	5590 A
Maximum repetitive peak off-state leakage current	300000 µA
Off-state repetitive peak voltage	4200 V
Repeated peak reverse voltage	4200 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	END
Trigger device type	SCR
