HD74HC652FP datasheet, PDF - EEWORLD Datasheet

HD74HC652FP: DescriptionHC/UH SERIES, 8-BIT REGISTERED TRANSCEIVER, PDSO24; Categorylogic logic; File Size5MB，4 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

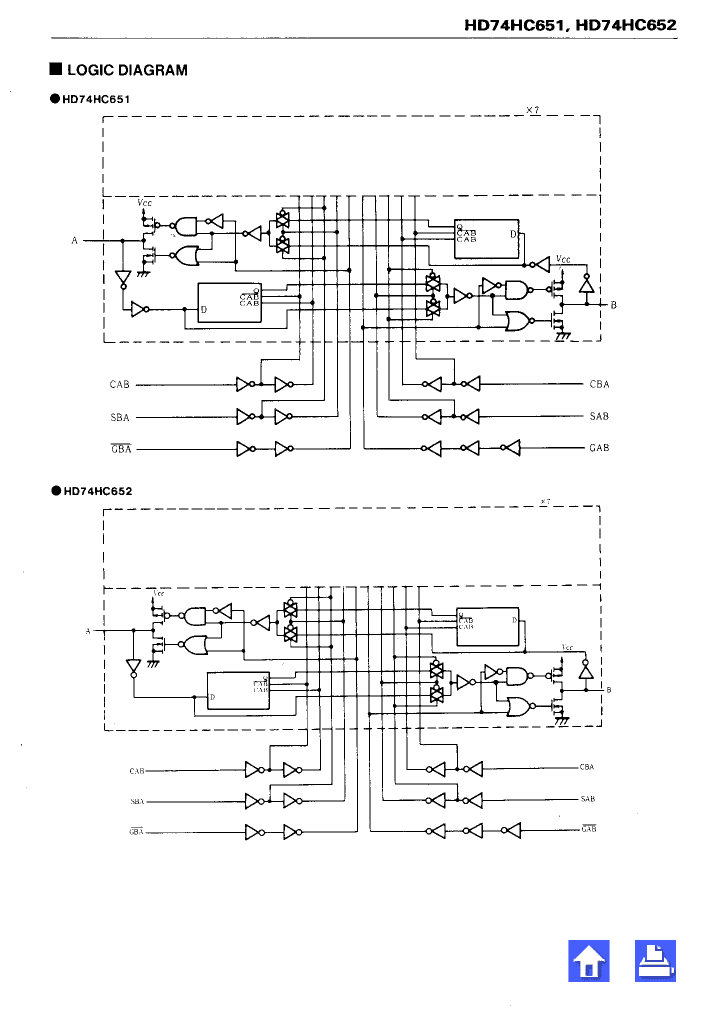

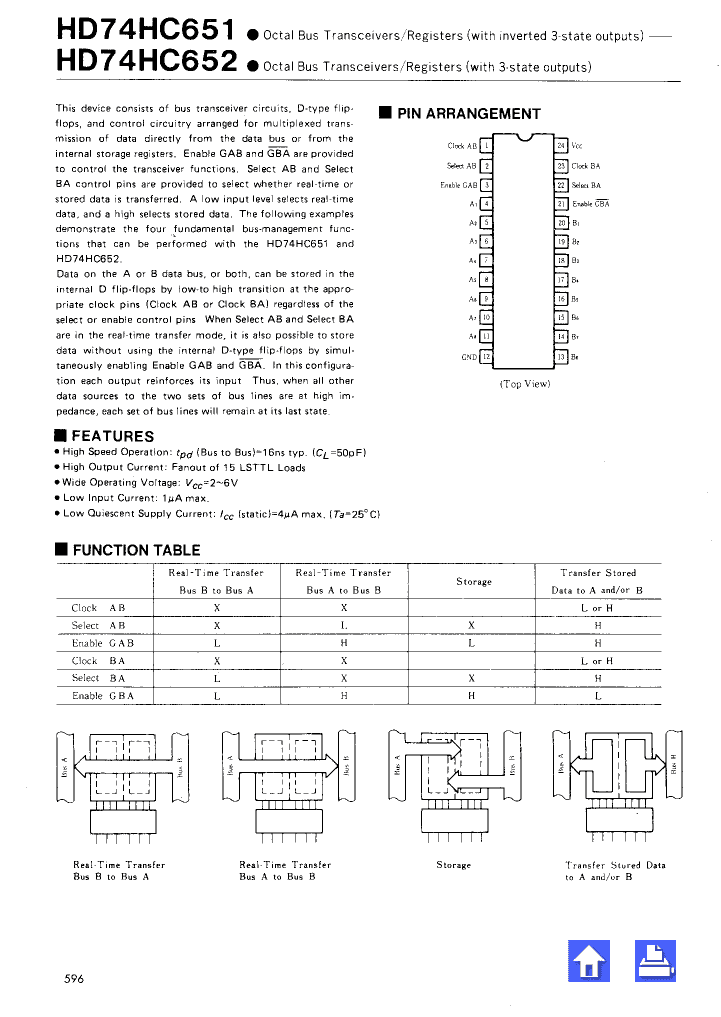

HD74HC652FP Overview

HC/UH SERIES, 8-BIT REGISTERED TRANSCEIVER, PDSO24

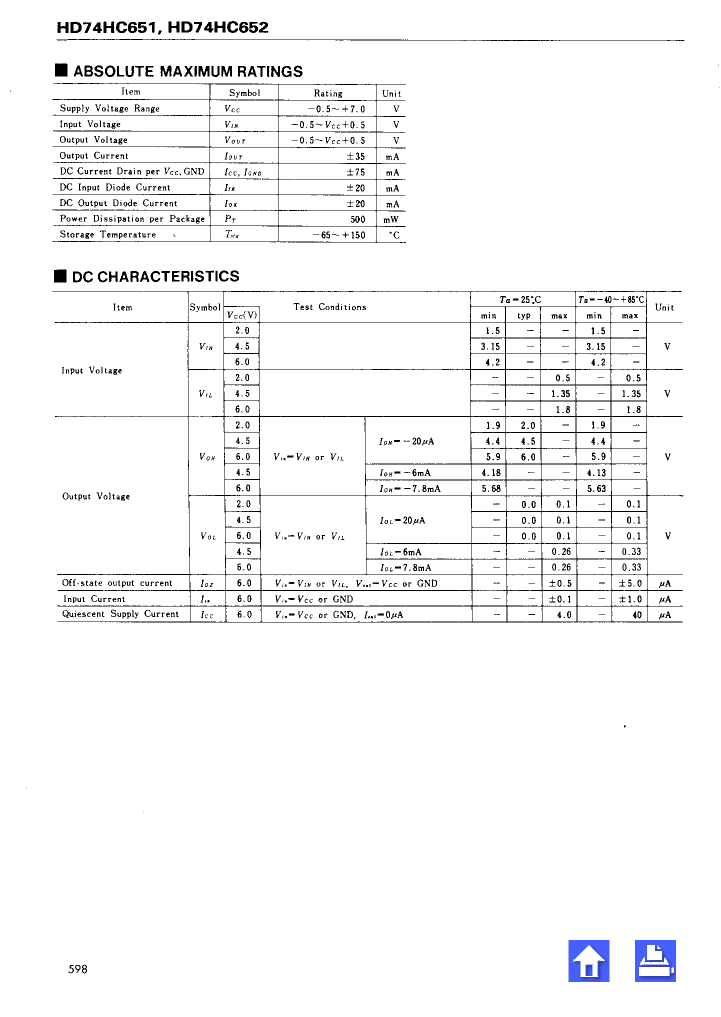

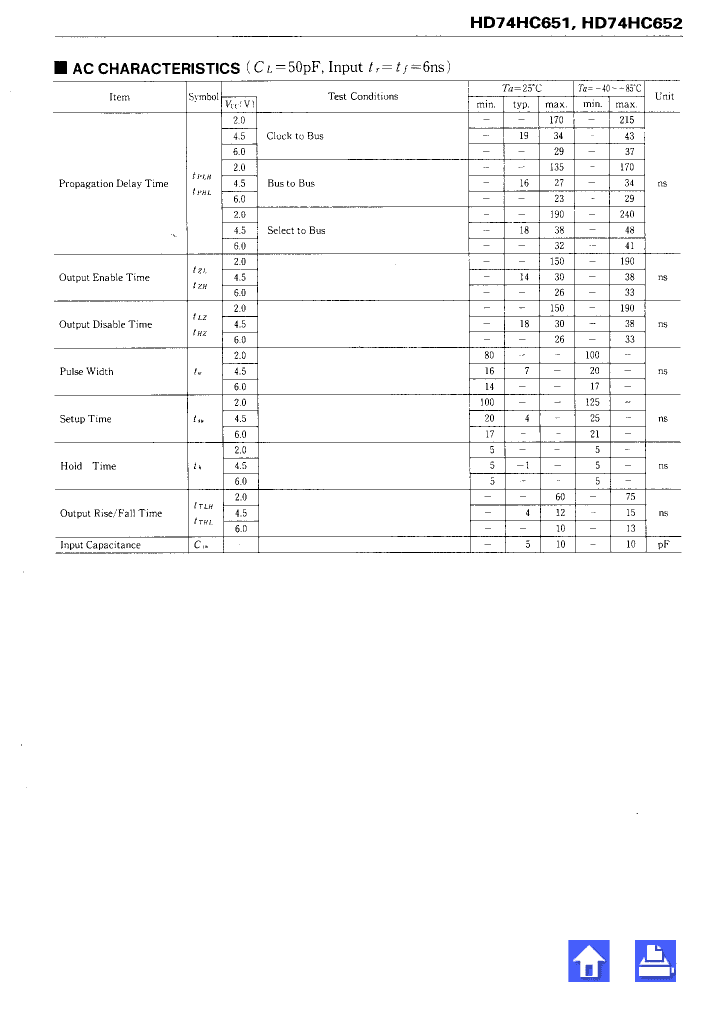

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
package instruction	SSOP,
Reach Compliance Code	compliant
series	HC/UH
JESD-30 code	R-PDSO-G24
length	8.2 mm
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of terminals	24
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	2.1 mm
surface mount	YES
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	5.3 mm

Home

Print

	HD74HC652FP	HD74HC652RP	HD74HC651FP	HD74HC651RP
Description	HC/UH SERIES, 8-BIT REGISTERED TRANSCEIVER, PDSO24	HC/UH SERIES, 8-BIT REGISTERED TRANSCEIVER, PDSO24	HC/UH SERIES, 8-BIT REGISTERED TRANSCEIVER, PDSO24	HC/UH SERIES, 8-BIT REGISTERED TRANSCEIVER, PDSO24
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
package instruction	SSOP,	SOP,	SSOP,	SOP,
Reach Compliance Code	compliant	compliant	unknown	unknown
series	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
length	8.2 mm	15.8 mm	8.2 mm	15.8 mm
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	24	24	24	24
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SOP	SSOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.1 mm	2.5 mm	2.1 mm	2.5 mm
surface mount	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	1.27 mm	0.65 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	5.3 mm	8.4 mm	5.3 mm	8.4 mm
