BYG24D-HE3/TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYG24D-HE3/TR

BYG24D-HE3/TR: DescriptionDIODE 1.5 A, 200 V, SILICON, RECTIFIER DIODE, DO-214AC, ROHS COMPLIANT, PLASTIC, SMD, SMA, 2 PIN, Rectifier Diode; CategoryDiscrete semiconductor diode; File Size82KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BYG24D-HE3/TR Overview

DIODE 1.5 A, 200 V, SILICON, RECTIFIER DIODE, DO-214AC, ROHS COMPLIANT, PLASTIC, SMD, SMA, 2 PIN, Rectifier Diode

BYG24D-HE3/TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	DO-214AC
package instruction	ROHS COMPLIANT, PLASTIC, SMD, SMA, 2 PIN
Contacts	2
Reach Compliance Code	unknown

Preview

Download Datasheet

View All

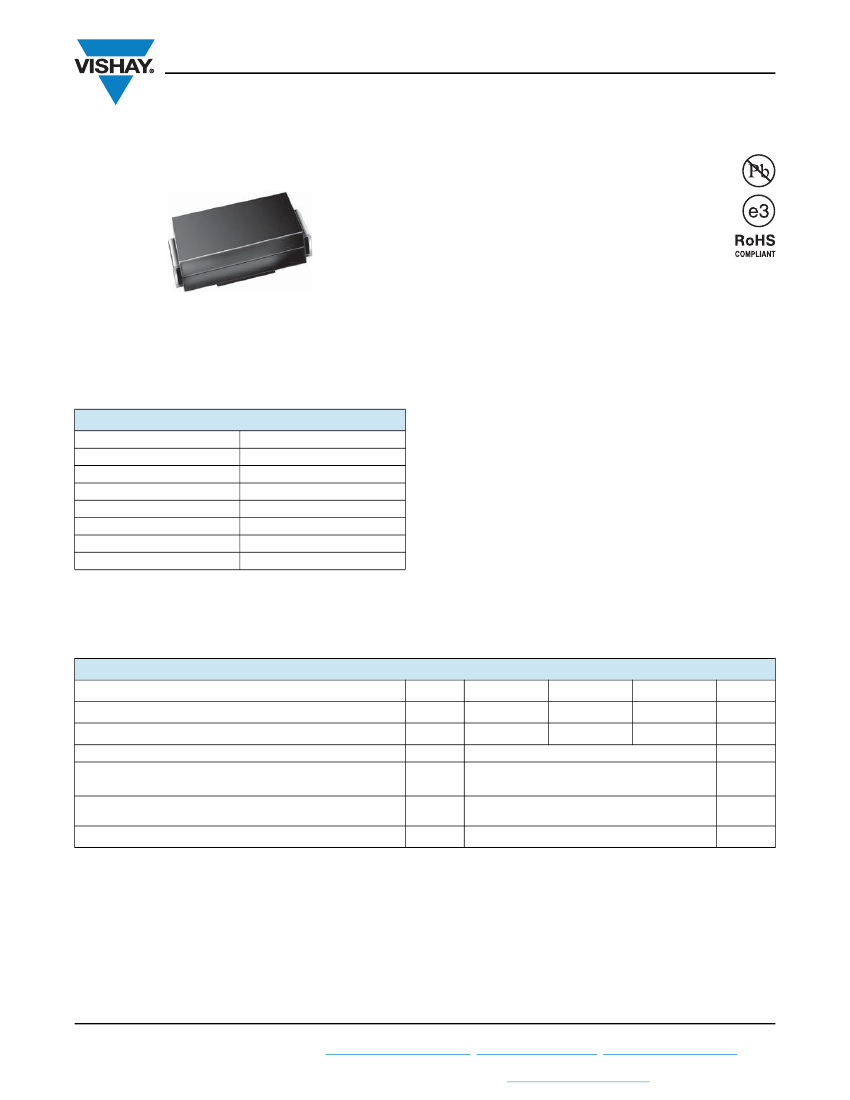

BYG24D thru BYG24J

www.vishay.com

Vishay General Semiconductor

Fast Avalanche SMD Rectifier

FEATURES

• Low profile package

• Ideal for automated placement

• Glass passivated junction

• Low reverse current

• Soft recovery characteristics

• Fast reverse recovery time

• Meets MSL level 1, per J-STD-020, LF maximum peak of

260 °C

• AEC-Q101 qualified

• Compliant to RoHS Directive 2002/95/EC and in

accordance to WEEE 2002/96/EC

DO-214AC (SMA)

TYPICAL APPLICATIONS

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

1.5 A

200 V to 600 V

30 A

1.0 μA

1.25 V

140 ns

20 mJ

150 °C

For use in high frequency rectification and freewheeling

application in switching mode converters and inverters for

consumer, computer, automotive and telecommunication.

MECHANICAL DATA

Case:

DO-214AC (SMA)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS compliant, commercial grade

Base P/NHE3 - RoHS compliant, AEC-Q101 qualified

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix

meets JESD 201 class 2 whisker test

Polarity:

Color band denotes the cathode end

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Device marking code

Maximum repetitive peak reverse voltage

Average forward current at T

= 65 °C

Peak forward surge current 10 ms single half

sine-wave superimposed on rated load

Pulse energy in avalanche mode, non repetitive

(inductive load switch off) I

(BR)R

= 1 A, T

= 25 °C

Operating junction and storage temperature range

RRM

F(AV)

FSM

, T

STG

SYMBOL

BYG24D

200

BYG24G

400

1.5

- 55 to + 150

BYG24J

600

°C

UNIT

Revision: 21-Dec-11

Document Number: 88960

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree

to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and

damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay

or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to

obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Material Category Policy

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the

definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council

of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(EEE) - recast, unless otherwise specified as non-compliant.

Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that

all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.

Revision: 12-Mar-12

Document Number: 91000

BYG24D-HE3/TR Related Products

	BYG24D-HE3/TR	BYG24J-HE3/TR3	BYG24J-HE3/TR	BYG24D-HE3/TR3	BYG24G-HE3/TR3	BYG24G-HE3/TR
Description	DIODE 1.5 A, 200 V, SILICON, RECTIFIER DIODE, DO-214AC, ROHS COMPLIANT, PLASTIC, SMD, SMA, 2 PIN, Rectifier Diode	DIODE 1.5 A, 600 V, SILICON, RECTIFIER DIODE, DO-214AC, ROHS COMPLIANT, PLASTIC, SMD, SMA, 2 PIN, Rectifier Diode	DIODE 1.5 A, 600 V, SILICON, RECTIFIER DIODE, DO-214AC, ROHS COMPLIANT, PLASTIC, SMD, SMA, 2 PIN, Rectifier Diode	DIODE 1.5 A, 200 V, SILICON, RECTIFIER DIODE, DO-214AC, ROHS COMPLIANT, PLASTIC, SMD, SMA, 2 PIN, Rectifier Diode	DIODE 1.5 A, 400 V, SILICON, RECTIFIER DIODE, DO-214AC, ROHS COMPLIANT, PLASTIC, SMD, SMA, 2 PIN, Rectifier Diode	DIODE 1.5 A, 400 V, SILICON, RECTIFIER DIODE, DO-214AC, ROHS COMPLIANT, PLASTIC, SMD, SMA, 2 PIN, Rectifier Diode
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay
Parts packaging code	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC
package instruction	ROHS COMPLIANT, PLASTIC, SMD, SMA, 2 PIN	ROHS COMPLIANT, PLASTIC, SMD, SMA, 2 PIN	ROHS COMPLIANT, PLASTIC, SMD, SMA, 2 PIN	ROHS COMPLIANT, PLASTIC, SMD, SMA, 2 PIN	ROHS COMPLIANT, PLASTIC, SMD, SMA, 2 PIN	ROHS COMPLIANT, PLASTIC, SMD, SMA, 2 PIN
Contacts	2	2	2	2	2	2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
