Datasheet> All Categories > Power/power management> The power supply circuit> LM7805-ISO

Preview

LM7805-ISO: DescriptionRegulator, 1 Output, BIPolar,; CategoryPower/power management The power supply circuit; File Size439KB，6 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric Compare View All

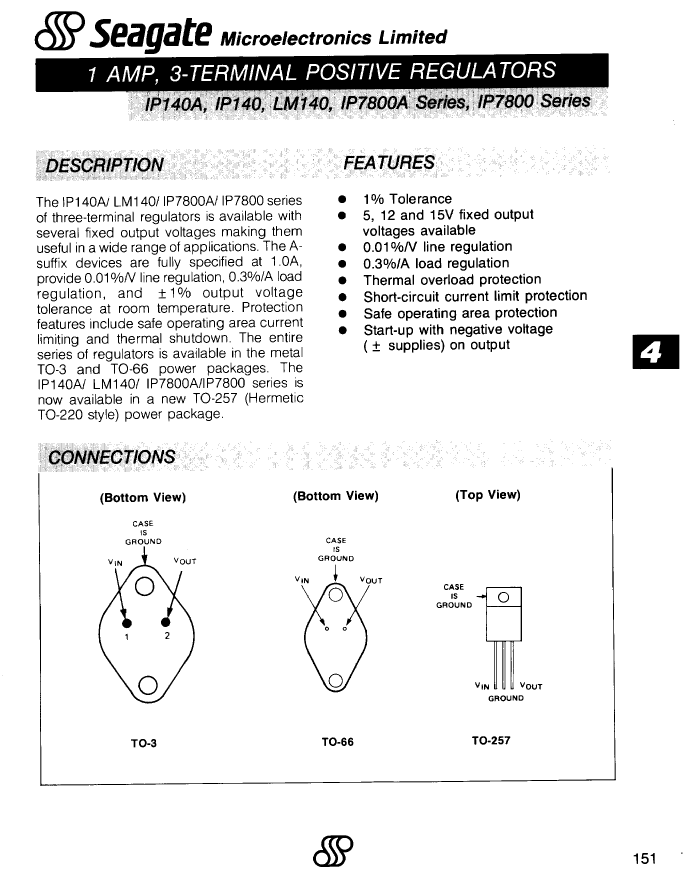

LM7805-ISO Overview

Regulator, 1 Output, BIPolar,

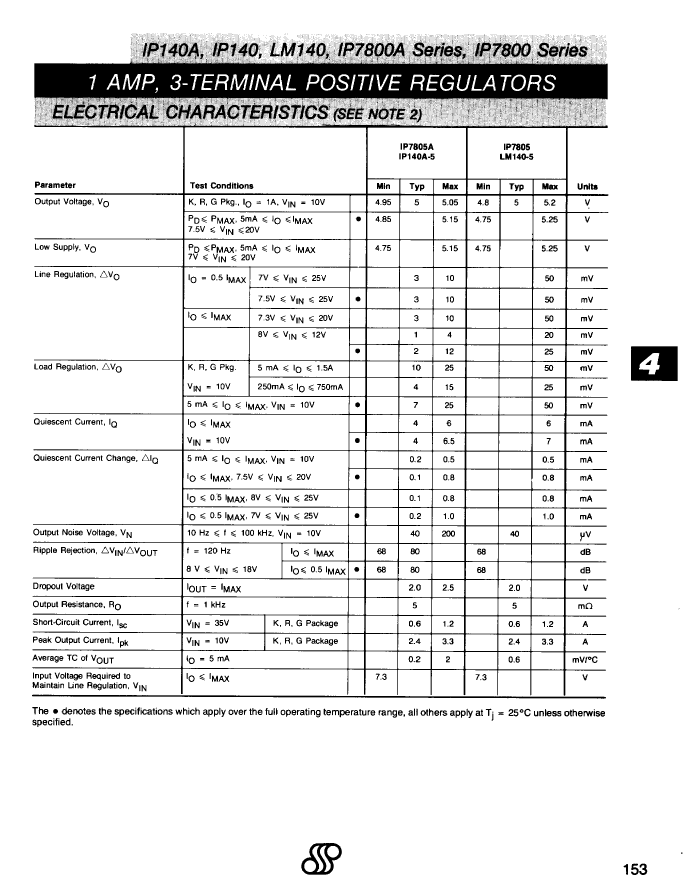

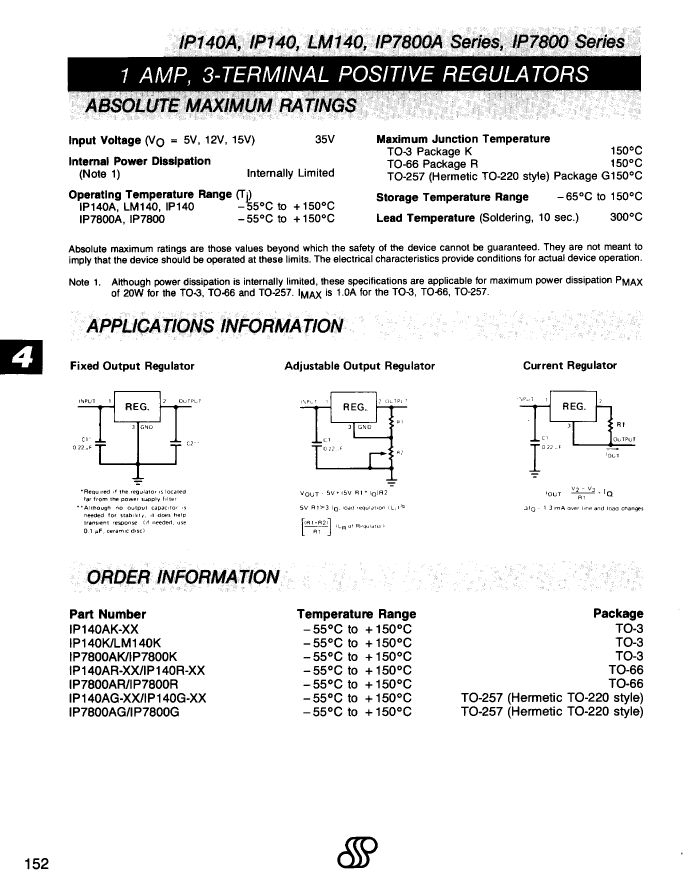

LM7805-ISO Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TT Electronics plc
package instruction	, SIP3,.1ISO-TB
Reach Compliance Code	compliant
Adjustability	FIXED
Nominal dropback voltage 1	2 V
Maximum absolute input voltage	35 V
JESD-609 code	e0
Maximum grid adjustment rate	0.1%
Maximum load regulation	0.1%
Output times	1
Number of terminals	3
Working temperatureTJ-Max	150 °C
Working temperature TJ-Min	-55 °C
Maximum output current 1	1.5 A
Nominal output voltage 1	5 V
Package body material	METAL
Encapsulate equivalent code	SIP3,.1ISO-TB
Certification status	Not Qualified
surface mount	NO
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	SINGLE
Maximum voltage tolerance	5%

Preview

Download Datasheet

View All

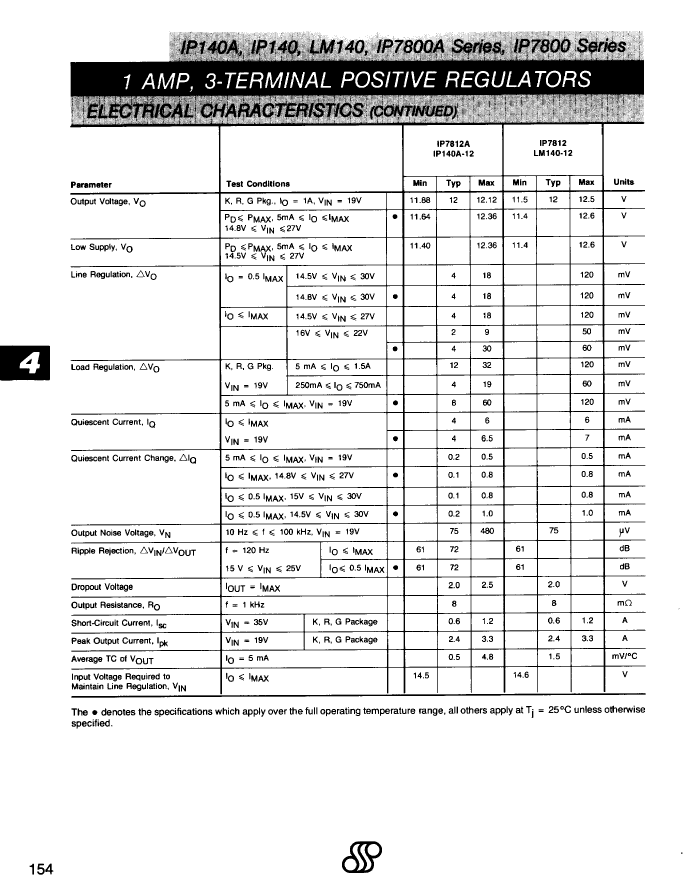

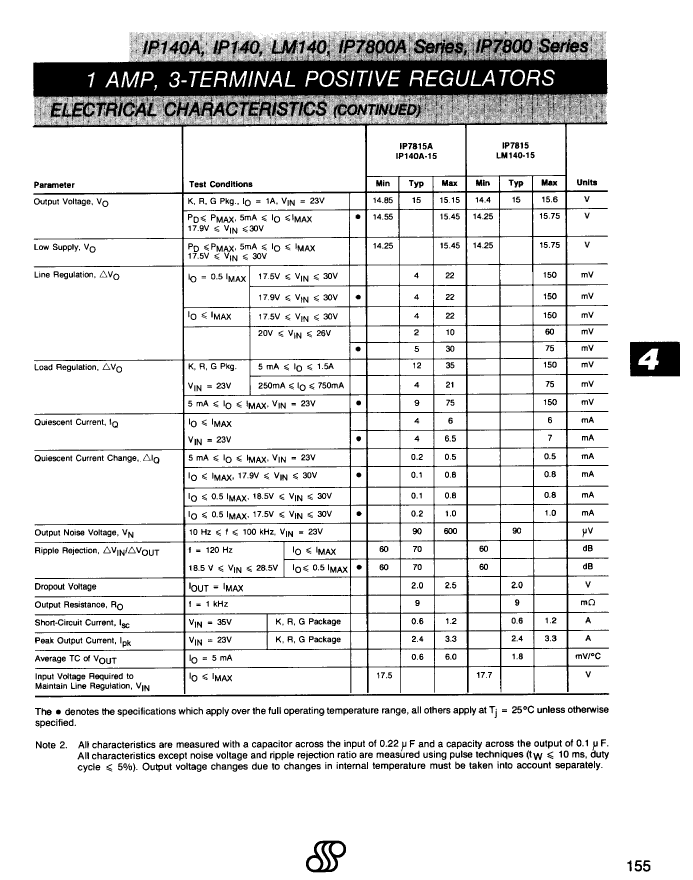

LM7805-ISO Related Products

	LM7805-ISO	LM7812	LM7812-ISO	LM7815	LM7815-ISO	LM7805
Description	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	TT Electronics plc	TT Electronics plc	TT Electronics plc	TT Electronics plc	TT Electronics plc	TT Electronics plc
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Adjustability	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED
Nominal dropback voltage 1	2 V	2 V	2 V	2 V	2 V	2 V
Maximum absolute input voltage	35 V	35 V	35 V	35 V	35 V	35 V
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum grid adjustment rate	0.1%	0.24%	0.24%	0.3%	0.3%	0.1%
Maximum load regulation	0.1%	0.24%	0.24%	0.3%	0.3%	0.1%
Output times	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Working temperatureTJ-Max	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Working temperature TJ-Min	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current 1	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Nominal output voltage 1	5 V	12 V	12 V	15 V	15 V	5 V
Package body material	METAL	METAL	METAL	METAL	METAL	METAL
Encapsulate equivalent code	SIP3,.1ISO-TB	SIP3,.1TB	SIP3,.1ISO-TB	SIP3,.1TB	SIP3,.1ISO-TB	SIP3,.1TB
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum voltage tolerance	5%	5%	5%	5%	5%	5%
package instruction	, SIP3,.1ISO-TB	-	, SIP3,.1ISO-TB	-	, SIP3,.1ISO-TB	, SIP3,.1TB
Is Samacsys	-	N	N	N	N	-
Base Number Matches	-	1	1	1	1	-
