REVISION X
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. ASSEMBLE GOLD PLATED END AS SHOWN.
3. TERMINAL PUSHOUT FORCE: 2 lbs BEFORE HEAT.
4. TERMINALS TO BE FLUSH TO .010[.25] BELOW TOP OF SHROUD.
HTST-1XX-01-XX-DV-XX-XX
No OF POSITIONS
-02 THRU -36
(PER ROW)
LEAD STYLE
-01: SURFACE MOUNT
(USE T-1S6-08-X-2)
PLATING SPECIFICATION
-T: MATTE TIN, CONTACT AND TAIL
-S: SELECTIVE, 30 Au / 50 NI MIN ON CONTACT,
MATTE TIN TAIL
-L: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL
-H: HEAVY GOLD, 30 Au / 50 Ni MIN ON CONTACT,
3 Au / 50 NI MIN ON TAIL
-F: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL
-TM: MATTE TIN CONTACT AND TAIL
-SM: SELECTIVE, 30 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL
-FM: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL
-LM: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON CONTACT,
MATTE TIN TAIL
X
PACKAGING OPTION
-TR: TAPE & REEL
(POSITIONS -02 THRU -25 ONLY)
OPTION
-A: ALIGNMENT PIN (* ASO OPTION)
(SEE FIG. 3 SHT. 2)
-P: PICK & PLACE PAD
(USE PPP-22)
-XX: POLARIZATION OPTION
(INDICATES POSITION OMITTED)
ROW SPECIFICATION
-DV: DOUBLE VERTICAL
(USE HTST-XX-D)
{(No OF POS x .100[2.54]) + .300[7.62]} REF
{(No OF POS x .100[2.54]) + .200[5.08] REF
02
04
.100 2.54
REF
"A"
.365 9.27
REF
01
03
.250 6.35 REF
"A"
2° MAX SWAY
(EITHER DIRECTION)
.100 2.54 REF
.075 1.91 REF
HTST-120-01-X-DV SHOWN
2 MAX SWAY
(EITHER DIRECTION)
FIG. 1
SEE NOTE 4
HTST-XX-D
FIRST POSITION
INDICATOR
.200 5.08 REF
.450 11.43
90°
- 0°
.250 6.35
REF
+5°
.165 4.19 REF
(SEE NOTE 2)
.400±.010 10.16±0.25
.350 8.89
REF
C
1
C
L
.025 0.64 SQ REF (TYP)
T-1S6-08-XX-2
.015 0.38
REF
.170 4.32
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
SEE TABLE 1
.440±.010 11.18±0.25
IN-PROCESS VIEW 1
IN-PROCESS VIEW 2
90°
- 0°
+5°
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
SECTION "A"-"A"
.530 13.46
REF
.635 16.13
.500 12.70
X
.440±.010 11.18±0.25
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
INSULATOR:
LCP, UL 94 VO
COLOR: NATURAL
TERMINAL: PHOS BRONZE
F:\DWG\MISC\MKTG\HTST-1XX-01-XX-DV-XX-XX-MKT.SLDDRW

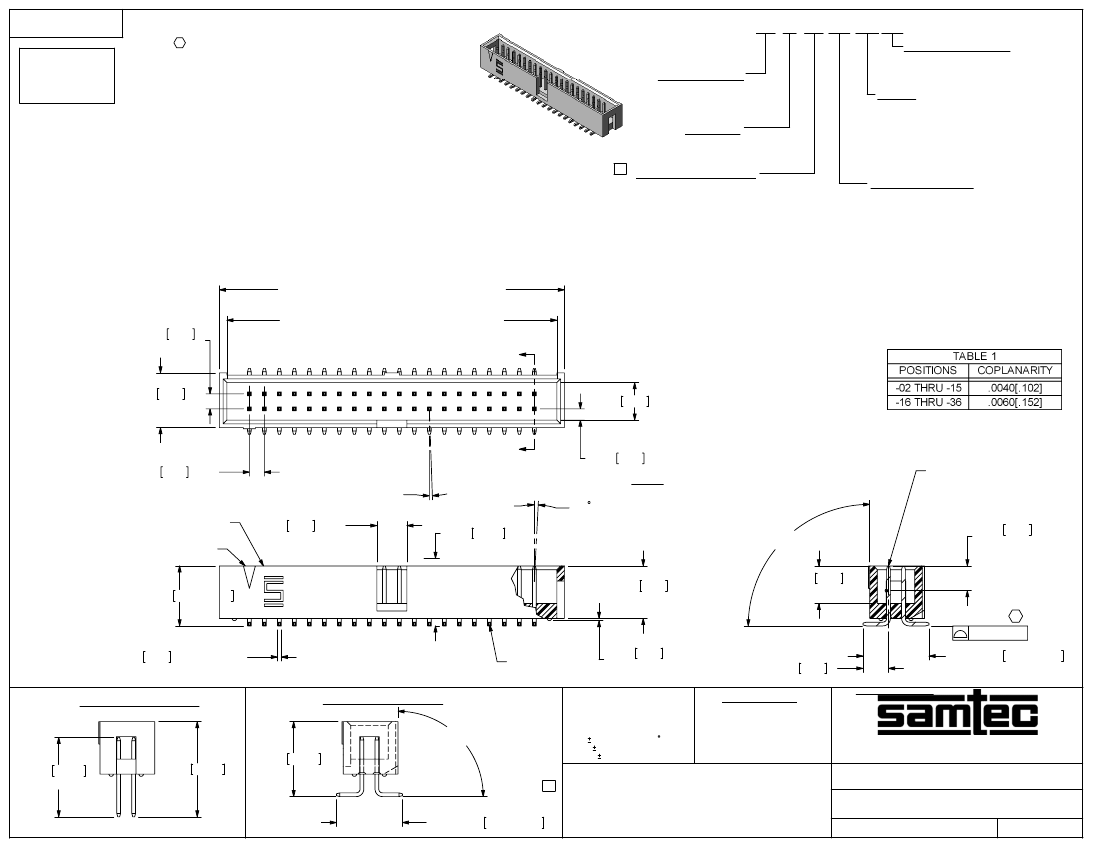

HIGH TEMP TOP SHROUD
BY:
T. WERNE
HTST-1XX-01-XX-DV-XX-XX
07/11/2001
SHEET
1
OF
3
REVISION X
(((NO POS X .100) +.300) / 2 - .1875)
+/- .020
.375 9.53
REF
.390 9.91
REF
.400 10.16 REF
.450 11.43
FIG. 2
-P: PICK & PLACE PAD OPTION
(SAME AS FIG. 1 UNLESS OTHERWISE STATED)
.050 1.27
.100 2.54 REF
(NO OF POS. x .100 [2.54]) -.200 [5.08]
FULL R (TYP)
.060 1.52 DIA REF
FIG. 3
-A: ALIGNMENT PIN OPTION
(SAME AS FIG. 1 UNLESS OTHERWISE STATED)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
HIGH TEMP TOP SHROUD
F:\DWG\MISC\MKTG\HTST-1XX-01-XX-DV-XX-XX-MKT.SLDDRW
BY:
T. WERNE
HTST-1XX-01-XX-DV-XX-XX
07/11/2001
SHEET
2
OF
3
REVISION X
POS. 1
ROUND HOLES
"B"
"B"
OBLONG HOLES
SECTION "B"-"B"
SCALE 1 : 1
USER DIRECTION OF REELING
POCKET NOT DETAILED
TUBE VIEW
TAPE & REEL VIEW
TUBE: PT-1-24-02-08
PLUG: TP-13
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
HIGH TEMP TOP SHROUD
F:\DWG\MISC\MKTG\HTST-1XX-01-XX-DV-XX-XX-MKT.SLDDRW
BY:
T. WERNE
HTST-1XX-01-XX-DV-XX-XX
07/11/2001
SHEET
3
OF
3
