3.5mm Dia. Antenna Jacks
■
Features
1. A 3.5mm Dia. jack developed for input from a diversity
antenna of automotive equipment.
2. A superb RF performance jack most suitable for antenna
input.
3. Stable antenna coupling due to the use of pipe-shaped
terminals for optimal vibration resistance.
4. A wide choice from SMD or discrete type with or without
a position determining boss.
5. A make-switch structure for plug detection, the most
effective anti-dust measures due to thus available self-
cleaning effect.
6. With LGY4508-0101F, improved terminal arrangement
for higher level RF performance to meet market
requirements for more clearer pictures.
7. Consistent digital noise reduction by the use of a contact
piece at the top of the jack for surer contact with the
equipment body to counter digital noise generating in
automotive equipment.
■
Specification
•
Conforms to the JIS C 6560. (Concentrated jacks)
■
Application
Input from diversity antennas of automotive equipment.

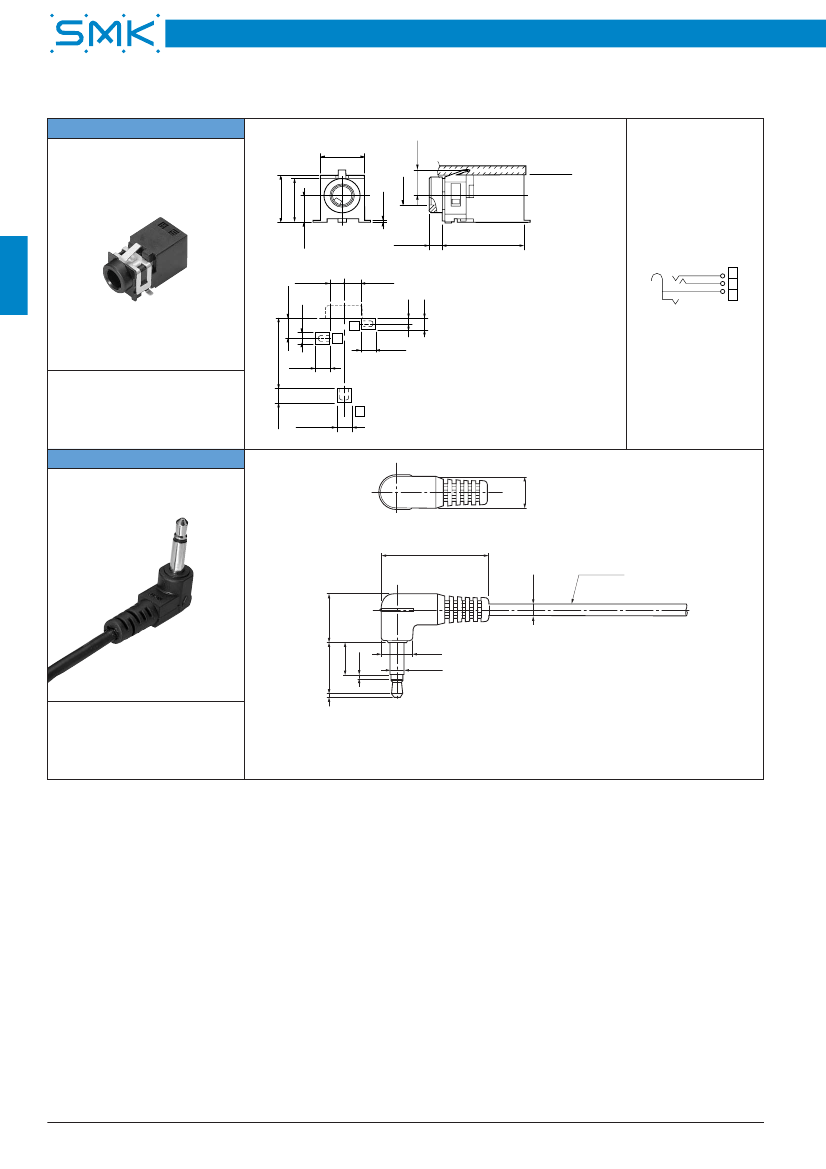

LGY4008-0101F
7
ø3.6
2
13
8
7.5
4.5
0.1
Circuits
2.8
3.5
2.8
3
2
1
1
SMD Type
4-2x2.4
(Land)
12.3
1
1
3
2
1.7
(500pcs/reel)
1.7
P.C. Board Dimension
(Top View)
Reflow Soldering
20
Mini Jacks
