5556PBS datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > 5556PBS

Preview

5556PBS: Description4.20mm (.165") Pitch Mini-Fit Crimp Terminal, Female, Tin Plating, 18- 24 AWG, Reel; File Size215KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

5556PBS Overview

4.20mm (.165") Pitch Mini-Fit Crimp Terminal, Female, Tin Plating, 18- 24 AWG, Reel

Preview

Download Datasheet

View All

This document was generated on 06/01/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0039000114

Active

minifit_jr

4.20mm (.165") Pitch Mini-Fit™ Crimp Terminal, Female, Tin Plating, 18- 24 AWG,

Reel

Documents:

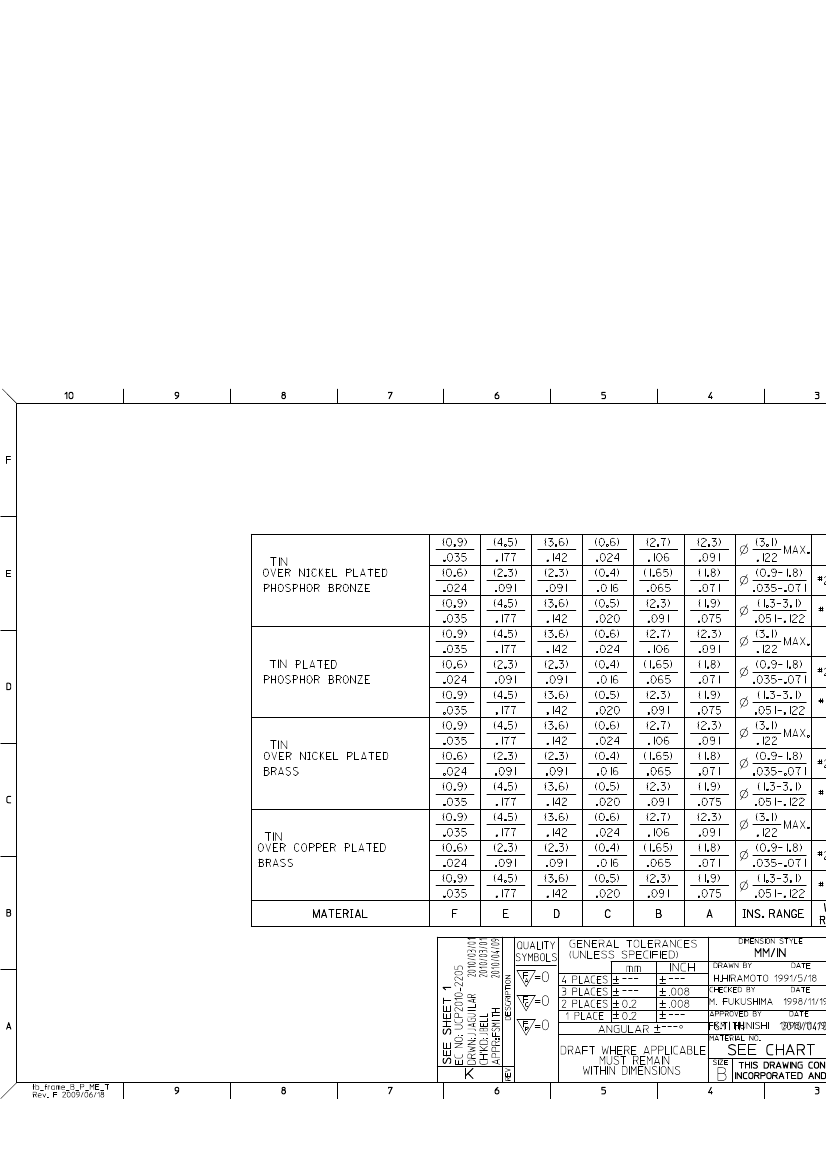

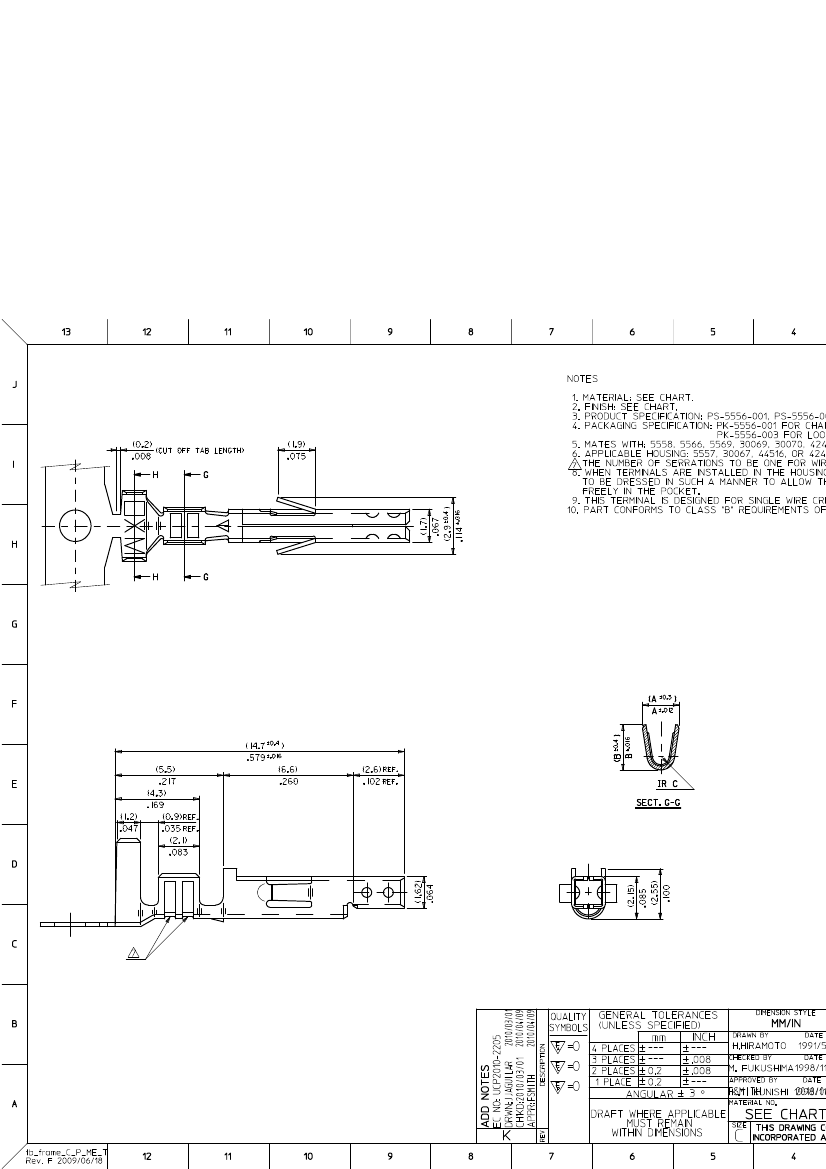

Drawing (PDF)

Product Specification PS-5556-001 (PDF)

Product Specification PS-5556-002 (PDF)

Product Specification PS-5556-003 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Crimp Quality Equipment

Overview

Product Name

Crimp Terminals

5556

Yes

minifit_jr

Mini-Fit®

Physical

Durability (mating cycles max)

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Packaging Type

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

30

Female

Phosphor Bronze

Tin

Reel

Crimp or Compression

1.30-3.10mm (.051-.122")

18, 20, 22, 24

N/A

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Halogen

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

Electrical

Current - Maximum per Contact

Voltage - Maximum

9A

600V

Search

5556Se

Material Info

Old Part Number

5556PBS

Reference - Drawing Numbers

Product Specification

Sales Drawing

Test Summary

PS-5556-001, PS-5556-002, PS-5556-003

SD-5556****

TS-5556-002

Mates

5558 M

Housin

5566 ,

Use W

5557 M

Applic

Tooling

found b

Crimp H

contain

Specifi

Global

Descri

FineAd

Applica

Jr.™, M

Crimp T

5556PBS Related Products

	5556PBS	39-00-0114
Description	4.20mm (.165") Pitch Mini-Fit Crimp Terminal, Female, Tin Plating, 18- 24 AWG, Reel	4.20mm (.165") Pitch Mini-Fit Crimp Terminal, Female, Tin Plating, 18- 24 AWG, Reel
