BT479KPJ80 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> BT479KPJ80

BT479KPJ80: DescriptionPalette DAC, 1024 X 24 Pixels, CMOS, PQCC44, PLASTIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size967KB，34 Pages; ManufacturerCONEXANT; Websitehttp://www.conexant.com/

Download Datasheet Parametric Compare View All

BT479KPJ80 Overview

Palette DAC, 1024 X 24 Pixels, CMOS, PQCC44, PLASTIC, LCC-44

BT479KPJ80 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	CONEXANT
Parts packaging code	LCC
package instruction	,
Contacts	44
Reach Compliance Code	unknown
Address bus width	3
Bus compatibility	PS/2
show configuration	1024 X 24 PIXELS
External data bus width	8
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	DISPLAY CONTROLLER, PALETTE DAC

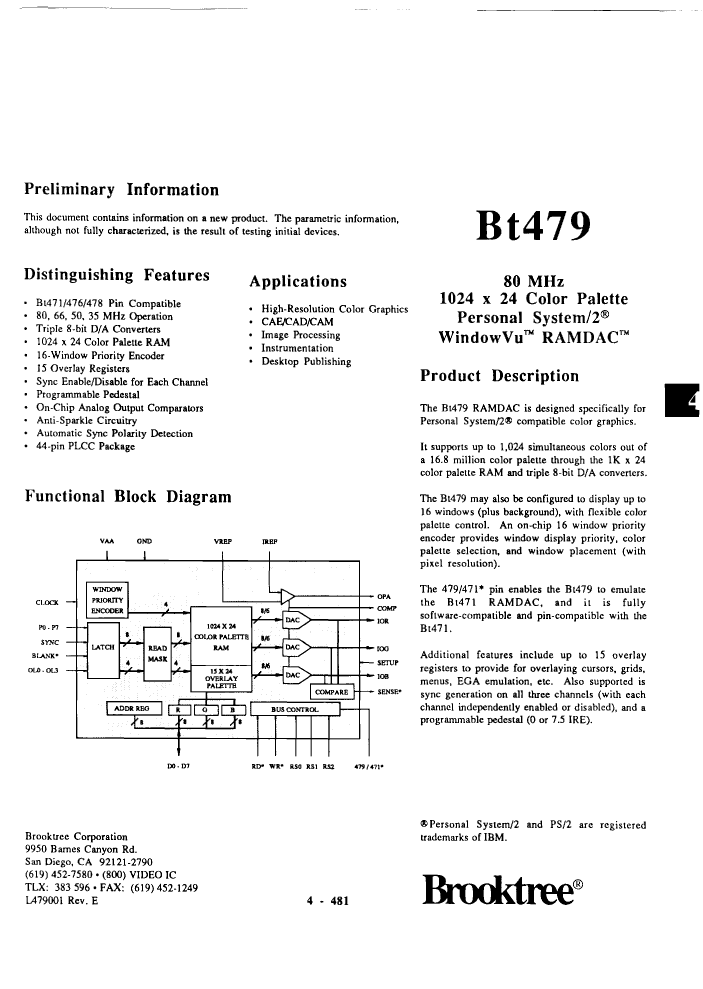

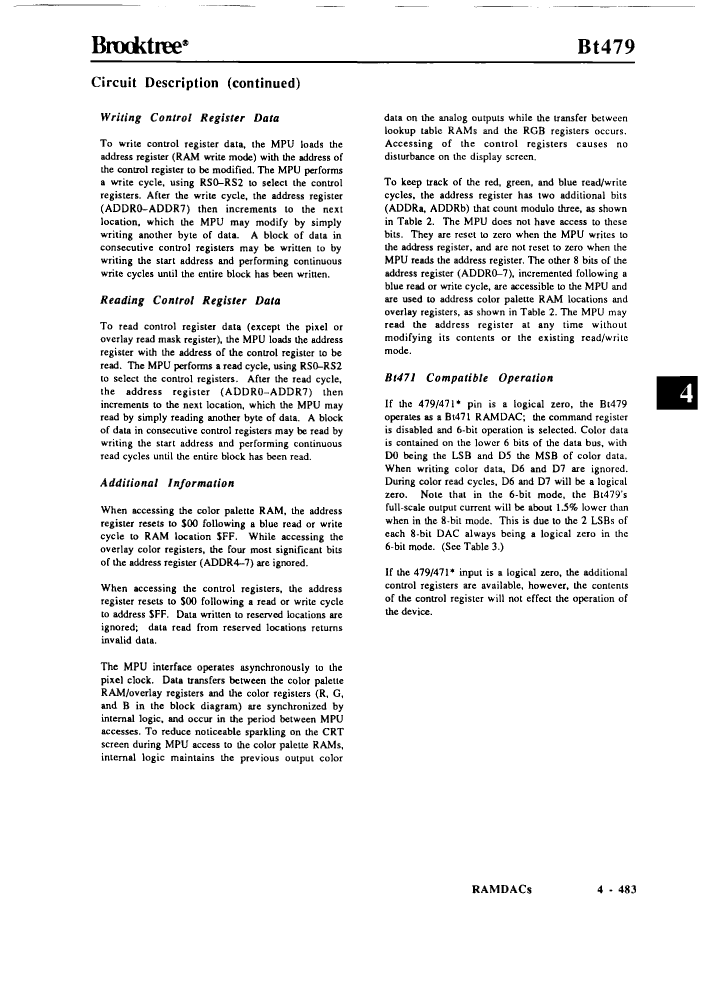

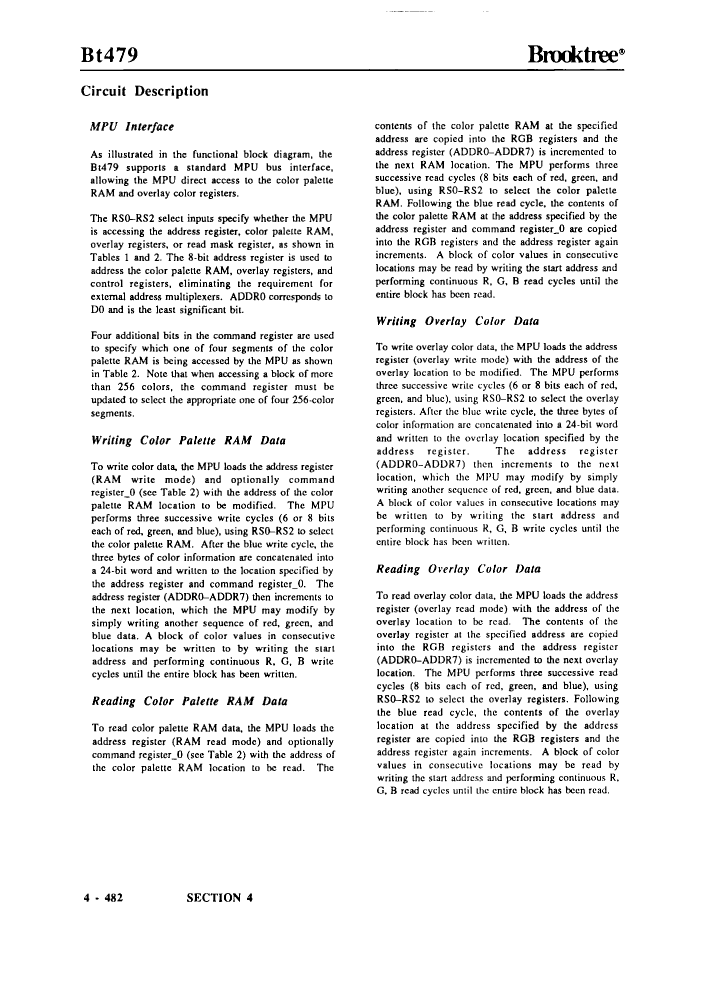

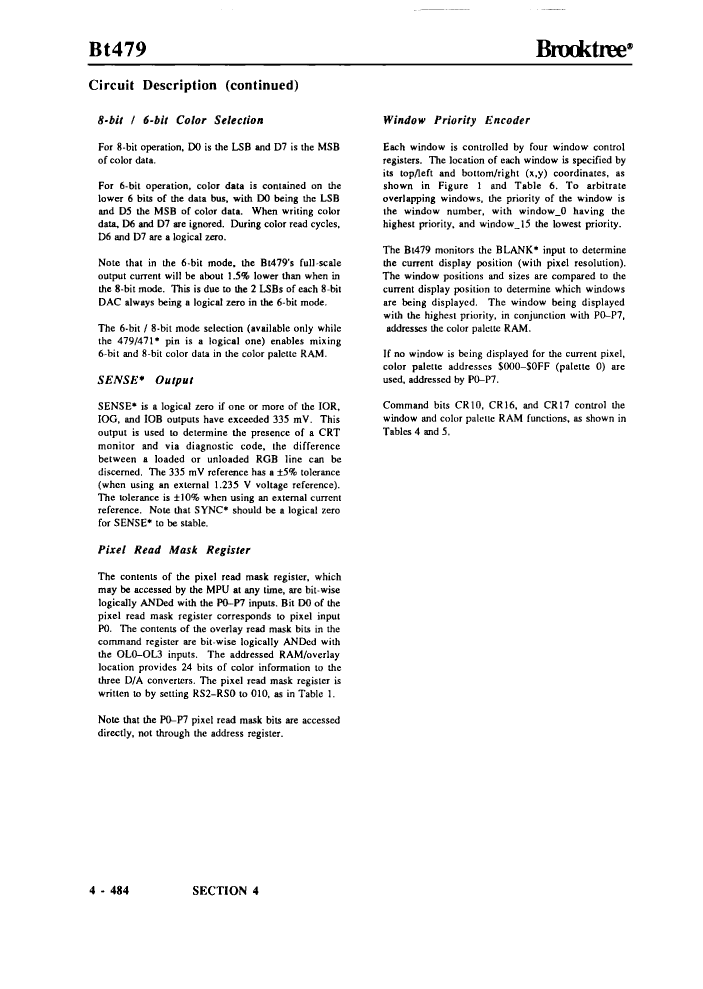

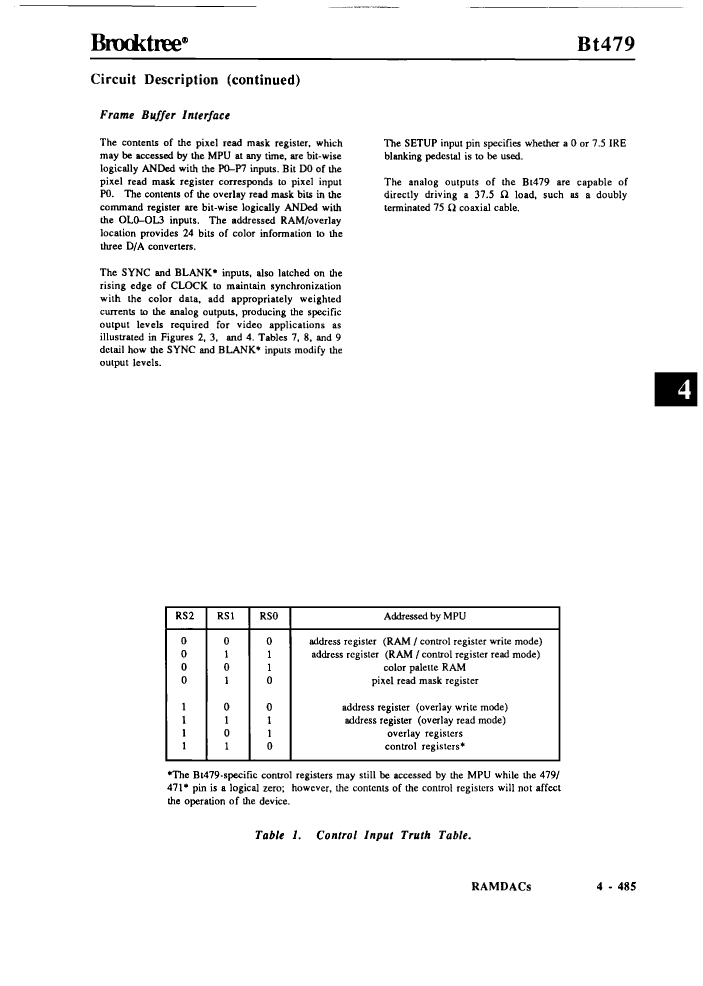

Preview

Download Datasheet

View All

BT479KPJ80 Related Products

	BT479KPJ80	BT479KPJ35	BT479KPJ50	BT479KPJ66
Description	Palette DAC, 1024 X 24 Pixels, CMOS, PQCC44, PLASTIC, LCC-44	Palette DAC, 1024 X 24 Pixels, CMOS, PQCC44, PLASTIC, LCC-44	Palette DAC, 1024 X 24 Pixels, CMOS, PQCC44, PLASTIC, LCC-44	Palette DAC, 1024 X 24 Pixels, CMOS, PQCC44, PLASTIC, LCC-44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	LCC	LCC	LCC	LCC
Contacts	44	44	44	44
Reach Compliance Code	unknown	unknown	unknown	unknown
Address bus width	3	3	3	3
Bus compatibility	PS/2	PS/2	PS/2	PS/2
show configuration	1024 X 24 PIXELS	1024 X 24 PIXELS	1024 X 24 PIXELS	1024 X 24 PIXELS
External data bus width	8	8	8	8
JESD-30 code	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44
JESD-609 code	e0	e0	e0	e0
Number of terminals	44	44	44	44
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.25 V	5.5 V	5.5 V	5.25 V
Minimum supply voltage	4.75 V	4.5 V	4.5 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	J BEND	J BEND
Terminal location	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	DISPLAY CONTROLLER, PALETTE DAC	DISPLAY CONTROLLER, PALETTE DAC	DISPLAY CONTROLLER, PALETTE DAC	DISPLAY CONTROLLER, PALETTE DAC
Maker	CONEXANT	CONEXANT	-	CONEXANT
