CDRH5D16F/LDNP-330NB datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH5D16F/LDNP-330NB

CDRH5D16F/LDNP-330NB: DescriptionGeneral Purpose Inductor, 33uH, 25%, 1 Element, SMD, 5555-18M, CHIP, 5555-18M, HALOGEN FREE AND ROHS COMPLIANT; CategoryPassive components inductor; File Size104KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDRH5D16F/LDNP-330NB Overview

General Purpose Inductor, 33uH, 25%, 1 Element, SMD, 5555-18M, CHIP, 5555-18M, HALOGEN FREE AND ROHS COMPLIANT

CDRH5D16F/LDNP-330NB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	5555-18M
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	5555-18M
structure	Magnetically Shielded
DC Resistance	0.267 Ω
Nominal inductance(L)	33 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH5D16F/LD
Number of functions	1
Number of terminals	2
Package height	1.8 mm
Package length	5.2 mm
Package form	SMT
Package width	5.2 mm
method of packing	Box
Maximum rated current	0.9 A
series	CDRH5D16F/LD
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	25%

Preview

Download Datasheet

View All

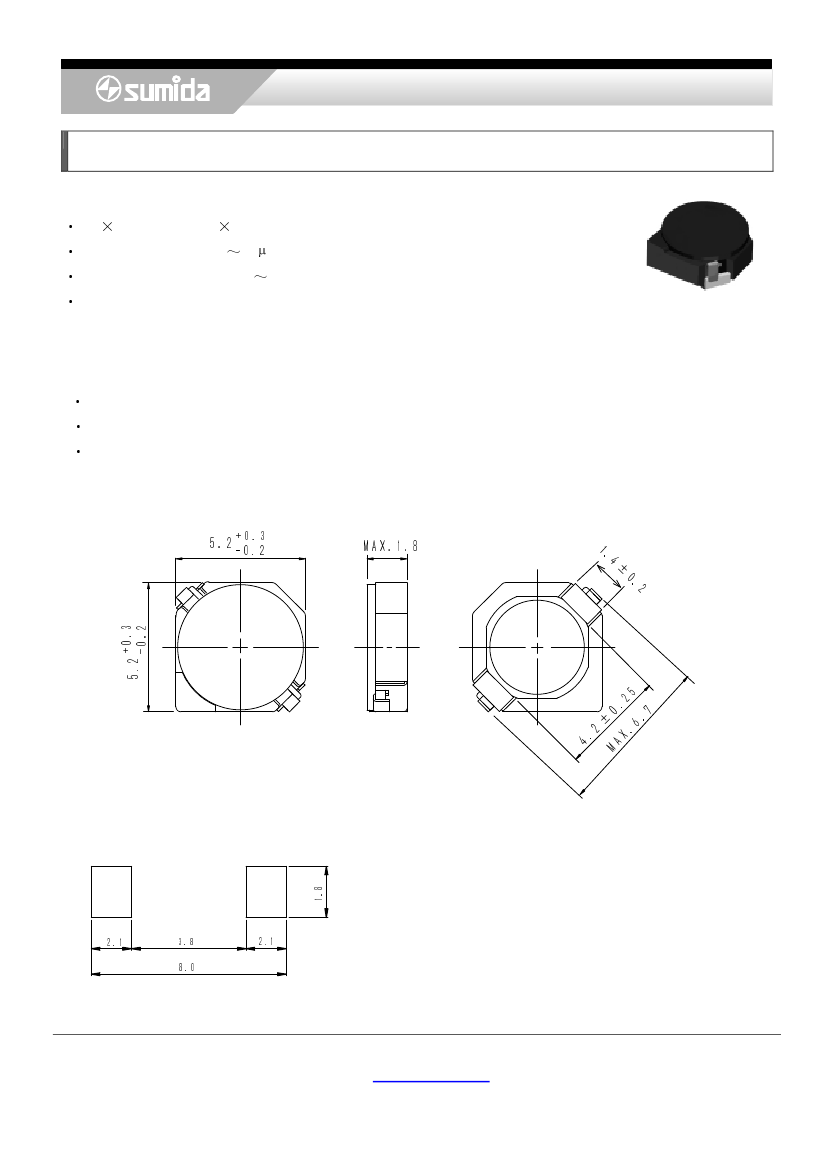

Power Inductors <SMD Type: CDRH**F Series>

Type: CDRH5D16F/LD

◆

Product Description

5.5 5.5mm Max. (L W), 1.8mm Max. Height.

Inductance range: 2.2 47 H.

Rated current range: 0.40 1.8A.

In addition to the standard versions of inductors shown here,

custom inductors are available to meet your exact requirements.

◆

Feature

Magnetically shielded construction.

Ideally used in Game Machine, Notebook PC,PDA,DSC/DVC, etc as DC-DC converter inductors.

RoHS Compliance and Halogen free.

◆

Dimensions (mm)

◆

Land Pattern (mm)

Please refer to the sales offices on our website for a representative near you

www.sumida.com

XA .4

6. ±2

7. .0

8.1.XAM

1.2

µ ½

2.0-

2.5

3.0+

0.8

8.3

1.2

・

× ・

・

1/2
