090584-2324: Description1.27mm (.050") Pitch Picoflex PF-50 IDT Receptacle, Low Profile, Board-In, 24 Circuits; File Size176KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

090584-2324 Overview

1.27mm (.050") Pitch Picoflex PF-50 IDT Receptacle, Low Profile, Board-In, 24 Circuits

Preview

Download Datasheet

View All

This document was generated on 03/16/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

0905842324

Active

1.27mm (.050") Pitch Picoflex® PF-50 IDT Receptacle, Low Profile, Board-In, 24

Circuits

Documents:

3D Model

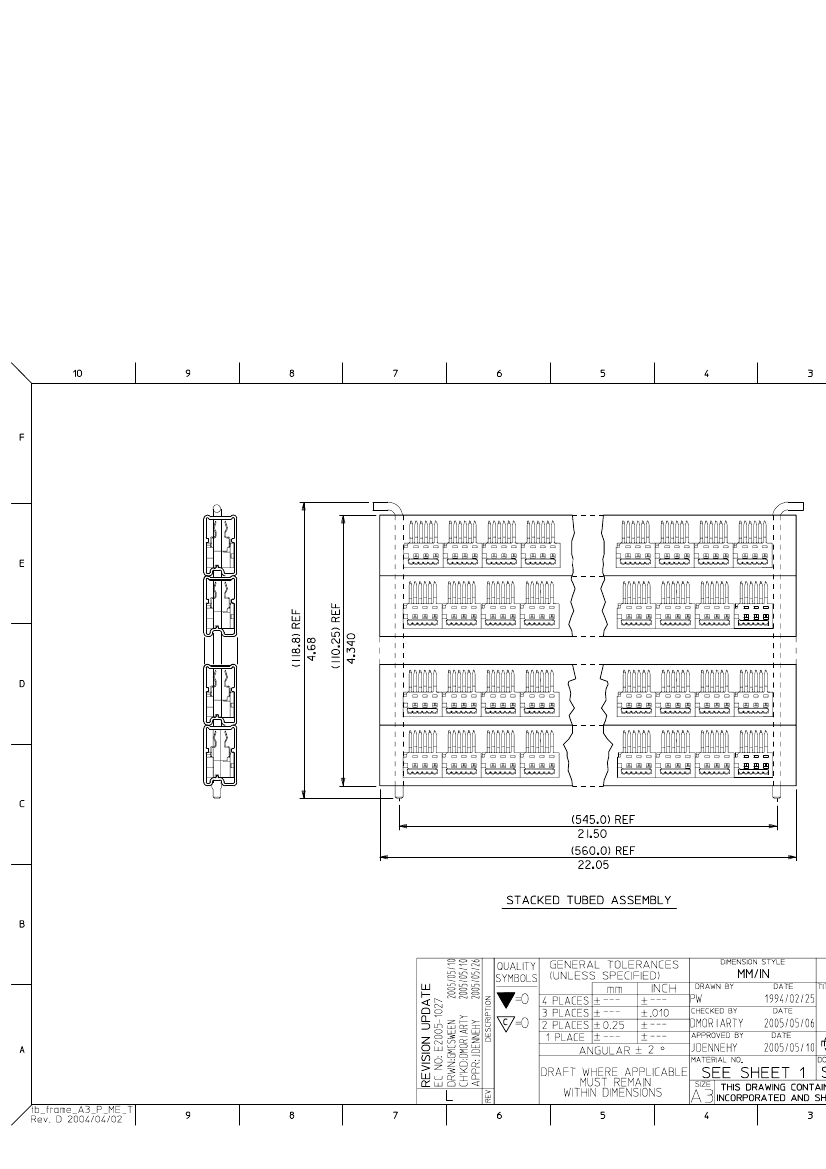

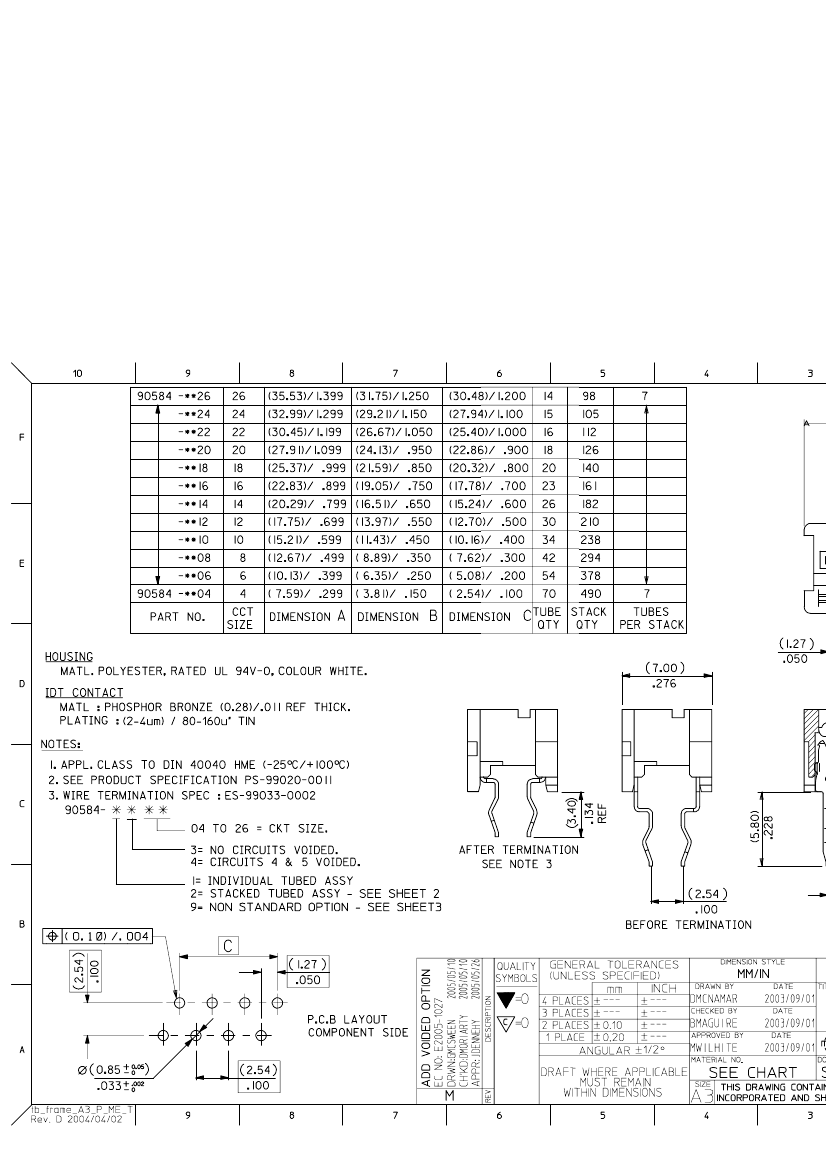

Drawing (PDF)

Product Specification ES-99033-0002 (PDF)

Product Specification PS-99020-0011 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Comments

Component Type

Glow-Wire Compliant

Product Name

Ribbon Cable / Wire Trap Connectors

90584

Low Profile

One Piece

Board-In, Picoflex®

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Entry Angle

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire/Cable Type

Natural

90° Angle

None

Phosphor Bronze

Tin

Polyester

Yes

0.062 In

1.60 mm

Tube - Stacked

0.050 In

1.27 mm

80.00

2.00

80.00

2.00

Yes

Fully

-40°C to +105°C

Through Hole - Kinked Pin

1.00mm (.039") max.

26, 28

Ribbon Cable

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

90584S

Applic

Tooling

found b

Crimp H

contain

Specifi

Global

Descri

Arbor P

Electrical

Current - Maximum per Contact

Voltage - Maximum

1.2A

250V
