HD74LS279RP-EL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> HD74LS279RP-EL

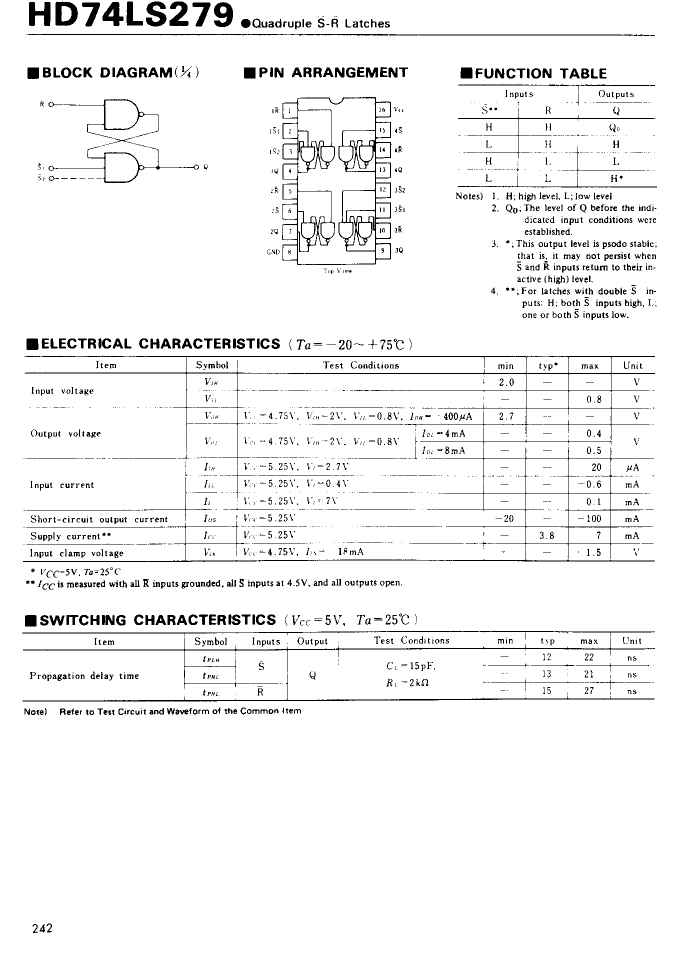

HD74LS279RP-EL: DescriptionLS SERIES, R-S LATCH, PDSO16, FP-16DN; Categorylogic logic; File Size46KB，5 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

HD74LS279RP-EL Overview

LS SERIES, R-S LATCH, PDSO16, FP-16DN

HD74LS279RP-EL Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	compliant
Other features	WITH DUAL S INPUT FOR TWO FUNCTIONS
series	LS
JESD-30 code	R-PDSO-G16
length	9.9 mm
Logic integrated circuit type	R-S LATCH
Number of digits	2
Number of functions	4
Number of terminals	16
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	27 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	LOW LEVEL
width	3.95 mm
