SPN9704 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> SPN9704

SPN9704: DescriptionWide Band Low Power Amplifier, 100MHz Min, 2500MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size209KB，4 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

SPN9704 Overview

Wide Band Low Power Amplifier, 100MHz Min, 2500MHz Max,

SPN9704 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	17 dB
Maximum input power (CW)	17 dBm
Maximum operating frequency	2500 MHz
Minimum operating frequency	100 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

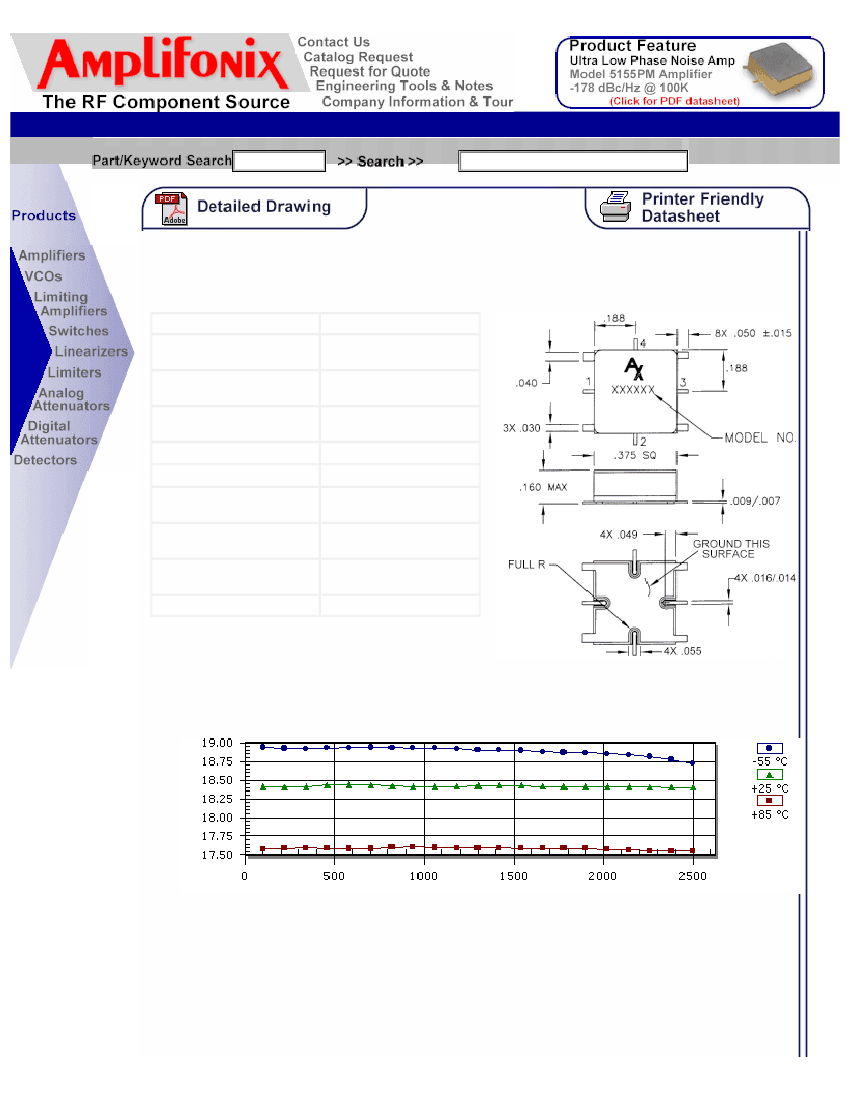

PN9704 / SPN9704 Amplifier Performance Datasheet

Cross Reference Guide

PN9704 / SPN9704*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

100.0 - 2500.0 MHz

18.0 dB Typical

17.0 dB Min

3.5 dB Typical

4.5 dB Max

18.0 dBm Typical

17.0 dBm Min

28.0 dBm Typical

42.0 dBm Typical

1.8/2.0 Input Typ/Max

1.5/2.0 Output Typ/Max

-35.0 dB Typical

-30.0 dB Min

15.0 Volts

88.0 mA

-55.0 - 85.0 °C

Package Drawing

Note: Care should always be taken to effectively

ground the case of each unit.

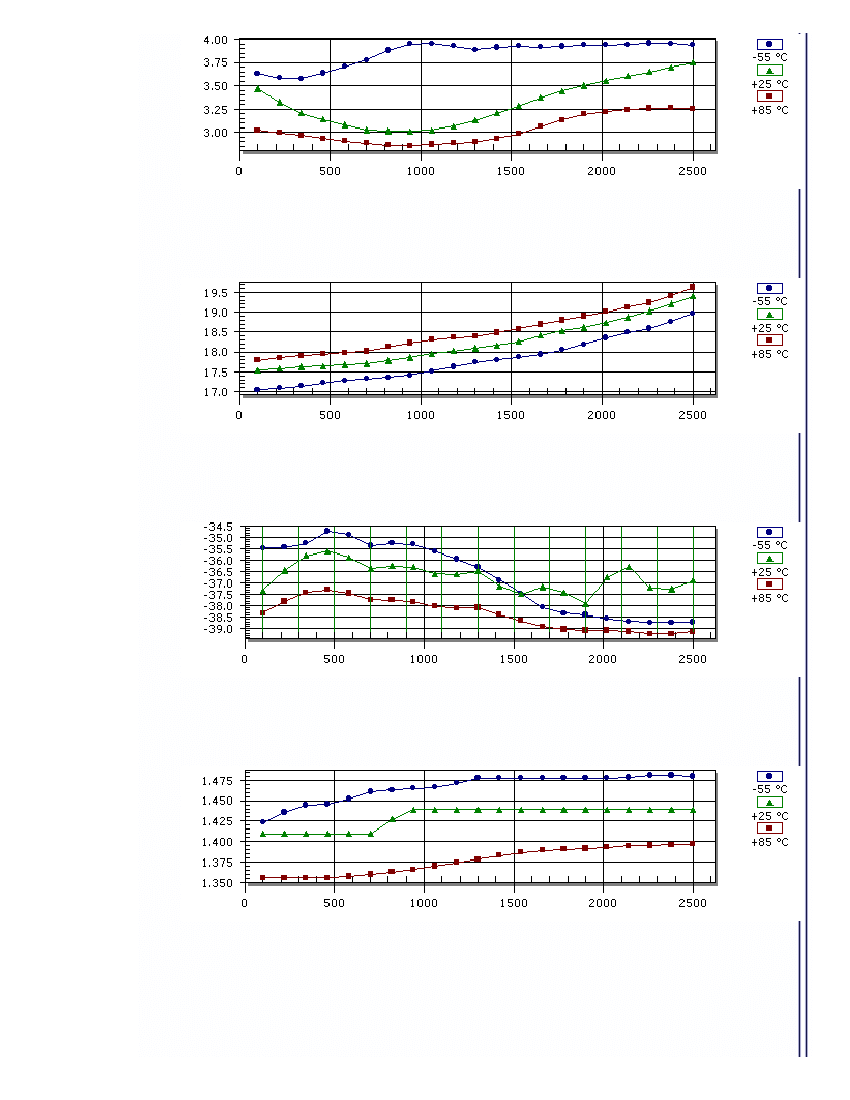

Gain

Frequency (MHz)

Noise Figure

http://www.amplifonix.com/bin/amp_sheet.pl?Pnum=TM9704&Pack=SM11 (1 of 3) [1/24/2005 3:38:30 PM]

SPN9704 Related Products

	SPN9704	PN9704
Description	Wide Band Low Power Amplifier, 100MHz Min, 2500MHz Max,	Wide Band Low Power Amplifier, 100MHz Min, 2500MHz Max,
Maker	API Technologies	API Technologies
Reach Compliance Code	compliant	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COMPONENT
Gain	17 dB	17 dB
Maximum input power (CW)	17 dBm	17 dBm
Maximum operating frequency	2500 MHz	2500 MHz
Minimum operating frequency	100 MHz	100 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2
