Part Number:
Status:
Overview:
Description:
0039303047
Active
Mini-Fit Jr.™

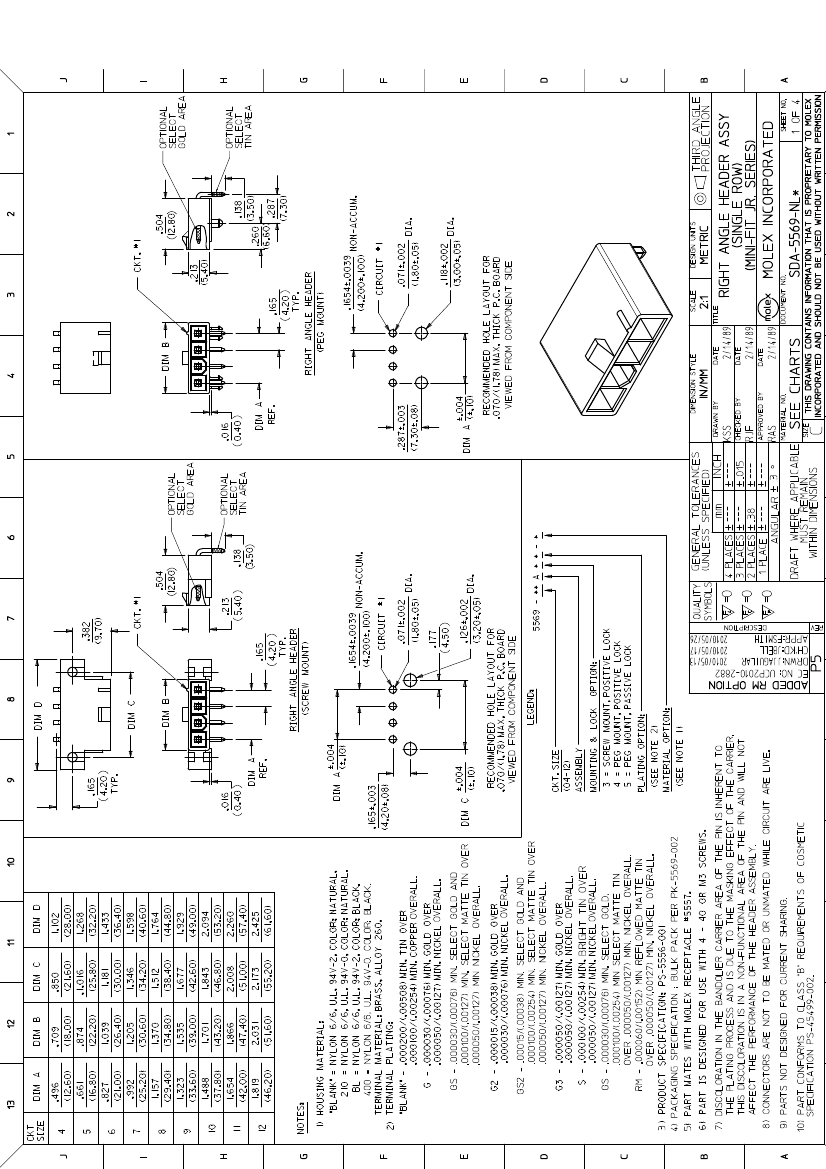

4.20mm (.165") Pitch Mini-Fit Jr.™ Header, Single Row, Right Angle, with Snap-in
Plastic Peg PCB Lock, 4 Circuits, PA Polyamide Nylon 6/6, 94V-2, (30µ") (Au) Plating
Documents:
3D Model

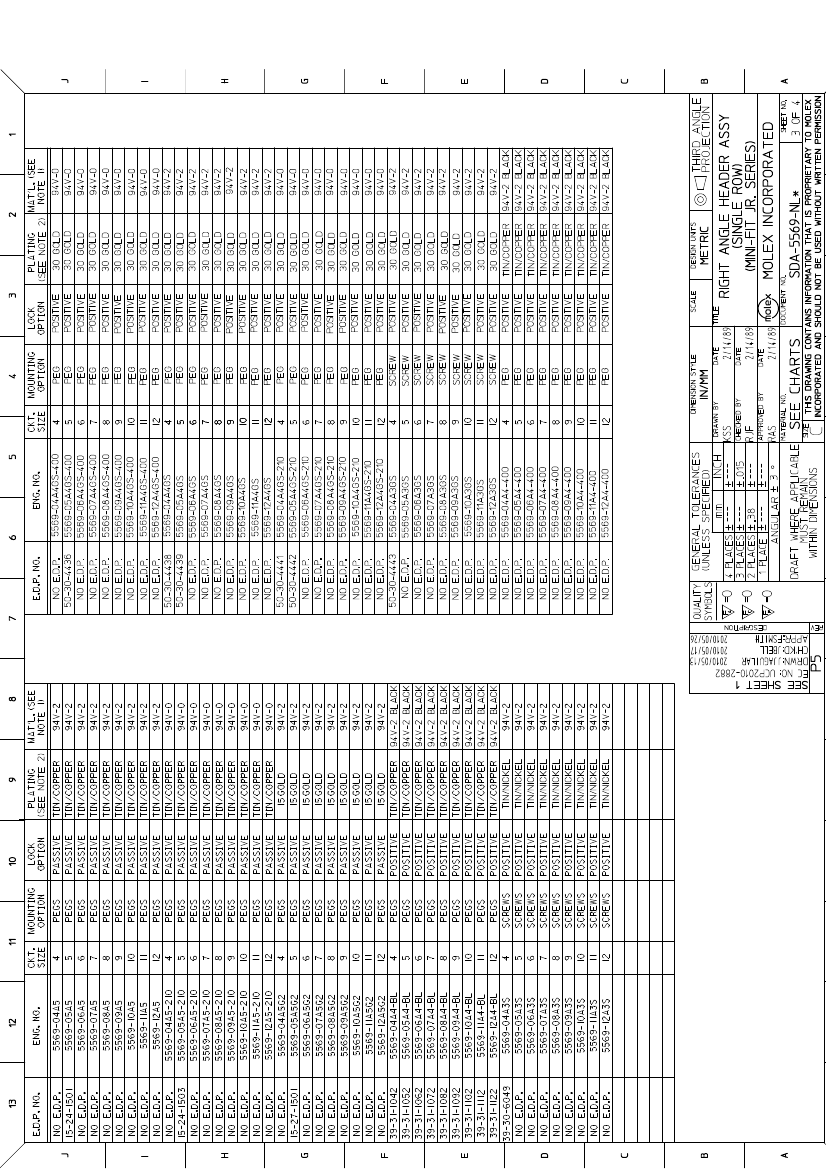

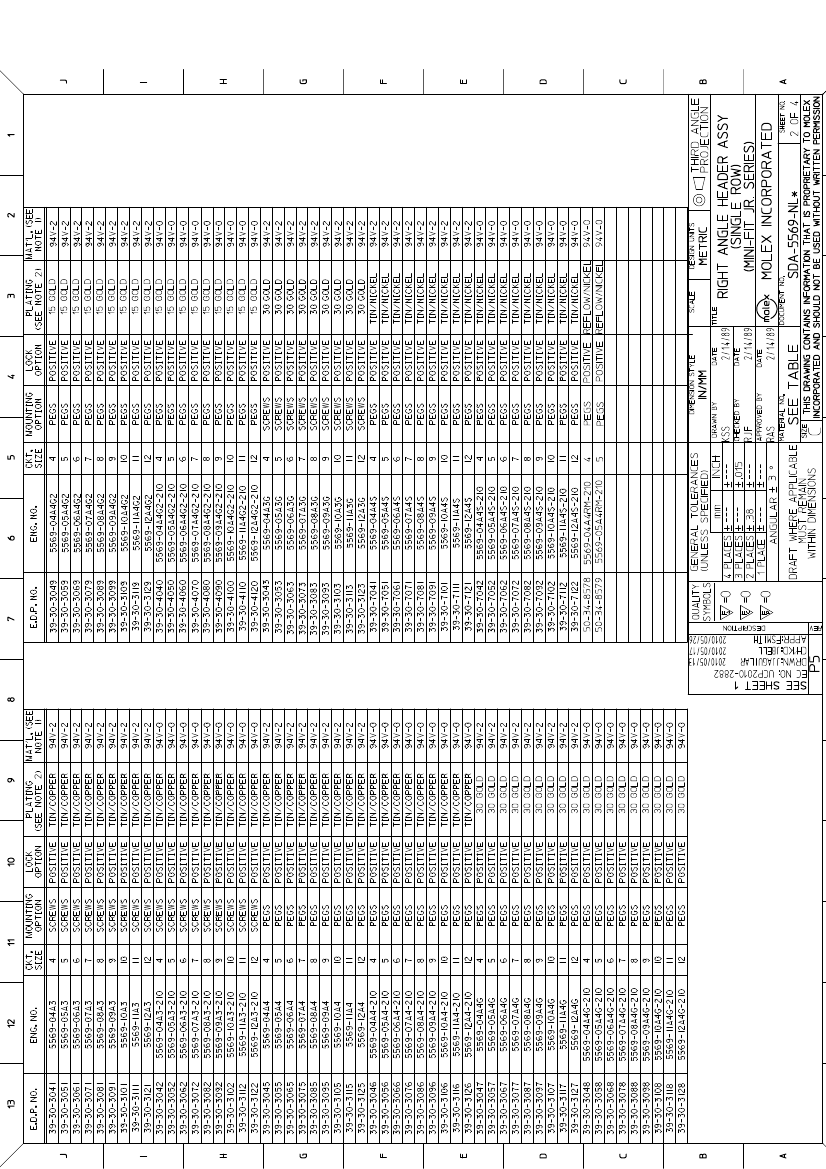

Drawing (PDF)
Product Specification PS-5556-001 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
TUV
UL
LR19980
R72081037
E29179
General
Product Family
Series
Application
Comments
PCB Headers
5569
Wire-to-Board
Current = 13A max. per circuit when header is mated
to a receptacle loaded with 45750 Mini-Fit Plus HCS™
Crimp Terminal Crimpted to to 16 AWG wire. . See
Molex Product specification PS-5556-001 for additional
current de-rating information.
Mini-Fit Jr.™
Mini-Fit Jr.™
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Not Revi
Need mo
environm
Overview
Product Name
Email pro
For a mu
Complian
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
No
4
4
4
Natural
30
No
94V-2
No
No
None
Yes
Brass
Gold
Gold
Nylon
1
Right Angle
Yes
Yes
0.070 In
1.78 mm
Bag
0.165 In
4.20 mm
0.165 In
4.20 mm
30
Please vi
non-prod
Search
5569Se
Mates
39-01-4
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
0.75
30
0.75
Yes
Yes
Fully
No
No
-40°C to +105°C
Through Hole
Electrical
Current - Maximum per Contact
Voltage - Maximum
13A
600V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
5
Wave Capable (TH only)
1
240
Material Info
Old Part Number
5569-04A4G
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Test Summary
PK-5569-002
PS-5556-001
SDA-5569-NL*
TS-5556-002
