JANTX2N1776A: DescriptionSilicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 300V V(DRM), 300V V(RRM), 1 Element, TO-64, HERMETIC SELALED PACKAGE-2; CategoryAnalog mixed-signal IC Trigger device; File Size919KB，4 Pages; ManufacturerSemitronics Corp.; Related ProductsFound18parts with similar functions to JANTX2N1776A

Download Datasheet Parametric Compare View All

JANTX2N1776A Overview

Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 300V V(DRM), 300V V(RRM), 1 Element, TO-64, HERMETIC SELALED PACKAGE-2

JANTX2N1776A Parametric

Parameter Name	Attribute value
Parts packaging code	TO-64
package instruction	POST/STUD MOUNT, O-MUPM-D2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ANODE
Configuration	SINGLE
Maximum DC gate trigger current	15 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	50 mA
JEDEC-95 code	TO-64
JESD-30 code	O-MUPM-D2
Maximum leakage current	4 mA
On-state non-repetitive peak current	60 A
Number of components	1
Number of terminals	2
Maximum on-state current	4700 A
Maximum operating temperature	155 °C
Minimum operating temperature	-65 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Qualified
Maximum rms on-state current	7.4 A
Guideline	MIL-19500/168
Off-state repetitive peak voltage	300 V
Repeated peak reverse voltage	300 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Trigger device type	SCR
Base Number Matches	1

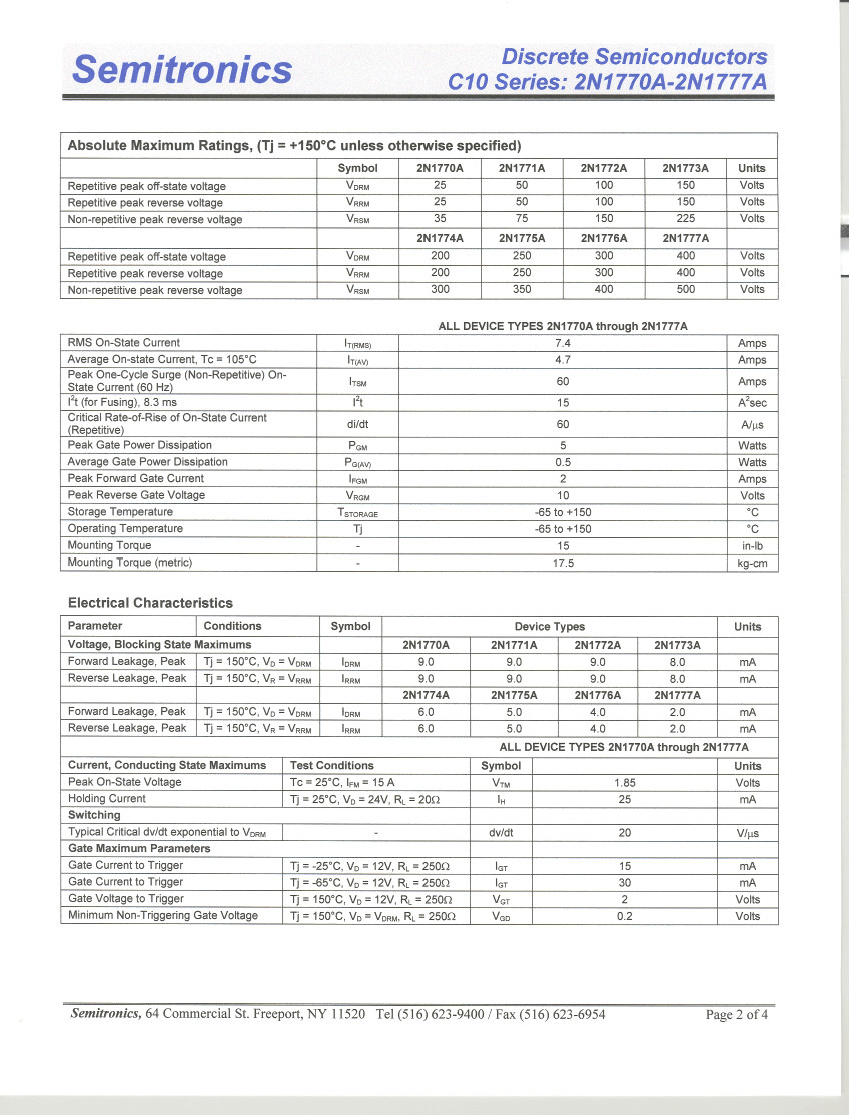

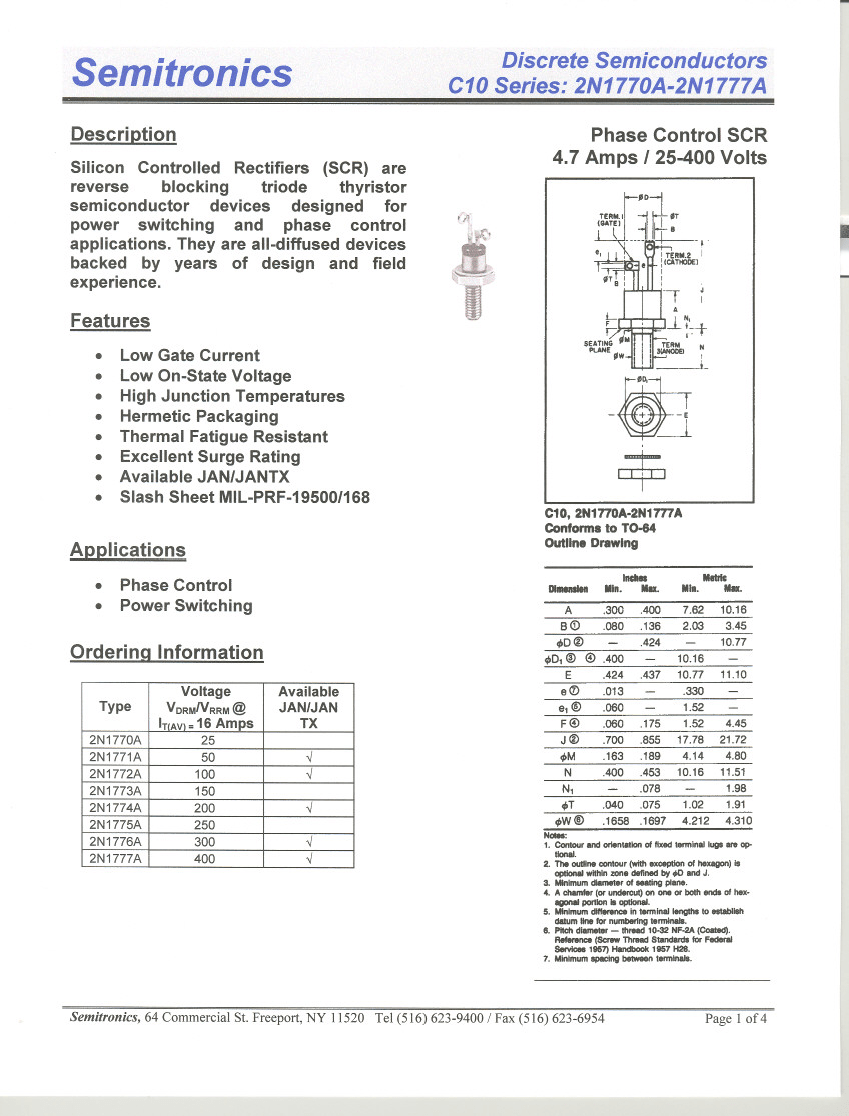

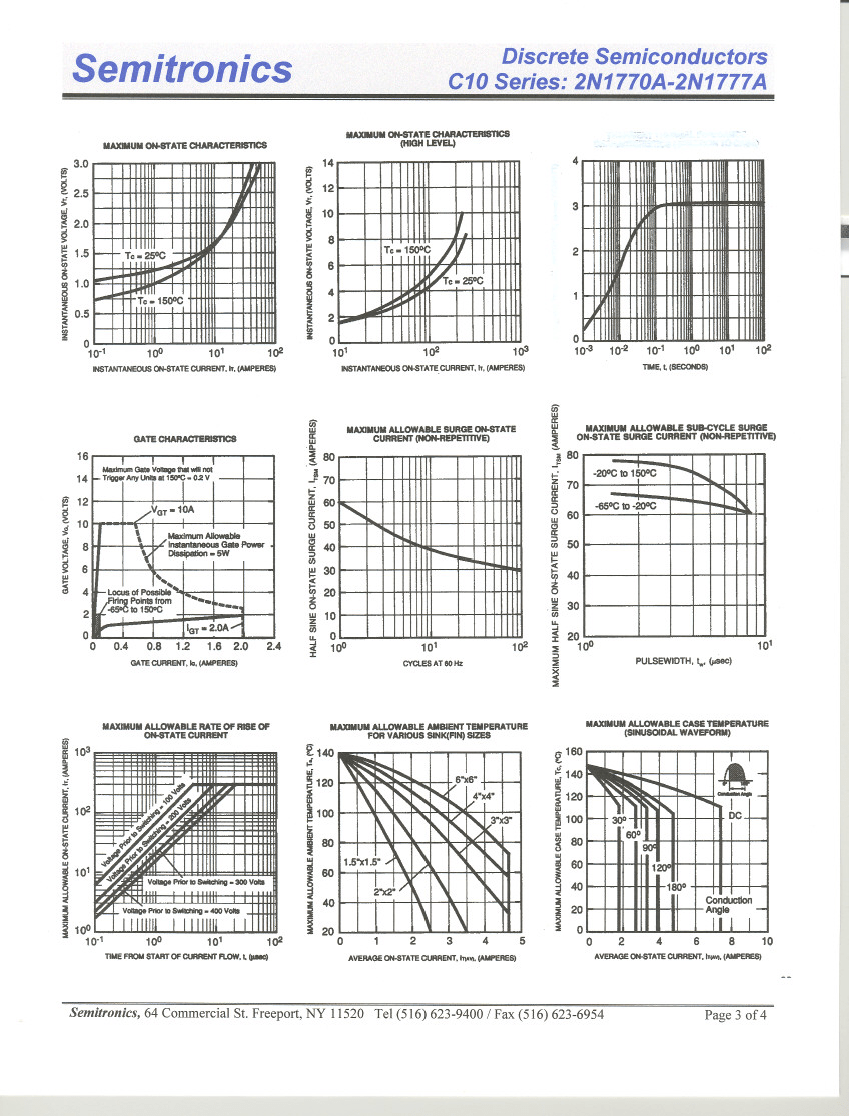

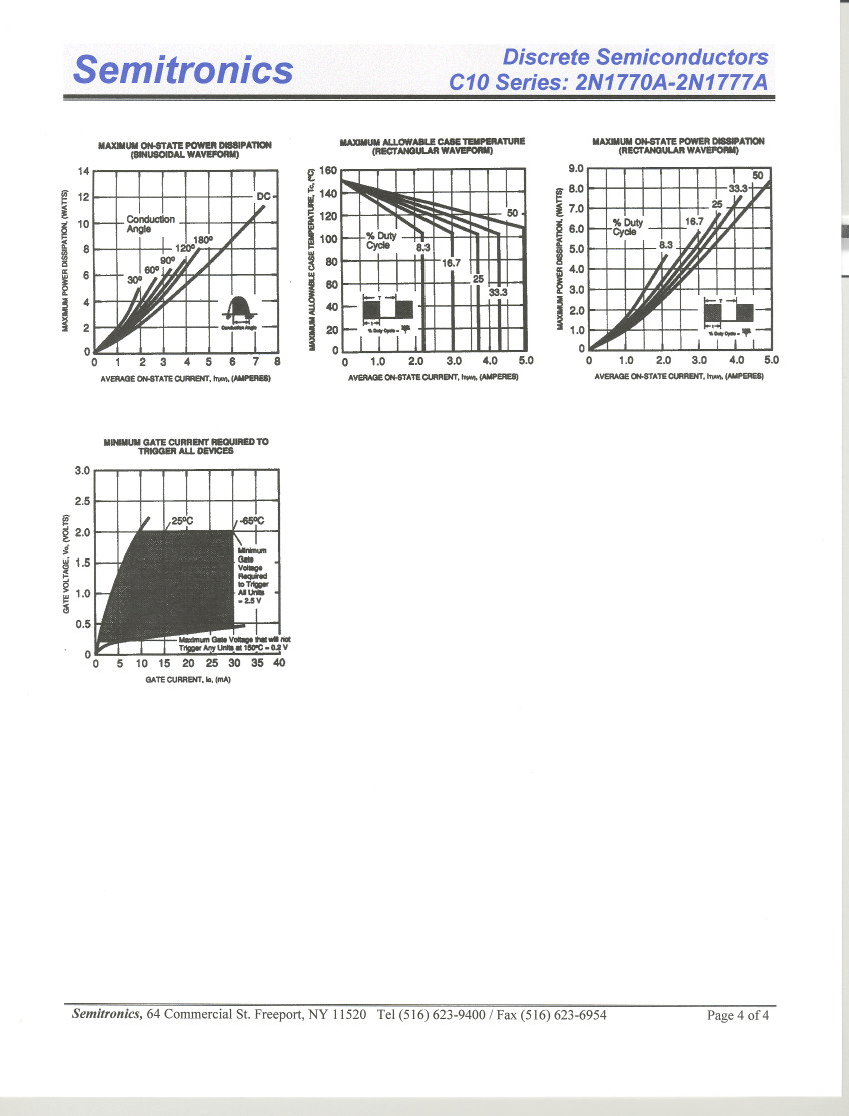

Preview

Download Datasheet

View All

JANTX2N1776A Related Products

	JANTX2N1776A	JANTX2N1771A	JAN2N1771A	JANTX2N1774A	JAN2N1774A	JAN2N1776A	JANTX2N1777A	JANTX2N1772A	JAN2N1772A	JAN2N1777A
Description	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 300V V(DRM), 300V V(RRM), 1 Element, TO-64, HERMETIC SELALED PACKAGE-2	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 50V V(DRM), 50V V(RRM), 1 Element, TO-64, HERMETIC SELALED PACKAGE-2	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 50V V(DRM), 50V V(RRM), 1 Element, TO-64, HERMETIC SELALED PACKAGE-2	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 200V V(DRM), 200V V(RRM), 1 Element, TO-64, HERMETIC SELALED PACKAGE-2	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 200V V(DRM), 200V V(RRM), 1 Element, TO-64, HERMETIC SELALED PACKAGE-2	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 300V V(DRM), 300V V(RRM), 1 Element, TO-64, HERMETIC SELALED PACKAGE-2	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-64, HERMETIC SELALED PACKAGE-2	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 100V V(DRM), 100V V(RRM), 1 Element, TO-64, HERMETIC SELALED PACKAGE-2	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 100V V(DRM), 100V V(RRM), 1 Element, TO-64, HERMETIC SELALED PACKAGE-2	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-64, HERMETIC SELALED PACKAGE-2
Parts packaging code	TO-64	TO-64	TO-64	TO-64	TO-64	TO-64	TO-64	TO-64	TO-64	TO-64
package instruction	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2
Contacts	2	2	2	2	2	2	2	2	2	2
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Shell connection	ANODE	ANODE	ANODE	ANODE	ANODE	ANODE	ANODE	ANODE	ANODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum DC gate trigger current	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA
JEDEC-95 code	TO-64	TO-64	TO-64	TO-64	TO-64	TO-64	TO-64	TO-64	TO-64	TO-64
JESD-30 code	O-MUPM-D2	O-MUPM-D2	O-MUPM-D2	O-MUPM-D2	O-MUPM-D2	O-MUPM-D2	O-MUPM-D2	O-MUPM-D2	O-MUPM-D2	O-MUPM-D2
Maximum leakage current	4 mA	9 mA	9 mA	6 mA	6 mA	4 mA	2 mA	9 mA	9 mA	2 mA
On-state non-repetitive peak current	60 A	60 A	60 A	60 A	60 A	60 A	60 A	60 A	60 A	60 A
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum on-state current	4700 A	4700 A	4700 A	4700 A	4700 A	4700 A	4700 A	4700 A	4700 A	4700 A
Maximum operating temperature	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Qualified	Qualified	Qualified	Qualified	Qualified	Qualified	Qualified	Qualified	Qualified	Qualified
Maximum rms on-state current	7.4 A	7.4 A	7.4 A	7.4 A	7.4 A	7.4 A	7.4 A	7.4 A	7.4 A	7.4 A
Guideline	MIL-19500/168	MIL-19500/168	MIL-19500/168	MIL-19500/168	MIL-19500/168	MIL-19500/168	MIL-19500/168	MIL-19500/168	MIL-19500/168	MIL-19500/168
Off-state repetitive peak voltage	300 V	50 V	50 V	200 V	200 V	300 V	400 V	100 V	100 V	400 V
Repeated peak reverse voltage	300 V	50 V	50 V	200 V	200 V	300 V	400 V	100 V	100 V	400 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	1	1	1	1	1	1
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	-
