5556PBTL

Description
WIRE TERMINAL
CategoryThe connector    Connector bracket
File Size215KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

5556PBTL Overview

WIRE TERMINAL

5556PBTL Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknow
Connector bracket typeCONNECTOR ACCESSORY
Manufacturer's serial number5556
This document was generated on 06/01/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0039000060
Active
minifit_jr
4.20mm (.165") Pitch Mini-Fit™ Crimp Terminal, Female, Phosphor Bronze, Tin (Sn),
18-24 AWG, Bag
Documents:
Test Summary (PDF)

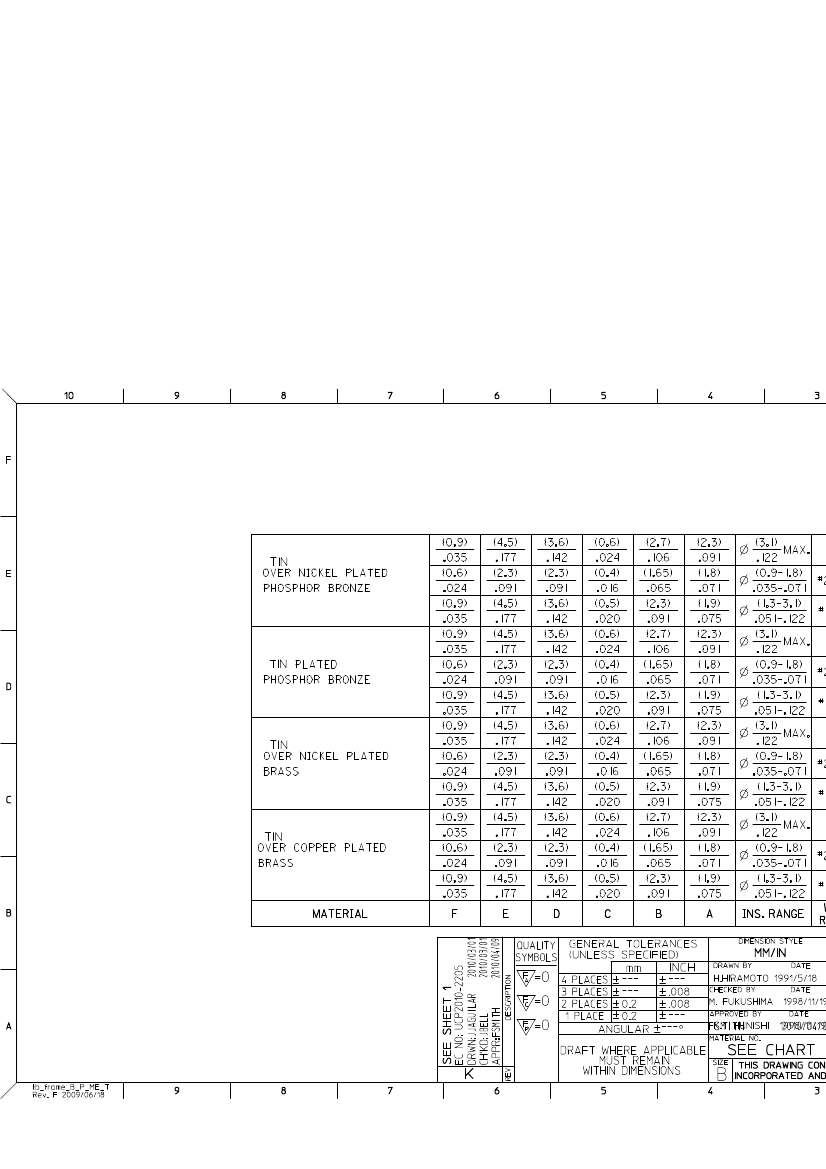

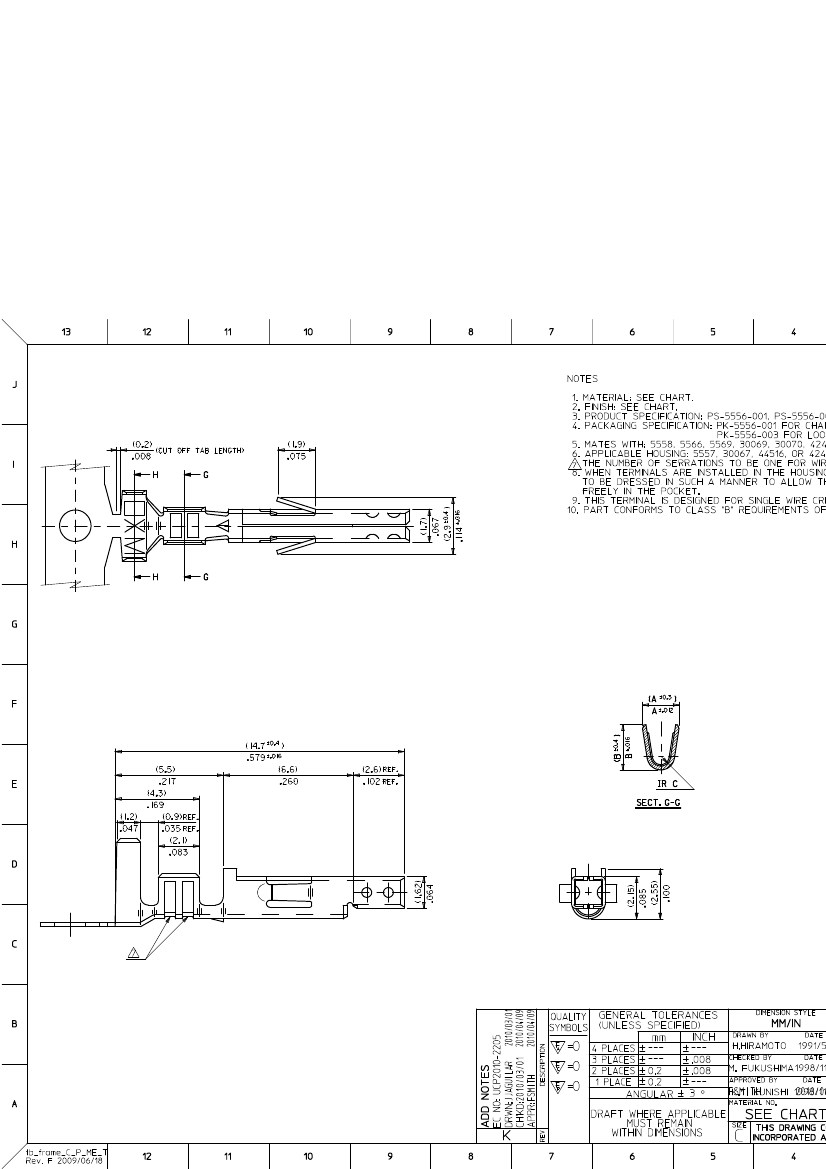

Drawing (PDF)
Product Specification PS-51010-003 (PDF)
Product Specification PS-51010-004 (PDF)
Product Specification PS-51045-003 (PDF)
Product Specification PS-52252-001 (PDF)
Product Specification PS-54111-001 (PDF)
Product Specification PS-54111-002 (PDF)
Product Specification PS-54452-006 (PDF)
Product Specification PS-54452-007 (PDF)
Product Specification PS-54849-004 (PDF)
Product Specification PS-5556-001 (PDF)
Product Specification PS-5556-002 (PDF)
Product Specification PS-5556-003 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Crimp Quality Equipment
Overview
Product Name
Crimp Terminals
5556
Yes
minifit_jr
Mini-Fit®
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Halogen
Need mo
environm
Physical
Durability (mating cycles max)
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
30
Receptacle
Phosphor Bronze
Tin
Tin
Bag
36
0.90
36
0.90
Crimp or Compression
1.30-3.10mm (.051-.122")
18, 20, 22, 24
N/A
Email pro
For a mu
Complian
Please vi
non-prod
Search
5556Se
Mates
5558 M
Header
Electrical
Current - Maximum per Contact
Voltage - Maximum
9A
600V
Material Info
Old Part Number
5556PBTL
Use W
5557 M
30067
Mini-Fi
Reference - Drawing Numbers
Packaging Specification
Product Specification
PK-5556-003, SPK-5556-001, SPK-5556-002
PS-51010-003, PS-51010-004, PS-51045-003,
PS-52252-001, PS-54111-001, PS-54111-002,
PS-54452-006, PS-54452-007, PS-54849-004,
PS-5556-001, PS-5556-002, PS-5556-003,
RPS-51045-002, RPS-52034-001, RPS-54111-002,
RPS-54111-004, RPS-54111-005, RPS-54269-004,
RPS-54849-001, RPS-5557-001, RPS-5557-027,
RPS-5557-054
SD-5556****
Sales Drawing
Applic
Tooling
found b
Crimp H
contain
Specifi
Global
Descri
Extract
Hand C
Mini-Fi
and Fe
Summary report of the four axes
