D37S90C4PX00LF: DescriptionD Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size123KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

D37S90C4PX00LF Overview

D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, Receptacle, ROHS COMPLIANT

D37S90C4PX00LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	LOW PROFILE
body width	0.494 inch
subject depth	0.22 inch
body length	2.729 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
MIL compliance	NO
Plug contact pitch	0.109 inch
Mixed contacts	NO
Installation option 2	THREADED INSERT
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Housing size	4/C
Terminal length	0.134 inch
Terminal pitch	2.7686 mm
Termination type	PRESS FIT
Total number of contacts	37
Evacuation force-minimum value	.29746 N

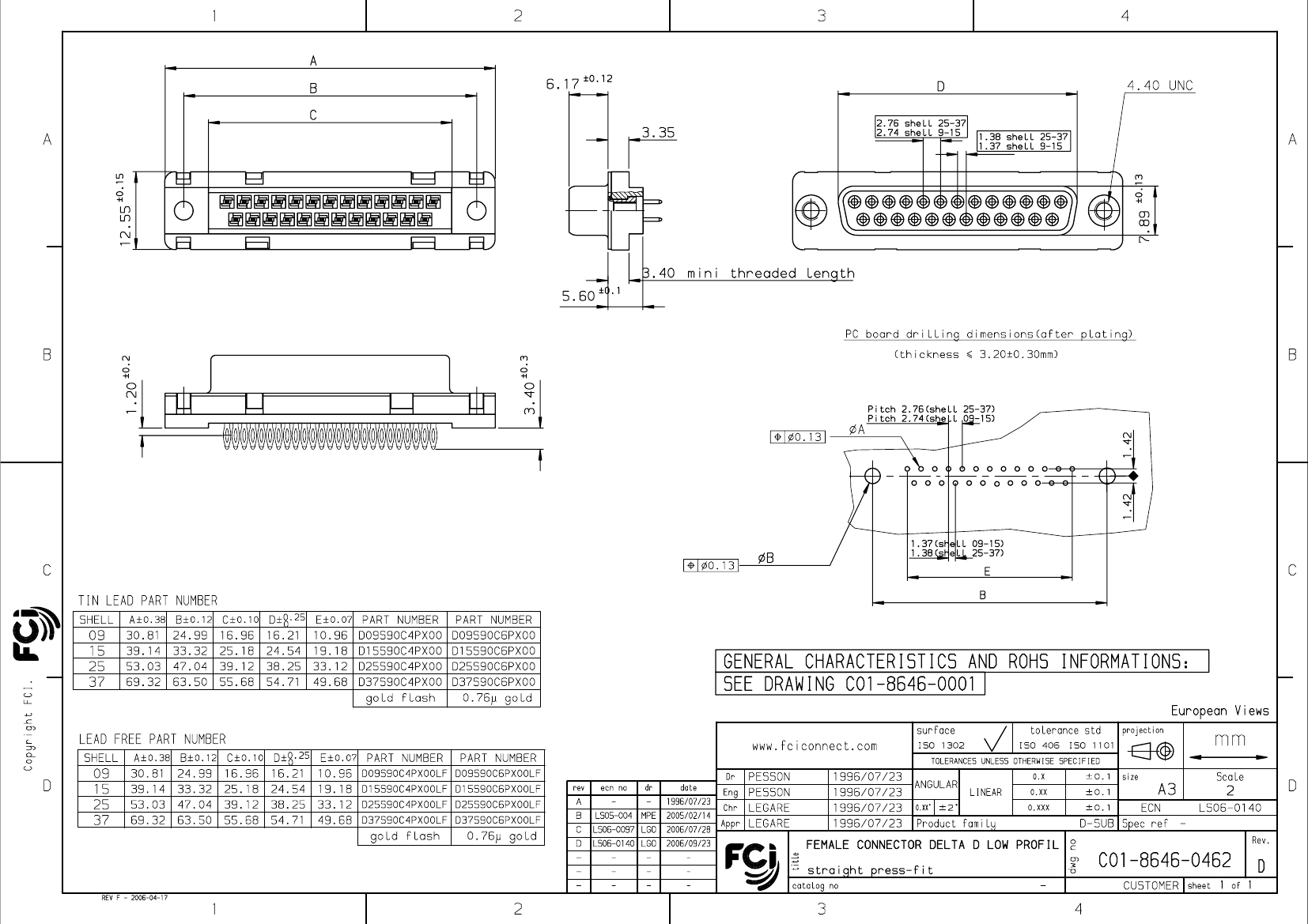

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Jan 18, 2011

D37S90C4PX00LF Related Products

	D37S90C4PX00LF	D09S90C4PX00	D15S90C4PX00LF	D15S90C4PX00	D25S90C4PX00	D37S90C4PX00
Description	D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, Receptacle, ROHS COMPLIANT	D Subminiature Connector, 9 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, Receptacle, ROHS COMPLIANT	D Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 25 Contact(s), Female, Press Fit Terminal,	D Subminiature Connector, 37 Contact(s), Female, Press Fit Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	GOLD FLASH	NOT SPECIFIED	GOLD FLASH	GOLD FLASH	GOLD FLASH
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN OVER NICKEL	TIN	TIN OVER NICKEL	TIN	TIN	TIN
Housing size	4/C	1/E	2/A	2/A	3/B	4/C
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	37	9	15	15	25	37
Maker	Amphenol	Amphenol	Amphenol	Amphenol	-	Amphenol
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99
Contact completed and terminated	-	TIN LEAD	-	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD
insulator material	-	POLYETHYLENE	-	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
JESD-609 code	-	e0	-	e0	e0	e0
Shell material	-	STEEL	-	STEEL	STEEL	STEEL
UL Flammability Code	-	94V-0	-	94V-0	94V-0	94V-0
