MLAS100-21-CB datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MLAS100-21-CB

Preview

MLAS100-21-CB: DescriptionBoard Connector, 21 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size121KB，2 Pages; ManufacturerPANCON CONNECTORS

Download Datasheet Parametric View All

MLAS100-21-CB Overview

Board Connector, 21 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT

MLAS100-21-CB Parametric

Parameter Name	Attribute value
Maker	PANCON CONNECTORS
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL/GOLD FLASH OVER PALLADIUM NICKEL
Contact completed and terminated	GOLD (15) OVER NICKEL/GOLD FLASH OVER PALLADIUM NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	21
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

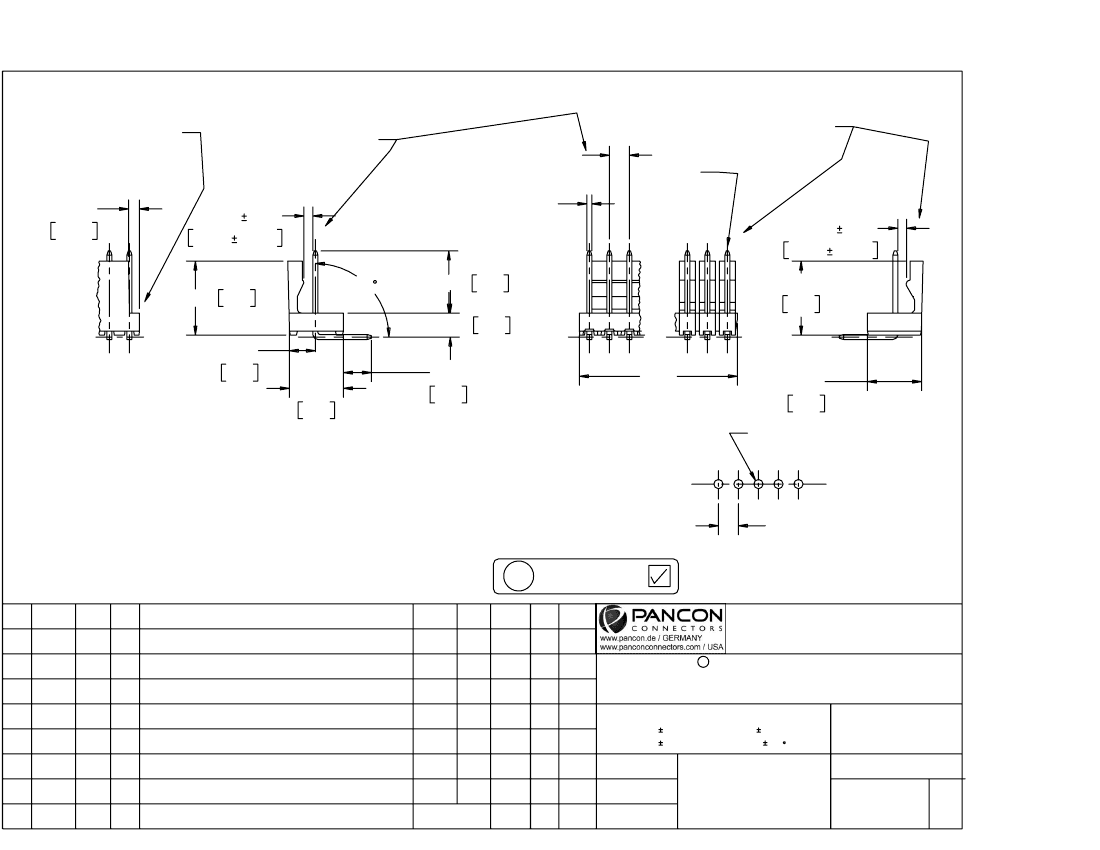

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANCON.

FOR USE W/ POLARIZED AND

UNPOLARIZED MASCON (CE,CT,CEP,CTP)

STYLE CONNECTORS

SOLID BACK WALL

POLARIZATION

FOR SIZES 2-12 & 14

.100 [2.54]

FEATURE ON SIZES

*SEE NOTE 6

(TYP)

2-12 & 14

(TYP BOTH ENDS)

.055

1.40

.044

1.1

.01

0.25

.025 SQ.

[.64 SQ.]

FOR USE W/ MASCON CE OR CT

STYLE CONNECTORS ONLY

SPLIT BACK WALL

FOR SIZES 13,15-36

PIN #1

(REF)

.038

1.0

.01

0.25

90

.37

9.4

.30

7.6 typ

.37

9.4

.12

.13

3.3

typ

NOTES:

.27

6.9

3.0

(REF.)

.14

3.6

typ

.046/.040 DIA.

(1.17/1.02)

"A"

.27

6.9

1. PART NUMBER: SEE CHART-PAGE 2 OF 2

2. POST MATERIAL: BRASS ALLOY; BRIGHT ACID

TIN OVER NICKEL PLATING

3. WAFER MATERIAL: THERMOPLASTIC, U.L. 94V-O

4. ALL DIMENSIONS SHOWN IN INCHES & (MILLIMETERS)

5. FOR 15 MICROINCH GOLD OVER NICKEL OR

GOLD FLASH OVER PALLADIUM NICKEL,

ADD THE "B" SUFFIX TO THE PART NUMBER

*6. HEADERS WITH CIRCUIT SIZES OF 2-6 WILL HAVE THE

LOCKING BUMP THE FULL LENGTH OF THE BACK WALL.

HEADERS WITH CIRCUIT SIZES OF 7-12 WILL HAVE

THE LOCKING BUMP ON A TOTAL OF 6 CIRCUITS,

3 CIRCUITS ON EACH END OF THE HEADER.

U.L. RECOGNIZED

FILE #E73711

.100 (2.54)

(TYP)

RECOMMENDED

P.C. BOARD LAYOUT

X

Pb

RoHS

Compliant

Bolingbrook, Illinois

R

MAS-CON , .100" LOCKING HEADER

WITH RIGHT ANGLED PINS

UNLESS OTHERWISE SPECIFIED,

DIMENSIONAL TOLERANCES ARE:

UNLESS OTHERWISE SPEC-

IFIED, ALL DIMENSIONS

ARE GIVEN IN INCHES.

THIRD ANGLE PROJECTION.

S C A L E

(.X)

(.XX)

D R A W N

(.XXX)

ANGLES

.02(.5)

B Y

MAT'L

.005(.13)

5

JEP

11

6/25

/10

D A T E

2:1

N O.

SHC

ADDED PDNI PLATING ALTERNATIVE

3-29-88

C H K'D

SEE NOTES

D R A W I N G

DWG.

REV DATE

BY

CHK

DESCRIPTION

CN - R

CUST

SUP

WJH

KA-10156

SHT 1 OF 2

A

SIZE
