R65C10J3E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> R65C10J3E

R65C10J3E: DescriptionRISC Microprocessor, 8-Bit, 3MHz, CMOS, PQCC44,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，23 Pages; ManufacturerCONEXANT; Websitehttp://www.conexant.com/

Download Datasheet Parametric Compare View All

R65C10J3E Overview

RISC Microprocessor, 8-Bit, 3MHz, CMOS, PQCC44,

R65C10J3E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	CONEXANT
Reach Compliance Code	compliant
bit size	8
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
Number of terminals	44
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
speed	3 MHz
Maximum slew rate	7.5 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC

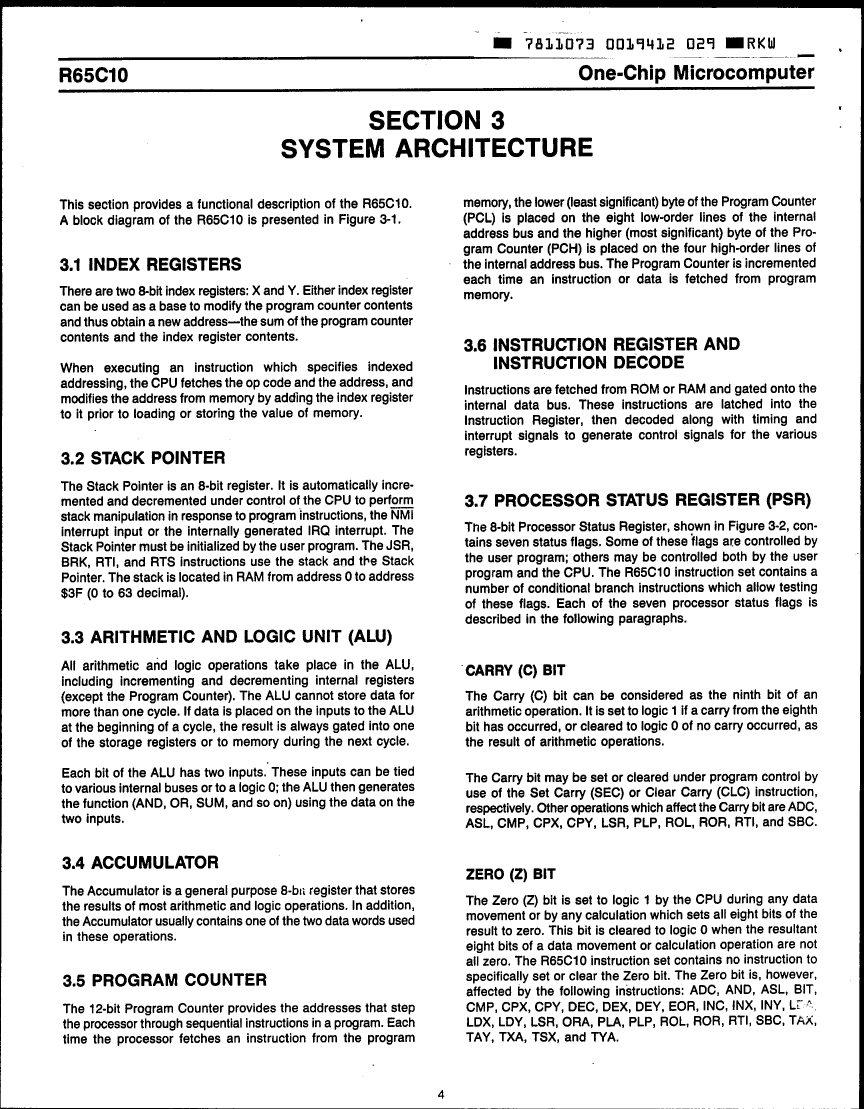

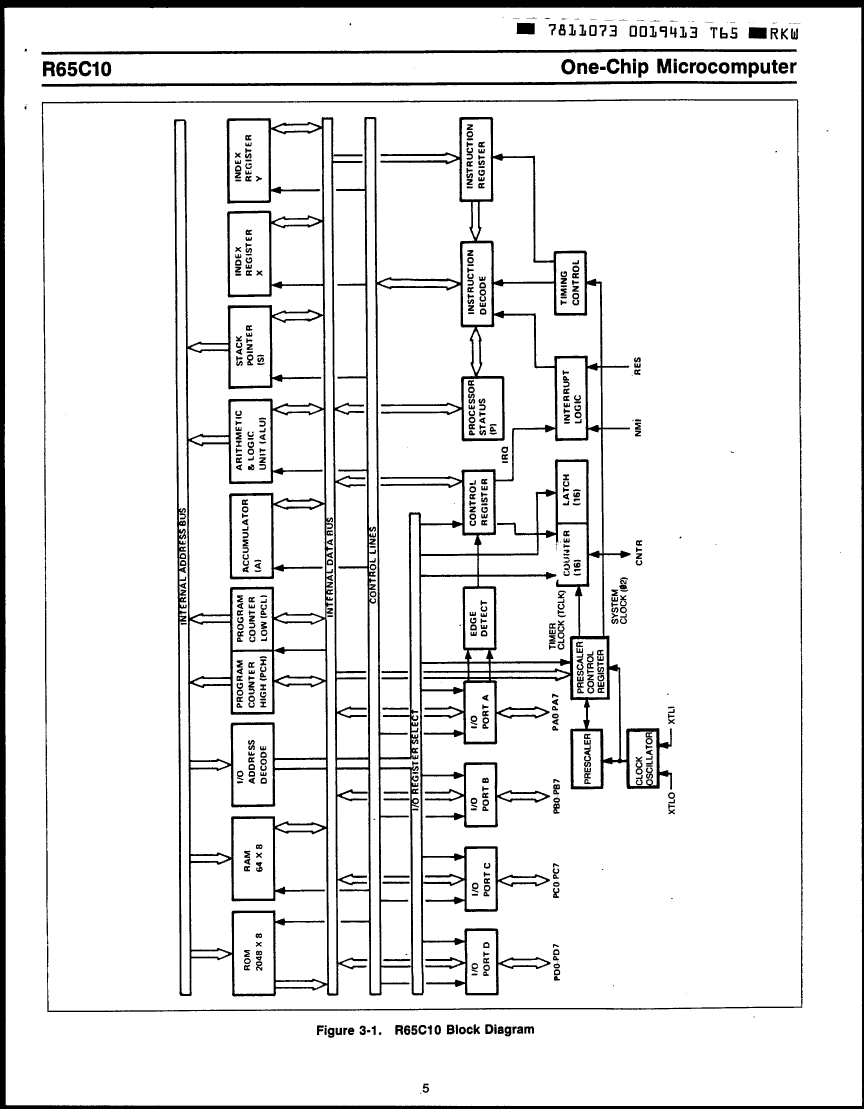

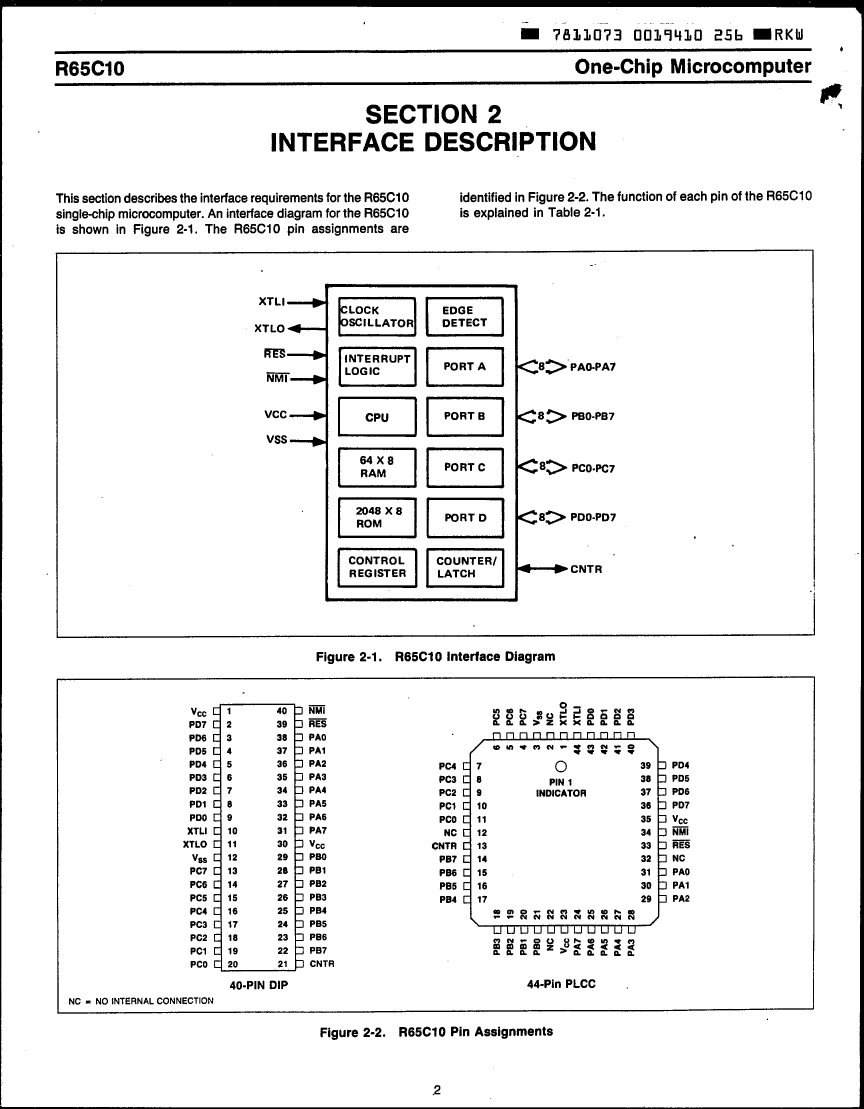

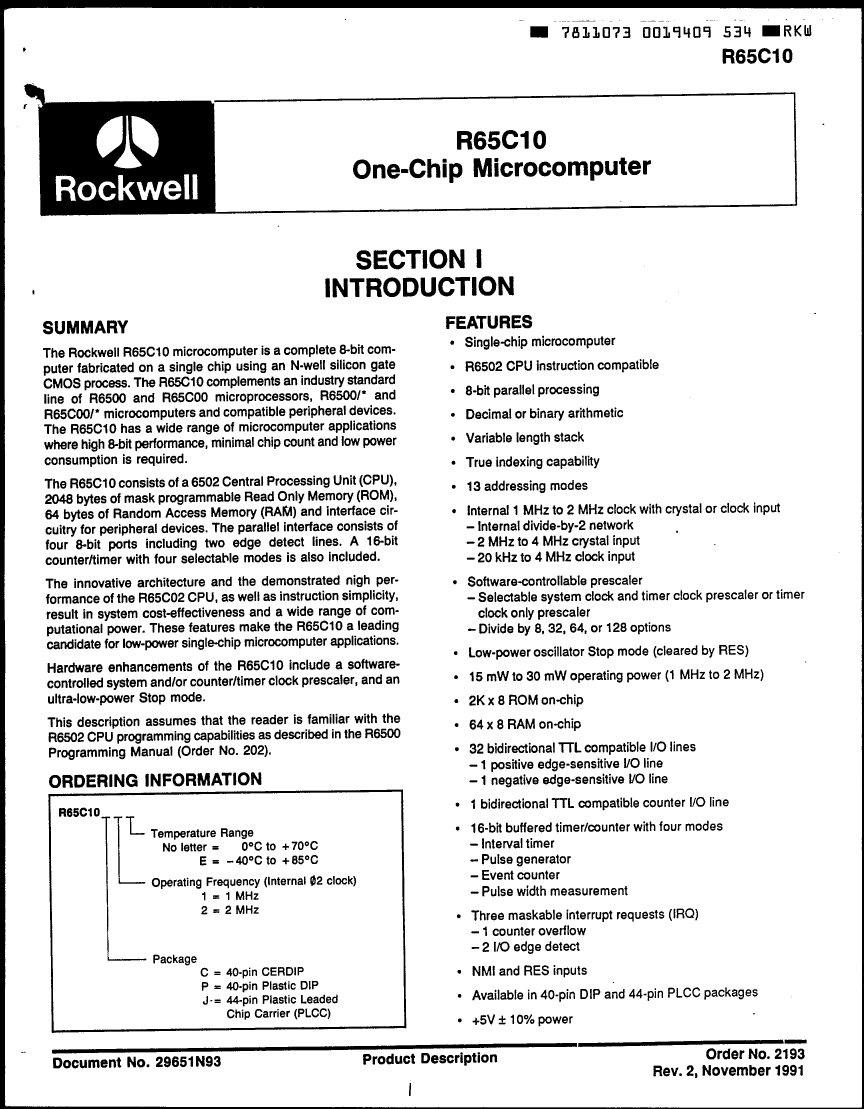

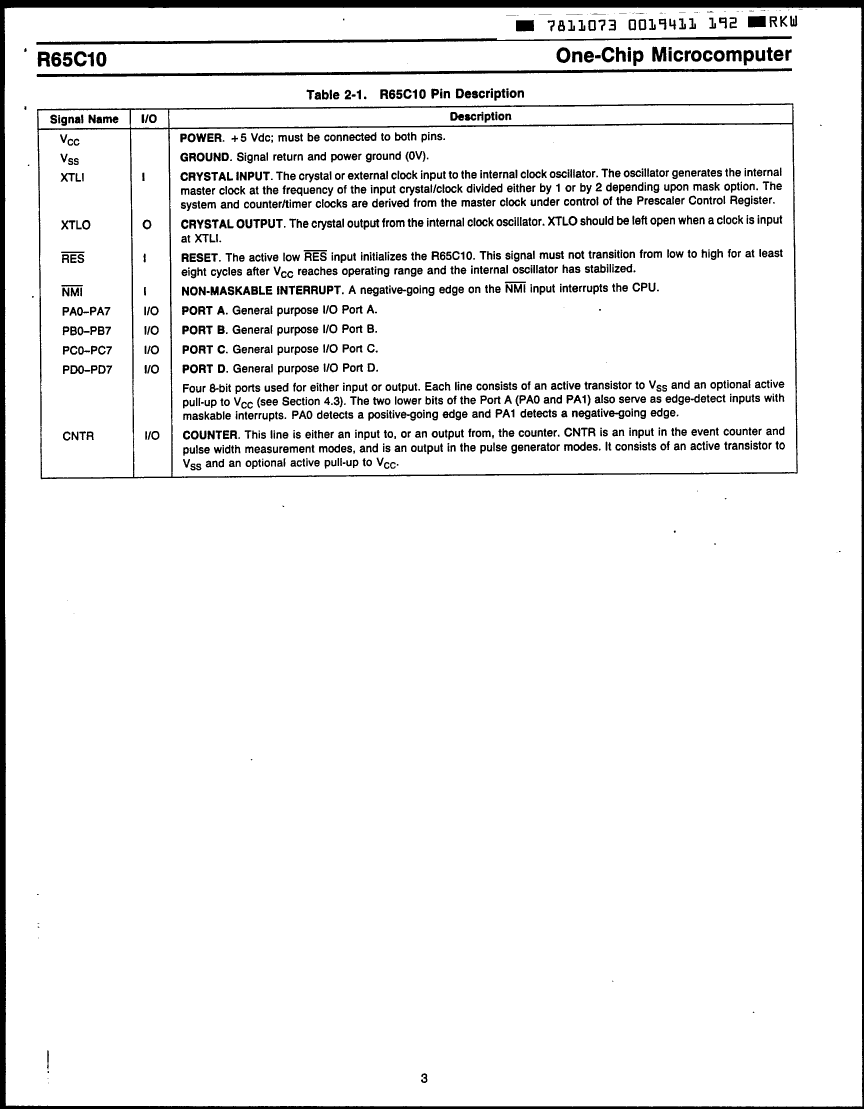

Preview

Download Datasheet

View All

R65C10J3E Related Products

	R65C10J3E	R65C10C3E	R65C10C4E	R65C10J4E	R65C10P3E	R65C10P4E
Description	RISC Microprocessor, 8-Bit, 3MHz, CMOS, PQCC44,	RISC Microprocessor, 8-Bit, 3MHz, CMOS, CDIP40,	RISC Microprocessor, 8-Bit, 4MHz, CMOS, CDIP40,	RISC Microprocessor, 8-Bit, 4MHz, CMOS, PQCC44,	RISC Microprocessor, 8-Bit, 3MHz, CMOS, PDIP40,	RISC Microprocessor, 8-Bit, 4MHz, CMOS, PDIP40,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	CONEXANT	CONEXANT	CONEXANT	CONEXANT	CONEXANT	CONEXANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
bit size	8	8	8	8	8	8
JESD-30 code	S-PQCC-J44	R-XDIP-T40	R-XDIP-T40	S-PQCC-J44	R-PDIP-T40	R-PDIP-T40
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of terminals	44	40	40	44	40	40
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP	DIP	QCCJ	DIP	DIP
Encapsulate equivalent code	LDCC44,.7SQ	DIP40,.6	DIP40,.6	LDCC44,.7SQ	DIP40,.6	DIP40,.6
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
speed	3 MHz	3 MHz	4 MHz	4 MHz	3 MHz	4 MHz
Maximum slew rate	7.5 mA	7.5 mA	10 mA	10 mA	7.5 mA	10 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	QUAD	DUAL	DUAL	QUAD	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC
