MR1121R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MR1121R

MR1121R: DescriptionRectifier Diode, 1 Phase, 1 Element, 12A, 100V V(RRM), Silicon, DO-4,; CategoryDiscrete semiconductor diode; File Size106KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MR1121R Overview

Rectifier Diode, 1 Phase, 1 Element, 12A, 100V V(RRM), Silicon, DO-4,

MR1121R Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	O-MUPM-D1
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	DO-4
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	300 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	190 °C
Minimum operating temperature	-65 °C
Maximum output current	12 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	500 µA
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

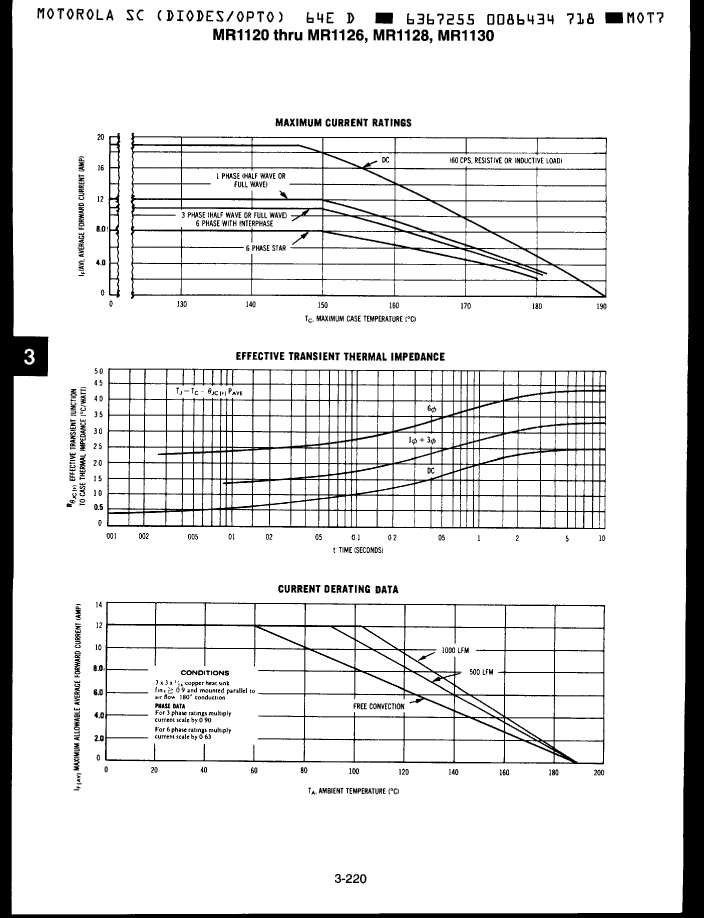

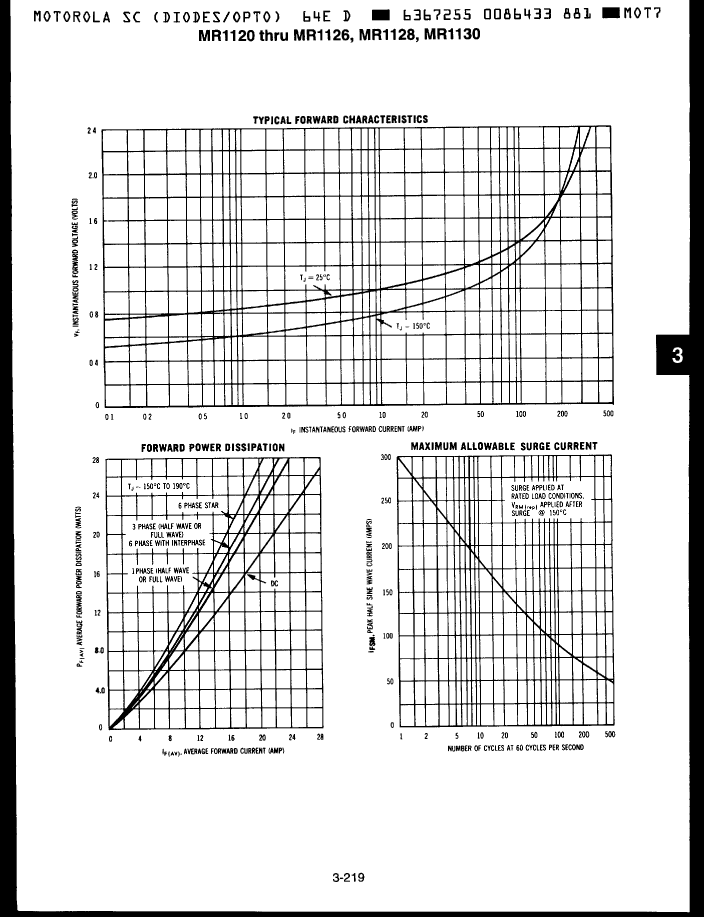

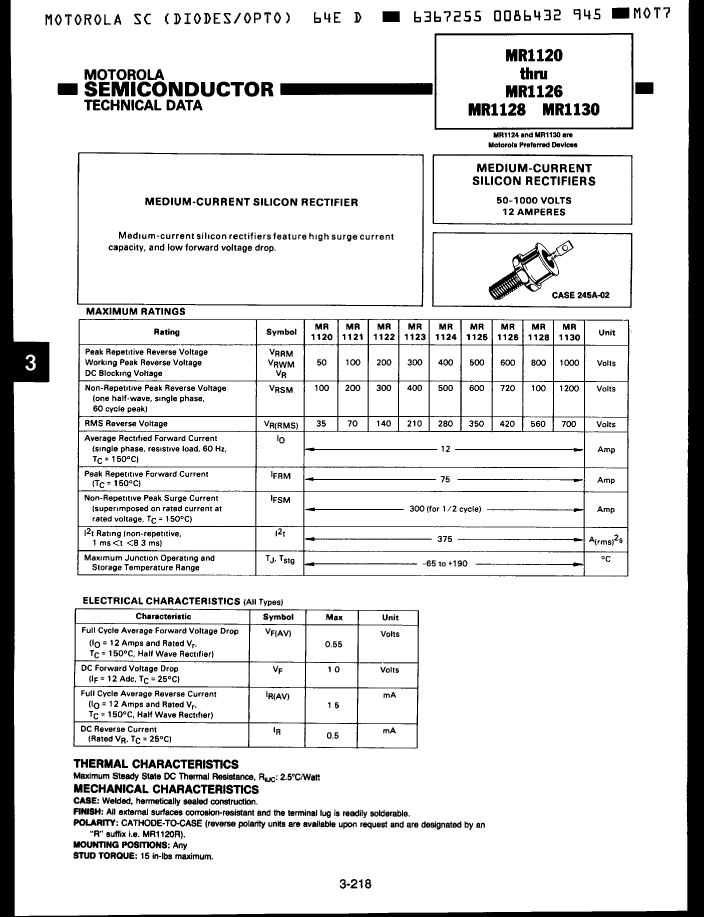

Preview

Download Datasheet

View All

MR1121R Related Products

	MR1121R	MR1130R	MR1122R	MR1123R	MR1125R
Description	Rectifier Diode, 1 Phase, 1 Element, 12A, 100V V(RRM), Silicon, DO-4,	Rectifier Diode, 1 Phase, 1 Element, 12A, 1000V V(RRM), Silicon, DO-4,	Rectifier Diode, 1 Phase, 1 Element, 12A, 200V V(RRM), Silicon, DO-4,	Rectifier Diode, 1 Phase, 1 Element, 12A, 300V V(RRM), Silicon, DO-4,	Rectifier Diode, 1 Phase, 1 Element, 12A, 500V V(RRM), Silicon, DO-4,
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ANODE	ANODE	ANODE	ANODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V
JEDEC-95 code	DO-4	DO-4	DO-4	DO-4	DO-4
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	300 A	300 A	300 A	300 A	300 A
Number of components	1	1	1	1	1
Phase	1	1	1	1	1
Number of terminals	1	1	1	1	1
Maximum operating temperature	190 °C	190 °C	190 °C	190 °C	190 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	12 A	12 A	12 A	12 A	12 A
Package body material	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	1000 V	200 V	300 V	500 V
Maximum reverse current	500 µA	500 µA	500 µA	500 µA	500 µA
surface mount	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER
