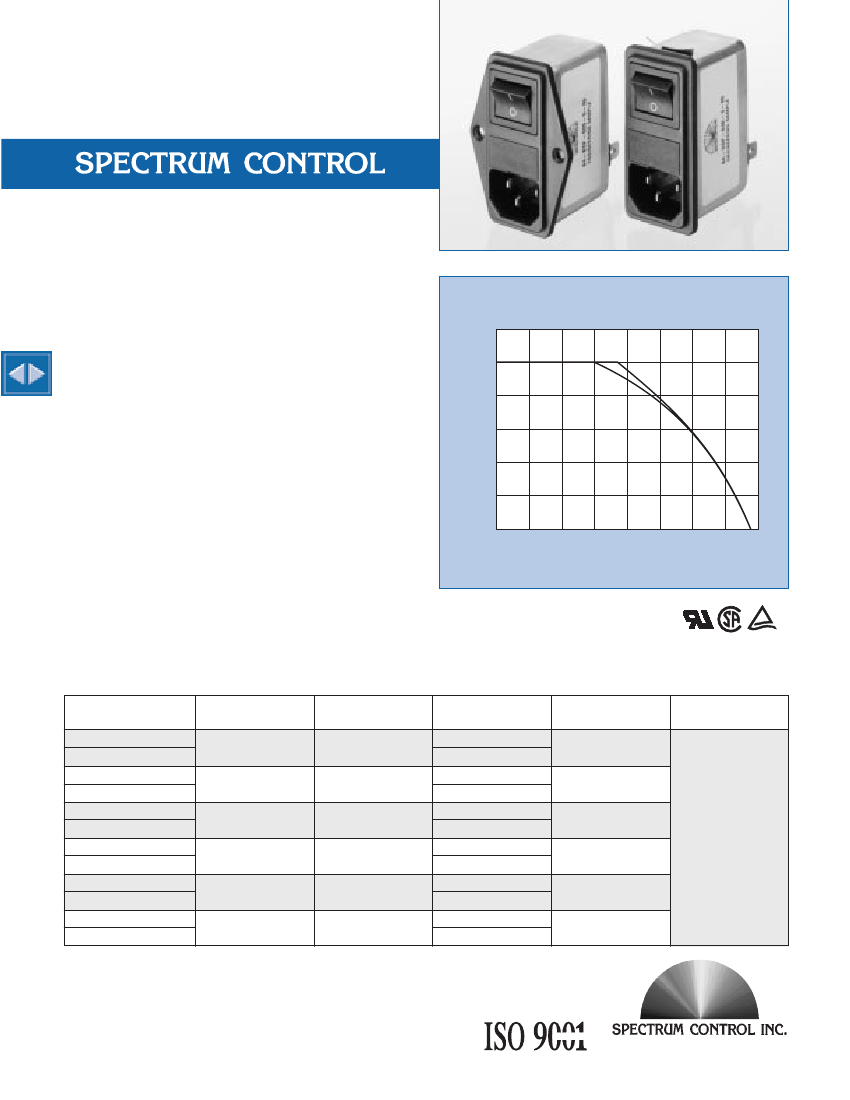

Switched and Fused
Filtered Power
Entry Modules
For General Purpose Applications
64-65-BSF/64-65-SSF Series
Features
s
s
s
s
s
s
s
s
s
s
s
North American and Metric fuse holders available
Fuse holder and double pole power ON/OFF switch
provides a convenient/compact package
Suitable for products that must conform
to FCC and FTZ requirements
Meets over voltage category II of IEC 664
and complies with IEC 950
Metal case provides effective shielding
IEC connector meets the safety standards of most
certifying organizations
Easy access fuse drawer
Space for spare fuse
Flange mounted or snap-in styles available
for quick mounting
UL recognized, CSA certified
¨
TUV approved, parts are tested and found
to be in accordance with VDE 0565 part 3
Temperature Characteristics
120
100
80
60
40
20
0
Current (%)
20
30
40
50
60
70
Ambient Temperature (°C)
Figure 1
80
90
Applications
Computers and peripheral equipment
s
Electronic equipment
s
Digital equipment
s
Measuring and testing instruments
s
Telecommunications equipment
s
Specifications
Part Number
64-B(S)SF-020-3-
**
64-B(S)SF-020-5-
**
64-B(S)SF-040-3-
**
64-B(S)SF-040-5-
**
64-B(S)SF-060-3-
**
64-B(S)SF-060-5-
**
65-B(S)SF-020-3-
**
65-B(S)SF-020-5-
**
65-B(S)SF-040-3-
**
65-B(S)SF-040-5-
**
65-B(S)SF-060-3-
**
65-B(S)SF-060-5-
**
Voltage
Rating
250VAC
250VAC
250VAC
125VAC
125VAC
125VAC
Current Rating
2A
4A
6A
2A
4A
6A
Leakage Current:
(Max.)
0.35mA
0.50mA
0.35mA
0.50mA
0.35mA
0.50mA
0.35mA
0.50mA
0.35mA
0.50mA
0.35mA
0.50mA
-
-
-
-
Temperature
Rise (Max.)
45°C
45°C
45°C
45°C
45°C
45°C
-25°C to +85°C
(including
temperature
rise) See Figure 1.
Operating
Temperature
Note: Test Voltage 1500 VAC one minute, line to ground.
Insulation Resistance: 300 MΩ min. at 500VDC.
Voltage Drop: 1V max. at rated current.
Weight: 130g
Inlet: Compatible with IEC-320
B(S) = Bolt-in terminals or (Snap-in terminals)
**
Capacitance Values:
-
-
-
-
-
01 = 2 X 0.10µF
02 = 0.10µF & 0.22µF
03 = 0.22µF & 0.10µF
04 = 2 X 0.22µF
05 = 0.47µF & 0.10µF
06 = 0.47µF & 0.22µF
11 = 0.10µF (1 cap only)
12 = 0.22µF (1 cap only)
14 = 0.47µF (1 cap only)
CERTIFIED
A Control Products & Systems Company
SPECTRUM CONTROL INC.
• 6000 West Ridge Rd. • Erie, PA 16506 • Phone: 814-835-4000 • Fax: 814-835-9000 • Web site: www.spectrumcontrol.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

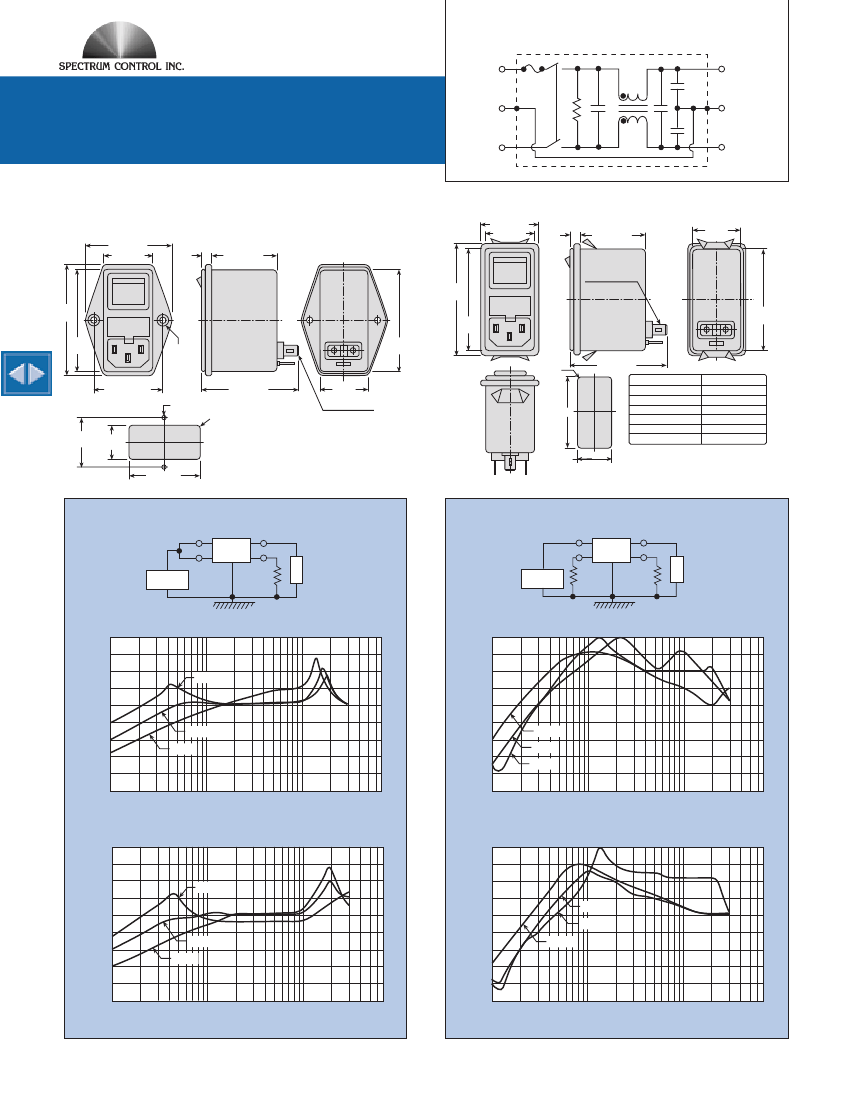

Circuit Diagram
L
L
Switched and Fused Filtered
Power Entry Modules
For General Purpose Applications
Dimensions
64/65-BSF Series
1.947 (49.5)
1.101 (28)
.248
(6.3)
1.526 (38.8)
E
E
N
N
64/65-SSF Series
1.313 (33.4)
1.101 (28)
.248
(6.3)
1.514 (38.8)
1.133
(28.8)
Fast-on tab #250
2.556
(65)
2.556
(65)
t= .031 (0.8)
2.340
(59.5)
2.348
(59.7)
.142
(Ø3.6)
2.340
(59.5)
R .079
(2.0)
1.573 (40±0.2)
2 - .142
(3.6) Hole
R .059
(1.5)
Panel cutout
dimension
mount from
back side
2.399 (61)
2.273 (57.8)
1.133
(28.8)
Fast-on Tab #250
t= .031 (0.8)
A
2.273 (57.8)
Thickness of Panel
.031 (0.8t)
.039 (1.0t)
.047 (1.2t)
.059 (1.5t)
.071 (1.8t)
.079 (2.0t)
Panel cutout dimension
mount from back side
2.348
(59.7)
1.573 1.16±
.334
0
(40.±0.2) (29.5±
0.5
)
0
Dimensions in inches (mm)
1.16±
.334
0
(29.5±
0.5
)
0
A
(2.430) 61.8±0.1
(2.446) 62.2±0.1
(2.462) 62.6±0.1
(2.470) 62.8±0.1
(2.473) 62.9±0.1
(2.477) 63.0±0.1
* General Tolerance
±
.039 (1.0)
* Metal Case
Common Mode
1
3
Filter
2
4
Oscillator
50Ω
50Ω
50Ω
Level
Meter
Normal Mode
1
3
Filter
2
4
Oscillator
50Ω
50Ω
50Ω
50Ω
Level
Meter
0.35 mA Leakage Versions
90
80
70
Insertion Loss (dB)
60
50
40
4 Amp
30
20
10
0
0.1
0.2
0.5
1
2
5
Frequency (MHz)
10
20
50
6 Amp
Insertion Loss (dB)
2 Amp
100
90
80
70
60
50
64/65-B(S)SF-*-*-02(04,06)
2 Amp
40
30
20
0
0.1
0.2
0.5
1
2
5
Frequency (MHz)
10
20
50
4 Amp
6 Amp
0.50 mA Leakage Versions
90
80
70
Insertion Loss (dB)
60
50
40
4 Amp
30
20
10
0
0.1
0.2
0.5
1
2
5
Frequency (MHz)
10
20
50
6 Amp
Insertion Loss (dB)
2 Amp
100
90
80
70
64/65-B(S)SF-*-*-01(03,05)
6 Amp
60
4 Amp
50
2 Amp
40
30
20
0
0.1
0.2
0.5
1
2
5
Frequency (MHz)
10
20
50
AHA PT G98 5M
27-0027-0039
Printed in U.S.A.
SPECTRUM CONTROL INC.
• 6000 West Ridge Rd. • Erie, PA 16506 • Phone: 814-835-4000 • Fax: 814-835-9000 • Web site: www.spectrumcontrol.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
