85056-0036

Description
48 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size128KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

85056-0036 Overview

48 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER

85056-0036 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresSTANDARDS: DIN 41612; IEC 603-2, TERMINAL PITCH FOR POWER/COAXIAL CONTACTS: 7.62 MM
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialCOPPER ALLOY
DIN complianceYES
Filter functionNO
IEC complianceYES
MIL complianceNO
Manufacturer's serial number85056
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsYES
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded3
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts48
UL Flammability Code94V-0
This document was generated on 05/17/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0850560036
Active
din_41612
2.54mm (.100") Pitch DIN 41612/IEC 603-2 Mixed Layout Connector, Female Style M
Inverse, 42 Circuits, Lead free
Documents:
3D Model

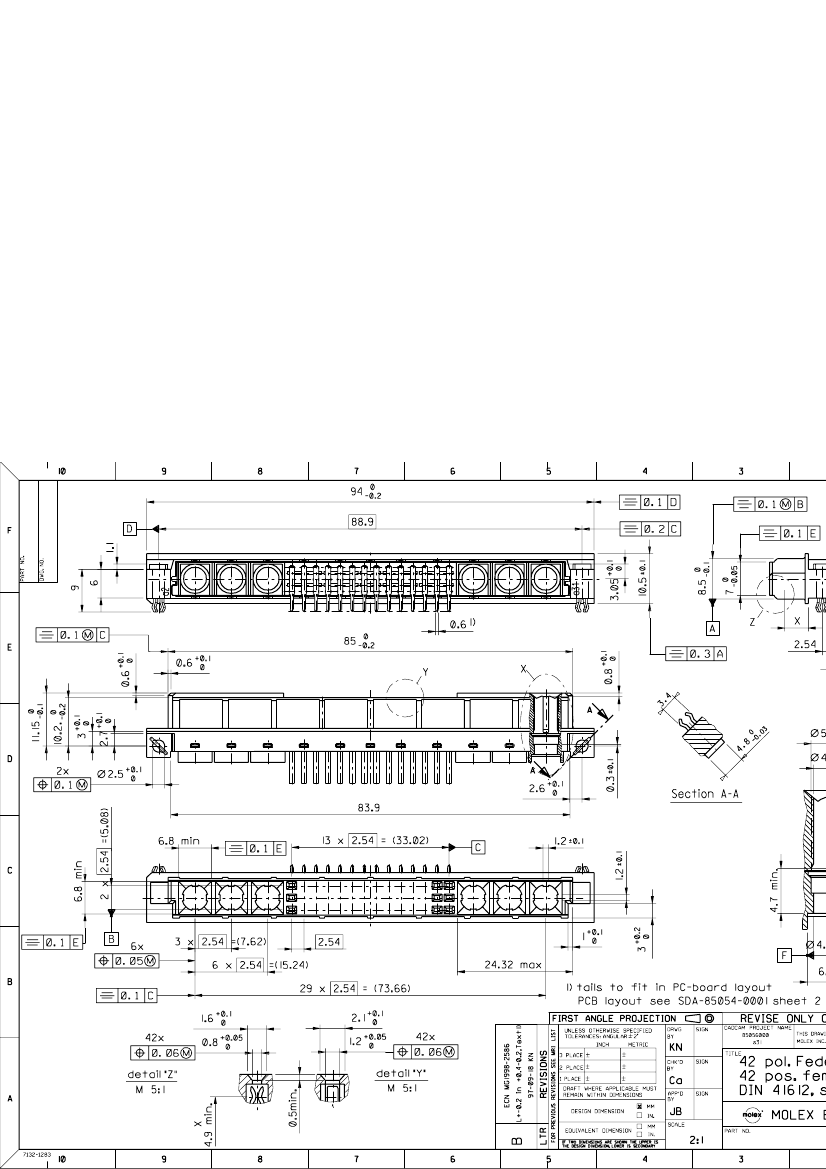

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Component Type
Overview
Product Name
Style
Backplane Connectors
85056
Daughtercard
PCB Receptacle
din_41612
IEC 603-2/DIN 41612
M
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Material - Plating Mating
Material - Plating Termination
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
42
48

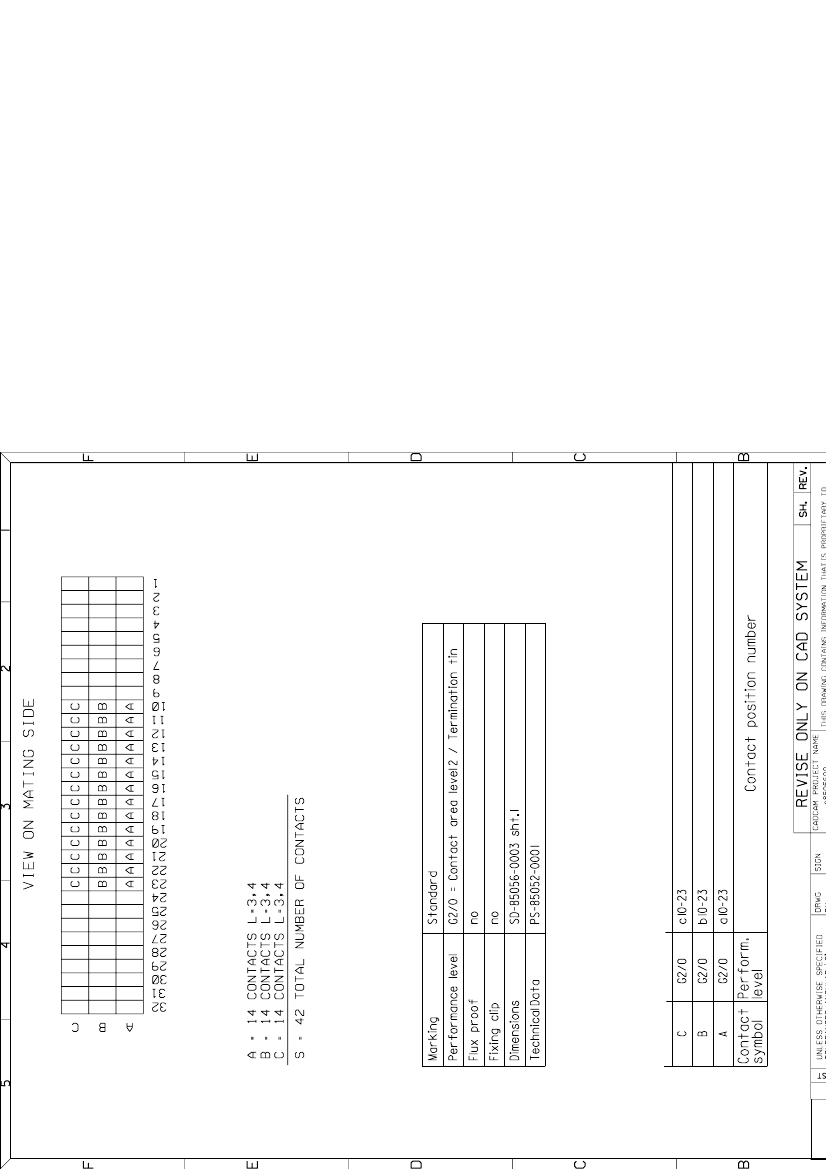

Standard Contacts at A:a10-a23; B:b10-b23; C:c10-c23
400
No
94V-0
No
Yes
Gold
Tin
14
Open Pin Field
3
Right Angle
0.133 In
3.40 mm
No
Yes
0.063 In, 0.126 In
1.60 mm, 3.20 mm
Tray
0.100 In
2.54 mm
0.100 In
2.54 mm
24
0.60
Yes
No
No
-55°C to +125°C
Through Hole
Email pro
For a mu
Complian
Please vi
non-prod
Search
85056S
Mates
DIN 41
Connec
