Printed-circuit board connector - MSTBC 2,5/ 3-ST-5,08 GNTQ
CP1 - 1710500
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB connector, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 3, pitch: 5.08 mm,
connection method: Crimp connection, color: turquoise green, contact surface: Tin, Corresponding female
crimp contacts with current [A] and conductor cross section range [mm²] data: 10A/MSTBC-MT 0,5-1,0
(3190564); 10A/MSTBC-MT 0,5-1,0 BA (3190645); 12A/MSTBC-MT 1,5-2,5 (3190551); 12A/MSTBC-MT
1,5-2,5 BA (3190658). BA = Bandkontakte

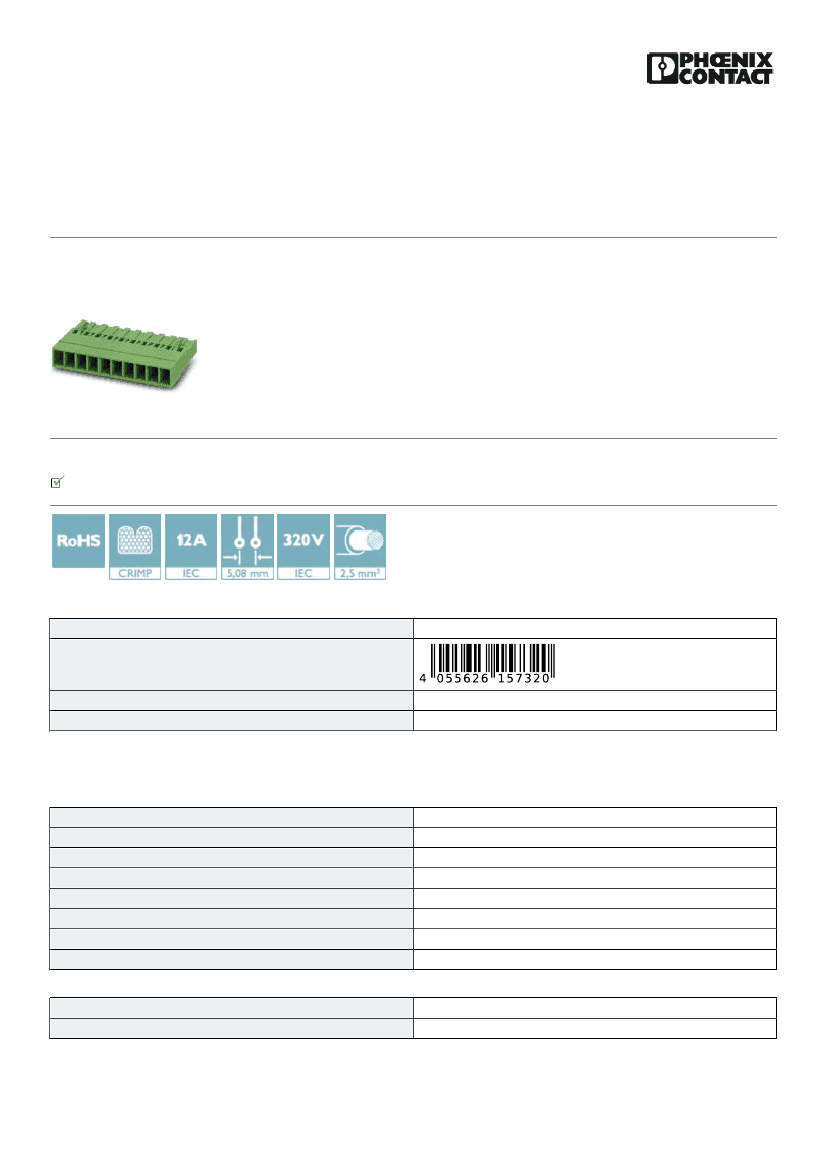

The figure shows an 10-position
version
Your advantages
Inexpensive connection of large quantities of pre-assembled conductors
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4055626157320
85472000
1
Technical data
Item properties
Brief article description
Plug-in system
Type of contact
Range of articles
Pitch
Number of positions
Connection method
Number of levels
Printed-circuit board connector
CLASSIC COMBICON
Female connector
MSTBC 2,5/..-ST
5.08 mm
3
Crimp connection
1
Electrical parameters
Rated current
Rated insulation voltage (III/2)
12 A
320 V
01/14/2019 Page 1 / 3
https://www.phoenixcontact.com/in/products/1710500
Printed-circuit board connector - MSTBC 2,5/ 3-ST-5,08 GNTQ
CP1 - 1710500
Technical data
Electrical parameters
Rated surge voltage (III/2)
4 kV
Connection capacity
Conductor cross section flexible
Conductor cross section AWG / kcmil
0.5 mm² ... 2.5 mm²
20 ... 14
Material data - contact
Note
Contact material
Metal surface terminal point (top layer)
Metal surface contact area (top layer)
WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/
JEDEC JESD 201
Cu alloy
Tin (Sn)
Tin (Sn)
Material data - housing
Insulating material
Insulating material group
CTI according to IEC 60112
Flammability rating according to UL 94
Glow wire flammability index GWFI according to EN 60695-2-12
Glow wire ignition temperature GWIT according to EN 60695-2-13
Temperature for the ball pressure test according to EN 60695-10-2
PA
I
600
V0
850
775
125 °C
Dimensions for the product
Length [ l ]
Width [ w ]
Height [ h ]
Pitch
Height (without solder pin)
25 mm
15.2 mm
10 mm
5.08 mm
10 mm
Packaging information
Type of packaging
Pieces per package
Denomination packing units
packed in cardboard
50
Pcs.
Mechanical tests according to standard
Test specification
IEC 61984
Air clearances and creepage distances
Insulating material group
Rated insulation voltage (III/3)
Rated insulation voltage (III/2)
Rated insulation voltage (II/2)
Rated surge voltage (III/3)
Rated surge voltage (III/2)
I
320 V
320 V
630 V
4 kV
4 kV
01/14/2019 Page 2 / 3
https://www.phoenixcontact.com/in/products/1710500
Printed-circuit board connector - MSTBC 2,5/ 3-ST-5,08 GNTQ
CP1 - 1710500
Technical data
Air clearances and creepage distances
Rated surge voltage (II/2)
4 kV
Current carrying capacity / derating curves
Specification
IEC 61984
Mechanical tests (A)
Test specification
IEC 61984
Standards and Regulations
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27260700
27260700
27440309
27440309
27440309
ETIM
ETIM 5.0
ETIM 6.0
EC002638
EC002638
UNSPSC
UNSPSC 13.2
39121409
