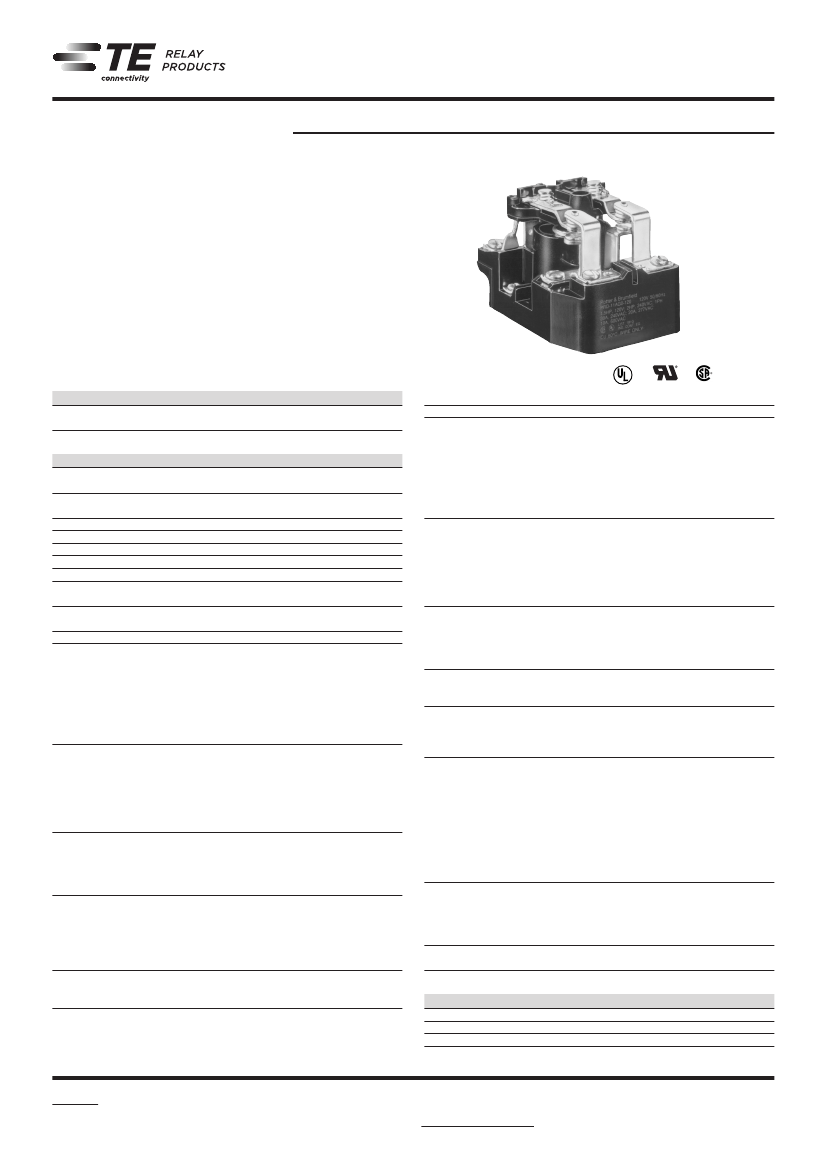

General Purpose Relays
Industrial Relays
PRD Series Power Relay
n
n
n
n
n
Potter & Brumfield
Contact ratings to 50 amps
Magnetic blowouts available for switching DC loads
Contact arrangement up to 2 form C (2CO)
1 Form C auxiliary switch available
UL class B insulation
Typical applications
Industrial controls, lighting
Approvals
UL E22575; CSA LR15734; VDE Reg.Nr.C144
Models with all screw terminals are UL Listed. Others are UL Recognized.
Technical data of approved types on request
Contact Data
1 and 2 Form A (NO); 1 and 2 Form C (CO);
1 Form X (NO-DM)
Rated voltage
600VAC,125VDC
Rated current
50A
Contact material
Ag, AgCdO, W
Min. recommended contact load
1A, 12VDC or 12VAC
Initial contact resistance
75mΩ Max
Initial voltage drop
75mV
Frequency of operation
7200 ops/hr
Operate/releases time max.
40/20ms
Bounce time max.
10ms
Contact ratings
Type
Load
UL 508
1)
Models with screws or quick connects for main terminals
Code Y, Ag, 1 pole
25A, 277VAC
1HP, 120VAC
2HP, 250VAC
10A, 600VAC
7A, 50VDC, resistive
Code Y, Ag, 2 pole
25A, 240VAC
20A, 277VAC
1HP, 120VAC
2HP, 250VAC
7A, 50VDC, resistive
10A, 600VAC
Code G, AgCdO, 1 pole
30A, 277VAC, resistive
1.5HP, 120VAC
2HP, 250VAC
10A, 600VAC
Code G, AgCdO, 2 pole
30A, 240VAC
20A, 277VAC
1.5HP, 120VAC
2HP, 250VAC
10A, 600VAC
Cycles
Contact arrangement
Contact ratings
(continued)
Type
Load
UL 508
1)
Models with screws or quick connects for main terminals
Code F, AgCdO, 1 pole
50A, 240VAC, general purpose
2)
30A, 277VAC, resistive
1.5HP, 120VAC
2HP, 250VAC
10A, 600VAC
Code F, AgCdO, 2 pole
50A, 240VAC, general purpose
2)
30A, 240VAC
20A, 277VAC
1.5HP, 120VAC
2HP, 250VAC
10A, 600VAC
Code H, Ag with magnetic blowout, 1 or 2 pole
20A, 125VDC
1/3HP, 125VDC
Code J, AgCdO with magnetic blowout, 1 or 2 pole
20A, 125VDC
1/3HP, 125VDC
Code N, W stationary with AgCdO movable, 1 or 2 pole
25A, 250VAC
1HP, 125VAC
2HP, 250VAC
UL 508
1)
Models with box lugs for main terminals
Code P, Ag, 1 form X
50A, 277VAC, general purpose
30A, 277VAC, ballast
15A, 277VAC, tungsten
102LRA, 17FLA, 240VAC
120LRA, 20FLA, 120VAC
1.5HP, 120VAC
3HP, 240VAC
Factory ratings
Models with box lugs for main terminals
Code R, Ag with magnetic blowout, 1 form X
60A, 28VDC, resistive
30A, 125VDC
Mechanical endurance
Cycles
20x10
3
100x10
3
100x10
3
100x10
3
100x10
3
20x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
2) In order to achieve 50A rating with Contact Code F, Termination Code 0 or A is required.
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
100x10
3
6x10
3
6x10
3
30x10
3
30x10
3
30x10
3
30x10
3
100x10
3
100x10
3
DC Coil, 1x10
6
ops.; AC Coil 5x10
5
ops.
1) Any PRD relay deviating electrically or physically from the standard models in the table is
not UL or CSA listed. All horsepower ratings are for single phase motors..
Auxiliary Snap-Action Switch Contact Data
Contact arrangement
Rating
Contact material
1 Form C (CO)
5A, 120VAC, 60 Hz., 25°C
Ag
08-2011, Rev. 0811
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
General Purpose Relays
Industrial Relays
PRD Series Power Relay
(Continued)
Coil Data
Insulation Data
Potter & Brumfield
Coil voltage range
Coil insulation system according UL
Coil versions, DC coil
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
6
6
4.5
12
12
9
24
24
18
48
48
36
110
110
82.5
6 to 110VDC
6 to 480VAC
Class B
Release
voltage
VDC
0.6
1.2
2.4
4.8
11
Coil
resistance
Ω±10%
18
71
288
1150
6050
Rated coil
power
W
2
2
2
2
2
Initial dielectric strength
between open contacts
between contact and coil
between adjacent contacts
Initial insulation resistance
between insulated elements
2000V
rms
2000V
rms
2000V
rms
100MΩ
Other Data
All figures are given for coil without preenergization, at ambient temperature +23°C.
Other coil voltages on request.
Coil versions, AC coil
Coil
Rated
code
voltage
VAC
6
6
12
12
24
24
120
120
240
240
480
480
Operate
voltage
VAC
5.1
10.2
20.4
102
204
408
Release
voltage
VAC
0.6
1.2
2.4
12
24
48
Coil
resistance
Ω±15%
0.86
3.2
12
290
1200
4500
Rated coil
power
VA
9.8
9.8
9.8
9.8
9.8
9.8
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature
AC coil: -55ºC to 45ºC
DC coil: -55°C to 80°C
Category of environmental protection
IEC 61810
RT0 - open relay
Terminal type
Screw, Quick connects, Box lugs
Weight
284g
Packaging/unit
tray/20 pcs., box/40pcs.

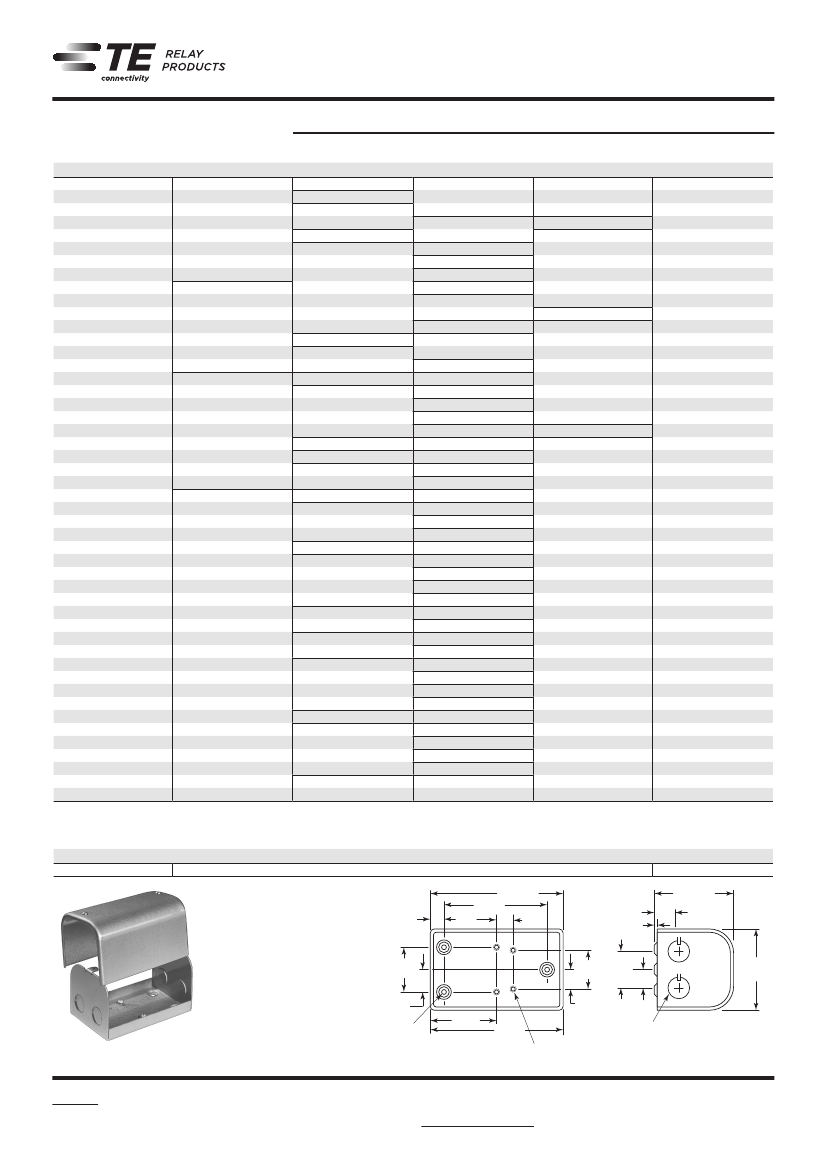

Accessories
Product Code Description
35D013
Metal dust cover
All figures are given for coil without preenergization, at ambient temperature +23°C.
Other coil voltages on request.

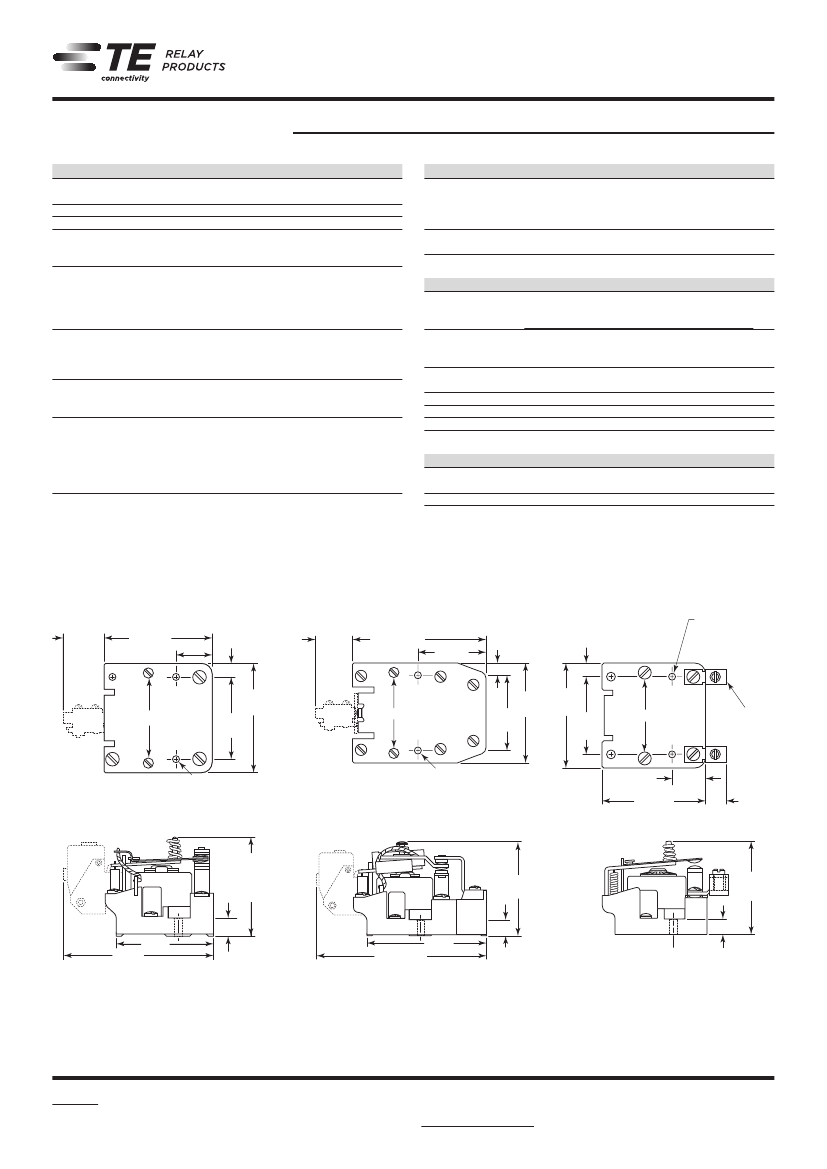

Dimensions
