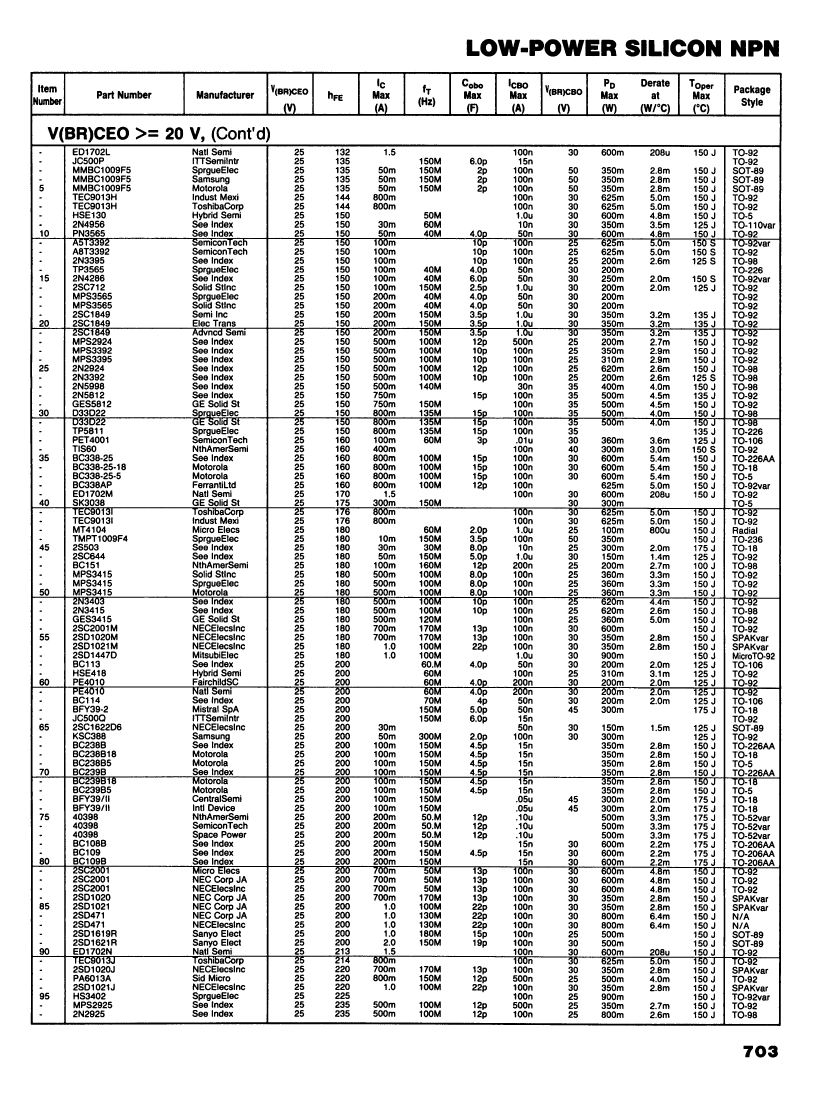

Small Signal Bipolar Transistor, 0.5A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-98, TO-98, 3 PIN
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Parts packaging code | TO-98 |
| package instruction | CYLINDRICAL, O-MBCY-W3 |
| Contacts | 3 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Maximum collector current (IC) | 0.5 A |
| Collector-emitter maximum voltage | 25 V |
| Configuration | Single |
| Minimum DC current gain (hFE) | 150 |
| JEDEC-95 code | TO-98 |
| JESD-30 code | O-MBCY-W3 |
| JESD-609 code | e0 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 125 °C |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | NPN |
| Maximum power dissipation(Abs) | 0.2 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 100 MHz |
| Base Number Matches | 1 |
| 2N3392 | 2N3415 | |
|---|---|---|
| Description | Small Signal Bipolar Transistor, 0.5A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-98, TO-98, 3 PIN | Small Signal Bipolar Transistor, 0.5A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-98, TO-98, 3 PIN |
| Is it Rohs certified? | incompatible | incompatible |
| Parts packaging code | TO-98 | TO-98 |
| package instruction | CYLINDRICAL, O-MBCY-W3 | TO-98, 3 PIN |
| Contacts | 3 | 3 |
| Reach Compliance Code | unknow | unknow |
| ECCN code | EAR99 | EAR99 |
| Maximum collector current (IC) | 0.5 A | 0.5 A |
| Collector-emitter maximum voltage | 25 V | 25 V |
| Configuration | Single | Single |
| Minimum DC current gain (hFE) | 150 | 180 |
| JEDEC-95 code | TO-98 | TO-98 |
| JESD-30 code | O-MBCY-W3 | O-MBCY-W3 |
| JESD-609 code | e0 | e0 |
| Number of components | 1 | 1 |
| Number of terminals | 3 | 3 |
| Maximum operating temperature | 125 °C | 160 °C |
| Package body material | METAL | METAL |
| Package shape | ROUND | ROUND |
| Package form | CYLINDRICAL | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED |
| Polarity/channel type | NPN | NPN |
| Maximum power dissipation(Abs) | 0.2 W | 0.36 W |
| Certification status | Not Qualified | Not Qualified |
| surface mount | NO | NO |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE | WIRE |
| Terminal location | BOTTOM | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED |
| Transistor component materials | SILICON | SILICON |
| Nominal transition frequency (fT) | 100 MHz | 100 MHz |
| Base Number Matches | 1 | 1 |
