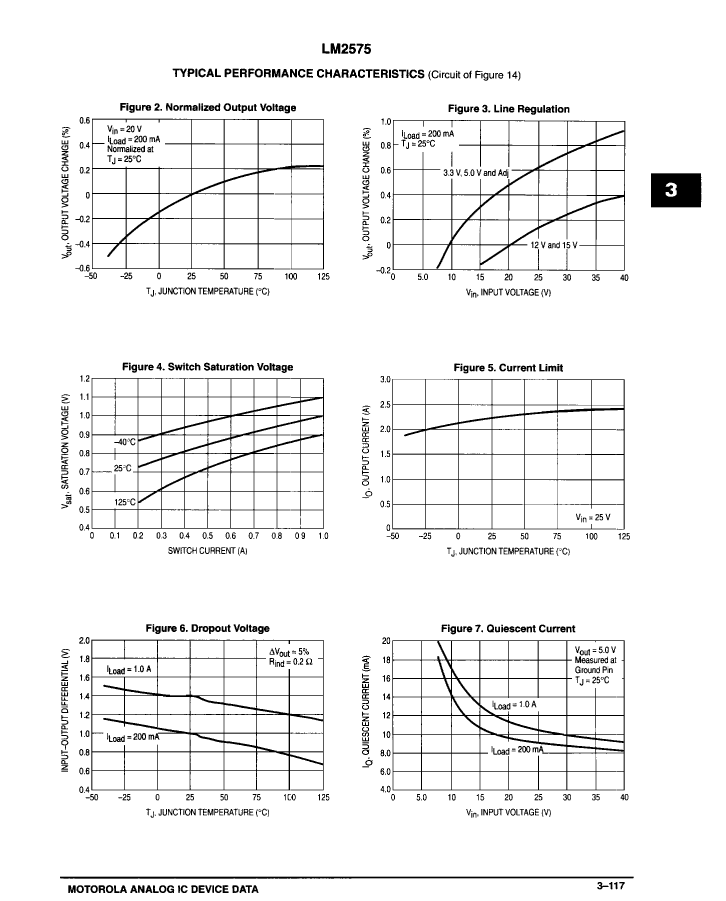

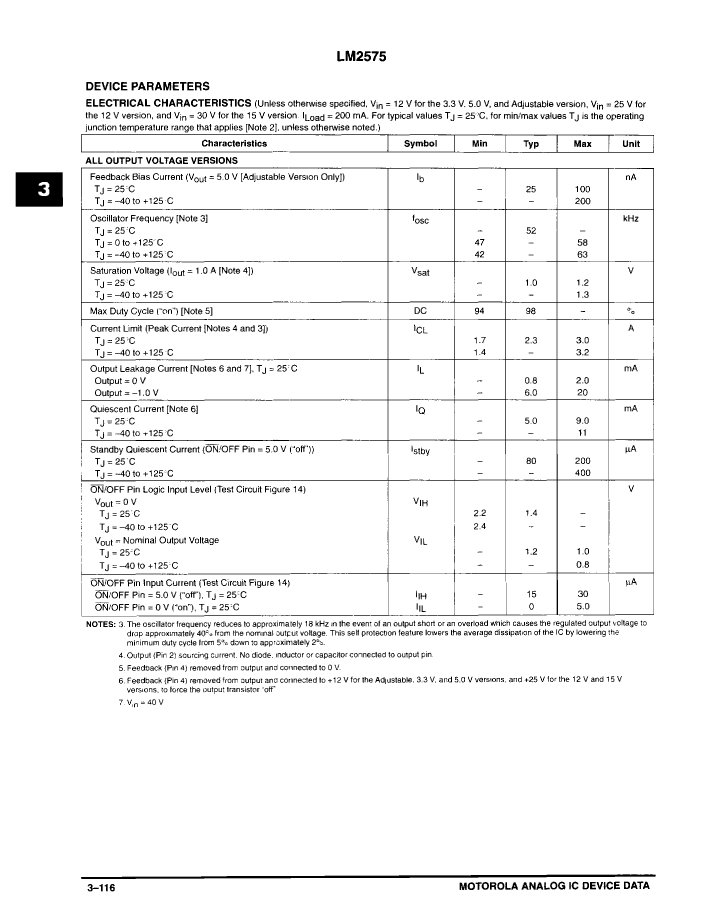

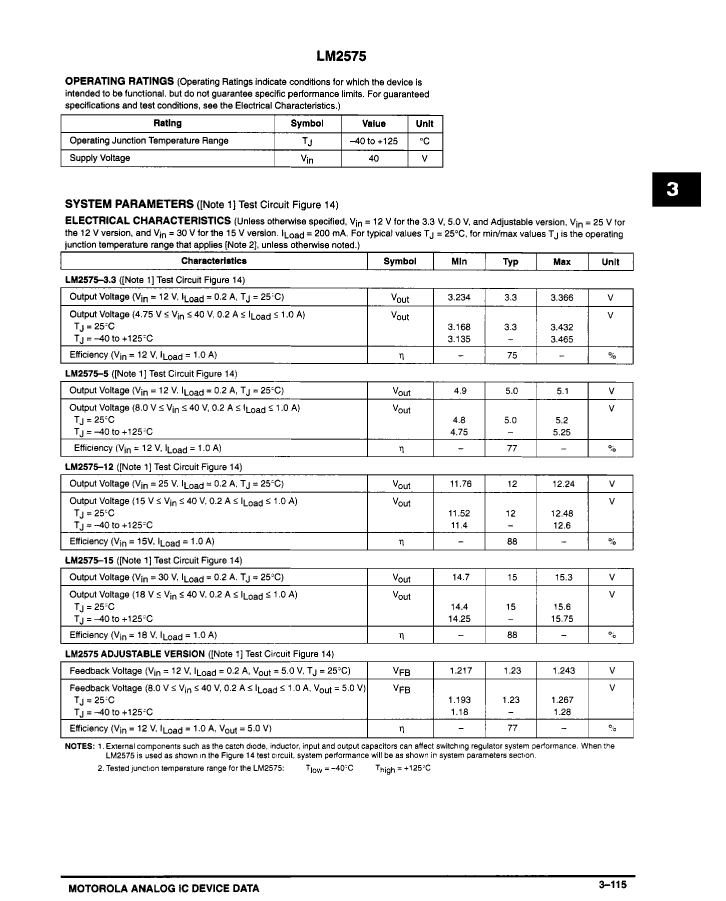

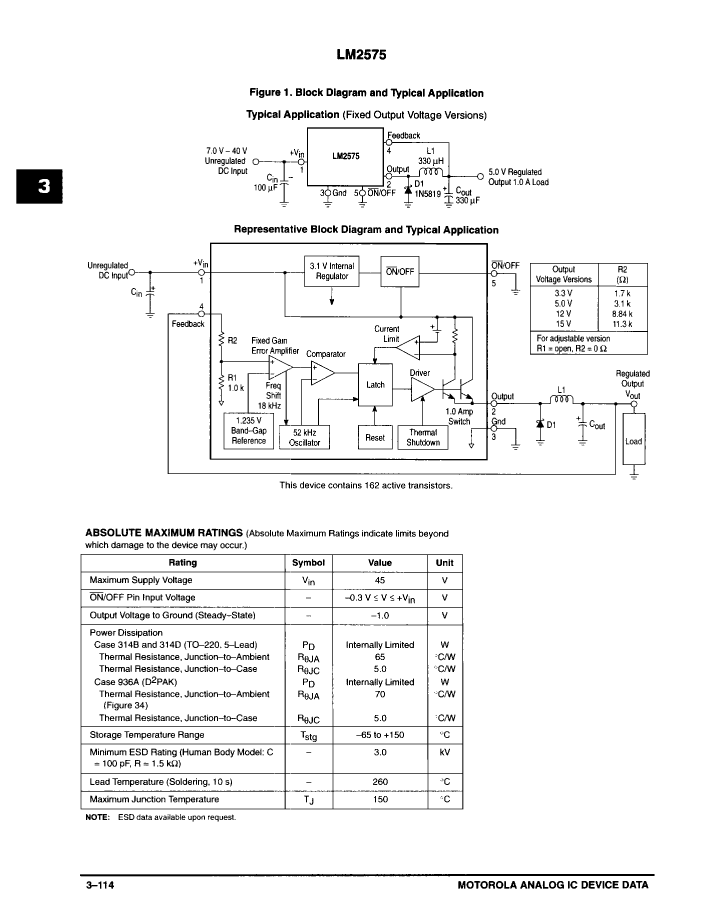

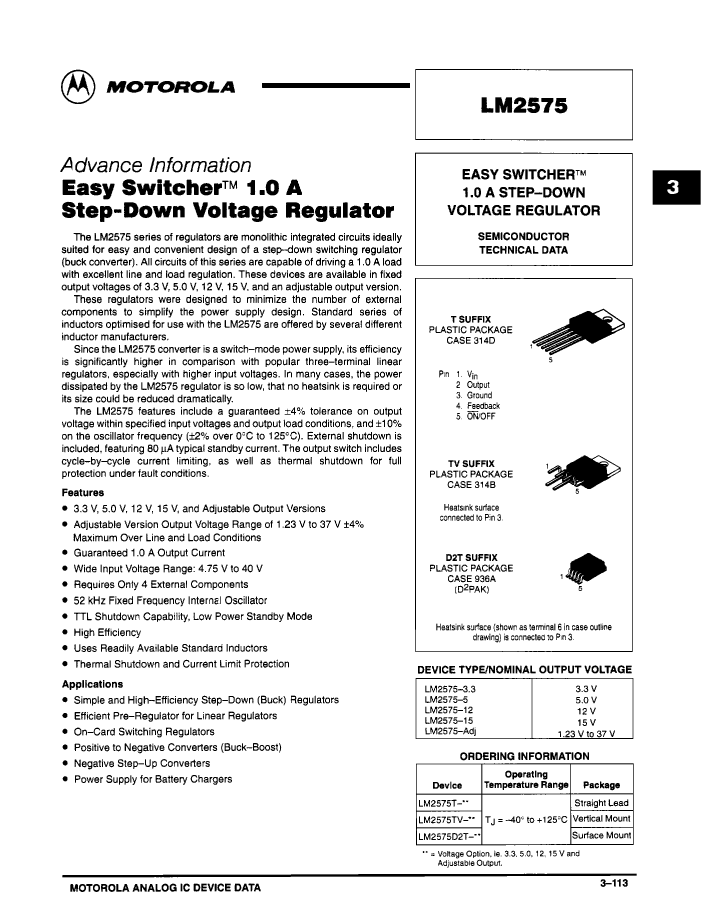

3.2A SWITCHING REGULATOR, 63kHz SWITCHING FREQ-MAX, PSSO5, PLASTIC, D2PAK-5
| Parameter Name | Attribute value |
| Maker | Motorola ( NXP ) |
| Parts packaging code | D2PAK |
| package instruction | TO-263, |
| Contacts | 5 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Analog Integrated Circuits - Other Types | SWITCHING REGULATOR |
| control mode | VOLTAGE-MODE |
| Maximum input voltage | 40 V |
| Minimum input voltage | 4.75 V |
| Nominal input voltage | 25 V |
| JESD-30 code | R-PSSO-G5 |
| length | 10.02 mm |
| Number of functions | 1 |
| Number of terminals | 5 |
| Maximum output current | 3.2 A |
| Nominal output voltage | 12 V |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | TO-263 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Certification status | Not Qualified |
| Maximum seat height | 4.826 mm |
| Maximum supply current (Isup) | 11 mA |
| surface mount | YES |
| Switch configuration | BUCK |
| Maximum switching frequency | 63 kHz |
| Terminal form | GULL WING |
| Terminal pitch | 1.7 mm |
| Terminal location | SINGLE |
| width | 9.1945 mm |
| LM2575D2T-12R4 | LM2575D2T-15R4 | LM2575D2T-3.3R4 | LM2575D2T-ADJR4 | LM2575D2T-5.0R4 | |
|---|---|---|---|---|---|
| Description | 3.2A SWITCHING REGULATOR, 63kHz SWITCHING FREQ-MAX, PSSO5, PLASTIC, D2PAK-5 | 3.2A SWITCHING REGULATOR, 63kHz SWITCHING FREQ-MAX, PSSO5, PLASTIC, D2PAK-5 | Switching Regulator, Voltage-mode, 3.2A, 63kHz Switching Freq-Max, PSSO5, PLASTIC, D2PAK-5 | Switching Regulator, Voltage-mode, 3.2A, 63kHz Switching Freq-Max, PSSO5, PLASTIC, D2PAK-5 | 3.2A SWITCHING REGULATOR, 63kHz SWITCHING FREQ-MAX, PSSO5, PLASTIC, D2PAK-5 |
| package instruction | TO-263, | TO-263, | TO-263, | TO-263, | TO-263, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Analog Integrated Circuits - Other Types | SWITCHING REGULATOR | SWITCHING REGULATOR | SWITCHING REGULATOR | SWITCHING REGULATOR | SWITCHING REGULATOR |
| control mode | VOLTAGE-MODE | VOLTAGE-MODE | VOLTAGE-MODE | VOLTAGE-MODE | VOLTAGE-MODE |
| Maximum input voltage | 40 V | 40 V | 40 V | 40 V | 40 V |
| Minimum input voltage | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal input voltage | 25 V | 30 V | 12 V | 12 V | 12 V |
| JESD-30 code | R-PSSO-G5 | R-PSSO-G5 | R-PSSO-G5 | R-PSSO-G5 | R-PSSO-G5 |
| length | 10.02 mm | 10.02 mm | 10.02 mm | 10.02 mm | 10.02 mm |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 5 | 5 | 5 | 5 | 5 |
| Maximum output current | 3.2 A | 3.2 A | 3.2 A | 3.2 A | 3.2 A |
| Nominal output voltage | 12 V | 15 V | 3.3 V | 1.23 V | 5 V |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | TO-263 | TO-263 | TO-263 | TO-263 | TO-263 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.826 mm | 4.826 mm | 4.826 mm | 4.826 mm | 4.826 mm |
| Maximum supply current (Isup) | 11 mA | 11 mA | 11 mA | 11 mA | 11 mA |
| surface mount | YES | YES | YES | YES | YES |
| Switch configuration | BUCK | BUCK | BUCK | BUCK | BUCK |
| Maximum switching frequency | 63 kHz | 63 kHz | 63 kHz | 63 kHz | 63 kHz |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 1.7 mm | 1.7 mm | 1.7 mm | 1.7 mm | 1.7 mm |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| width | 9.1945 mm | 9.1945 mm | 9.1945 mm | 9.1945 mm | 9.1945 mm |
| Maker | Motorola ( NXP ) | - | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| Parts packaging code | D2PAK | D2PAK | - | - | D2PAK |
| Contacts | 5 | 5 | - | - | 5 |
