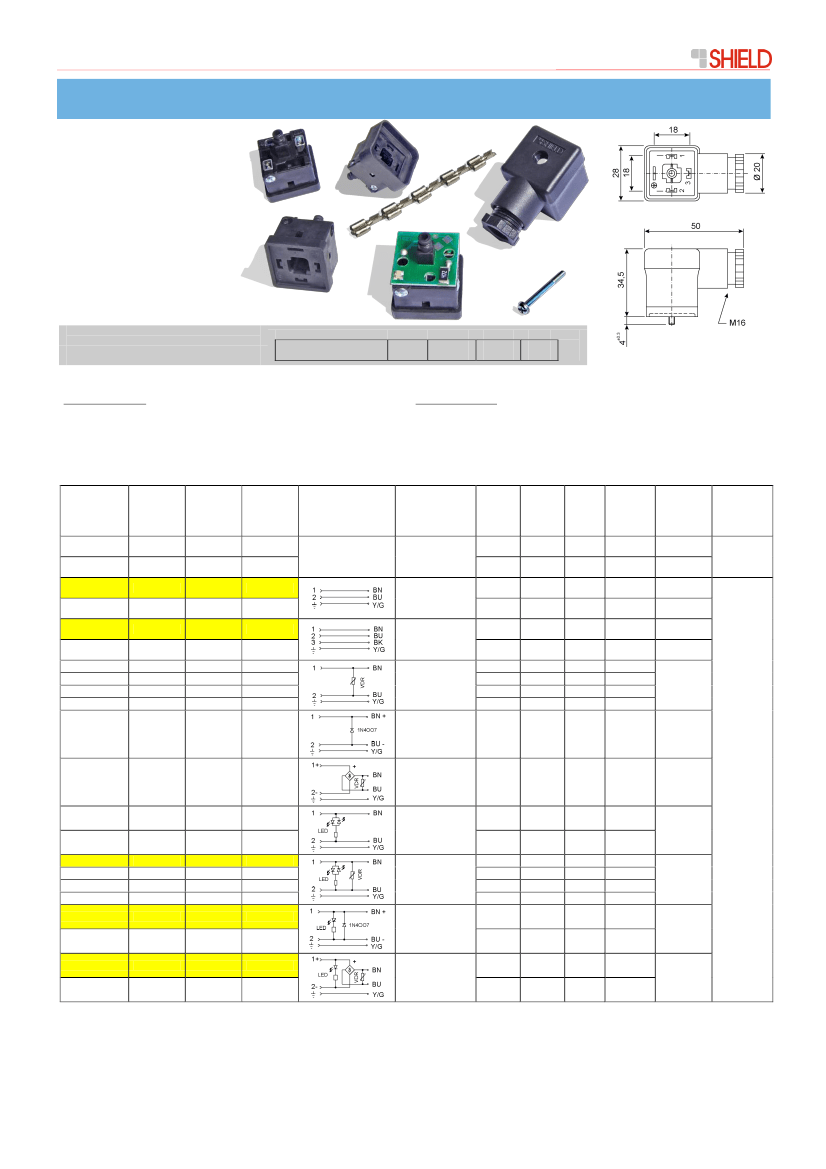

For electrovalves, style A, 2p+G or 3p+G, female, field attachable
Per elettrovalvole, stile A, 2p+T o 3p+T, femmina, da cablare
EN175301-803 style A square connector,
(former DIN 43650-A), ISO 4400;
built-in gasket;
central screw total insulation;
SMD components to let more assembling space;
crimp terminals option;
application with electrovalves, etc.
connettore quadrato EN175301-803 stile A,
(ex DIN 43650-A), ISO 4400;
guarnizione integrata;
vite centrale totalmente isolata;
componenti SMD per lasciare più spazio per il montaggio;
disponibile con terminali faston;
applicazione con elettrovalvole, ecc.
make the description code in a few steps
A
B
C
D
(E)
(yellow codes are preferred)
forma il codice descrittivo in pochi passaggi
(i codici gialli sono preferiti)
At the first order, the sales service will communicate also a 5-character short code, to make easier filing and further orders.
Al momento del primo ordine, il servizio vendite comunicherà anche un codice breve di 5 caratteri, per semplificare l'archivio e il riordino.
VC1x xxxxx
x
xx
xxxx xxx
General characteristics
housing material: PA66 30%GF
contact material: nickel plated CuZn
max wires section: 1,50 mm
2
protection degree IEC 60529: IP67
working temperature: -40…125° C (max 70°C with electronic components)
oil resistance: good
M3 central screw material: zinc plated iron (for stainless steel, see table E)
Caratteristiche generali
materiale rivestimento: PA66 30%GF
materiale contatti: CuZn nichelato
max sezione fili: 1,50 mm
2
grado protezione
IEC 60529:
IP67
temperatura di lavoro: -40…125°C (max 70°C con componenti elettronici)
resistenza olio: buona
materiale vite centrale M3: ferro zincato (per acciaio inox, vedere tabella E)
circuit
schema
schema
circuito
(a2)
--
description
descrizione
voltage
tensione
Vdc
for crimp terminals
per terminali faston
1..250
1..250
1..250
1..250
1..250
1..250
1..38
1..80
1..170
1..250
1..250
voltage
tensione
Vac
1..250
1..250
1..250
1..250
1..250
1..250
1..30
1..60
1..130
1..250
--
max
current
corrente
max
A
10
10
10
10
10
10
10
10
10
10
10
clamping
voltage
tensione
intervento
V
--
--
--
--
--
--
38..104
80..165
170..340
320..640
V+1
housing
colour
colore
rivestimento
black
nero
grey
grigio
black
nero
grey
grigio
black
nero
grey
grigio
black
nero
tipo contatto
contact type
main descript.
descriz. princip.
(a1)
VC11 00A00
VC12 00A00
VC11 02A00
VC12 02A00
VC11 03A00
VC12 03A00
VC11 04A20
VC11 04A40
VC11 04A60
VC11 04A90
VC11 05A00
A
cable gland
pressacavo
(a1)
3
3
3
3
3
3
3
3
3
3
3
B
gasket
guarnizione
(a1)
00
00
00
00
00
00
00
00
00
00
00
C
packaging
imballaggio
(a1)
NR00
NR00
S000
S000
S000
S000
S000
S000
S000
S000
S000
D
--
without electronic
senza elettronica
without electronic
senza elettronica
varistor
varistore
diode
diodo
black
nero
VC11 16H00
3
00
S000
rectifier
raddrizzatore
--
1..250
2
320..640
black
nero
3-point
contact
contatto a
3 punti
VC13 19A3R
VC13 19A8R
VC13 23A2R
VC13 23A4R
VC13 23A6R
VC13 23A9R
VC13 24A3R
VC13 24A8R
VC13 33H3R
VC13 33H8R
3
3
3
3
3
3
3
3
3
3
00
00
00
00
00
00
00
00
00
00
S000
S000
S000
S000
S000
S000
S000
S000
S000
S000
red Led
Led rosso
(a7)
red Led + varistor
Led rosso +
varistore
(a7)
red Led + diode
Led rosso + diodo
(a7)
red Led + rectifier
Led rosso +
raddrizz.
(a7)
10..50
70..250
1..38
1..80
1..170
1..250
10..50
70..250
--
--
10..50
70..250
1..30
1..60
1..130
1..250
--
--
10..50
70..250
10
10
10
10
10
10
10
10
2
2
--
--
38..104
80..165
170..340
320..640
V+1
V+1
320..640
320..640
transp.
trasp.
transp.
trasp.
transp.
trasp.
transp.
trasp.
(a1) yellow codes are preferred; more other circuits available on page 46-2; columns B, C, D show standard versions, see the following tables for more data and available options;
i codici gialli sono preferiti; molti altri circuiti sono disponibili a pagina 46-2; colonne B, C, D mostrano le versioni standard, vedere le tabelle seguenti per maggiori dati e alternative possibili.
(a2) suggested wire colour, abbreviations: bn = brown, gn = green, ye = yellow, bu = blue;
colore fili consigliato, abbreviazioni: bn = marrone, gn = verde, ye = giallo, bu = blu.
(a7) the last character on the right in column A specify the Led colour: B = blue, R = red, T = yellow, W = green;
l'ultimo carattere a destra nella colonna A determina il colore del Led: B = blue, R = rosso, T = giallo, W = verde.
VC
45-16
www.shield.net
version 091028
CONNECTORS
cable gland dimension
2
3
dimensioni pressacavo
gland thread
M16
M16
filettatura pressacavo
cable diameter
mm
3,5…6
6…8
diametro cavo
(b1) the 1/2” NPTF version is supplied without nut, cable-gasket and washer;
la versione 1/2” NPTF è fornita senza dado, pressacavo e rondella.
| CONNETTORI
B
4
M16
8…10
8
1/2” NPTF
(b1)
up to10

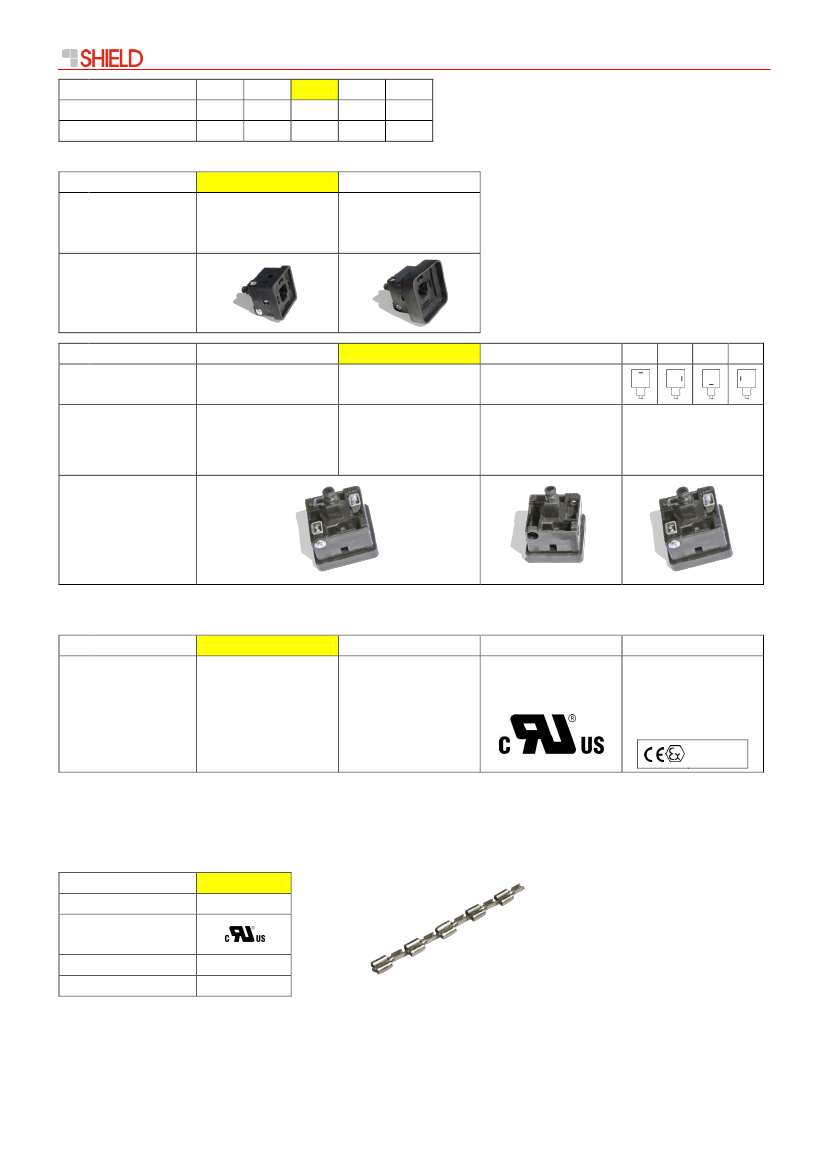

fino a 10
C
gasket type
tipo guarnizione
00
standard
built-in gasket and
central screw total insulation
guarnizione integrata
standard e
vite centrale totalmente isolata
02
additional protective
built-in gasket and
central screw total insulation
guarnizione integrata
con protezione supplementare e
vite centrale totalmente isolata
other characteristics
altre caratteristiche
foto
D
packaging
confezionamento
N000
--
screw terminals,
components ready for assembling,
separated packaging (500 pcs)
morsetti a vite,
componenti pronti da assemblare,
confezioni separate (500 pz)
S000
--
screw terminals,
components ready for assembling,
individual bag (200 x 1 pcs)
morsetti a vite,
componenti pronti da assemblare,
sacchetto individuale (200 x 1 pz)
NR00
--
for crimp terminals,
components ready for assembling,
separated packaging (500 pcs)
per terminali faston,
componenti pronti da assemblare,
confezioni separate (500 pz)
(d1)(d2)
A000
A300
A600
A900
ground position key
chiave posizione terra
packaging type
tipo confezionamento
screw terminals,
assembled components,
bulk packaging (5 x 100 pcs)
morsetti a vite,
componenti assemblati,
confezione (5 x 100 pz)
foto
(d1) crimp terminals are to be ordered separately;
i terminali faston sono da ordinare separatamente.
(d2) only for circuits without electronic components;
solo per circuiti senza componenti elettronici.
E
variant code
codice variante
empty space or 000
spazio vuoto o 000
005
L00
UL and CSA certification
omologazione UL e CSA
other characteristics on request
altre caratteristiche a richiesta
no variant
nessuna variante
stainless steel central screw
vite centrale acciaio inox
E238550
X03
(e1)
ATEX certified
for explosion risk areas,
category 3,
gas area 2, dust area 22;
certificato ATEX
per zone a rischio di esplosione,
categoria 3,
zona gas 2, zona polvere 22
II 3 GD Ex nA II
T6 IP65 T80°C
(e1) even if in normal areas the product can work with higher values, for atex area maximum ratings are reduced for safety reasons;
max voltage: 60 Vac, 75 Vdc, max current: 5 A, protection degree: IP65; atex room temperature: -20… +55°C; only connectors without electronic components;
on request different applications can be evaluated;
anche se il prodotto in zone normali può lavorare con valori più elevati, per la zona atex i valori massimi di utilizzo sono ridotti per motivi di sicurezza;
tensione max: 60 Vac, 75 Vdc, corrente max: 5 A, grado di protezione: IP65, temperatura ambiente atex:
-20… +55°C; solo connettori senza componenti elettronici;
su richiesta possono essere valutate situazioni differenti.
ACCESSORIES /
ACCESSORI
crimp terminals
terminali faston
material
materiale
UL and CSA certification
only if used inside VC connector
omologazione UL e CSA
solo se usato nel connettore VC
packaging
confezione
wire section range
intervallo sezione fili
1023
brass
ottone
6.000 terminals coil
bobina da 6.000 faston
AWG20 – AWG16
0,50 – 1,00 mm
2
www.shield.net
VC
45-17
CONNECTORS | CONNETTORI
version 090707

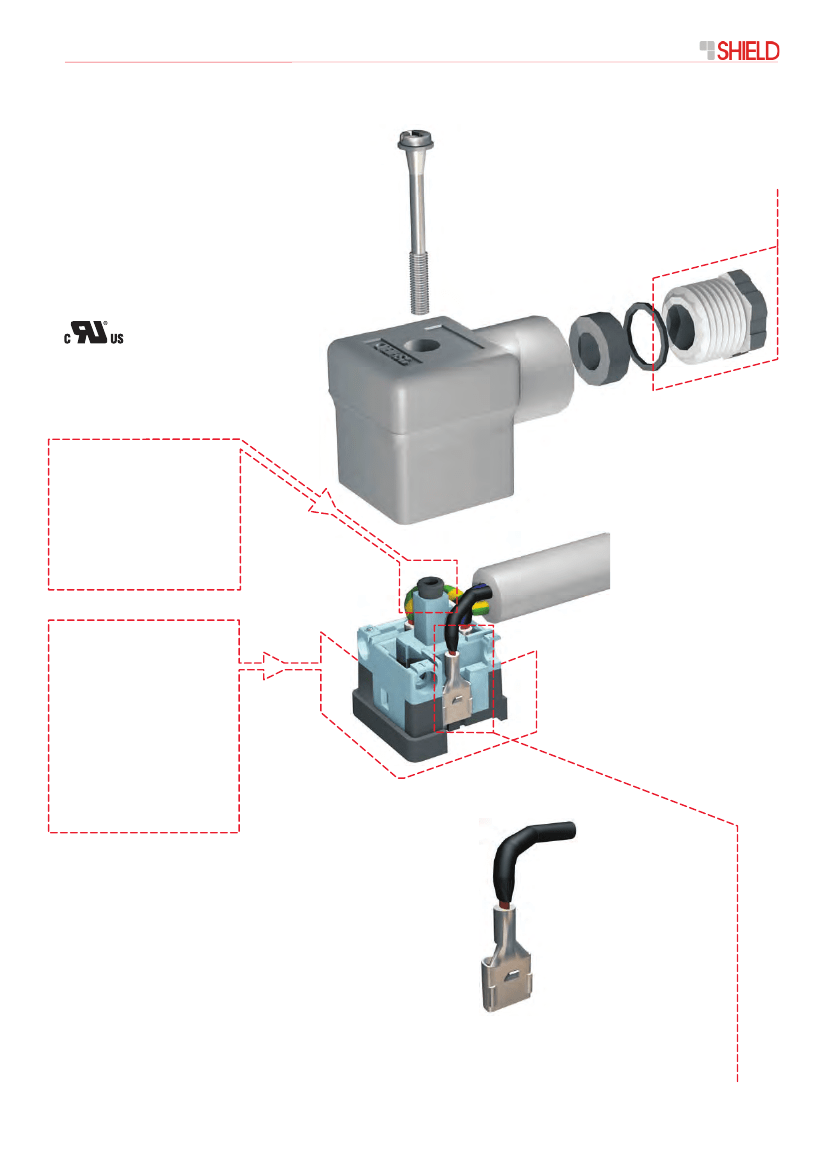

CONNECTORS FOR ELECTROVALVES WITH CRIMP TERMINALS
CONNETTORI PER ELETTROVALVOLE CON TERMINALI FAST-ON
EN175301-803 (ex DIN43650)
Guaranteed water
proof grade IP67
Protezione all'acqua
garantita grado IP67
M16 Thread
Filettatura M16
on request
a richiesta
Built-in gasket of elastomeric
material between screw and
housing
Guarnizione integrata in
materiale elastomerico tra
vite e custodia
Built-in gasket of elastomeric
material on the connector
mating face for easy and
safe assembling
Guarnizione integrata in
materiale elastomerico sul
lato frontale del connettore
per un assemblaggio facile
e sicuro
Crimp terminals supplied
separately on reels for
quick assembling.
Terminali fast-on forniti
separatamente in bobine
per un assemblaggio
rapido.
45-18
www.shield.net
version 090707
CONNECTORS |CONNETTORI

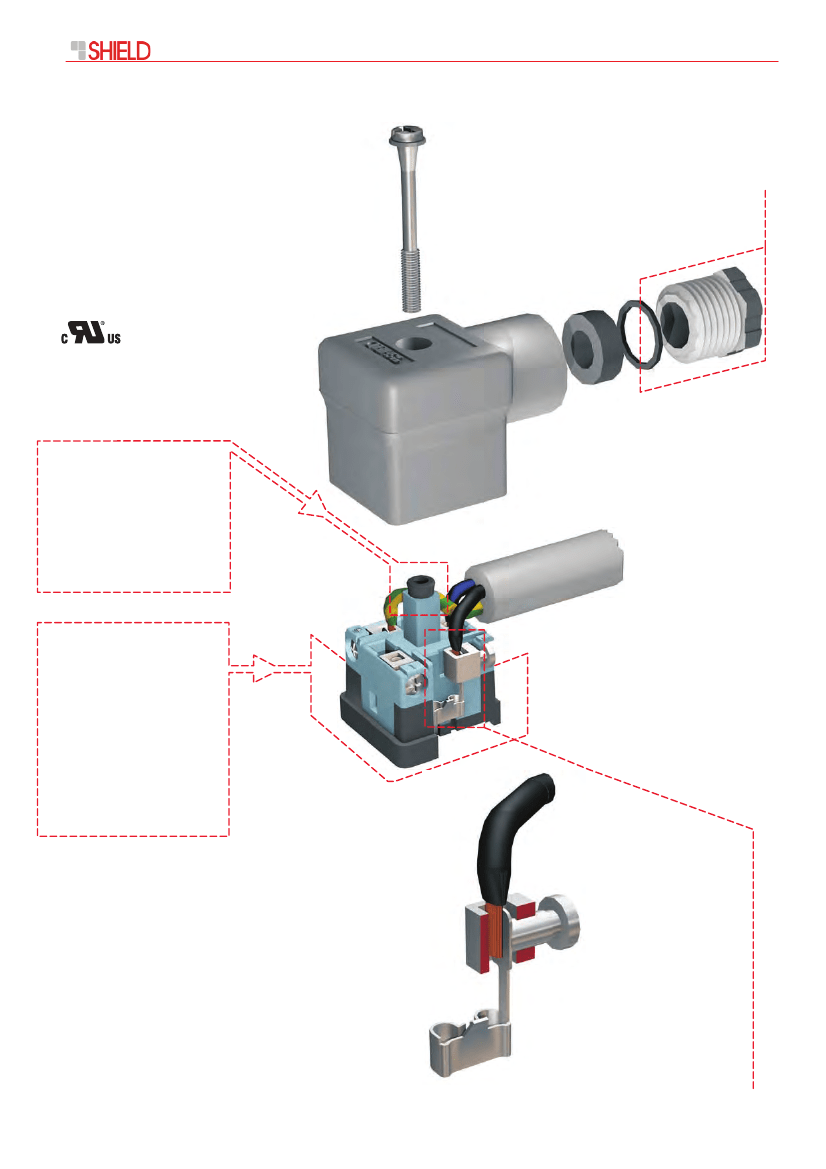

CONNECTORS FOR ELECTROVALVES WITH SCREW TERMINALS
CONNETTORI PER ELETTROVALVOLE CON TERMINALI A VITE
