MS3102R28-21S: DescriptionMIL Series Connector, 37 Contact(s), Aluminum Alloy, Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size37KB，1 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric Compare View All

MS3102R28-21S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MS3102R28-21S	-	-	View	Buy Now

MS3102R28-21S Overview

MIL Series Connector, 37 Contact(s), Aluminum Alloy, Female, Solder Terminal, Receptacle,

MS3102R28-21S Parametric

Parameter Name	Attribute value
Maker	Cinch Connectivity Solutions
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-5015
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	28
Termination type	SOLDER
Total number of contacts	37

Preview

Download Datasheet

View All

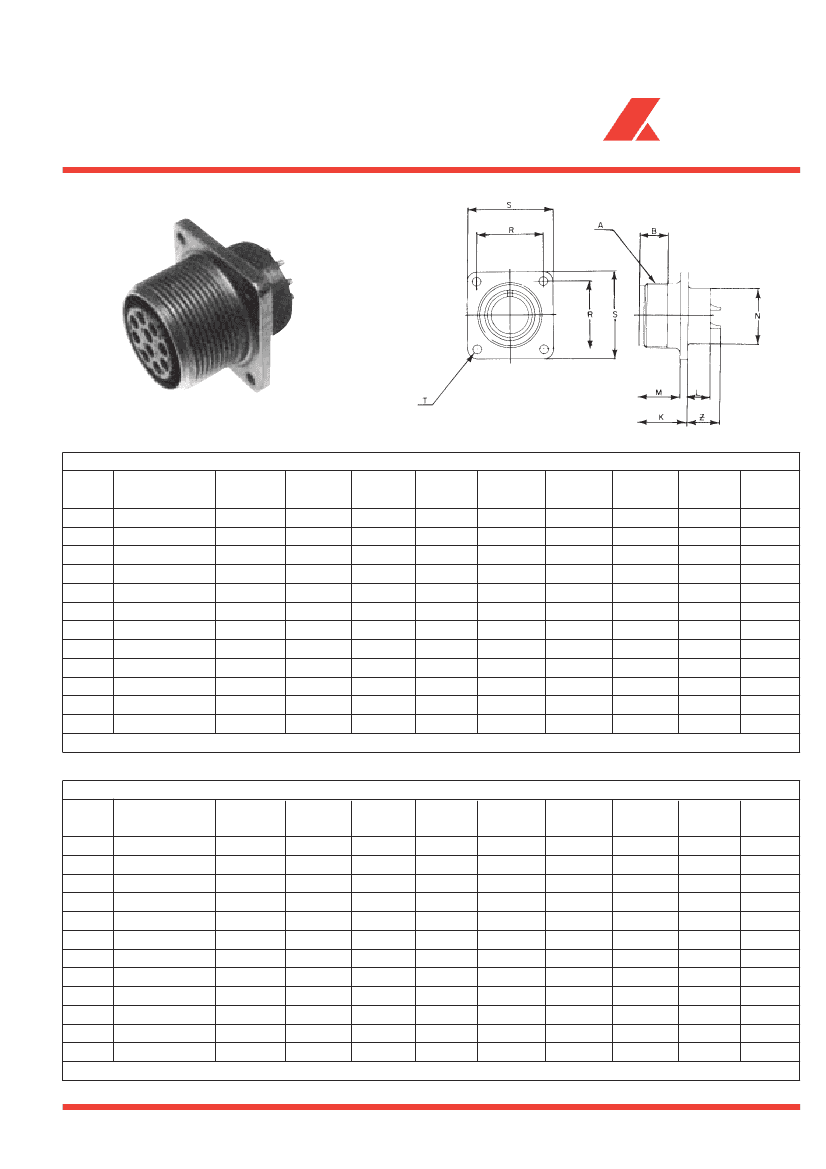

Series AC02A/MS3102A

Series AC02R/MS3102R

Box Mount Receptacle

®

ARRAY CONNECTOR CORPORATION

DIMENSIONS IN INCHES

SHELL

SIZE

10SL

14S

16S

16

18

20

22

24

28

32

36

40

A Thread

Class 2A

.625-24 UNEF

.875-20 UNEF

1.000-20 UNEF

1.125-18 UNEF

1.250-18 UNEF

1.375-18 UNEF

1.500-18 UNEF

1.750-18 UNS

2.000-18 UNS

2.250-16 UN

2.500-16 UN

B

min.

.394

.638

.689

K

+ .008

.677

.693

.882

.909

.972

1.035

L

+ .004

.295

.280

.476

.449

.437

M

+ .004

.567

.756

.819

.882

N

+ .004

.630

.754

.880

1.008

1.130

1.256

1.382

1.630

1.880

2.067

2.317

R

+ .004

.717

.906

.969

1.063

1.157

1.252

1.374

1.563

1.752

1.937

2.189

S

+ .008

1.000

1.181

1.280

1.378

1.496

1.614

1.752

2.000

2.244

2.500

2.764

T

+ .004

.126

.146

.169

Z*

+ .059

.427

.411

.650

.622

.559

.496

When insert includes A size “O” contact, increase “Z” by .315 inch.

DIMENSIONS IN MILLIMETERS

SHELL

SIZE

10SL

14S

16S

16

18

20

22

24

28

32

36

40

A Thread

Class 2A

.625-24 UNEF

.875-20 UNEF

1.000-20 UNEF

1.125-18 UNEF

1.250-18 UNEF

1.375-18 UNEF

1.500-18 UNEF

1.750-18 UNS

2.000-18 UNS

2.250-16 UN

2.500-16 UN

B

min.

10.0

16.2

17.5

K

+ .2

17.2

17.6

22.4

23.1

24.7

26.3

L

+ .1

7.5

7.1

12.1

11.4

11.1

M

+ .1

14.4

19.2

20.8

22.4

N

+ .1

16.0

19.15

22.35

25.6

28.7

31.9

35.1

41.4

47.75

52.5

58.85

R

+ .1

18.2

23.0

24.6

27.0

29.4

31.8

34.9

39.7

44.50

49.2

55.6

S

+ .2

25.4

30.0

32.5

35.0

38.0

41.0

44.5

50.8

57.0

63.5

70.2

T

+ .1

3.2

3.7

4.3

Z*

+ 1.5

10.85

10.45

16.5

15.8

14.2

12.6

When insert includes A size “O” contact, increase “Z” by 8mm.

ARRAY CONNECTOR CORPORATION • 12555 S.W. 130

th

St. • Miami, FL 33186 • Ph: (305) 234-1000 • Fax: (305) 234-6601

23

MS3102R28-21S Related Products

	MS3102R28-21S	MS3102R22-14P	MS3102R28-21P
Description	MIL Series Connector, 37 Contact(s), Aluminum Alloy, Female, Solder Terminal, Receptacle,	MIL Series Connector, 19 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle,	MIL Series Connector, 37 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle,
Maker	Cinch Connectivity Solutions	Cinch Connectivity Solutions	Cinch Connectivity Solutions
Reach Compliance Code	compliant	compliant	compliant
Other features	STANDARD: MIL-DTL-5015	STANDARD: MIL-C-5015	STANDARD: MIL-C-5015
Back shell type	SOLID	SOLID	SOLID
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR
Contact point gender	FEMALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Environmental characteristics	ENVIRONMENT RESISTANT	ENVIRONMENT RESISTANT	ENVIRONMENT RESISTANT
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	YES	YES	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation type	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	CADMIUM PLATED	CHROMATE PLATED	CHROMATE PLATED
Shell material	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY
Housing size	28	22	28
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	37	19	37
ECCN code	-	EAR99	EAR99
