SDR624CAM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SDR624CAM

SDR624CAM: DescriptionRectifier Diode, 1 Phase, 2 Element, 40A, 400V V(RRM), Silicon, TO-254AA, TO-254, 3 PIN; CategoryDiscrete semiconductor diode; File Size64KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric Compare View All

SDR624CAM Overview

Rectifier Diode, 1 Phase, 2 Element, 40A, 400V V(RRM), Silicon, TO-254AA, TO-254, 3 PIN

SDR624CAM Parametric

Parameter Name	Attribute value
Maker	SSDI
Parts packaging code	TO-254AA
package instruction	TO-254, 3 PIN
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
application	HYPER FAST RECOVERY
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.55 V
JEDEC-95 code	TO-254AA
JESD-30 code	S-MSFM-P3
Maximum non-repetitive peak forward current	300 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	200 °C
Maximum output current	40 A
Package body material	METAL
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE

Preview

Download Datasheet

View All

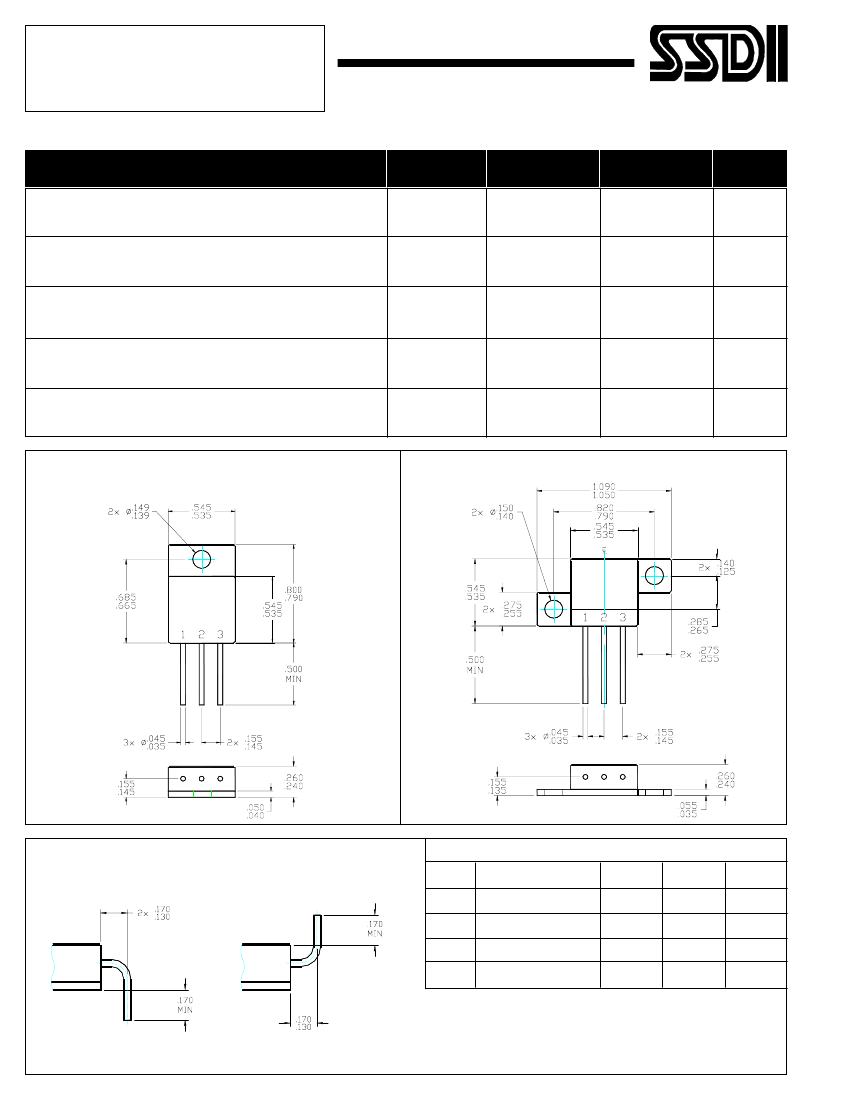

PRELIMINARY

SOLID STATE DEVICES, INC.

14830 Valley View Blvd * La Mirada, Ca 90638

Phone: (562) 404-7855 * Fax: (562) 404-1773

SDR623CTM & Z

thru

SDR625CTM & Z

40AMPS

300 - 500 VOLTS

35 nsec

HYPER FAST

CENTERTAP RECTIFIER

TO-254 (M)

TO-254Z (Z)

Designer's Data Sheet

FEATURES:

•

Hyper Fast Recovery: 35 nsec Maximum

High Surge Rating

Low Reverse Leakage Current

Low Junction Capacitance

Hermetically Sealed Package

Gold Eutectic Die Attach Available

Ultrasonic Aluminum Wire Bonds

Ceramic Seal for Improved Hermeticity Available

Also Available in following configurations:

Common Anode: SDR623CAM & CAZ

SDR624CAM & CAZ

SDR625CAM & CAZ

• TX, TXV and Space Level Screening Available

Maximum Ratings

Peak Repetitive Reverse and

DC Blocking Voltage

SDR623CTM & Z

SDR624CTM & Z

SDR625CTM & Z

SYMBOL

RRM

RWM

FSM

& Tstg

VALUE

300

400

500

300

-65 TO +200

UNITS

Volts

Average Rectified Forward Current.

(Resistive load, 60Hz, Sine Wave, T

=25

C) 1/

Peak Surge Current

(8.3 ms Pulse, Half Sine Wave, T

= 55

C, I

= 50A) 2/

Operating and Storage Temperature

Maximum Thermal Resistance

Junction to Case, 1/

Junction to Case, 2/

NOTE:

Both Legs Tied Together

Per Leg.

Amps

2JC

1.0

2.0

C/W

NOTE:

All specifications are subject to change without notification.

SCD's for these devices should be reviewed by SSDI prior to release.

DATA SHEET #: RH0049B

SDR624CAM Related Products

	SDR624CAM	SDR623CAM	SDR624CAZ	SDR625CAM	SDR623CAZ	SDR623CTZ	SDR625CTM	SDR625CTZ
Description	Rectifier Diode, 1 Phase, 2 Element, 40A, 400V V(RRM), Silicon, TO-254AA, TO-254, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 40A, 300V V(RRM), Silicon, TO-254AA, TO-254, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 40A, 400V V(RRM), Silicon, TO-254Z, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 40A, 500V V(RRM), Silicon, TO-254AA, TO-254, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 40A, 300V V(RRM), Silicon, TO-254Z, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 40A, 300V V(RRM), Silicon, TO-254Z, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 40A, 500V V(RRM), Silicon, TO-254AA, TO-254, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 40A, 500V V(RRM), Silicon, TO-254AA, TO-254Z, 3 PIN
Parts packaging code	TO-254AA	TO-254AA	TO-254Z	TO-254AA	TO-254Z	TO-254Z	TO-254AA	TO-254AA
package instruction	TO-254, 3 PIN	TO-254, 3 PIN	TO-254Z, 3 PIN	S-MSFM-P3	S-MSFM-P3	TO-254Z, 3 PIN	TO-254, 3 PIN	S-MSFM-P3
Contacts	3	3	3	3	3	3	3	3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	HYPER FAST RECOVERY	HYPER FAST RECOVERY	HYPER FAST RECOVERY	HYPER FAST RECOVERY	HYPER FAST RECOVERY	HYPER FAST RECOVERY	HYPER FAST RECOVERY	HYPER FAST RECOVERY
Configuration	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.55 V	1.55 V	1.55 V	1.7 V	1.55 V	1.55 V	1.55 V	1.7 V
JESD-30 code	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3
Maximum non-repetitive peak forward current	300 A	300 A	300 A	300 A	300 A	300 A	200 A	300 A
Number of components	2	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Maximum output current	40 A	40 A	40 A	40 A	40 A	40 A	20 A	40 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	300 V	400 V	500 V	300 V	300 V	500 V	500 V
Maximum reverse recovery time	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	SSDI	SSDI	SSDI	SSDI	-	SSDI	SSDI	SSDI
JEDEC-95 code	TO-254AA	TO-254AA	-	TO-254AA	-	-	TO-254AA	TO-254AA
