474080011: Description0.50mm (.020") Pitch HDMI* Receptacle, Right Angle, Reverse, with Dimple, without Mylar, 0.76楼矛m (30楼矛") Gold (Au) Plating, Matte Tin Plating on Shell, 19 Circuits, Lead free; File Size197KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

474080011 Overview

0.50mm (.020") Pitch HDMI* Receptacle, Right Angle, Reverse, with Dimple, without Mylar, 0.76楼矛m (30楼矛") Gold (Au) Plating, Matte Tin Plating on Shell, 19 Circuits, Lead free

Preview

Download Datasheet

View All

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0474080011

Active

high_definition_multimedia_interface_hdmi

0.50mm (.020") Pitch HDMI* Receptacle, Right Angle, Reverse, with Dimple, without

Mylar, 0.76µm (30µ") Gold (Au) Plating, Matte Tin Plating on Shell, 19 Circuits, Lead

free

Documents:

3D Model

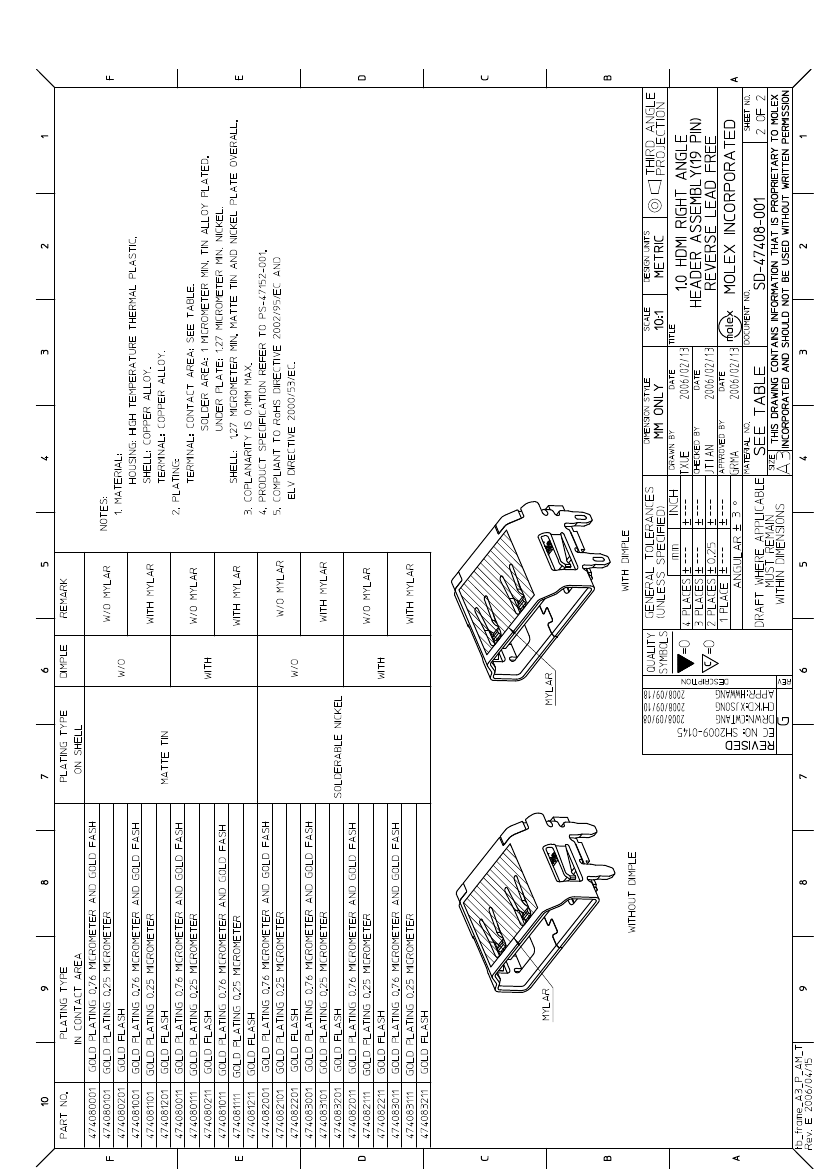

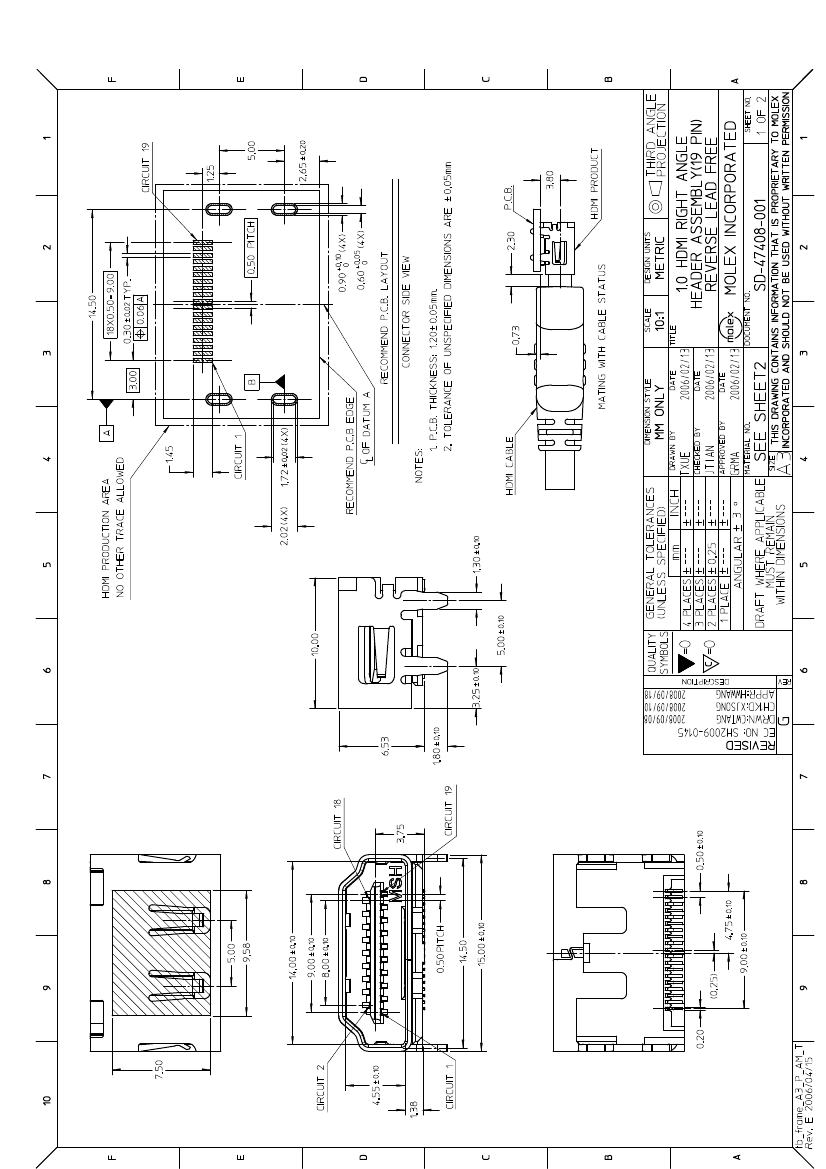

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Component Type

Overview

Product Name

Type

I/O Connectors

47408

Wire-to-Board

Receptacle

high_definition_multimedia_interface_hdmi

HDMI

N/A

Physical

Boot Color

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Gender

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Ports

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

Wire Size AWG

N/A

Black

Male

Yes

Brass

Gold

Tin-Bismuth

High Temperature Thermoplastic

Right Angle

Yes

Embossed Tape on Reel

0.020 In

0.50 mm

0.020 In

0.50 mm

0.76

Yes

-20°C to +85°C

Surface Mount

N/A

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

47408S

Mates

HDMI C

Electrical

Current - Maximum per Contact

0.5A
