87758-4471

Description
Board Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle,
CategoryThe connector    The connector
File Size152KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

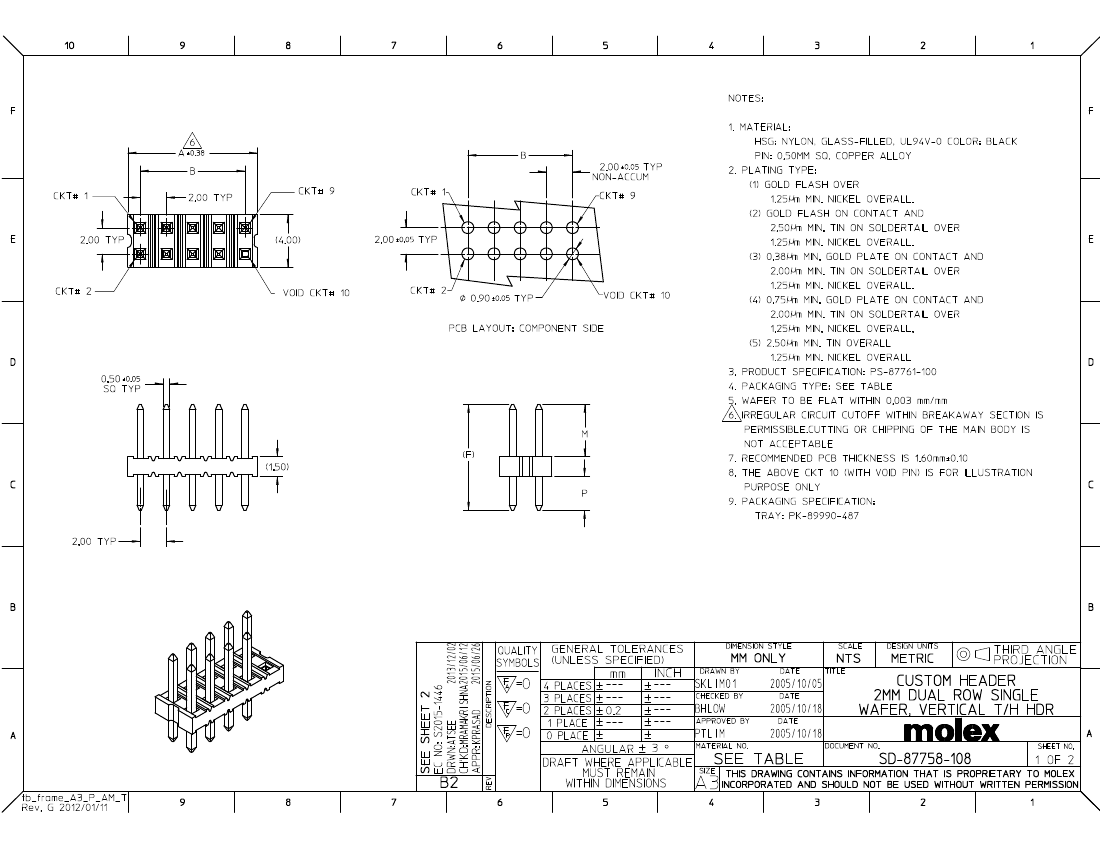

87758-4471 Overview

Board Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle,

87758-4471 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
body width0.157 inch
subject depth0.059 inch
body length1.732 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Durability100 Cycles
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED NYLON
JESD-609 codee3
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thickness30u inch
Rated current (signal)2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.102 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts44

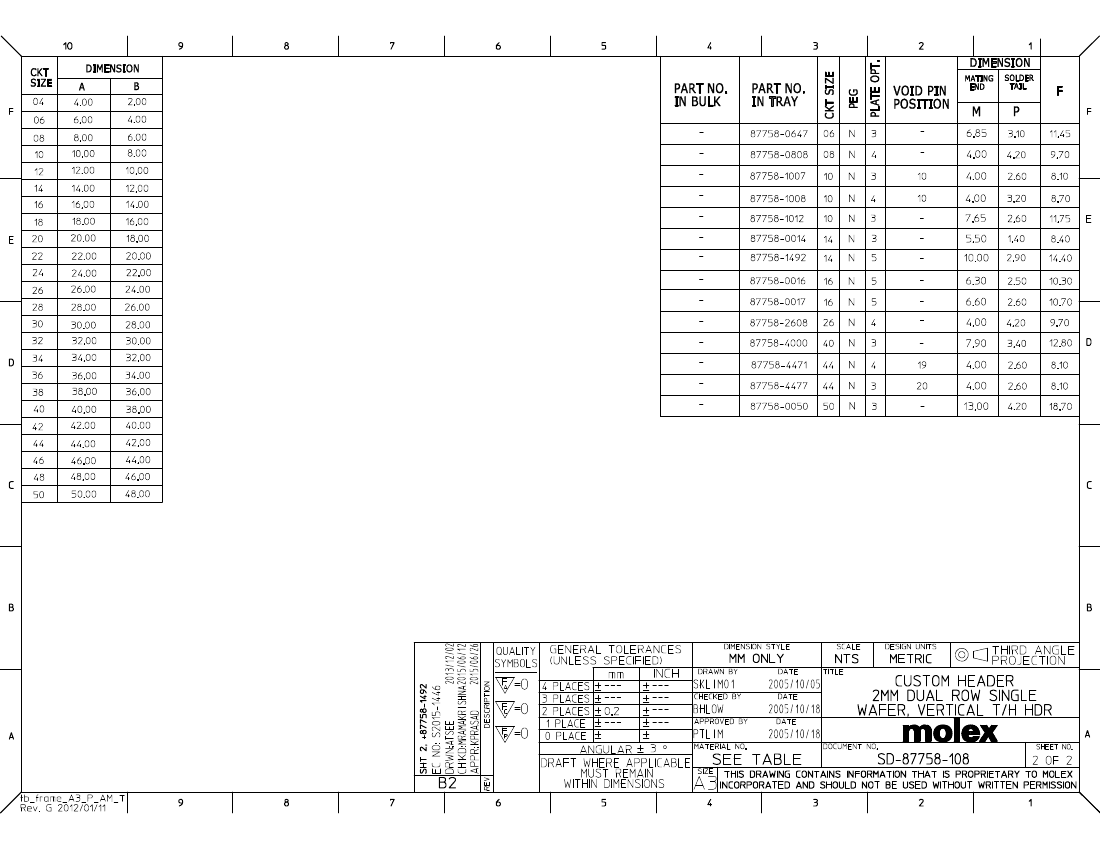

87758-4471 Related Products

87758-4471 87758-0647
Description Board Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle, Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle,
Maker Molex Molex
Reach Compliance Code unknown compliant
body width 0.157 inch 0.157 inch
subject depth 0.059 inch 0.059 inch
body length 1.732 inch 0.236 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation AU ON NI AU ON NI
Contact completed and terminated TIN OVER NICKEL Tin (Sn) - with Nickel (Ni) barrier
Contact point gender MALE MALE
Contact material COPPER ALLOY COPPER ALLOY
contact mode RECTANGULAR RECTANGULAR
Contact style SQ PIN-SKT SQ PIN-SKT
Dielectric withstand voltage 500VAC V 500VAC V
Durability 100 Cycles 100 Cycles
Insulation resistance 1000000000 Ω 1000000000 Ω
Insulator color BLACK BLACK
insulator material GLASS FILLED NYLON GLASS FILLED NYLON
JESD-609 code e3 e3
Plug contact pitch 0.079 inch 0.079 inch
Match contact row spacing 0.079 inch 0.079 inch
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 2 2
Number of rows loaded 2 2
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
PCB contact pattern RECTANGULAR RECTANGULAR
PCB contact row spacing 2.0066 mm 2.0066 mm
Plating thickness 30u inch 15u inch
Rated current (signal) 2 A 2 A
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal length 0.102 inch 0.122 inch
Terminal pitch 2.0066 mm 2.0066 mm
Termination type SOLDER SOLDER
Total number of contacts 44 6
