SC11046CN datasheet, PDF - EEWORLD Datasheet

SC11046CN: DescriptionModem-Data/Fax, 2.4kbps Data, 4.8kbps Fax, CMOS, PDIP28,; CategoryWireless rf/communication Telecom circuit; File Size2MB，27 Pages; ManufacturerSierra Semiconductor

Download Datasheet Parametric Compare View All

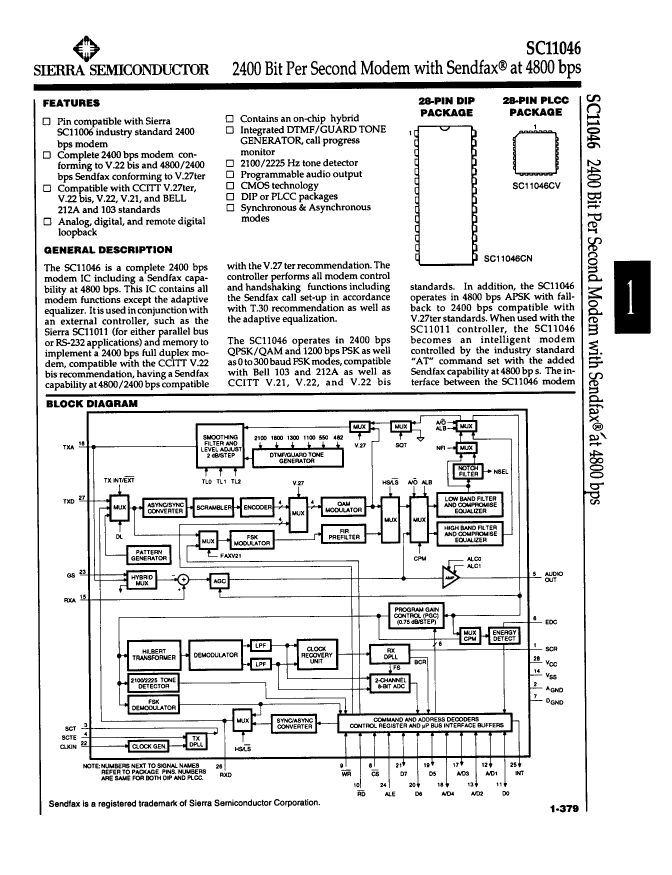

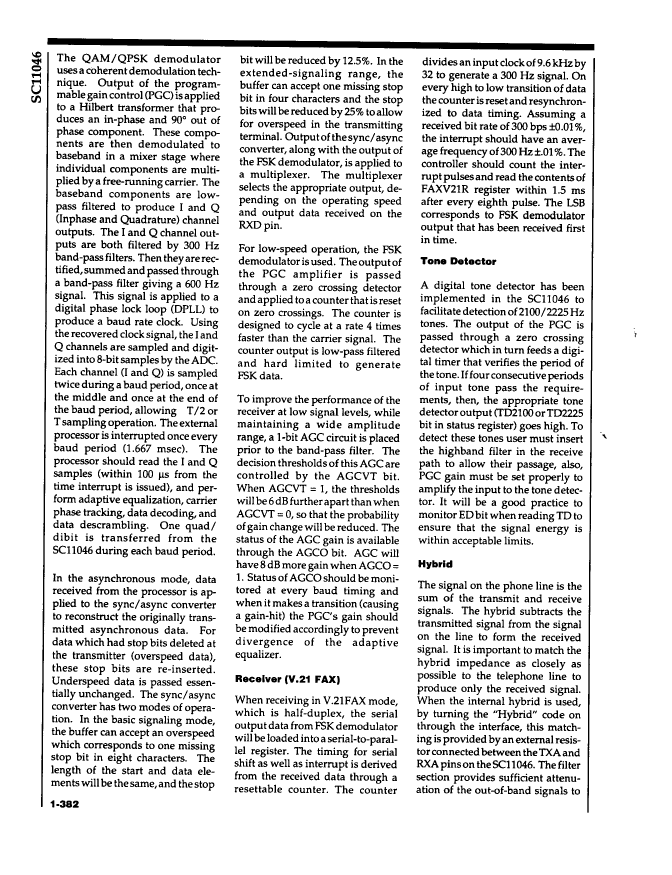

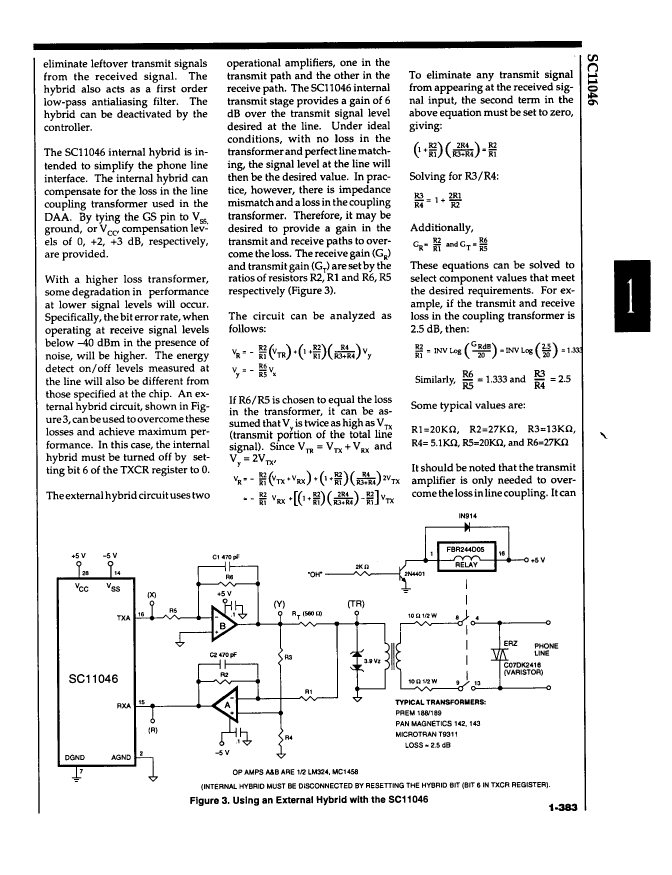

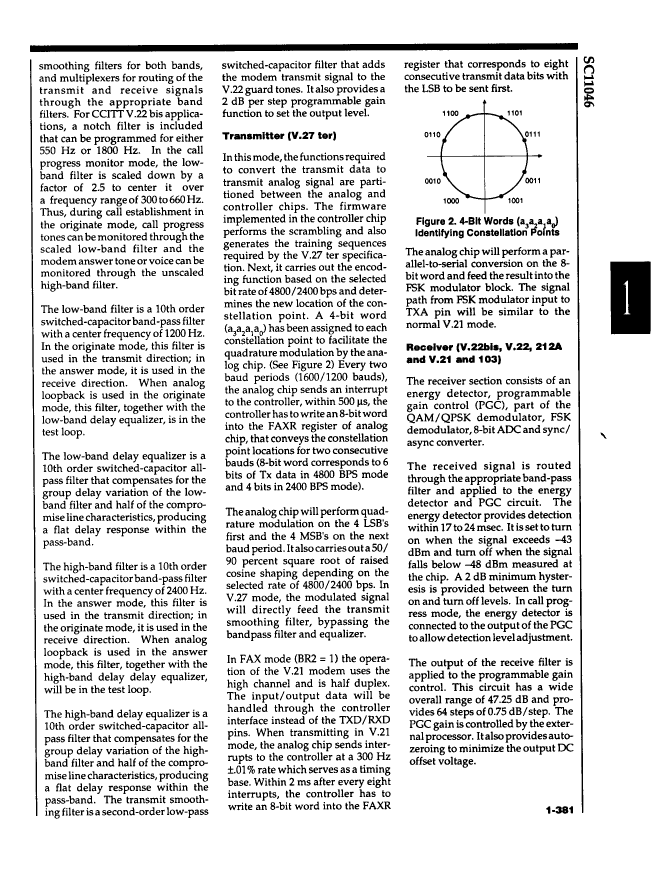

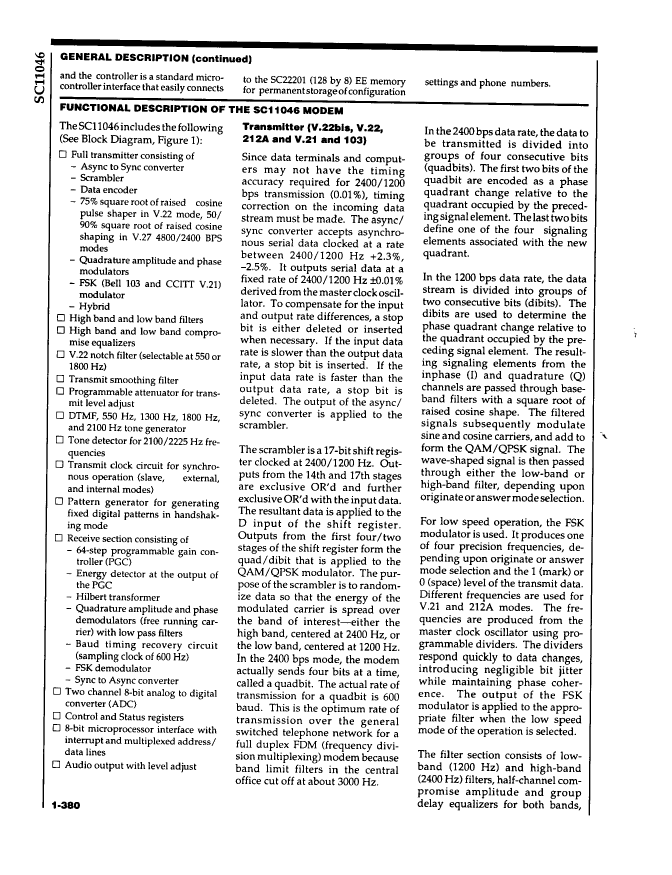

SC11046CN Overview

Modem-Data/Fax, 2.4kbps Data, 4.8kbps Fax, CMOS, PDIP28,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Sierra Semiconductor
Reach Compliance Code	unknown
data rate	2.4 Mbps
Fax rate	4.8 kbps
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
Negative supply voltage rating	-5 V
Number of functions	1
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-5 V
Certification status	Not Qualified
Maximum slew rate	35 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Telecom integrated circuit types	MODEM-DATA/FAX
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

	SC11046CN	SC11046CV
Description	Modem-Data/Fax, 2.4kbps Data, 4.8kbps Fax, CMOS, PDIP28,	Modem-Data/Fax, 2.4kbps Data, 4.8kbps Fax, CMOS, PQCC28,
Is it Rohs certified?	incompatible	incompatible
Maker	Sierra Semiconductor	Sierra Semiconductor
Reach Compliance Code	unknown	unknown
data rate	2.4 Mbps	2.4 Mbps
Fax rate	4.8 kbps	4.8 kbps
JESD-30 code	R-PDIP-T28	S-PQCC-J28
JESD-609 code	e0	e0
Negative supply voltage rating	-5 V	-5 V
Number of functions	1	1
Number of terminals	28	28
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCJ
Encapsulate equivalent code	DIP28,.6	LDCC28,.5SQ
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	+-5 V	+-5 V
Certification status	Not Qualified	Not Qualified
Maximum slew rate	35 mA	35 mA
Nominal supply voltage	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Telecom integrated circuit types	MODEM-DATA/FAX	MODEM-DATA/FAX
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
