S-7247B datasheet, PDF - EEWORLD Datasheet

S-7247B: DescriptionTelephone Dialer Circuit, PDIP18, DIP-18; CategoryWireless rf/communication Telecom circuit; File Size309KB，17 Pages; ManufacturerABLIC

Download Datasheet Parametric Compare View All

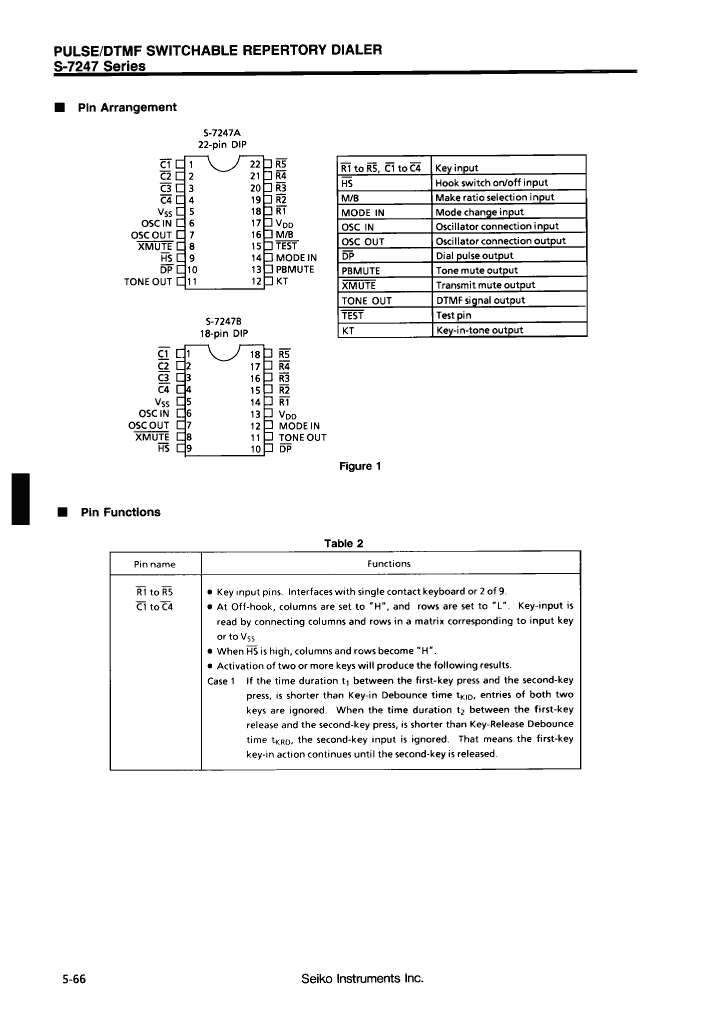

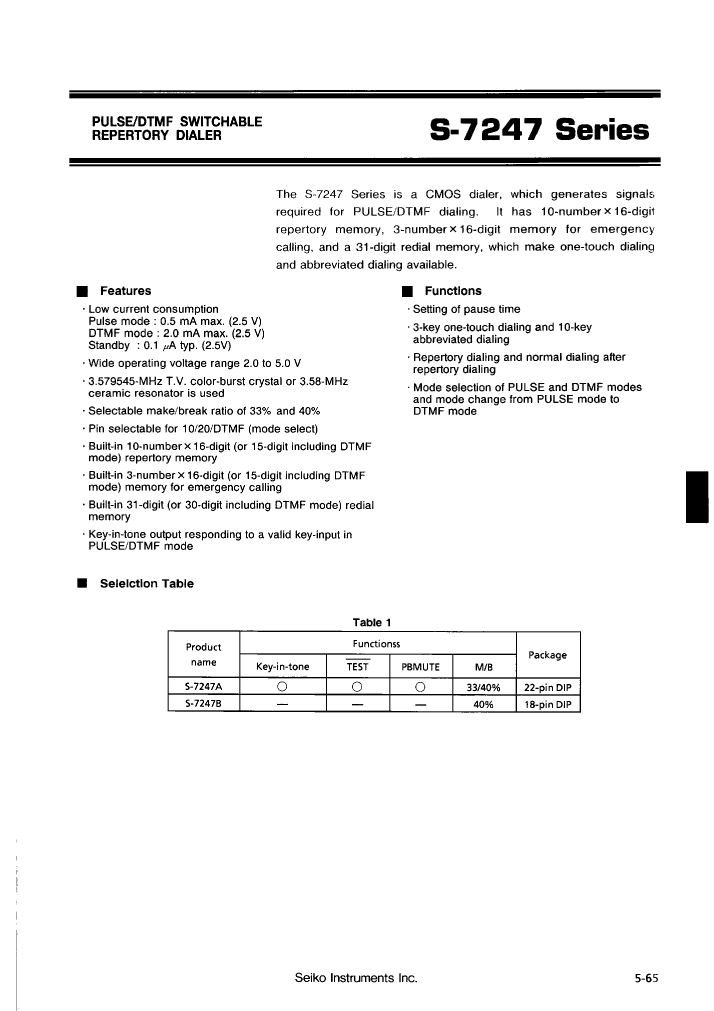

S-7247B Overview

Telephone Dialer Circuit, PDIP18, DIP-18

Parameter Name	Attribute value
Maker	ABLIC
Parts packaging code	DIP
package instruction	DIP,
Contacts	18
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T18
length	22.86 mm
damage rate	1:1.5
Number of functions	1
Number of terminals	18
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	4.32 mm
Maximum slew rate	2 mA
Nominal supply voltage	5 V
surface mount	NO
Telecom integrated circuit types	TELEPHONE DIALER CIRCUIT
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

	S-7247B	S-7247A
Description	Telephone Dialer Circuit, PDIP18, DIP-18	Telephone Dialer Circuit, CMOS, PDIP22, DIP-22
Maker	ABLIC	ABLIC
Parts packaging code	DIP	DIP
package instruction	DIP,	DIP, DIP18,.3
Contacts	18	22
Reach Compliance Code	unknown	compliant
JESD-30 code	R-PDIP-T18	R-PDIP-T22
length	22.86 mm	27.1 mm
damage rate	1:1.5	1:1.5
Number of functions	1	1
Number of terminals	18	22
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.32 mm	5.06 mm
Maximum slew rate	2 mA	2 mA
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
Telecom integrated circuit types	TELEPHONE DIALER CIRCUIT	TELEPHONE DIALER CIRCUIT
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	10.16 mm
