85013-1108: Description2.54mm (.100") Pitch DIN 41612 Header, Vertical, Style R Reverse, 0.6um (24u") Selective Gold (Au); File Size129KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

85013-1108 Overview

2.54mm (.100") Pitch DIN 41612 Header, Vertical, Style R Reverse, 0.6um (24u") Selective Gold (Au)

Preview

Download Datasheet

View All

This document was generated on 05/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0850131108

Active

din_41612

2.54mm (.100") Pitch DIN 41612 Header, Vertical, Style R Reverse, 0.6µm (24µ")

Selective Gold (Au), 96 Circuits, First-Mate-Last-Break Pins Available, Lead free

Documents:

3D Model

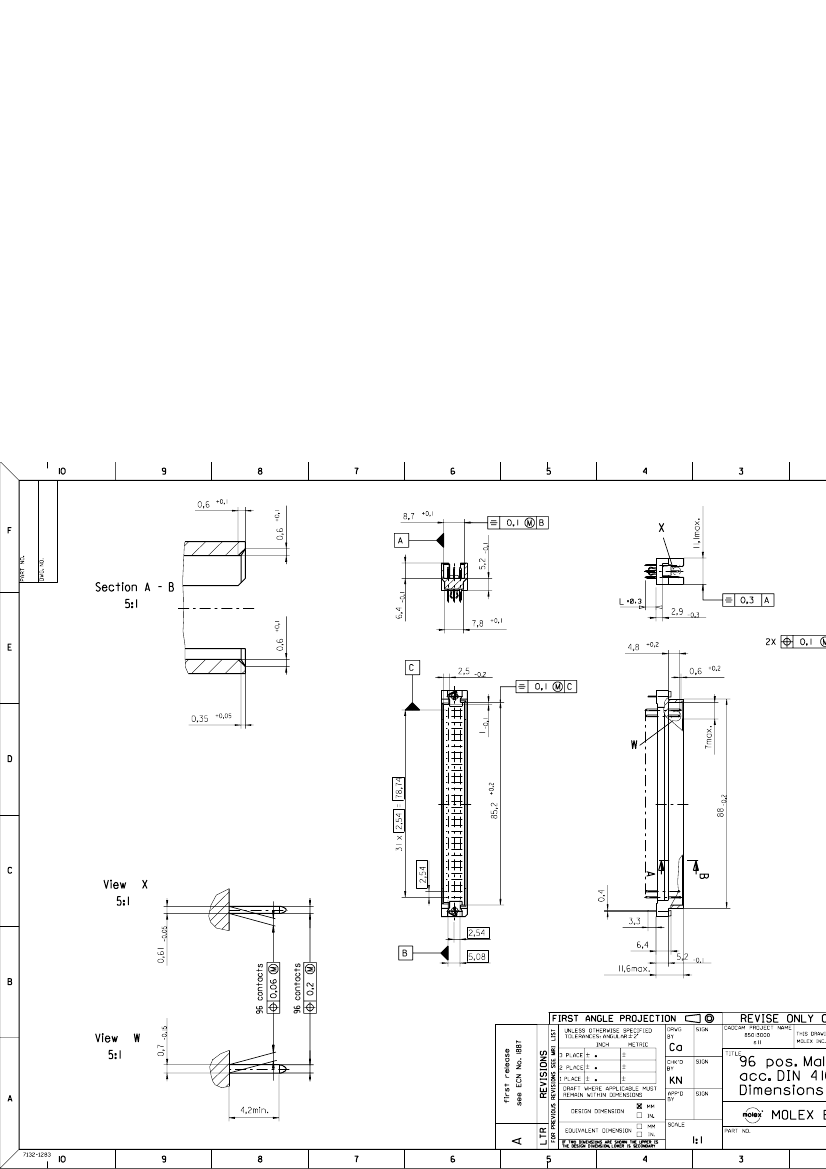

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Agency Certification

CSA

LR19980

E29179

Email pro

For a mu

Complian

General

Product Family

Series

Application

Component Type

Overview

Product Name

Style

Backplane Connectors

85013

Backplane

PCB Header

din_41612

IEC 603-2/DIN 41612

Please vi

non-prod

85013S

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Surface Mount Compatible (SMC)

Temperature Range - Operating

Rows A, B, & C

400

Yes

94V-0

Yes

Open Pin Field

Vertical

0.177 In

4.50 mm

Yes

0.062 In

1.60 mm

Tray

0.100 In

2.54 mm

0.100 In

2.54 mm

0.6

-55°C to +125°C

Mates

85042

Header

Use W

85089-

Electrical

Current - Maximum per Contact

Data Rate

Voltage - Maximum

622.0 Mbps

1000V (RMS)
