KMM965G512BPN-G7 datasheet, PDF

KMM965G512BPN-G7: DescriptionSynchronous Graphics RAM Module, 512KX64, 6ns, CMOS; Categorystorage storage; File Size537KB，16 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric View All

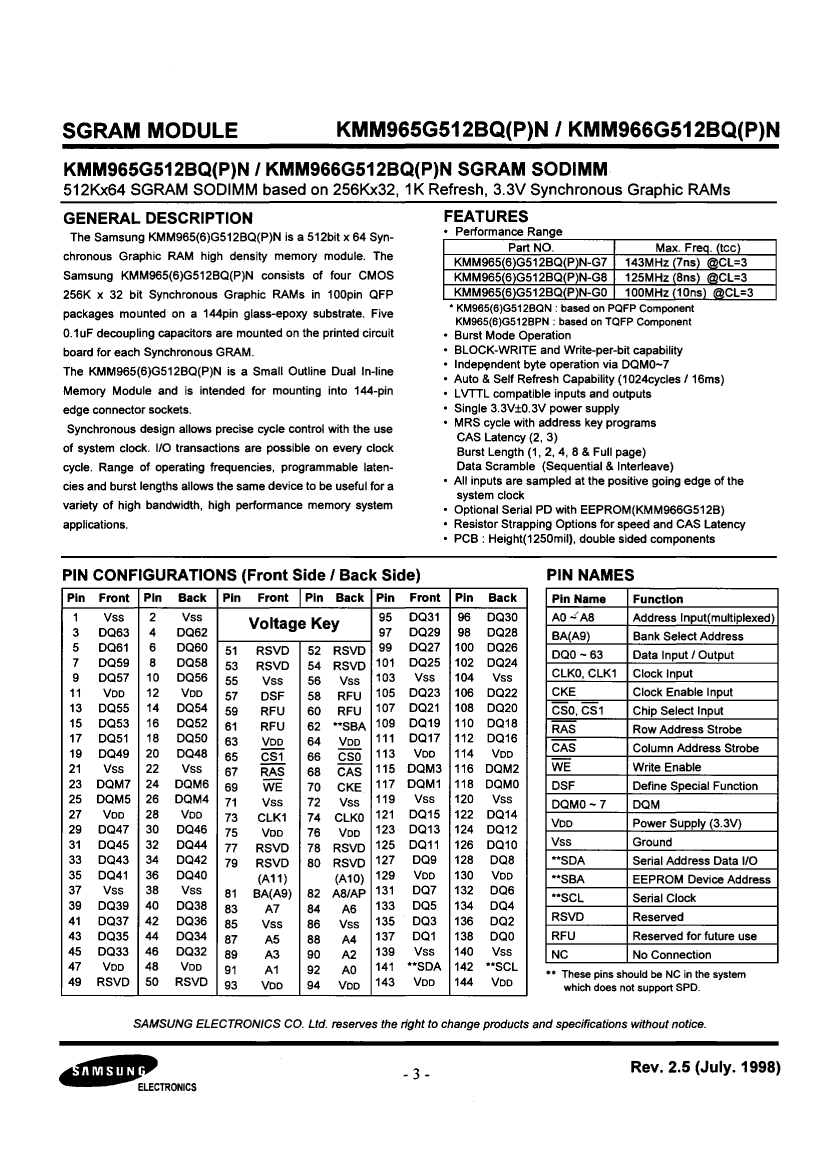

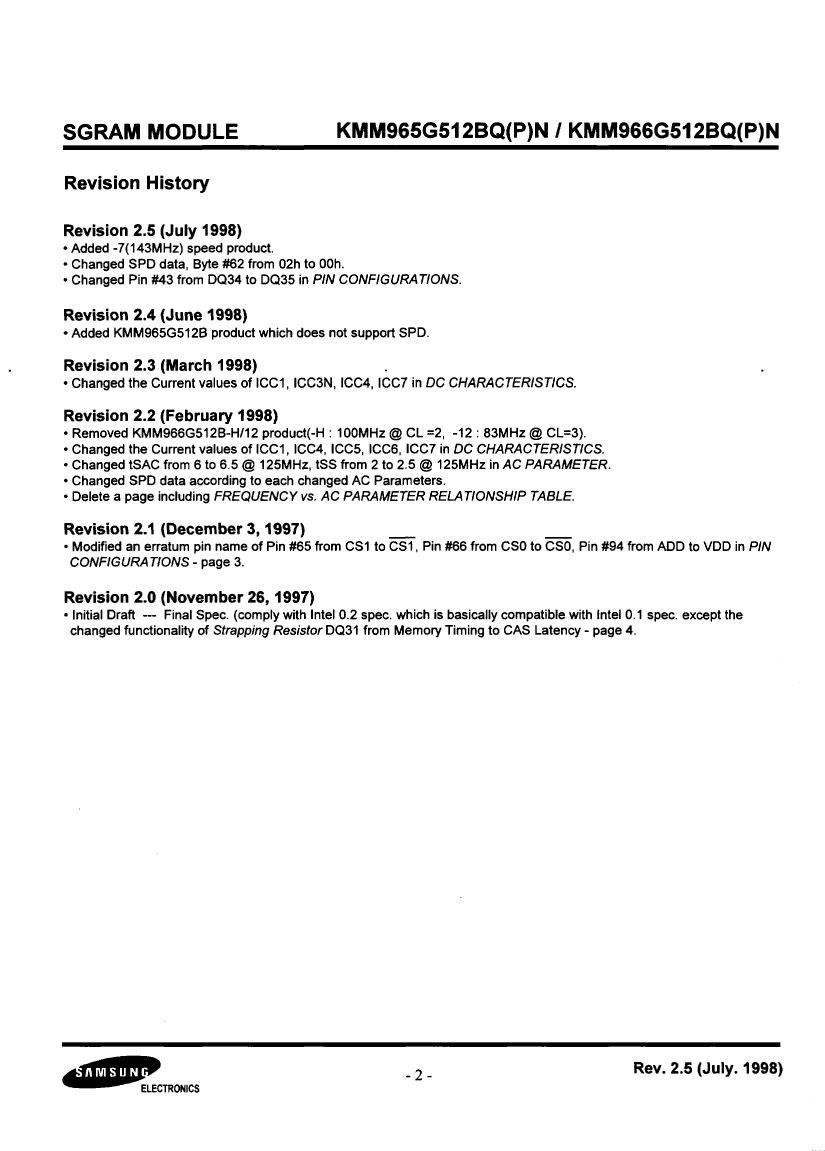

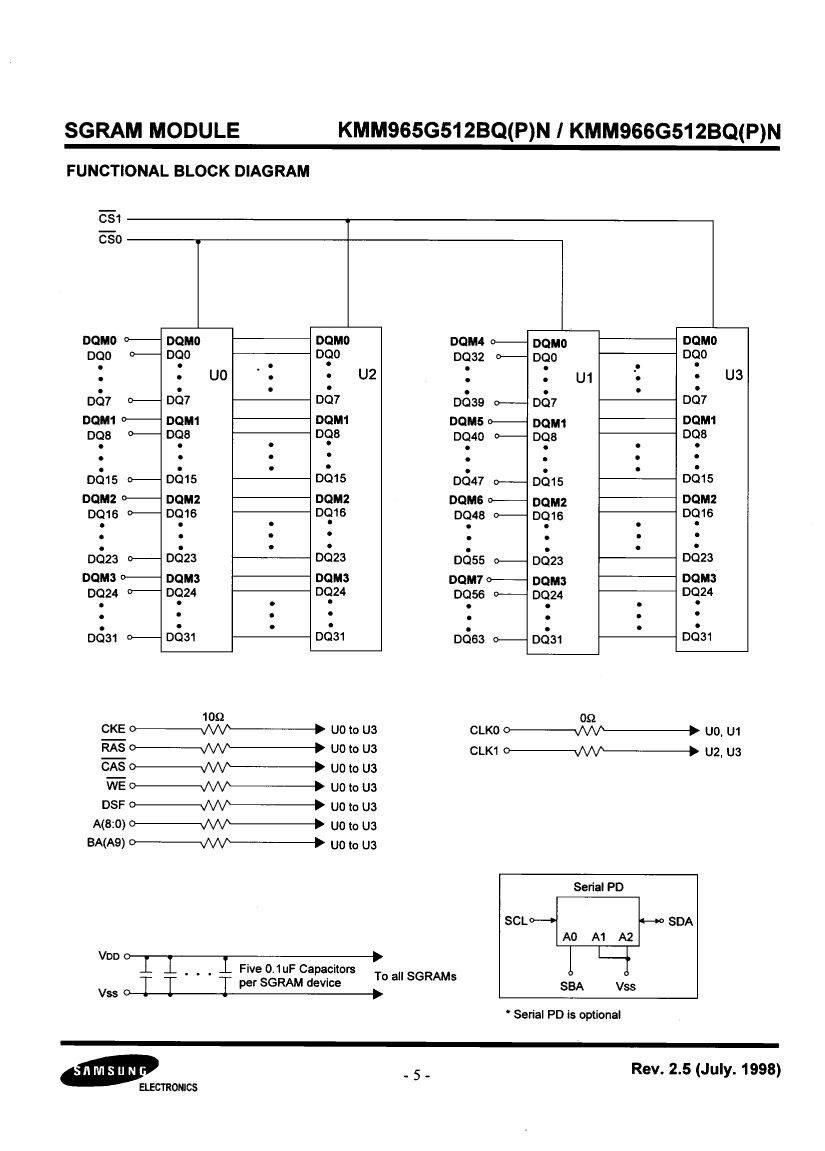

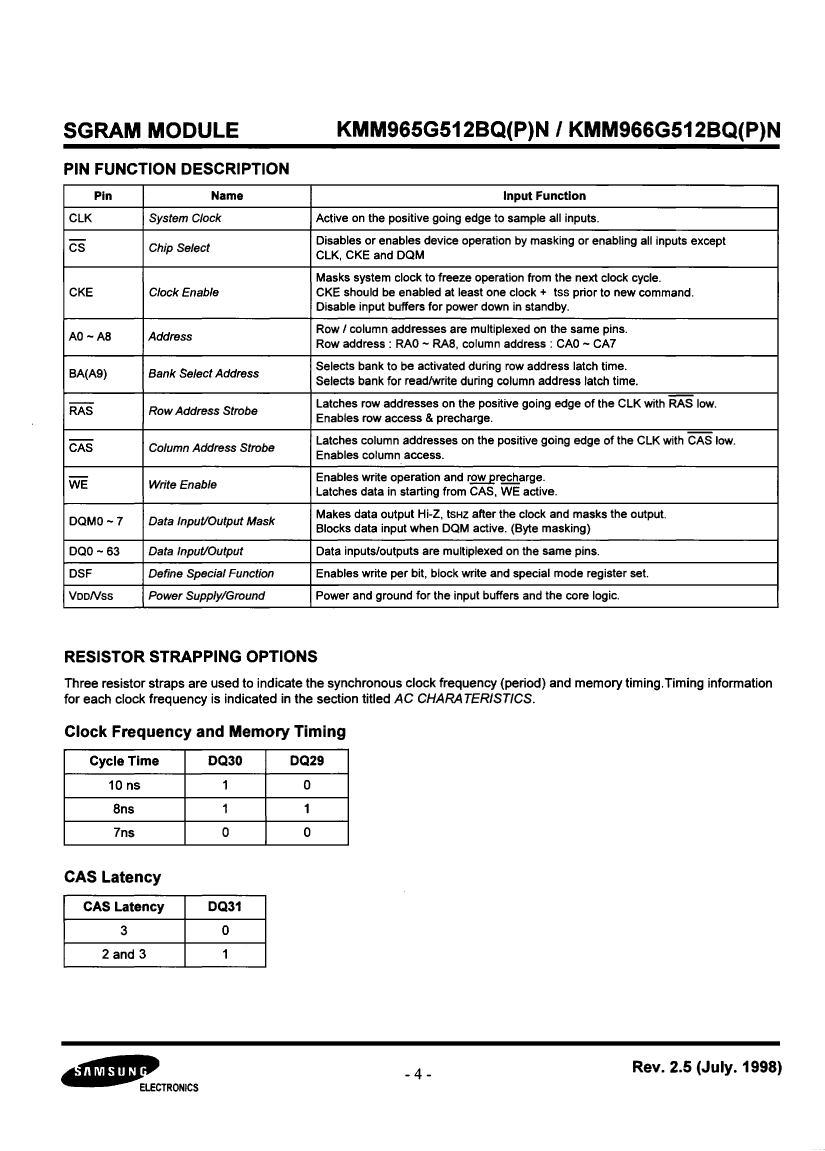

KMM965G512BPN-G7 Overview

Synchronous Graphics RAM Module, 512KX64, 6ns, CMOS

Parameter Name	Attribute value
Maker	SAMSUNG
package instruction	DIMM, DIMM144,32
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	DUAL BANK PAGE BURST
Maximum access time	6 ns
Other features	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	143 MHz
I/O type	COMMON
JESD-30 code	R-XZMA-N144
memory density	33554432 bit
Memory IC Type	SYNCHRONOUS GRAPHICS RAM MODULE
memory width	64
Number of functions	1
Number of ports	1
Number of terminals	144
word count	524288 words
character code	512000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX64
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM144,32
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	1024
self refresh	YES
Maximum standby current	0.008 A
Maximum slew rate	0.67 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	0.8 mm
Terminal location	ZIG-ZAG
