MN5211H/B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> MN5211H/B

MN5211H/B: DescriptionADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Serial, Parallel, Word Access, Hybrid, DIP-24; CategoryAnalog mixed-signal IC converter; File Size1MB，8 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

MN5211H/B Overview

ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Serial, Parallel, Word Access, Hybrid, DIP-24

MN5211H/B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Spectrum Microwave
Parts packaging code	DIP
package instruction	DIP, DIP24,.6
Contacts	24
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum analog input voltage	5 V
Minimum analog input voltage	-5 V
Maximum conversion time	13 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
length	31.75 mm
Maximum linear error (EL)	0.0122%
Nominal negative supply voltage	-15 V
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Output format	SERIAL, PARALLEL, WORD
Package body material	UNSPECIFIED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,+-15 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

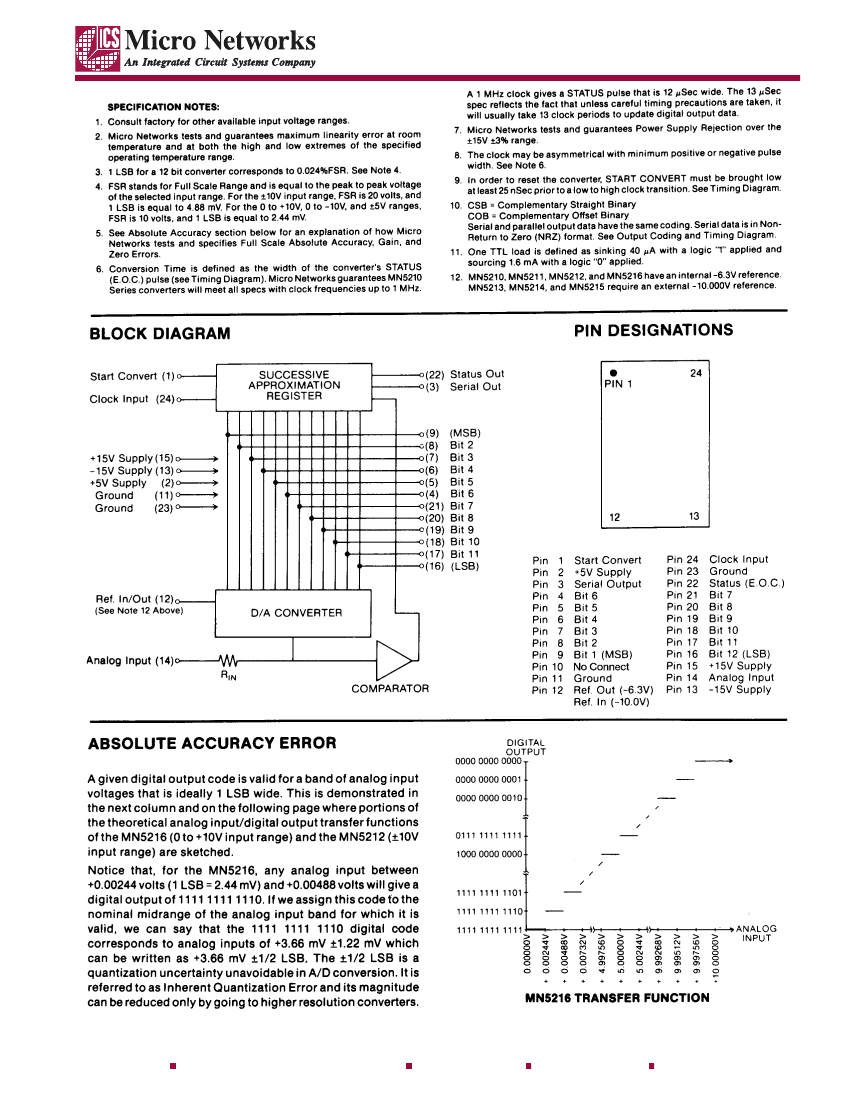

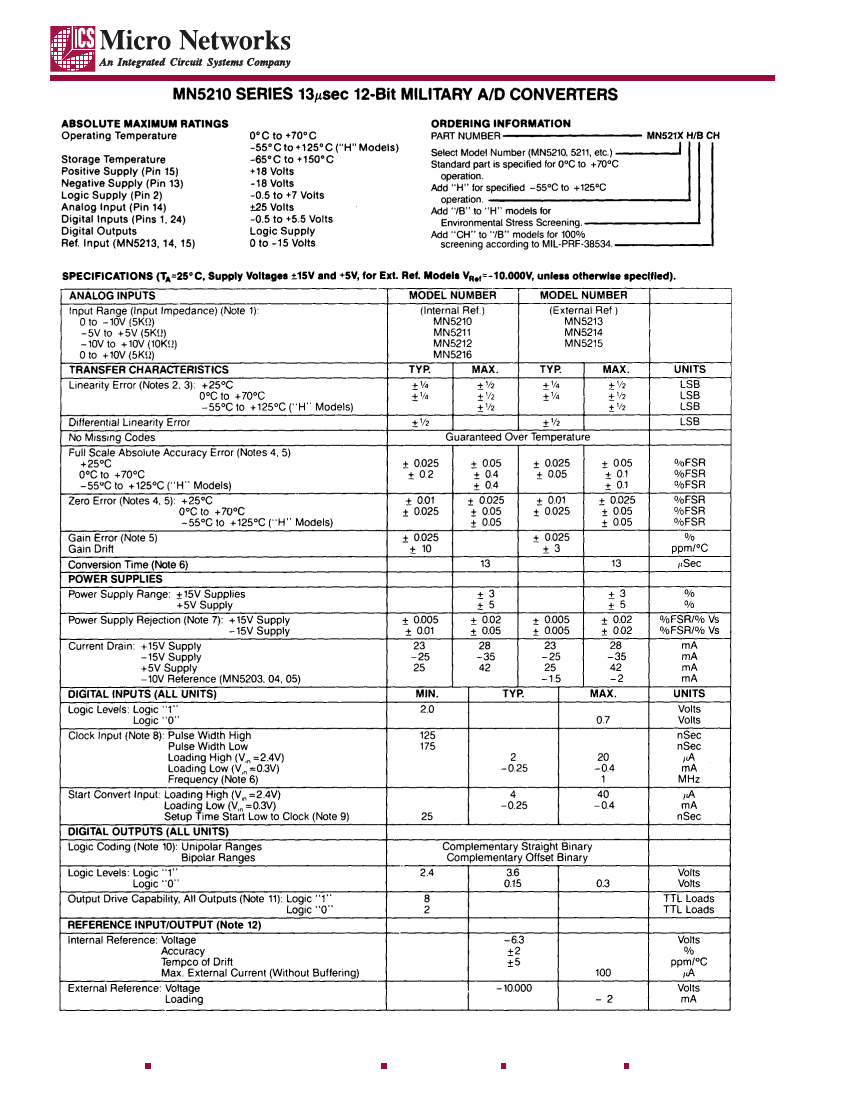

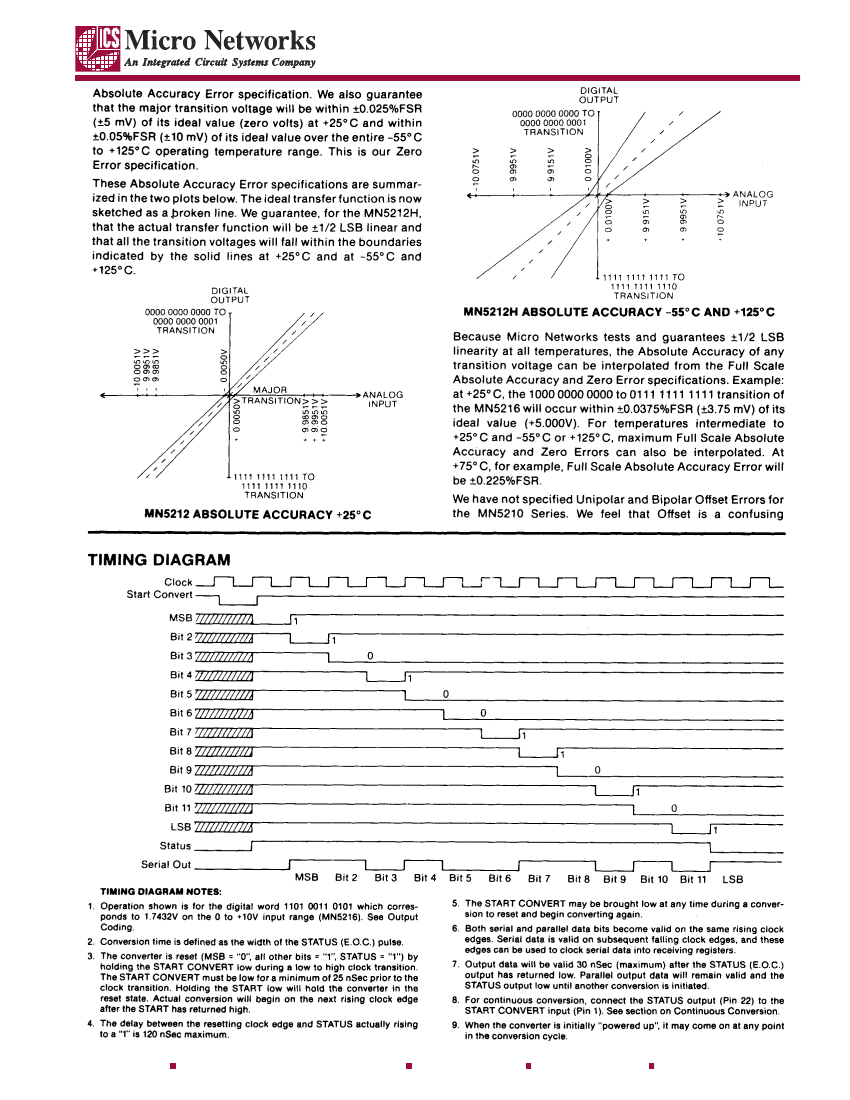

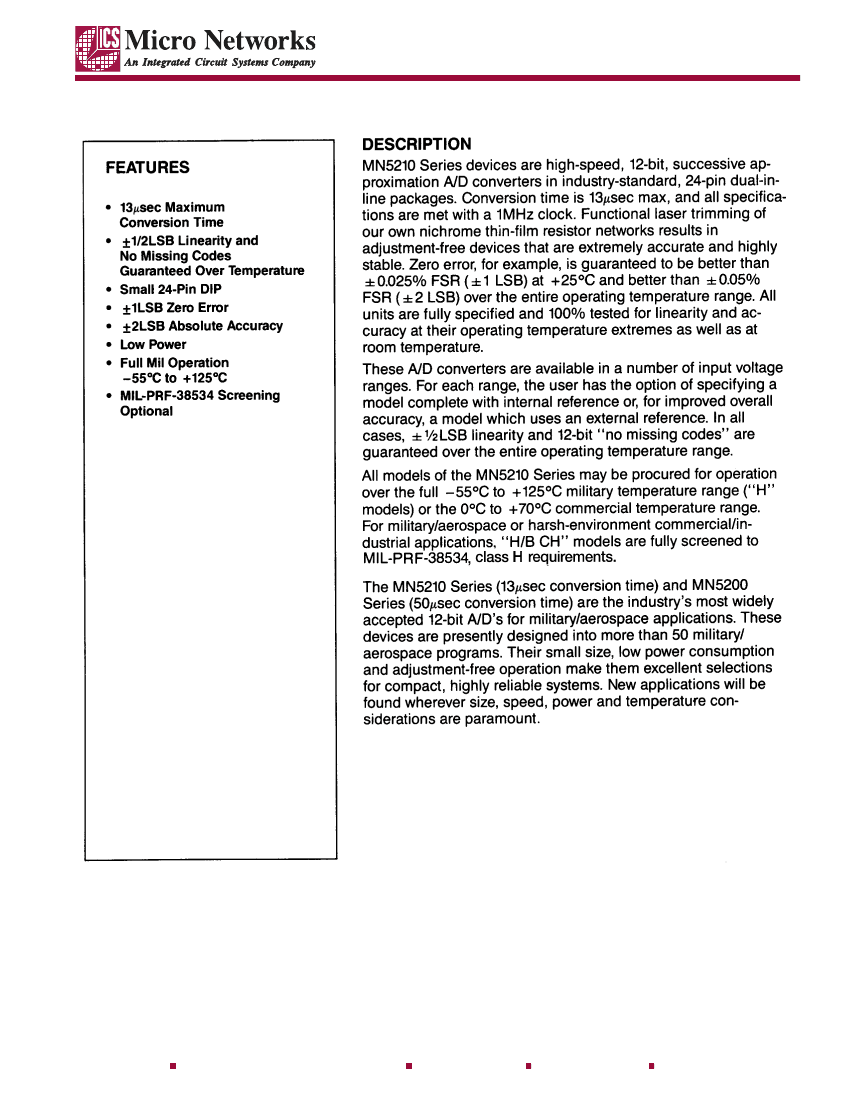

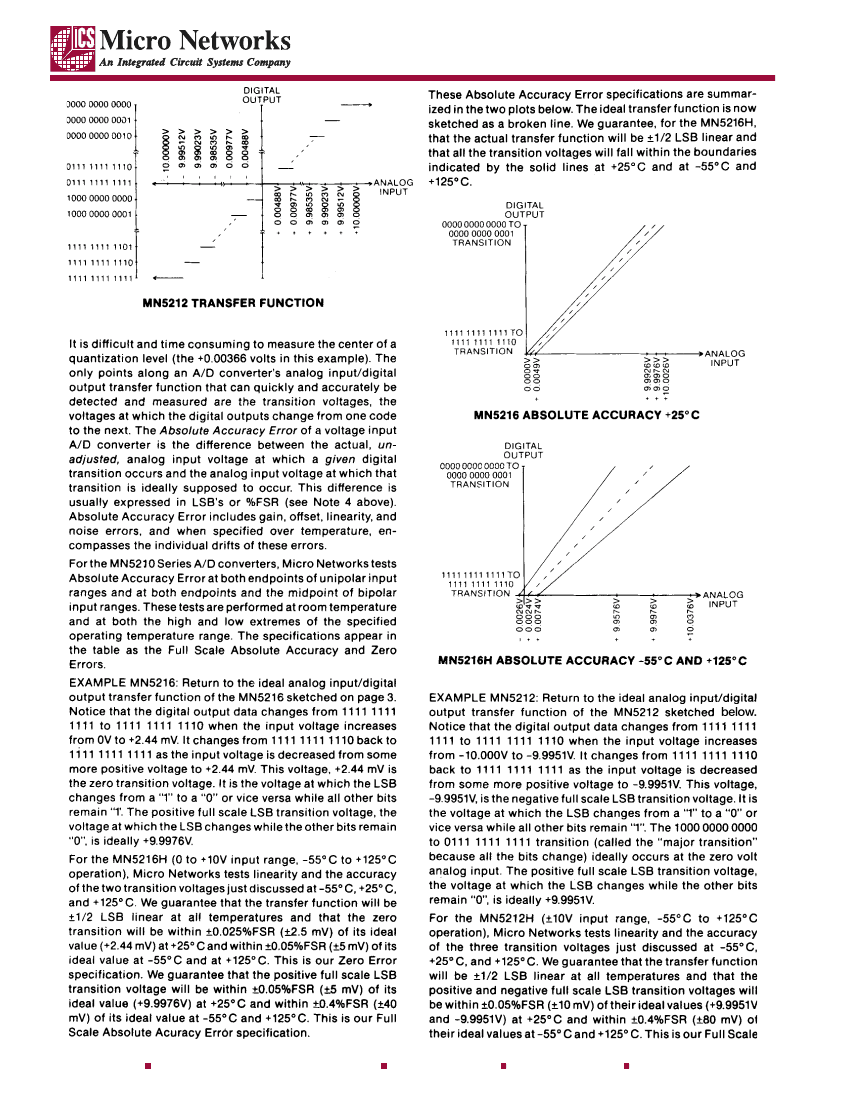

Preview

Download Datasheet

View All

MN5210 Series

13µsec, 12-bit Military

A/D Converters

Micro Networks

324 Clark Street Worcester, MA 01606

tel: 508-852-5400

fax: 508-852-8456

www.micronetworks.com
