DWG NO.
SH
CUSTOMER
CUSTOMER P/N
CUST. REV
1-0484
DASH
NO
-1
-2
CONN
TYPE
BJ28GF
UBJ28GF
3
1/2-28 UNEF-2A
1.000
.950
1
REVISIONS
DESCRIPTIONS
DATE
10/19/11
APPROVED
T. KOHLER
1.471 .030
DATA CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO EMERSON CONNECTIVITY SOLUTIONS AND SHALL NOT
REV
BE DISCLOSED, COPIED OR USED FOR PROCUMENT OR
MANUFACTURE WITHOUT EXPRESS WRITTEN PERMISSION
53750
G ECO
.875
WRENCH FLATS
.625
5 HEX NUT
.786 .030
.425
SCALE
2/1
5
4.
TIGHTEN TO 25 INCH-POUNDS MAXIMUM INSTALLATION TORQUE
FILTER FUNCTION BETWEEN SHIELD AND CHASSIS:
(A)
(B)
(C)
(D)
(E)
(F)
-1 SHOWN
.610
.605
VOLTAGE RATING: 200 VDC AT SEA LEVEL AND 25
C
CAPACITANCE: 4nFD MINUMUM 10nFD MAXIMUM AT 1KHz AND 25
C
DISSIPATION FACTOR: 5% MAXIMUM AT 1 KHz AND 25
C
DIELECTRIC WITHSTANDING VOLTAGE: 500 VDC AT SEA LEVEL AND 25
C FOR 1 MINUTE
INSULATION RESISTANCE: 1 G- OHM MINIMUM AT 200 VDC AND 25
C
RF INSERTION LOSS (FILTER PERFORMANCE) : WHEN MEASURED PER MIL-STD-220
ON A SWEEP FREQUENCY RESPONSE BASIS (WITH 1/2 AMP DRIVEN CURRENT IN
50 OR 75 OHM) INSERTION LOSS SHALL BE AS FOLLOWS:
FREQUENCY (MHZ)
1
3
10
30
100
300
1000
(ATTENUATION MINIMUM dB AT 25
1
2
8
16
30
30
30
C)
.285
.280
RECOMMENDED
PANEL CUTOUT
SCALE 2/1
INTERPRET DRAWING PER
TOL: UNLESS SPECIFIED.
MIL-STD-100.
.02
DIMENSIONS ARE IN INCHES
.XX
AND INCLUDE FINISH
.XXX
.010
THICKNESS
ANGLE
1
UNLESS OTHERWISE SPECIFIED.
DRN
Connectivity Solutions
TM
EMERSON
Network Power
299 Johnson Ave. Ste. 100
Waseca, MN 56093
1-800-247-8256
MATERIAL:
TITLE:
3
2.
1.
MAXIMUM PANEL THICKNESS .094
N/A
FINISH:
TFS-1A (NICKEL)
BLANK LENGTH
(REF. ONLY)
B. KAISER
8/4/11
CHK
T. KOHLER
8/6/11
QUALITY
U/BJ28GF
FINISH:
SIZE
CAGE CODE
DRAWING NO.
REV.
MANUF

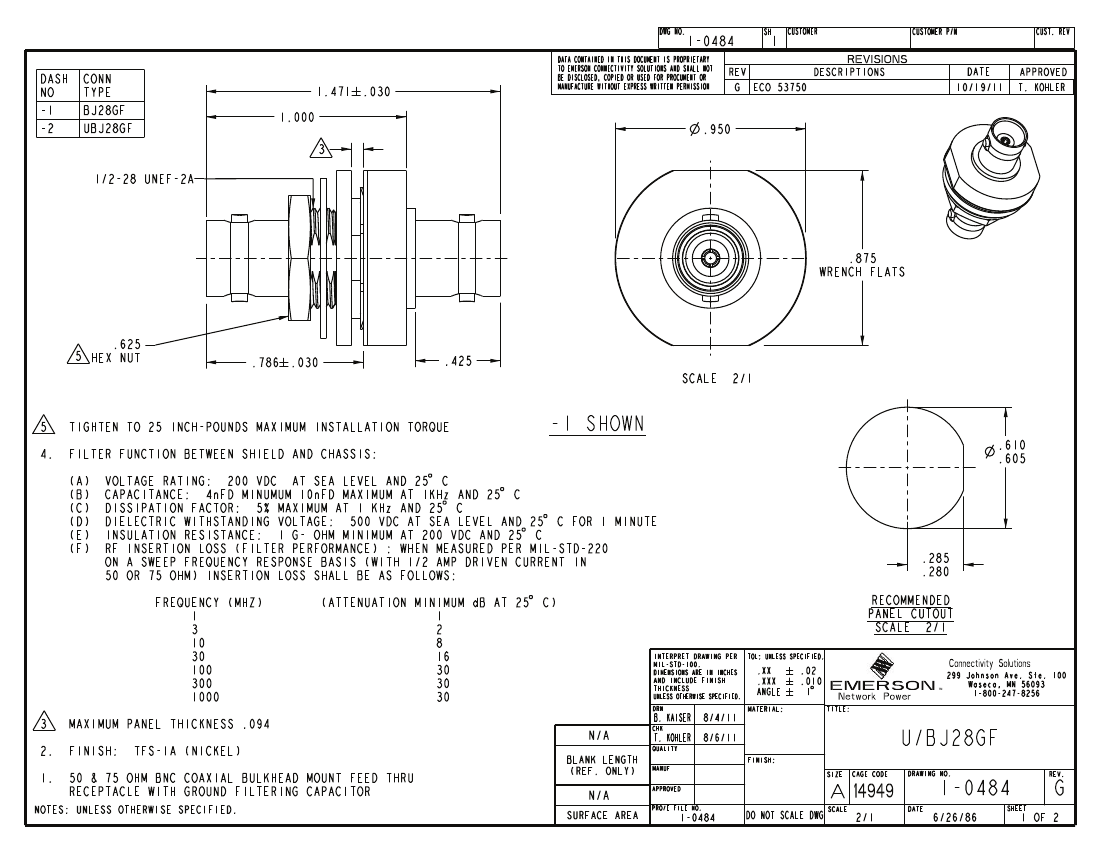

50 & 75 OHM BNC COAXIAL BULKHEAD MOUNT FEED THRU
RECEPTACLE WITH GROUND FILTERING CAPACITOR
N/A
SURFACE AREA
APPROVED
PRO/E FILE NO.
A 14949
DO NOT SCALE DWG
SCALE
DATE
1-0484
SHEET
G
1 OF 2
NOTES: UNLESS OTHERWISE SPECIFIED.
1-0484
2/1
6/26/86
