326892U025HS1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 326892U025HS1

326892U025HS1: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 75% +Tol, 10% -Tol, 8900uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size963KB，4 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance; Related ProductsFound10parts with similar functions to 326892U025HS1

Download Datasheet Parametric View All

326892U025HS1 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 75% +Tol, 10% -Tol, 8900uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

326892U025HS1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	8900 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	22.6 mm
dielectric materials	ALUMINUM (WET)
ESR	15.2 mΩ
JESD-609 code	e3
leakage current	0.2358 mA
length	80 mm
Manufacturer's serial number	326
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
polarity	POLARIZED
positive tolerance	75%
Rated (DC) voltage (URdc)	25 V
ripple current	3536 mA
series	326
surface mount	NO
Terminal surface	Tin (Sn)
Terminal pitch	7.62 mm
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

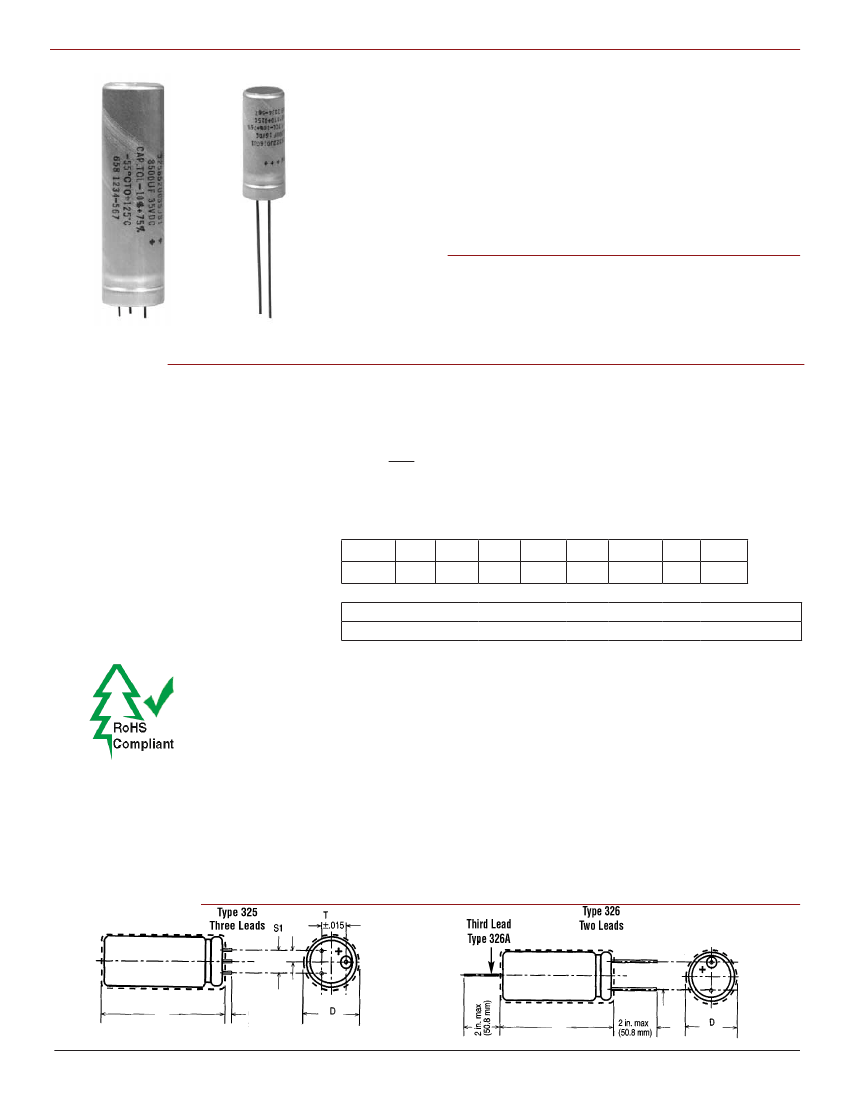

Type 325/326,

–55 ºC to 125 ºC Long-Life, Switching Power Grade Radial

High Temperature and Ultra-Low ESR

The Types 325 and 326 are the ultra-wide-temperature, low-ESR

capacitors for switching power-supply outputs and automotive applications.

The 125 °C capability and exceptionally low ESRs enable high ripple-

current capability. With series inductance of 12 to 16 nH and ripple currents

to 27 amps one of these capacitors can save by replacing eight to ten of the

12.5 mm diameter capacitors routinely at the output of switching power

supplies. Type 325 has three leads for rugged, reverse-proof mounting, and

Type 326 has two leads

Highlights

•

2000 hour life test at 125 °C

Ripple Current to 27 amps

ESRs to 5 m

Ω

> 90% capacitance at –40 °C

Replaces multiple capacitors

Type 325

Type 326

Specifications

Operating Temperature:

Rated Voltage:

Capacitance:

Capacitance Tolerance:

Leakage Current:

Cold Impedance:

Ripple Current Multipliers:

–55 °C to 125 °C

6.3 to 63 Vdc –

880 µF to 46,000 µF

–10 +75%

≤0.5 √CV µA, 4 mA max, 5 minutes

–55 °C multiple of 25 °C Z ≤2.5 @ 120 Hz

≤20 from 20–100 kHz

Ambient Temperature

45ºC

1.39

120 Hz

see ratings

55ºC

1.3

65ºC

1.21

75ºC

1.11

85ºC

1.00

95ºC

0.88

105ºC

0.73

1 kHz

0.85

115ºC 125ºC

0.55

0.26

20-100 kHz

1.00

Frequency

360 Hz

0.76

400 Hz

0.77

Life Test:

Load Life:

Complies with the EU Directive

2002/95/EC requirement

restricting the use of Lead (Pb),

Mercury (Hg), Cadmium (Cd),

Shelf

Hexavalent chromium (Cr(VI)),

PolyBrominated Biphenyls

(PBB) and PolyBrominated

Diphenyl Ethers (PBDE).

Life:

Outline Drawings

Vibration:

2000 h with rated voltage at 125 °C

∆ capacitance ± 10%

ESR 125 % of limit

DCL 100 % of limit

4000 h at full load at 85 °C

∆ capacitance ± 10%

ESR 200 % of limit

DCL 100 % of limit

500 h at 105 °C,

∆ capacitance ± 10%,

ESR 110% of limit,

DCL 200% of limit

10 to 55 Hz, 0.06” and 10 g max, 2 h each plane

+0.015

-0.032

CDM Cornell Dubilier

•

140 Technology Place

•

Liberty, SC 29657

•

Phone: (864)843-2277

•

Fax: (864)843-3800

•

www.cde.com

Recommended Resources

Inductive anti-theft alarm circuit 2 using capacitor oscillator

HM9901 touch step dimming light circuit

Rice cooker automatic control additional circuit

Voltage regulating power supply and charger

Voltage monitoring and reset circuit composed of TL7705CP

Computer motherboard circuit diagram 820 2_30

326892U025HS1 Similar Products

Part Number	Manufacturer	Description
326A892U025HS1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 75% +Tol, 10% -Tol, 8900uF, Through Hole Mount, CAN, ROHS COMPLIANT
326892U025HS0E	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 75% +Tol, 10% -Tol, 8900uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
326A892U025HS0E	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 75% +Tol, 10% -Tol, 8900uF, Through Hole Mount, CAN, ROHS COMPLIANT
325892U025HS0E	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 75% +Tol, 10% -Tol, 8900uF, Through Hole Mount, CAN, ROHS COMPLIANT
325892U025HS1E	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 75% +Tol, 10% -Tol, 8900uF, Through Hole Mount, CAN, ROHS COMPLIANT
325892U025HS0	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 75% +Tol, 10% -Tol, 8900uF, Through Hole Mount, CAN, ROHS COMPLIANT
326A892U025HS1E	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 75% +Tol, 10% -Tol, 8900uF, Through Hole Mount, CAN, ROHS COMPLIANT
326892U025HS0	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 75% +Tol, 10% -Tol, 8900uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
326892U025HS1E	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 75% +Tol, 10% -Tol, 8900uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
326A892U025HS0	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 75% +Tol, 10% -Tol, 8900uF, Through Hole Mount, CAN, ROHS COMPLIANT
