LD1085DT25 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LD1085DT25

LD1085DT25: Description2.5V FIXED POSITIVE LDO REGULATOR, 1.3V DROPOUT, PSSO2, DPAK-3; CategoryPower/power management The power supply circuit; File Size542KB，2 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

LD1085DT25 Overview

2.5V FIXED POSITIVE LDO REGULATOR, 1.3V DROPOUT, PSSO2, DPAK-3

LD1085DT25 Parametric

Parameter Name	Attribute value
Maker	STMicroelectronics
Parts packaging code	TO-252
package instruction	TO-252,
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum drop-back voltage 1	1.3 V
JESD-30 code	R-PSSO-G2
length	6.5 mm
Number of functions	1
Number of terminals	2
Maximum output current 1	3 A
Maximum output voltage 1	2.55 V
Minimum output voltage 1	2.45 V
Nominal output voltage 1	2.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-252
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	2.63 mm
surface mount	YES
Terminal form	GULL WING
Terminal pitch	2.25 mm
Terminal location	SINGLE
width	6.1 mm

Preview

Download Datasheet

View All

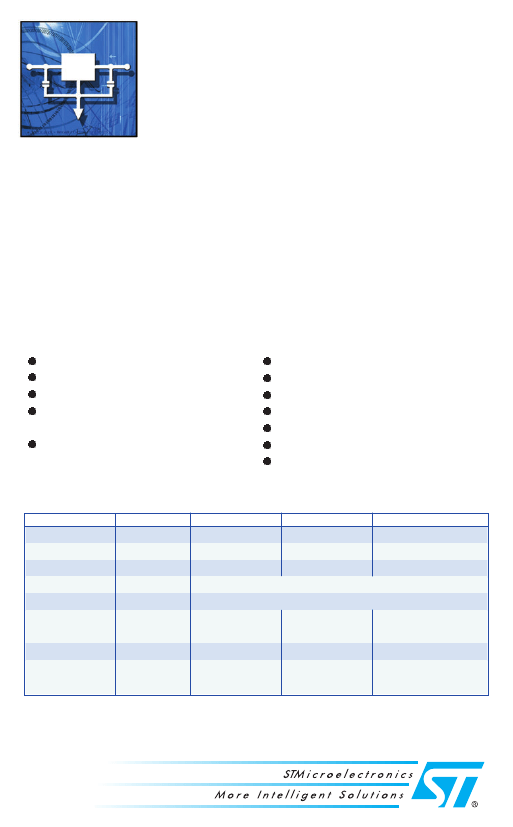

LD108x Low Drop Positive

Voltage Regulators

From 1.5 to 5A Fixed and Adjustable

The LD108x family of Low Drop Voltage Regulators provides an output current up to 5A, 3A and

1.5A. Drop out is guaranteed at a maximum of 1.5V at the maximum output current, over the full

temperature range decreasing at lower loads. The LD108x family is pin compatible with older

3-terminal adjustable regulators and offers better performance in terms of drop and output tolerance.

On chip trimming allows the regulator to reach a very tight output voltage tolerance, within ±1% at

25°C. Pin to pin compatible with the market standards, the LD108x family is an ideal candidate to

replace, and even upgrade your applications.

Segments & Applications

Desktop PC

Graphics & Sound Chipset

Palmtop/ Laptop Computer

Post Regulators for Switching

Power Supplies

VCR

ASIC & Low Voltage ICs Supplies

Camcorder

Personal Stereo

Memory Cards

Battery Chargers

TV SET

Monitors

LD1084

1.3 @ 5A

LD1085

1.3 @ 3A

LD1086

1.3 @ 1.5A

1.5

Key Features

Dropout Voltage

Quiescent Current

Output Current

Output Voltages

Vout Tolerance

Supply Voltage

Rejection (SVR)

T° Range

Packages

°C

-40 / +125

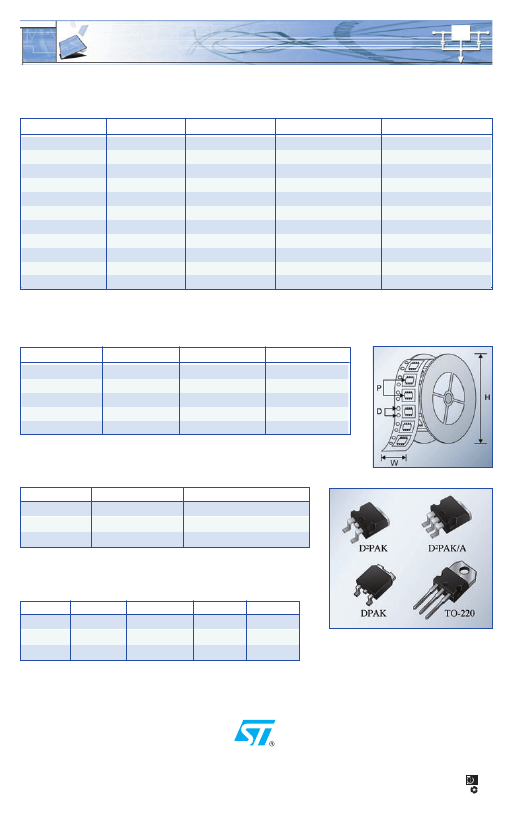

PAK D

PAK/A

T0-220

-40 / +125

TO-220 D

PAK

DPAK D

PAK/A

-40 / +125

TO-220 D

PAK

DPAK D

PAK/A

Unit

1.8 - 2.5 - 2.85 - 3.3 - 3.6 - 5 - 8 - 9 - 12 - Adjustable

±1% @ 25°C - ±2% @ full T° range

Recommended Resources

Typical Schmitt trigger circuit diagram

Basic application circuit of thermistor c

Micro electric drill motor automatic speed regulation circuit

MC-8439 thick film module circuit

5V step-down converter

Pulse width modulation circuit composed of 555 time base circuit
