1478605-5: DescriptionMiniature Long Lever; File Size167KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet View All

1478605-5 Overview

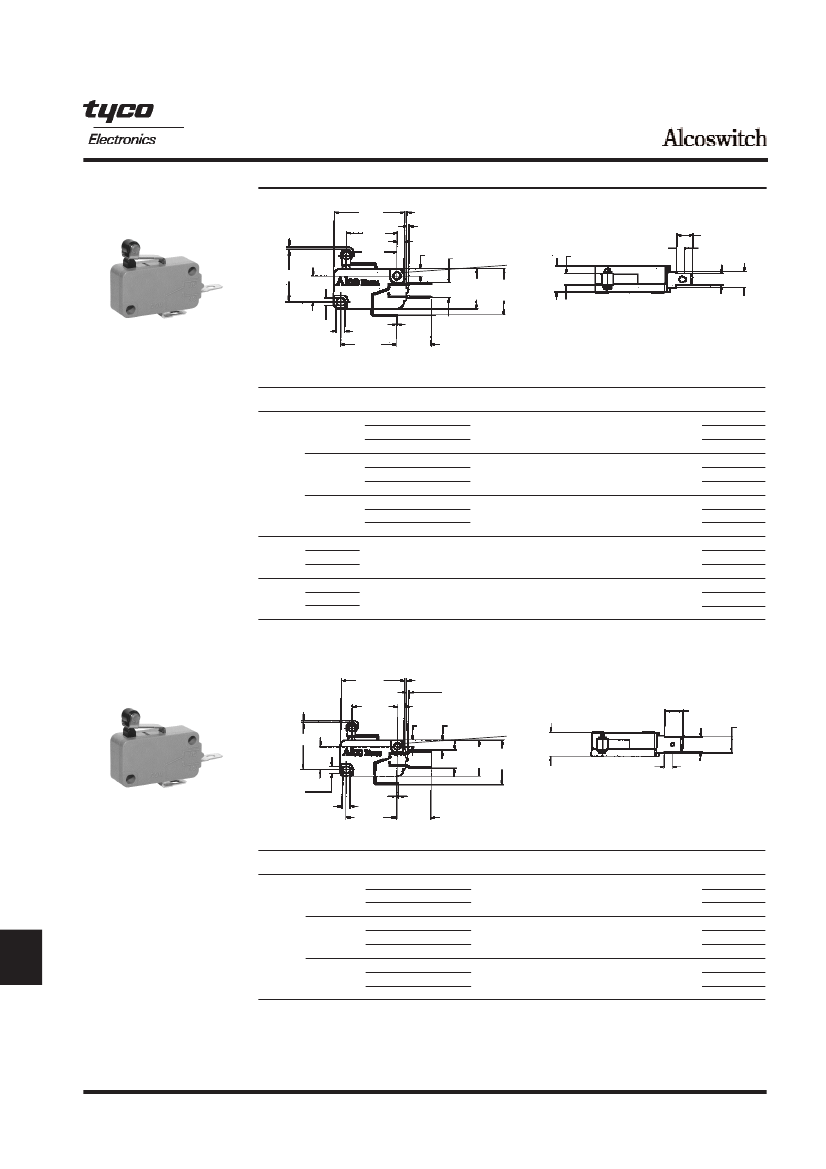

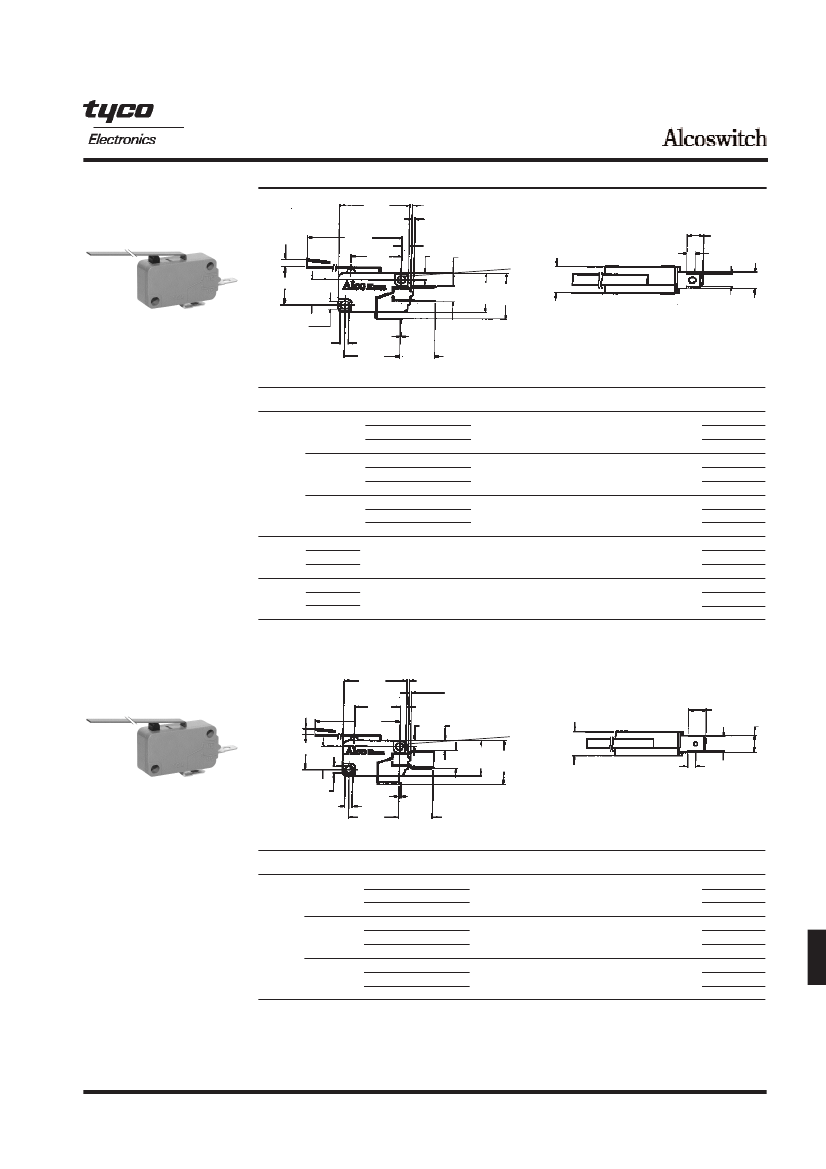

Miniature Long Lever

Preview

Download Datasheet

View All

Microswitches

Miniature Long Lever

Spade/Solder Type

Terminal

P.T

1.094

(27.8)

2.342

(59.5)

.795

(20.2)

O.P

.406

(10.3)

.039

(1.00)

.039

(1.00)

.110

(2.80)

.110

(2.80)

.212

(5.40)

* Refer to Pages L2 for

Product Specifications

.252

(6.40)

.122 Dia.

.406

(3.10)

(10.3)

.626 .724

(15.9) (18.4)

.126

(3.20)

.122

(3.10)

.189 .252

(4.80) (6.40)

Product Facts

[4.75] tab with solder

holes

Use .187 [4.75] FASTON

receptacles or solder wire

directly to terminal

Long lever to increase travel

and reduce operating force

.187

.134

(3.40)

.874

(22.2)

.008

(0.20)

.543

(13.8)

.240

(6.10)

AMP

Switch

Position

SPDT

SPNC

SPNO

SPDT

SPNC

SPNO

SPDT

SPNC

SPNO

Operating

Force

30g

60g

90g

30g

60g

90g

30g

60g

90g

30g

Releasing

Force

10g

15g

10g

15g

10g

15g

Pre Travel

(P.T.)

7.5 m/m

[.295]

7.5 m/m

[.295]

7.5 m/m

[.295]

7.5 m/m

[.295]

7.5 m/m

[.295]

Operating

Position

15.4 ±3.0

[.606±.118]

15.4 ±3.0

[.606±.118]

15.4 ±3.0

[.606±.118]

15.4 ±3.0

[.606±.118]

15.4 ±3.0

[.606±.118]

Over

Travel

2.6 m/m

[.102]

2.6 m/m

[.102]

2.6 m/m

[.102]

2.6 m/m

[.102]

2.6 m/m

[.102]

Movement

Differential

2.4 m/m

[.094]

2.4 m/m

[.094]

2.4 m/m

[.094]

2.4 m/m

[.094]

2.4 m/m

[.094]

0.1

15g

Part

Number

1478603-4

1478604-4

1478605-4

1478609-4

1478610-4

1478611-4

1478615-4

1478616-4

1478617-4

1478667-4

1478668-4

1478669-4

1478670-4

1478671-4

1478672-4

Spade Type Terminal

P.T

1.09

(27.8)

.795

(20.2)

2.342

(55.9)

.039

(1.00)

.110

(2.80)

.110

(2.80)

.039

(1.00)

.173

(4.40)

.315

(8.00)

.122 Dia.

(3.10)

.406

(10.3)

.134

(3.40)

.252

(6.40)

.295

(7.50)

O.P

.406

(10.3)

.626 .776

(15.8) (19.7)

.033

(0.80)

.604

(15.3)

.318

(8.10)

.122

(3.10)

.134

(3.40)

Product Facts

[6.35] tab for use with

.250 [6.35] FASTON

receptacles

Long lever to increase travel

and reduce operating force

.250

AMP

Switch

Position

SPDT

.874

(22.2)

SPNC

SPNO

Operating

Force

30g

60g

90g

30g

60g

90g

30g

60g

90g

Releasing

Force

10g

15g

10g

15g

10g

15g

Pre Travel

(P.T.)

7.5 m/m

[.295]

7.5 m/m

[.295]

7.5 m/m

[.295]

Operating

Position

15.4 ±3.0

[.606±.118]

15.4 ±3.0

[.606±.118]

15.4 ±3.0

[.606±.118]

Over

Travel

2.6 m/m

[.102]

2.6 m/m

[.102]

2.6 m/m

[.102]

Movement

Differential

2.4 m/m

[.094]

2.4 m/m

[.094]

2.4 m/m

[.094]

Part

Number

1478606-4

1478607-4

1478608-4

1478612-4

1478613-4

1478614-4

1478618-4

1478619-4

1478620-4

Miniature Long Lever

Catalog 1308390

Issued 9-04

www.tycoelectronics.com

Dimensions are in inches

and millimeters unless otherwise

specified. Values in parentheses

or brackets are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967
