JD8086-01/B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> JD8086-01/B

JD8086-01/B: DescriptionMicroprocessor, CMOS; CategoryThe embedded processor and controller Microcontrollers and processors; File Size4MB，31 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

JD8086-01/B Overview

Microprocessor, CMOS

JD8086-01/B Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	,
Reach Compliance Code	unknown
technology	CMOS
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

Preview

Download Datasheet

View All

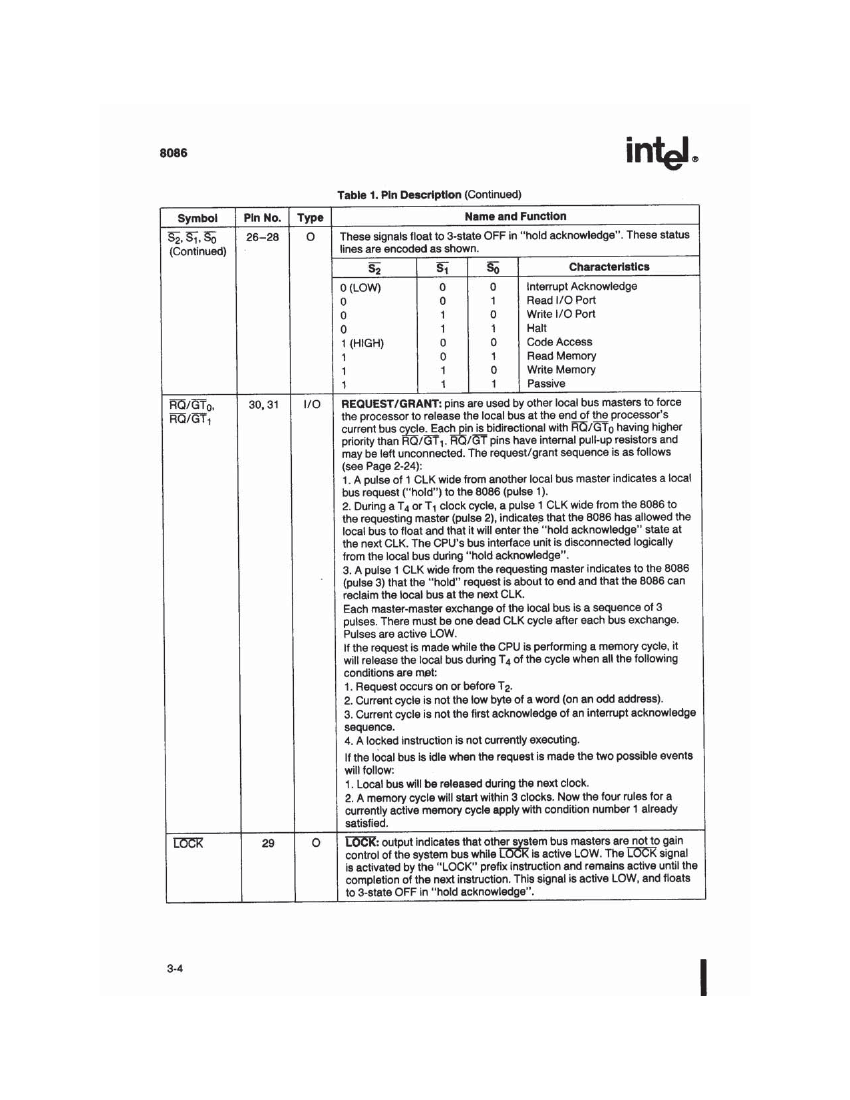

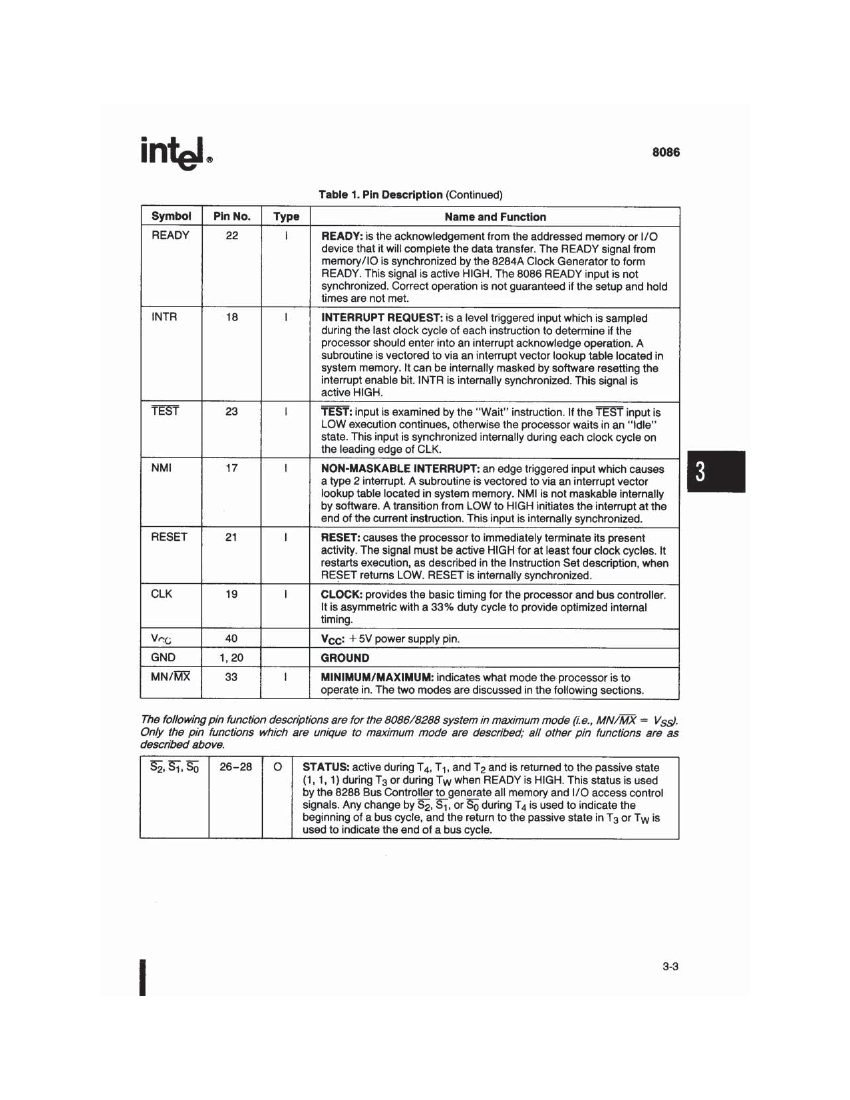

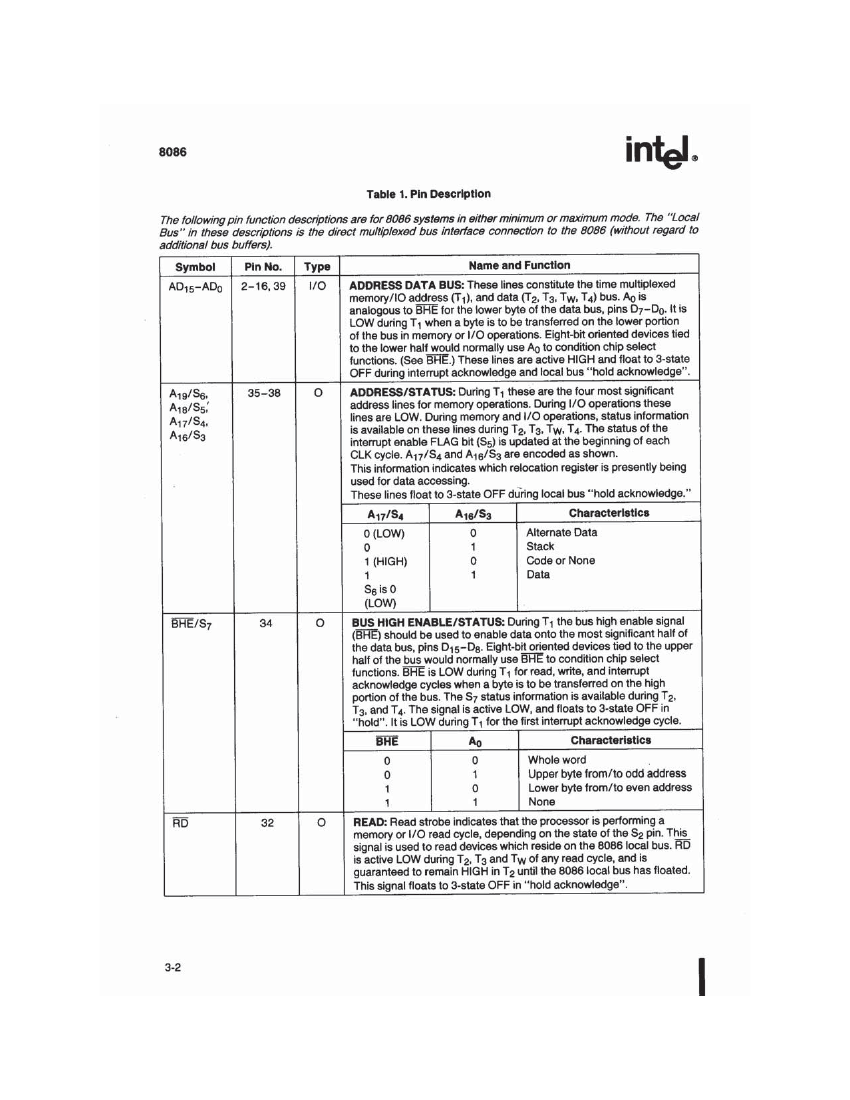

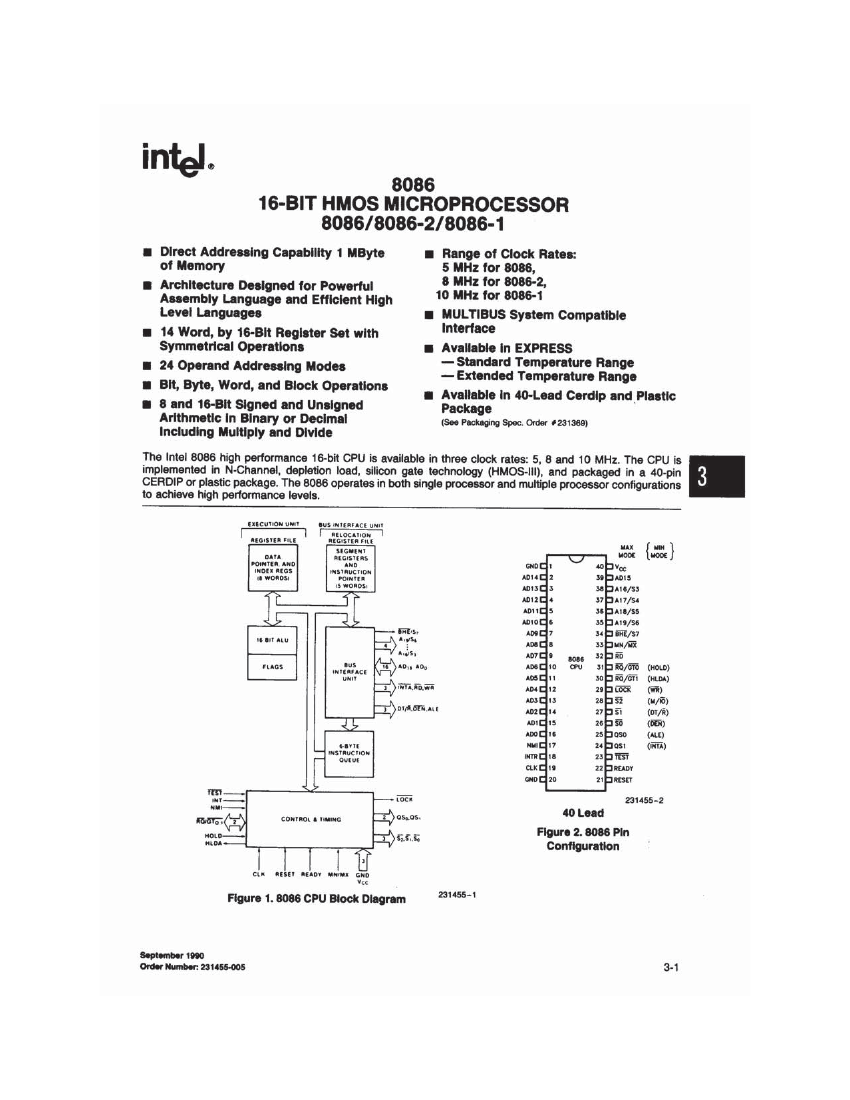

REI Datasheet

8086, 8086-1, 8086-2

16-Bit HMOS Microprocessor

The Intel 8086 high performance 16-bit CPU is available in three clock rates: 5, 8, 10 MHz. The CPU

is implemented in N-Channel, depletion load, silicon gate technology (HMOS-III), and packaged

in a 40-pin CERDIP or plastic package. The 8086 operates in both single processor and multiple

processor configurations to achieve high performance levels.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

• AS9120 certification

• Qualified Manufacturers List (QML) MIL-PRF-38535

•

Class Q Military

• Class V Space Level

• Qualified Suppliers List of Distributors (QSLD)

• Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

JD8086-01/B Related Products

	JD8086-01/B	LD8086	ID8086	LD8086-2	TD8086-2	MD8086-2/B	QD8086-2	QD8086	MD8086
Description	Microprocessor, CMOS	Microprocessor, 16-Bit, 5MHz, MOS, CDIP40, CERDIP-40	Microprocessor, 16-Bit, 5MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40	Microprocessor, 16-Bit, 8MHz, MOS, CDIP40, CERDIP-40	Microprocessor, 16-Bit, 8MHz, NMOS, CDIP40, CERDIP-40	Microprocessor, 16-Bit, 8MHz, HMOS, CDIP40, CERAMIC, DIP-40	Microprocessor, 16-Bit, 8MHz, MOS, CDIP40, CERDIP-40	Microprocessor, 16-Bit, 5MHz, MOS, CDIP40, CERDIP-40	Microprocessor, 16-Bit, 5MHz, HMOS, PDIP40, PLASTIC, DIP-40
package instruction	,	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
technology	CMOS	MOS	NMOS	MOS	NMOS	HMOS	MOS	MOS	HMOS
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	-	Rochester Electronics
Address bus width	-	20	20	20	20	20	20	20	20
bit size	-	16	16	16	16	16	16	16	16
boundary scan	-	NO	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	-	5 MHz	5 MHz	8 MHz	8 MHz	8 MHz	8 MHz	5 MHz	-
External data bus width	-	16	16	16	16	16	16	16	16
Format	-	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	-	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	-	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40	R-CDIP-T40	R-GDIP-T40	R-GDIP-T40	R-PDIP-T40
length	-	52.325 mm	52.324 mm	52.325 mm	52.325 mm	-	52.325 mm	52.325 mm	-
low power mode	-	NO	NO	NO	NO	NO	NO	NO	NO
Number of terminals	-	40	40	40	40	40	40	40	40
Package body material	-	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	-	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Maximum seat height	-	5.72 mm	5.715 mm	5.72 mm	5.72 mm	-	5.72 mm	5.72 mm	-
speed	-	5 MHz	5 MHz	8 MHz	8 MHz	8 MHz	8 MHz	5 MHz	5 MHz
Maximum supply voltage	-	5.5 V	-	5.25 V	5.25 V	5.5 V	5.25 V	5.5 V	5.5 V
Minimum supply voltage	-	4.5 V	-	4.75 V	4.75 V	4.5 V	4.75 V	4.5 V	4.5 V
Nominal supply voltage	-	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	-	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	-
Terminal location	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	-	15.24 mm	15.24 mm	15.24 mm	15.24 mm	-	15.24 mm	15.24 mm	-
Base Number Matches	-	1	1	1	1	1	1	1	-
Maximum operating temperature	-	-	85 °C	-	85 °C	125 °C	70 °C	70 °C	70 °C
Temperature level	-	-	INDUSTRIAL	-	INDUSTRIAL	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
