MM1Z2V0B - MM1Z39B
V
Z
:
2.0 to 39 V
P
D
:
500 mW

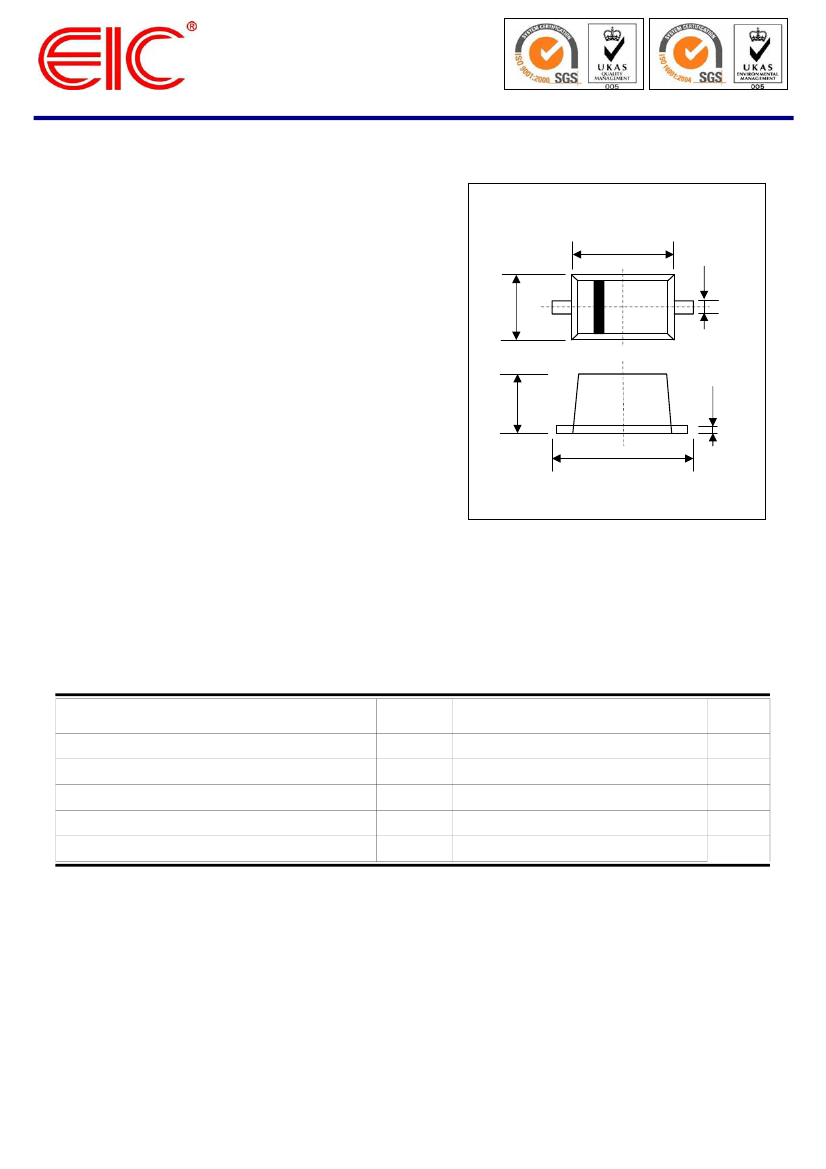

FEATURES :
* Total Power Dissipation 500 mW
* Small Plastic Package suitable for
surface mounted design
* Tolerance approximately ± 2%
* Wide Zener Reverse Voltage Range 2.0 V to 39 V
* Pb / RoHS Free
ZENER DIODES
SOD-123
2.7
2.6
0.6
0.5
1.65
1.55
3.9
3.7
Dimensions in millimeters
MECHANICAL DATA :
* Case : SOD-123
* Weight : 0.01 gram (approximately)
Maximum Ratings and Thermal Characteristics
Rating at 25
°
C ambient temperature unless otherwise specified.
Parameter
Total Power Dissipation
Maximum Forward Voltage at I
F
= 10 mA
Thermal Resistance Junction to Ambient Air
Junction Temperature Range
Storage Temperature Range
Symbol
P
tot
V
F
R
ӨJA
T
J
T
STG
Value
500
0.9
0.3
150
-55 to + 150
0.135
0.127
1.15
1.05
Unit
mW
V
K/mW
°C
°C
Page 1 of 2
Rev. 01 : August 20, 2007
Certificate TH97/10561QM
Certificate TW00/17276EM
ELECTRICAL CHARACTERISTICS
Zener Voltage
(1)
TYPE NO.
Marking
V
Z
@ I
ZT
Min.
MM1Z2V0B
MM1Z2V2B
MM1Z2V4B
MM1Z2V7B
MM1Z3V0B
MM1Z3V3B
MM1Z3V6B
MM1Z3V9B
MM1Z4V3B
MM1Z4V7B
MM1Z5V1B
MM1Z5V6B
MM1Z6V2B
MM1Z6V8B
MM1Z7V5B
MM1Z8V2B
MM1Z9V1B
MM1Z10B
MM1Z11B
MM1Z12B
MM1Z13B
MM1Z15B
MM1Z16B
MM1Z18B
MM1Z20B
MM1Z22B
MM1Z24B
MM1Z27B
MM1Z30B
MM1Z33B
MM1Z36B
MM1Z39B
Notes :
(1) V
Z
is tested with pulses (20ms).
(2) V
Z
is measured at I
Z
by given a very small A.C. current signal.
9A
9B
9C
9D
9E
9F
9H
9J
9K
9M
9N
9P
9R
9X
9Y
9Z
0A
0B
0C
0D
0E
0F
0H
0J
0K
0M
0N
0P
0R
0X
0Y
0Z
1.85
2.10
2.30
2.65
2.95
3.25
3.60
3.89
4.17
4.55
4.95
5.45
6.00
6.65
7.28
8.02
8.80
9.75
10.70
11.70
12.43
13.80
15.31
16.89
18.80
20.81
22.86
25.10
28.00
31.00
34.00
37.00
Nom.
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
(V)
Max.
2.20
2.40
2.65
2.95
3.25
3.55
3.845
4.16
4.43
4.80
5.20
5.73
6.33
7.00
7.70
8.45
9.30
10.30
11.28
12.30
14.00
15.56
17.14
19.08
21.14
23.25
25.66
28.90
32.00
35.00
38.00
41.00
Test
Current
I
ZT
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Dynamic Impedance
Z
ZT
(Ω)
100
100
100
110
120
130
130
130
130
130
130
80
50
30
30
30
30
30
30
35
35
40
40
45
50
55
60
70
80
80
90
100
@ I
ZT
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
2
2
2
2
2
(2)
Max. Reverse
Leakage Current
I
R
(μA)
120
120
120
120
50
20
10
5
5
2
2
1
1
0.5
0.5
0.5
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
2.0
@ V
R
(V)
0.5
0.7
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.5
2.5
3.0
3.5
4.0
5.0
6.0
7.0
8.0
9.0
10
11
12
13
15
17
19
21
23
25
27
30
Temp. Coefficient
of Zener Voltage
TK
VZ
(%/K)
Min.
-0.09
-0.09
-0.09
-0.09
-0.08
-0.08
-0.08
-0.08
-0.06
-0.05
-0.02
-0.05
0.03
0.03
0.03
0.03
0.03
0.03
0.03
0.03
0.03
0.03
0.03
0.03
0.03
0.04
0.04
0.04
0.04
0.04
0.04
0.04
Max.
-0.06
-0.06
-0.06
-0.06
-0.05
-0.05
-0.05
-0.05
-0.03
+0.02
+0.02
+0.05
0.06
0.07
0.07
0.08
0.09
0.10
0.11
0.11
0.11
0.11
0.11
0.11
0.11
0.12
0.12
0.12
0.12
0.12
0.12
0.12
Page 2 of 2
Rev. 01 : August 20, 2007
