P6KE6.8CS SERIES
V
BR
: 6.8 - 440 Volts
P
PK
: 600 Watts
FEATURES :
* 600W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less
then 1.0 ps from 0 volt to V
BR(min.)
* Typical I
R
less then 1µA above 10V
* Pb / RoHS Free
BIDIRECTIONAL TRANSIENT
VOLTAGE SUPPRESSOR
D2
0.161 (4.10)
0.154 (3.90)
1.00 (25.4)
MIN.
0.284 (7.20)
0.268 (6.84)
0.034 (0.86)
0.028 (0.71)
1.00 (25.4)
MIN.
MECHANICAL DATA
* Case : D2 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
method 208 guaranteed
* Mounting position : Any
* Weight : 0.465 gram
Dimensions in inches and ( millimeters )
DEVICES FOR UNIPOLAR APPLICATIONS
For uni-directional without "C"
Electrical characteristics apply in both directions
MAXIMUM RATINGS
Rating at 25
°
C ambient temperature unless otherwise specified.
Rating
Peak Power Dissipation at Ta = 25
°C,
Tp=1ms (Note1)
Steady State Power Dissipation at T
L
= 75
°C
Lead Lengths 0.375", (9.5mm) (Note 2)
Operating and Storage Temperature Range
Symbol
P
PK
P
D
T
J
, T
STG
Value
Minimum 600
5.0
- 65 to + 175
Unit
W
W
°C
Note :
(1) Non-repetitive Current pulse, per Fig. 5 and derated above Ta = 25
°C
per Fig. 1
(2) Mounted on Copper Leaf area of 1.57 in
2
(40mm
2
).
Page 1 of 4
Rev. 04 : March 25, 2005
ELECTRICAL CHARACTERISTICS
Rating at 25
°
C ambient temperature unless otherwise specified
Breakdown Voltage @ It
( Note 1 )
W orking Peak
Reverse
Voltage
V
RWM
(V)
5.50
5.80
6.05
6.40
6.63
7.02
7.37
7.78
8.10
8.55
8.92
9.40
9.72
10.2
10.5
11.1
12.1
12.8
12.9
13.6
14.5
15.3
16.2
17.1
17.8
18.8
19.4
20.5
21.8
23.1
24.3
25.6
26.8
28.2
29.1
30.8
31.6
33.3
34.8
36.8
38.1
40.2
41.3
43.6
45.4
47.8
Maximum
Reverse Leakage
@ V
RWM
I
R
(µA)
2000
2000
1000
1000
400
400
300
300
150
150
150
150
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
Maximum
Reverse
Current
I
RSM
(A)
55.5
57.0
51.0
53.0
48.0
50.0
44.0
45.0
40.0
41.0
37.0
38.0
35.0
36.0
32.0
33.0
27.0
28.0
26.0
27.0
23.0
24.0
21.0
22.0
19.0
20.0
17.0
18.0
15.0
16.0
14.0
14.4
12.6
13.2
11.6
12.0
10.6
11.2
9.6
10.1
8.9
9.3
8.2
8.6
7.4
7.8
Maximum
Clamping
Voltage @ I
RSM
V
RSM
(V)
10.8
10.5
11.7
11.3
12.5
12.1
13.8
13.4
15.0
14.5
16.2
15.6
17.3
16.7
19.0
18.2
22.0
21.2
23.5
22.5
26.5
25.2
29.1
27.7
31.9
30.6
34.7
33.2
39.1
37.5
43.5
41.4
47.7
45.7
52.0
49.9
56.4
53.9
61.9
59.3
67.8
64.8
73.5
70.1
80.5
77.0
Maximum
Temperature
Co-efficient
of V
BR
(% /
°
C)
0.057
0.057
0.061
0.061
0.065
0.065
0.068
0.068
0.073
0.073
0.075
0.075
0.078
0.078
0.081
0.081
0.084
0.084
0.086
0.086
0.088
0.088
0.090
0.090
0.092
0.092
0.094
0.094
0.096
0.096
0.097
0.097
0.098
0.098
0.099
0.099
0.100
0.100
0.101
0.101
0.101
0.101
0.102
0.102
0.103
0.103
TYPE
V
BR
(V)
Min.
P6KE6.8CS
P6KE6.8CAS
P6KE7.5CS
P6KE7.5CAS
P6KE8.2CS
P6KE8.2CAS
P6KE9.1CS
P6KE9.1CAS
P6KE10CS
P6KE10CAS
P6KE11CS
P6KE11CAS
P6KE12CS
P6KE12CAS
P6KE13CS
P6KE13CAS
P6KE15CS
P6KE15CAS
P6KE16CS
P6KE16CAS
P6KE18CS
P6KE18CAS
P6KE20CS
P6KE20CAS
P6KE22CS
P6KE22CAS
P6KE24CS
P6KE24CAS
P6KE27CS
P6KE27CAS
P6KE30CS
P6KE30CAS
P6KE33CS
P6KE33CAS
P6KE36CS
P6KE36CAS
P6KE39CS
P6KE39CAS
P6KE43CS
P6KE43CAS
P6KE47CS
P6KE47CAS
P6KE51CS
P6KE51CAS
P6KE56CS
P6KE56CAS
6.12
6.45
6.75
7.13
7.38
7.79
8.19
8.65
9.00
9.50
9.90
10.5
10.8
11.4
11.7
12.4
13.5
14.3
14.4
15.2
16.2
17.1
18.0
19.0
19.8
20.9
21.6
22.8
24.3
25.7
27.0
28.5
29.7
31.4
32.4
34.2
35.1
37.1
38.7
40.9
42.3
44.7
45.9
48.5
50.4
53.2
Max.
7.48
7.14
8.25
7.88
9.02
8.61
10.0
9.55
11.0
10.5
12.1
11.6
13.2
12.6
14.3
13.7
16.5
15.8
17.6
16.8
19.8
18.9
22.0
21.0
24.2
23.1
26.4
25.2
29.7
28.4
33.0
31.5
36.3
34.7
39.6
37.8
42.9
41.0
47.3
45.2
51.7
49.4
56.1
53.6
61.6
58.8
It
(mA)
10
10
10
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Page 2 of 4
Rev. 04 : March 25, 2005
ELECTRICAL CHARACTERISTICS
Rating at 25
°
C ambient temperature unless otherwise specified
Breakdown Voltage @ It
( Note 1 )
W orking Peak
Reverse
Voltage
V
RWM
(V)
Maximum
Reverse Leakage
@ V
RWM
I
R
(µA)
Maximum
Reverse
Current
I
RSM
(A)
Maximum
Clamping
Voltage @ I
RSM
V
RSM
(V)
Maximum
Temperature
Co-efficient
of V
BR
(% /
°
C)
TYPE
V
BR
(V)
Min.
Max.
It
(mA)
P6KE62CS
P6KE62CAS
P6KE68CS
P6KE68CAS
P6KE75CS
P6KE75CAS
P6KE82CS
P6KE82CAS
P6KE91CS
P6KE91CAS
P6KE100CS
P6KE100CAS
P6KE110CS
P6KE110CAS
P6KE120CS
P6KE120CAS
P6KE130CS
P6KE130CAS
P6KE150CS
P6KE150CAS
P6KE160CS
P6KE160CAS
P6KE170CS
P6KE170CAS
P6KE180CS
P6KE180CAS
P6KE200CS
P6KE200CAS
P6KE220CS
P6KE220CAS
P6KE250CS
P6KE250CAS
P6KE300CS
P6KE300CAS
P6KE350CS
P6KE350CAS
P6KE400CS
P6KE400CAS
P6KE440CS
P6KE440CAS
55.8
58.9
61.2
64.6
67.5
71.3
73.8
77.9
81.9
86.5
90.0
95.0
99.0
105
108
114
117
124
135
143
144
152
153
162
162
171
180
190
198
209
225
237
270
285
315
332
360
380
396
418
68.2
65.1
74.8
71.4
82.5
78.8
90.2
86.1
100
95.5
110
105
121
116
132
126
143
137
165
158
176
168
187
179
198
189
220
210
242
231
275
263
330
315
385
368
440
420
484
462
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
50.2
53.0
55.1
58.1
60.7
64.1
66.4
70.1
73.7
77.8
81.0
85.5
89.2
94.0
97.2
102
106
111
121
128
130
136
138
145
146
154
162
171
175
185
202
214
243
256
284
300
324
342
356
376
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
6.8
7.1
6.1
6.5
5.5
5.8
5.1
5.3
4.5
4.8
4.2
4.4
3.8
4.0
3.5
3.6
3.2
3.3
2.8
2.9
2.6
2.7
2.5
2.6
2.3
2.4
2.1
2.2
1.75
1.83
1.67
1.75
1.40
1.45
1.20
1.25
1.05
1.10
0.95
1.00
89.0
85.0
98.0
92.0
108
103
118
113
131
125
144
137
158
152
173
165
187
179
215
207
230
219
244
234
258
246
287
274
344
328
360
344
430
414
504
482
574
548
631
602
0.104
0.104
0.104
0.104
0.105
0.105
0.105
0.105
0.106
0.106
0.106
0.106
0.107
0.107
0.107
0.107
0.107
0.107
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.110
0.110
0.110
0.110
0.110
0.110
0.110
0.110
0.110
0.110
Note:
( 1 ) V
BR
measured after It applied for 300
µs.,
It = square wave pulse or equivalent.
( 2 ) V
F
= 3.5 Vmax., I
F
= 50 Amps. ( 6.8 Volts thru 91 Volts )
V
F
= 5.0 Vmax., I
F
= 50 Amps. ( 100 Volts thru 440 Volts ) per 1/2 square or equivalent sine wave.
PW = 8.3 ms, duty cycle = 4 pulses per minute maximum.
Page 3 of 4
Rev. 04 : March 25, 2005

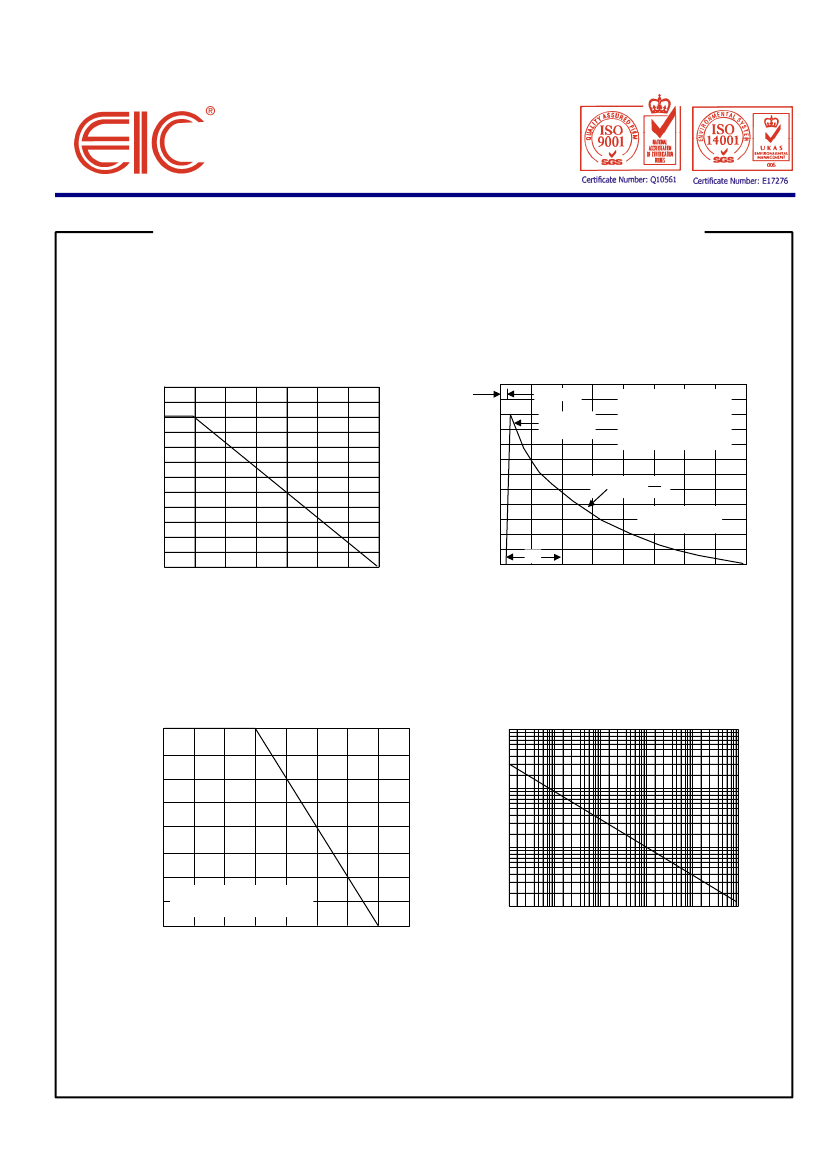

RATING AND CHARACTERISTIC CURVES ( P6KE6.8CS SERIES )
FIG.1 - PULSE DERATING CURVE
120
FIG.2 - PULSE WAVEFORM
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
PEAK PULSE CURRENT - % I
RMS
Tr = 10µs
100
Peak Value
I
RSM
100
80
T
J
=25
°C
Pulse Width (tp) is defined
as that point where the peak
current decays to 50%
of I
RSM
60
50
Half Value - I
RSM
2
10X1000 Waveform
as defined by R.E.A.
40
20
0
0
25
50
75
100
125
150
175
tp
0
0
1.0
2.0
3.0
4.0
Ta, AMBIENT TEMPERATURE, (
°
C)
T, TIME(ms)
FIG.3 - STEADY STATE POWER DERATING
P
D
, STEADY STATE POWER DISSIPATION
(WATTS)
5.00
100
FIG.4 - PULSE RATING CURVE
3.75
Pp,PEAK POWER (kW)
Single Phase Half Wave
60 Hz Resistive or Inductive load
10
2.50
1.0
1.25
0.1
0.1µs
125
150
175
200
1.0µs
10µs
100µs
1.0ms
10ms
0
0
25
50
75
100
tp, PULSE WIDTH
T
L
, LEAD TEMPERATURE (
°
C)
Page 4 of 4
Rev. 04 : March 25, 2005
