SKT240F08DT datasheet, PDF - EEWORLD Datasheet

SKT240F08DT: DescriptionSilicon Controlled Rectifier, 450A I(T)RMS, 240000mA I(T), 800V V(DRM), 800V V(RRM), 1 Element, TO-200AB; CategoryAnalog mixed-signal IC Trigger device; File Size314KB，6 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric View All

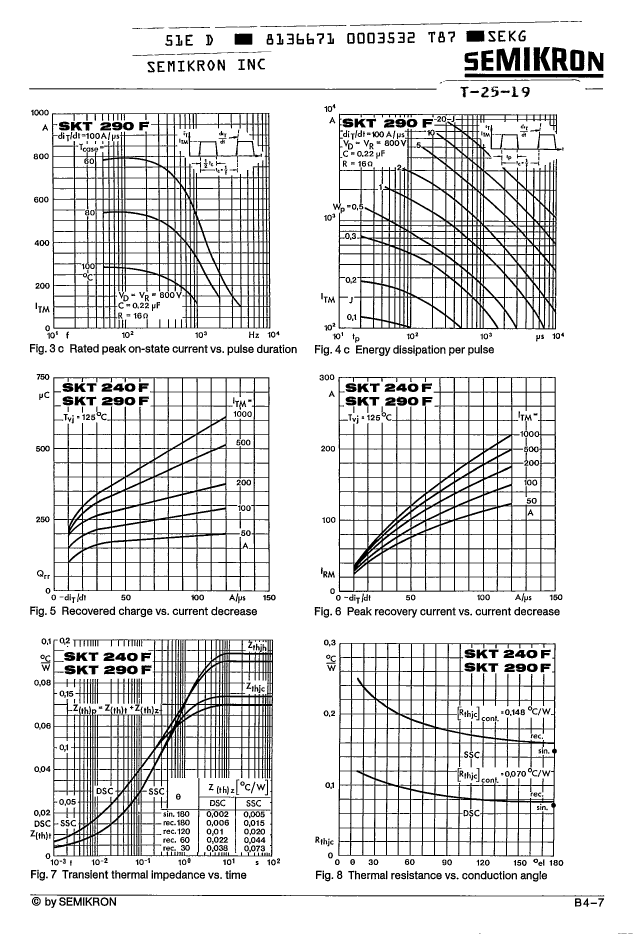

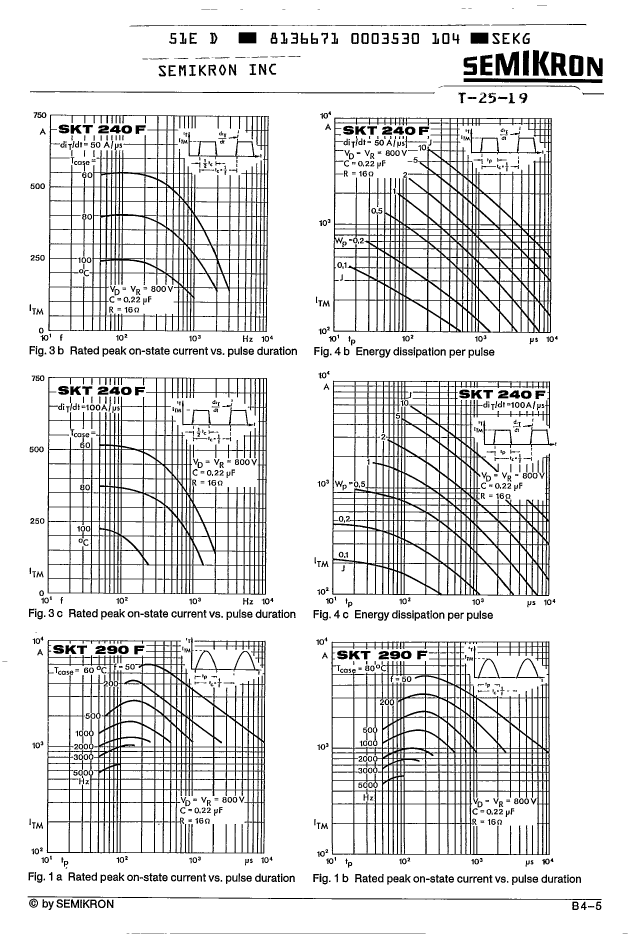

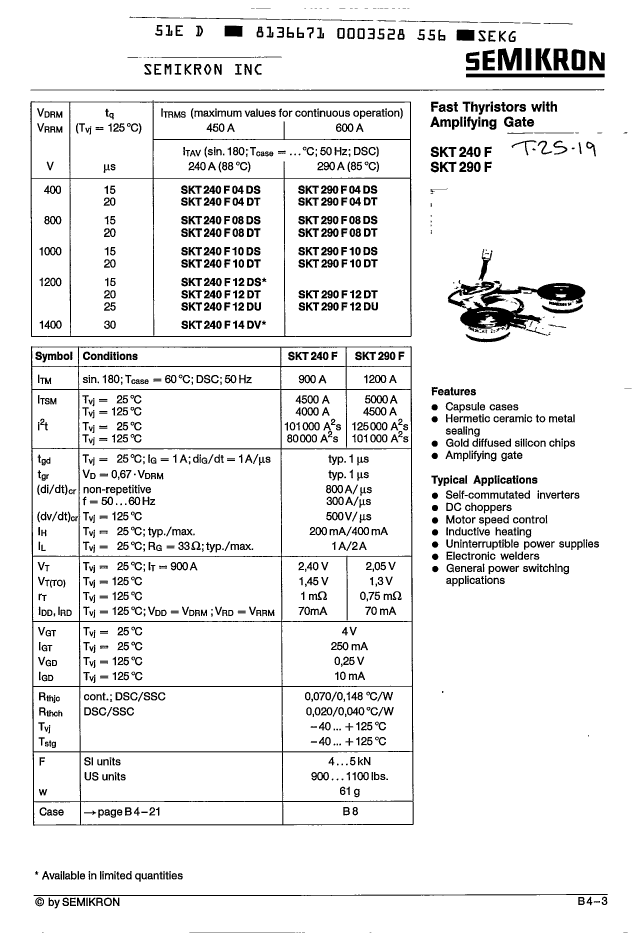

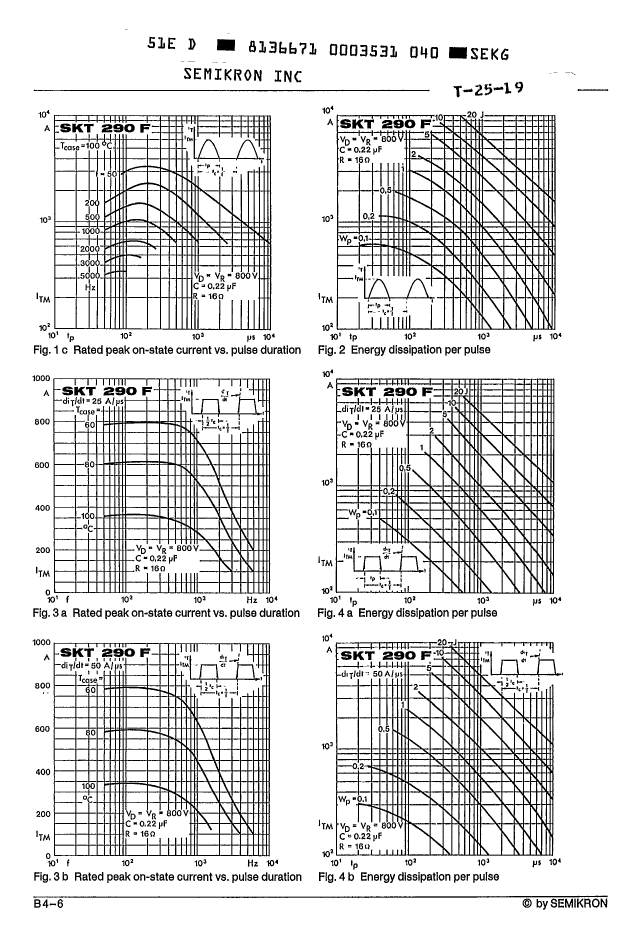

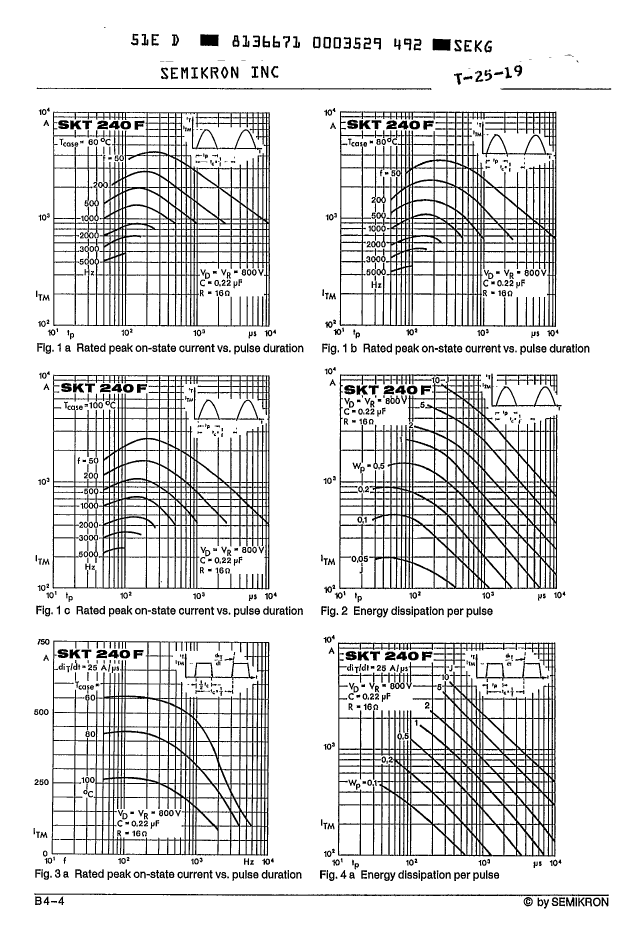

SKT240F08DT Overview

Silicon Controlled Rectifier, 450A I(T)RMS, 240000mA I(T), 800V V(DRM), 800V V(RRM), 1 Element, TO-200AB

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMIKRON
package instruction	DISK BUTTON, O-CEDB-N2
Reach Compliance Code	compliant
Other features	FAST
Nominal circuit commutation break time	20 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	250 mA
Maximum DC gate trigger voltage	4 V
Maximum holding current	400 mA
JEDEC-95 code	TO-200AB
JESD-30 code	O-CEDB-N2
JESD-609 code	e2
Maximum leakage current	70 mA
On-state non-repetitive peak current	4500 A
Number of components	1
Number of terminals	2
Maximum on-state current	240000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	450 A
Maximum repetitive peak off-state leakage current	70000 µA
Off-state repetitive peak voltage	800 V
Repeated peak reverse voltage	800 V
surface mount	YES
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	NO LEAD
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
