RD75F Overview

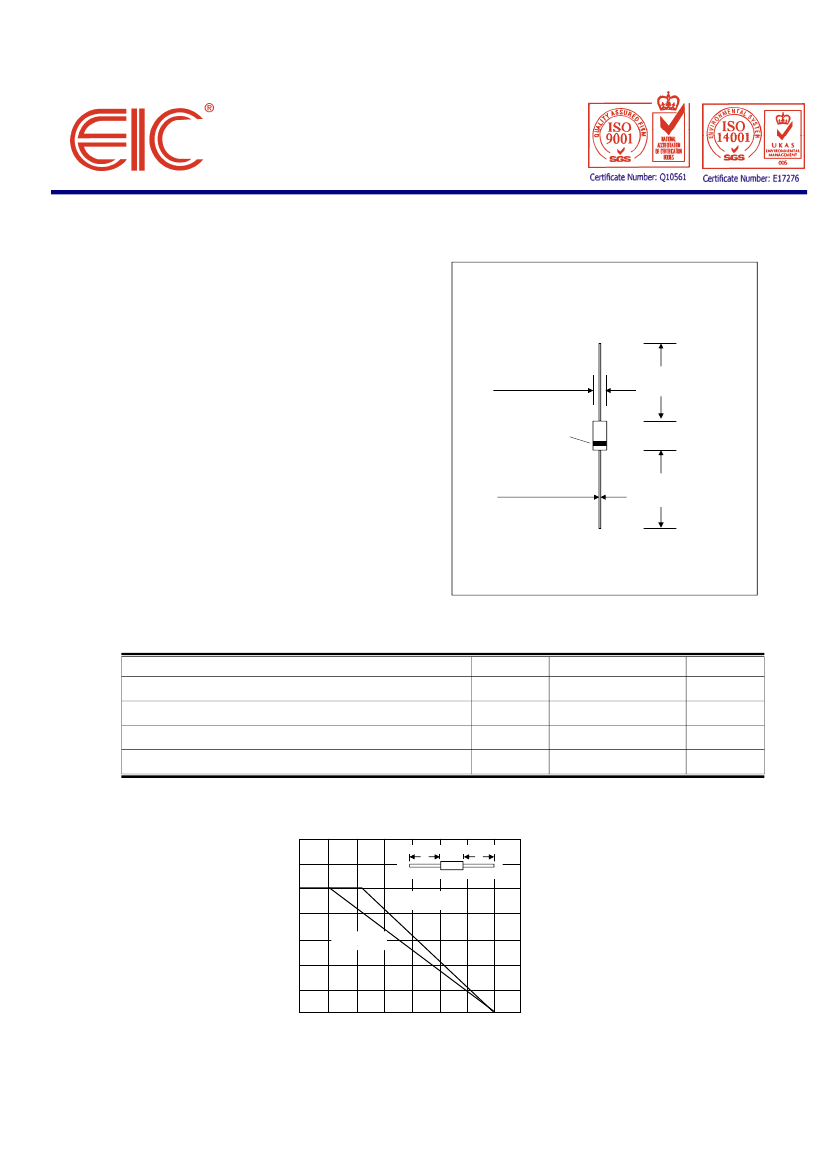

ZENER DIODES

RD2.0F ~ RD82F
V
Z
: 2.0 - 82 Volts
P
D
: 1 Watt
ZENER DIODES
DO-41 Glass
(DO-204AL)
0.102(2.6 )max.
FEATURES :
* Complete 2.0 to 82 Volts
* High peak reverse power dissipation
* High reliability
* Low leakage current
* Pb / RoHS Free
Cathode
Mark
1.00 (25.4)
min.
0.173 (4.4)
max.
0.034 (0.86)max.
1.00 (25.4)
min.
MECHANICAL DATA
Case:
DO-41 Glass Case
Weight:
approx. 0.35g
Dimensions in inches and ( millimeters )
MAXIMUM RATINGS
Rating at 25
°
C ambient temperature unless otherwise specified
Rating
Power Dissipation , See Fig. 1
Forward Current
Junction Temperature
Storage Temperature Range
Symbol
P
D
I
F
T
j
T
stg
Value
1.0
200
175
- 65 to + 175
Unit
W
mA
°C
°C
Fig. 1 Derating Curve
1.4
Power Dissipation , P
D
(mW)
1.2
1.0
L = 12mm
0.8
0.6
0.4
0.2
0
0
25
50
75
100 125
150 175 200
Ambient Temperture , Ta (
°
C)
L = 10mm
L
L
Page 1 of 3
Rev. 03 : October 7, 2005
