SP1148C datasheet, PDF - EEWORLD Datasheet

SP1148C: DescriptionD/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 20us Settling Time,; CategoryAnalog mixed-signal IC converter; File Size224KB，4 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

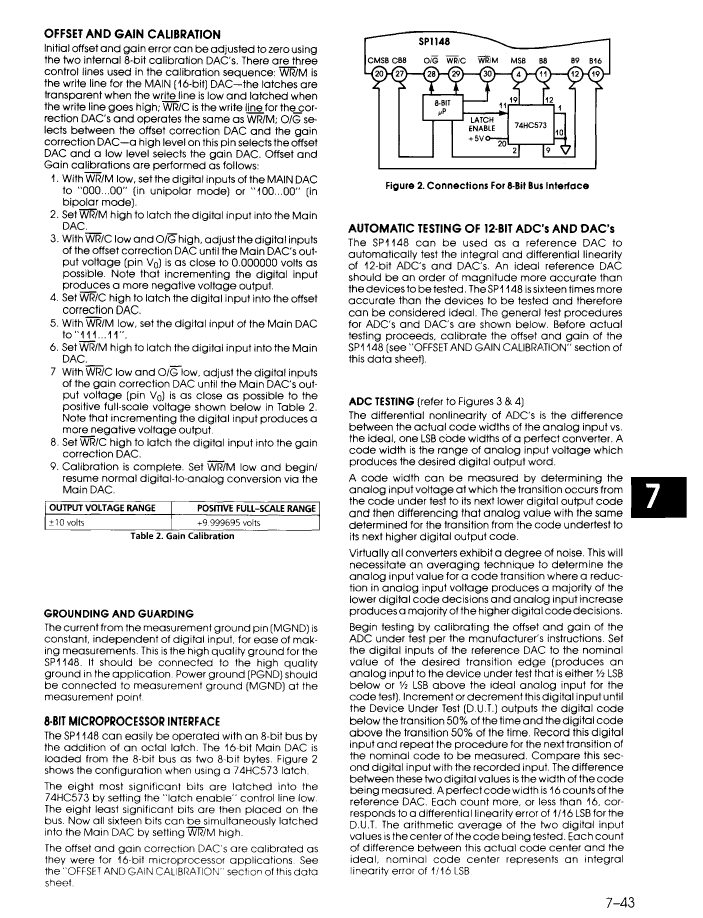

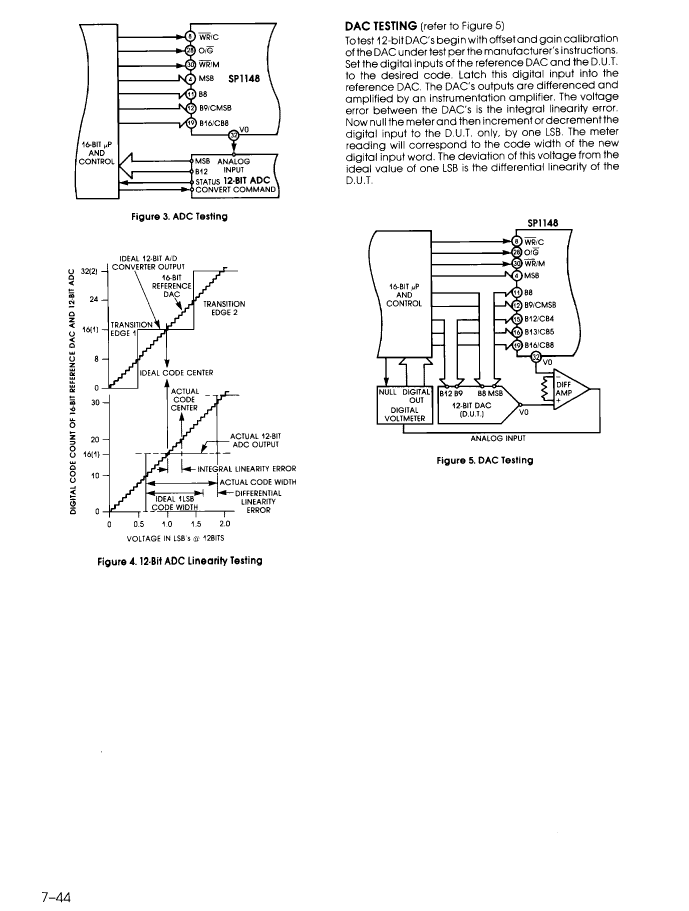

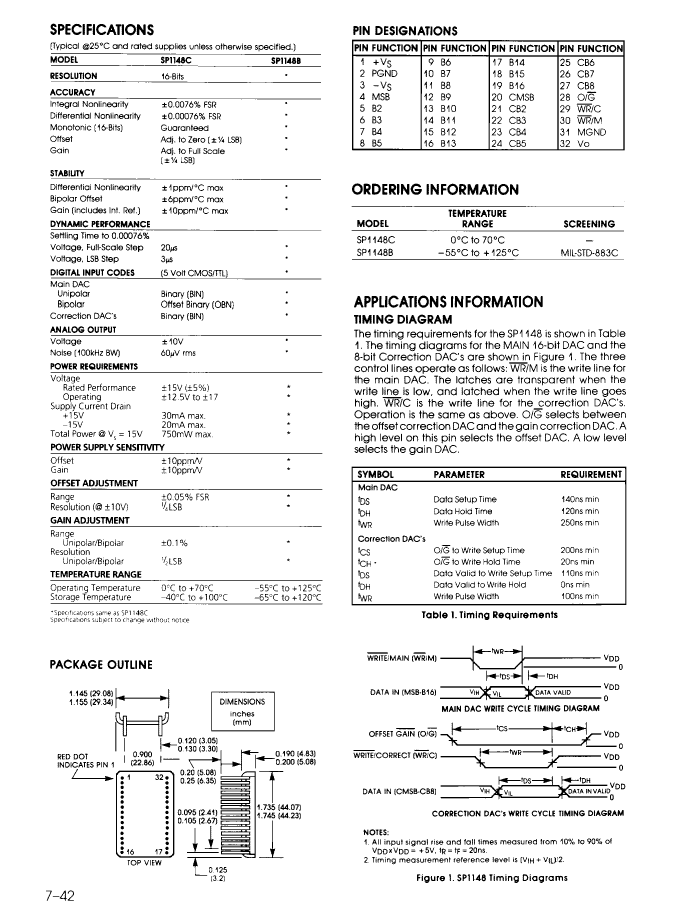

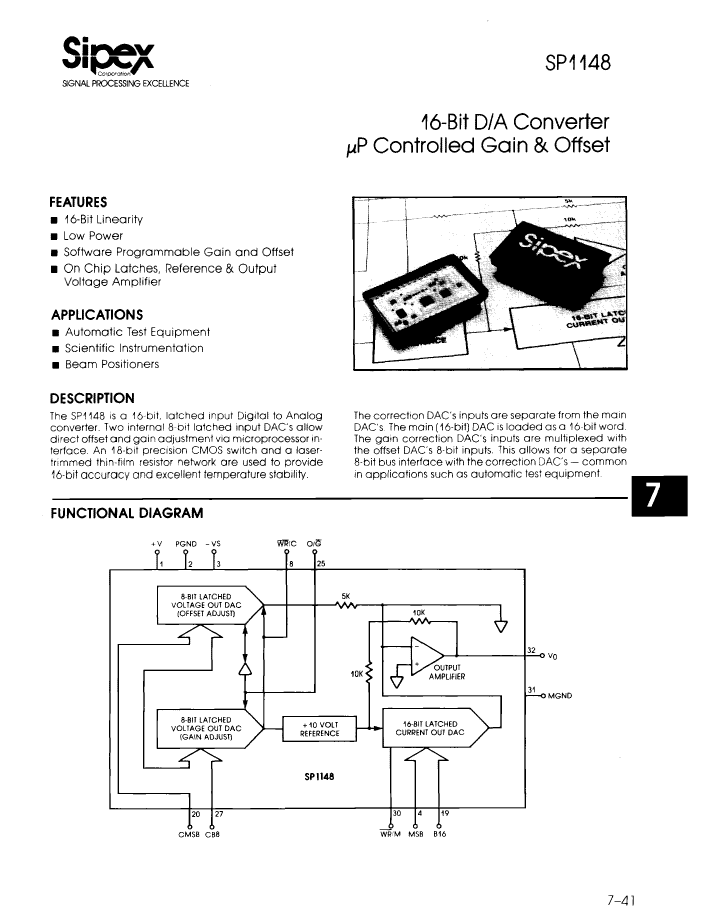

SP1148C Overview

D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 20us Settling Time,

Parameter Name	Attribute value
Maker	API Technologies
package instruction	DIP,
Reach Compliance Code	unknown
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY
Input format	PARALLEL, 8 BITS
JESD-30 code	R-XDIP-T32
length	44.15 mm
Nominal negative supply voltage	-15 V
Number of digits	16
Number of functions	1
Number of terminals	32
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
Nominal settling time (tstl)	20 µs
Nominal supply voltage	15 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	22.86 mm

	SP1148C
Description	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 20us Settling Time,
Maker	API Technologies
package instruction	DIP,
Reach Compliance Code	unknown
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY
Input format	PARALLEL, 8 BITS
JESD-30 code	R-XDIP-T32
length	44.15 mm
Nominal negative supply voltage	-15 V
Number of digits	16
Number of functions	1
Number of terminals	32
Maximum operating temperature	70 °C
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
Nominal settling time (tstl)	20 µs
Nominal supply voltage	15 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	22.86 mm
